Inspectable Dry Siphon
"MINI" model
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000011829 |

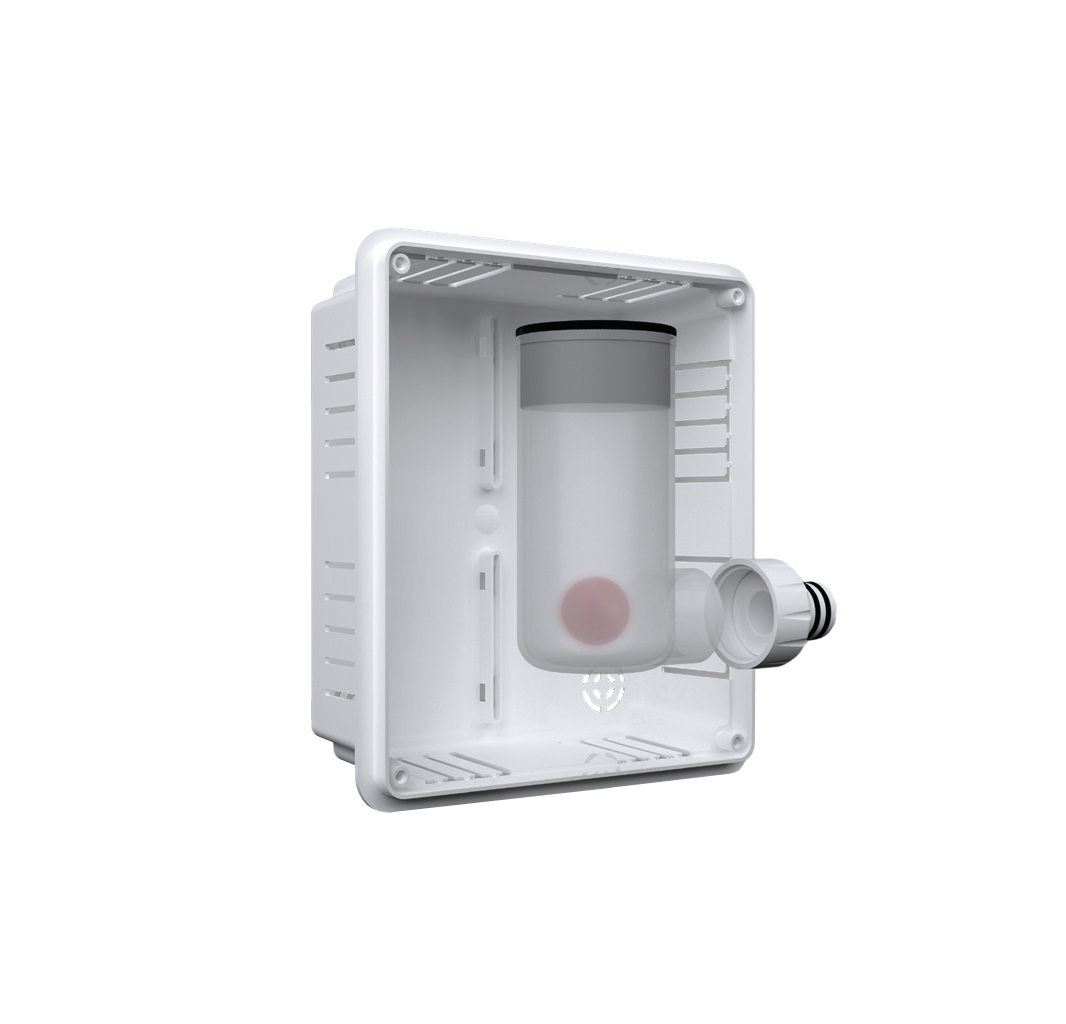

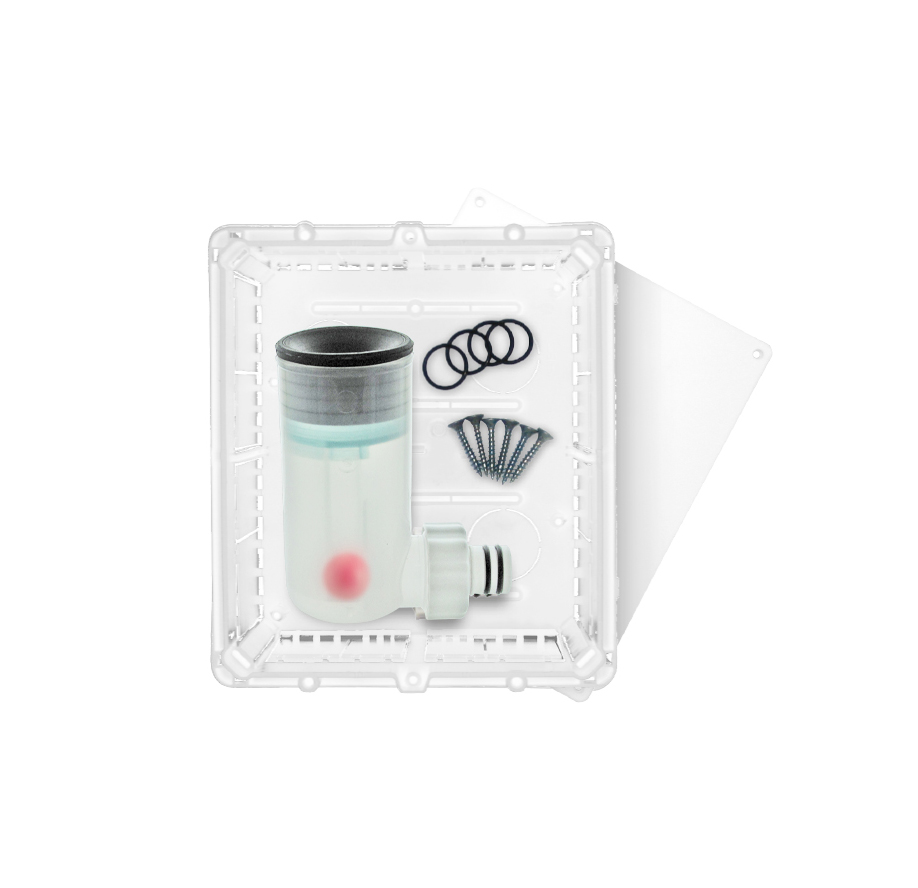

 "MINI" VERTICAL SIPHON KIT WITH BOX - 1 pcs. |
€24,10 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000011850 |

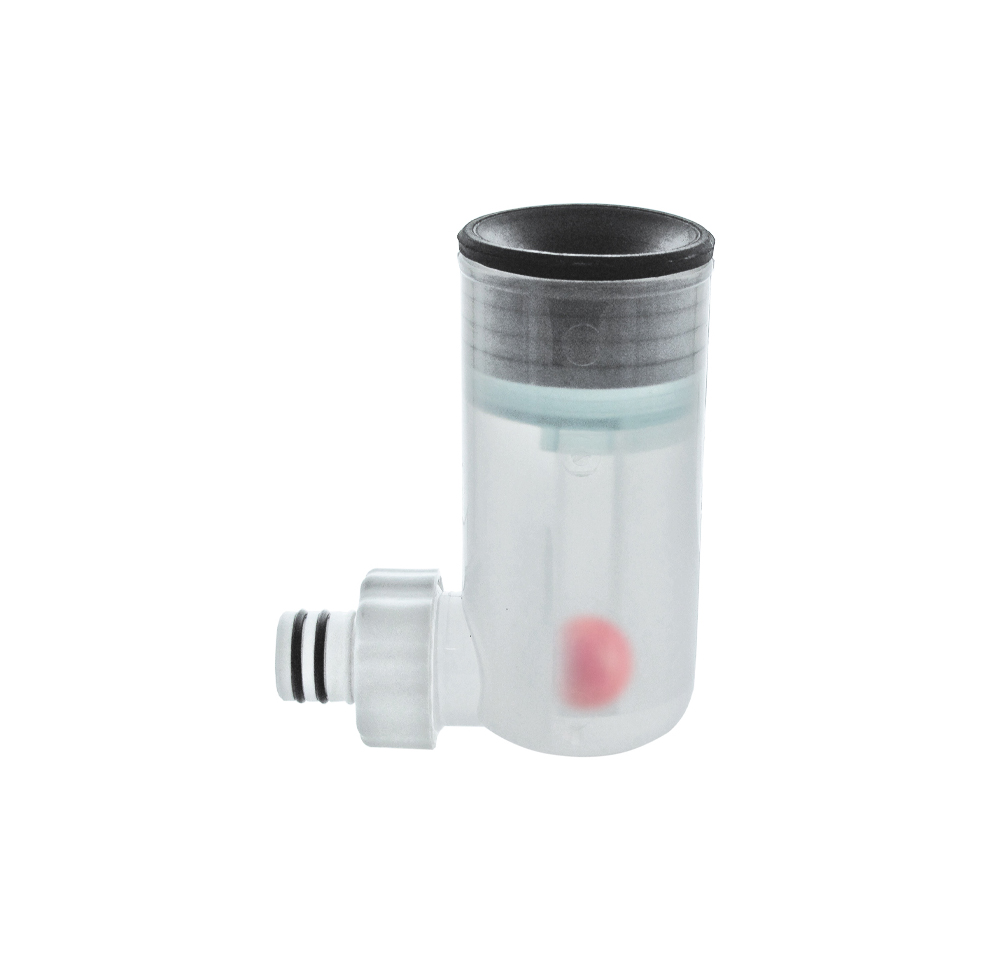

 VERTICAL SIPHON - 1 pcs. |
€29,40 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
Siphon for condensate drainage made of transparent material which allows inspection and verification of any anomalies in the system in the normal production of condensate.
Product features
- small dimensions

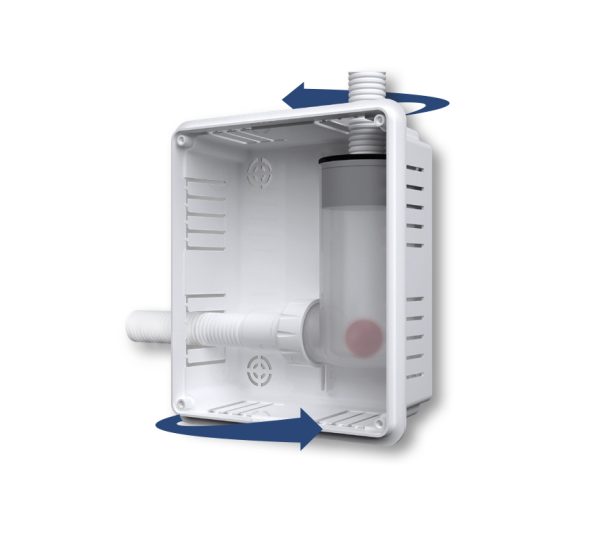

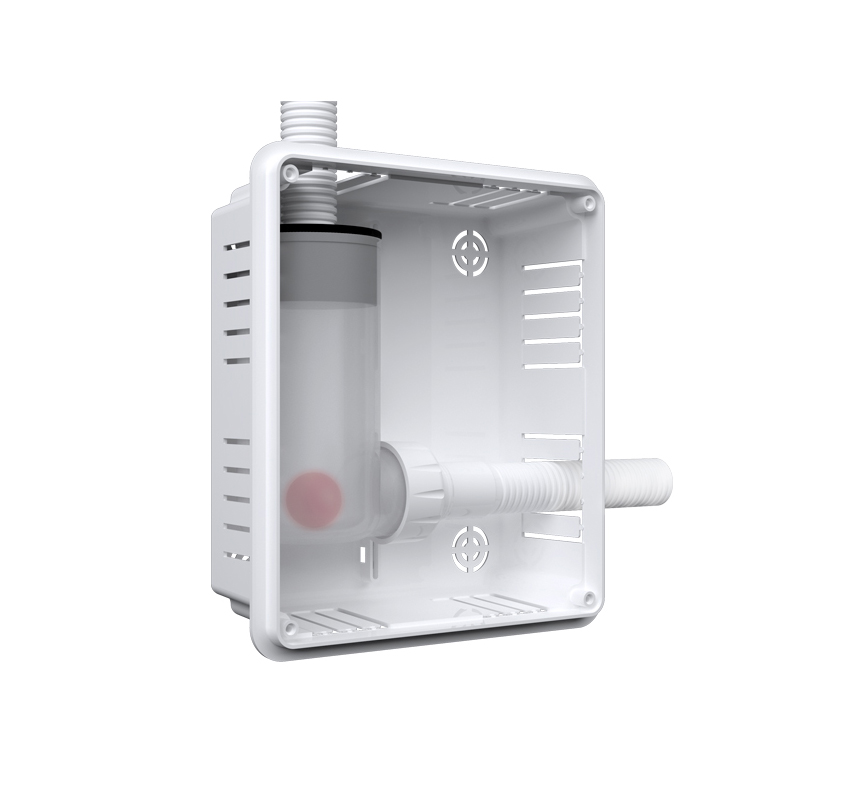

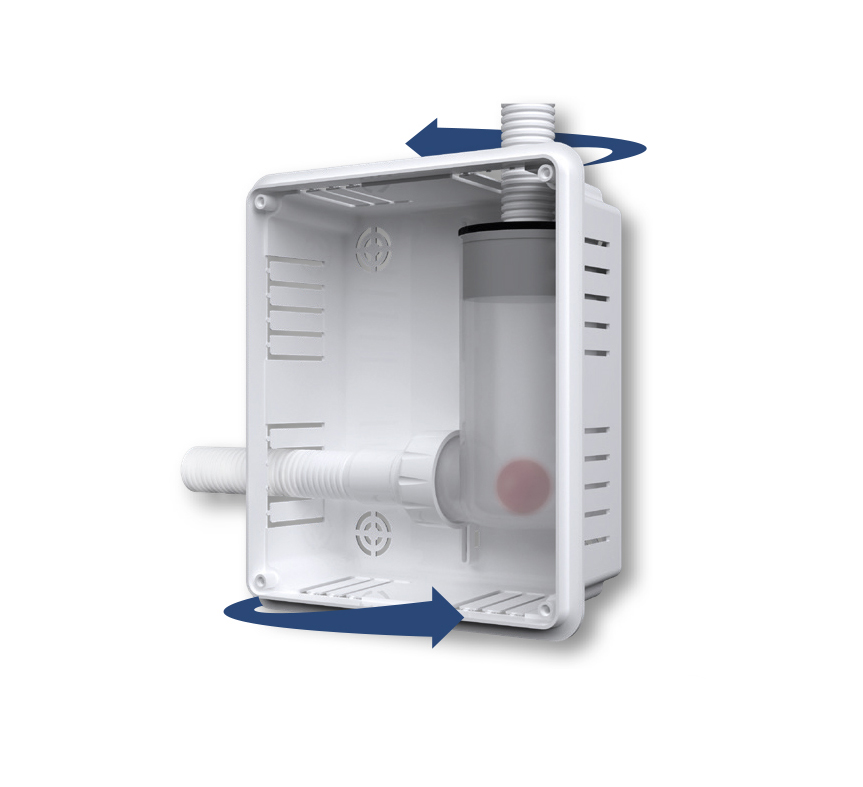

- possibility of installation on the right or left
- complete with sealing O-ring, technical gasket to avoid water leaks and Ø 16-20 mm connection
- available in version with and without box
Technical Features
| BOX DIMENSIONS | 174x154x58 mm (HxWxD) |
|---|---|
| SIPHON DIMENSIONS | 110x90x50 mm (HxWxD) |
| SIPHON DIAMETER | 20 mm |
| FLOW RATE | 100 l/h |
| BOX MATERIAL | PST |
| SIPHON MATERIAL | PP |
| HYDRAULIC CLOSING COLUMN | 70 mm |
| DISCHARGE OUTPUT | Ø 18/20 mm |
