Inspectable Dry Siphon
"DOUBLE" model
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000011832 |

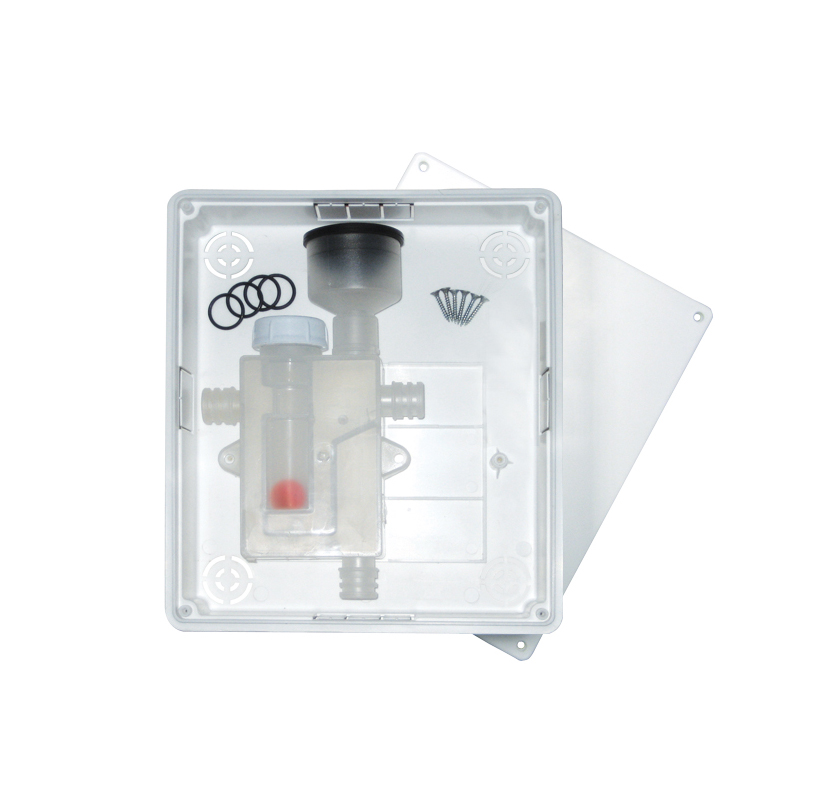

 "DOUBLE" VERTICAL SIPHON KIT WITH BOX - 1pcs. |
€39,80 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000011833 |

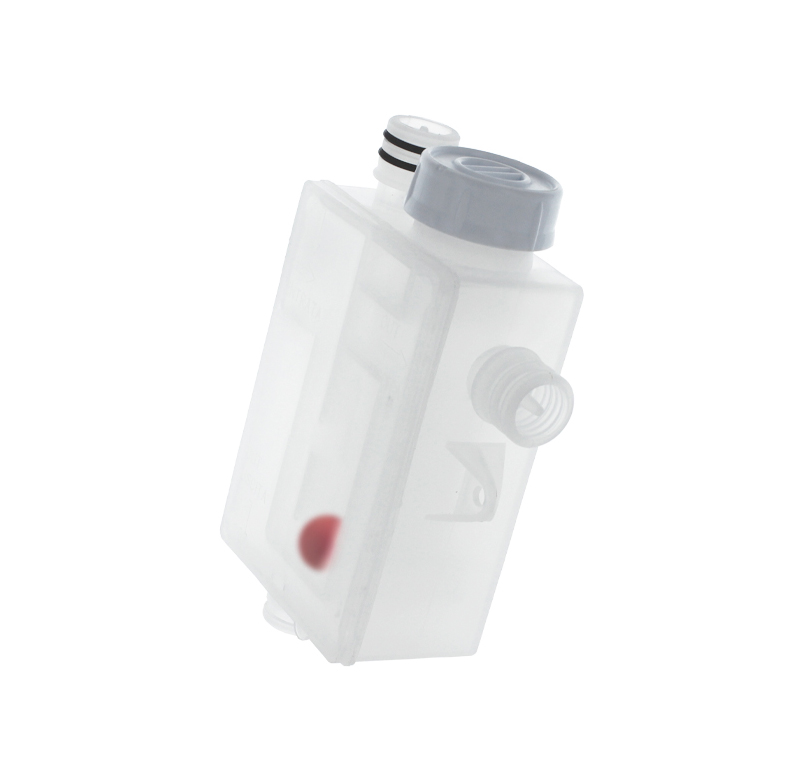

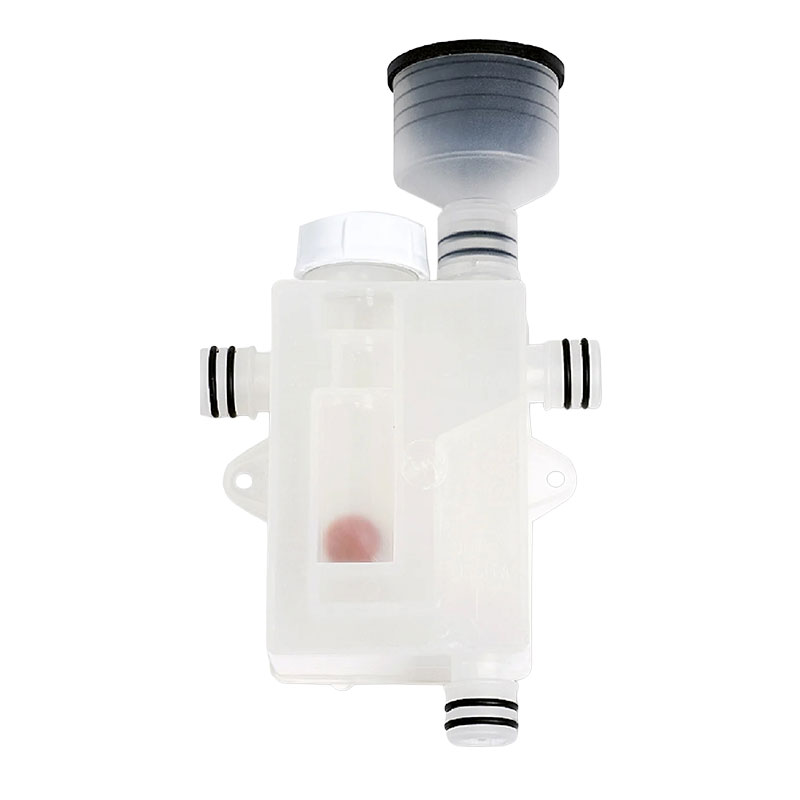

 VERTICAL SIPHON - 1 pcs. |
€24,80 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
0000011832A |

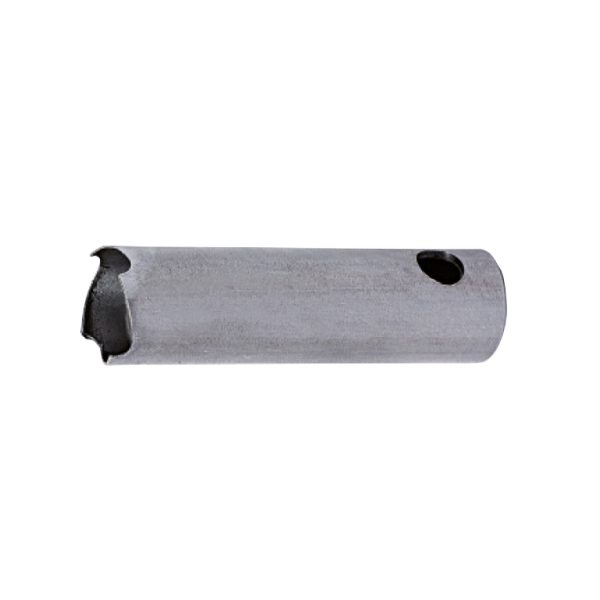

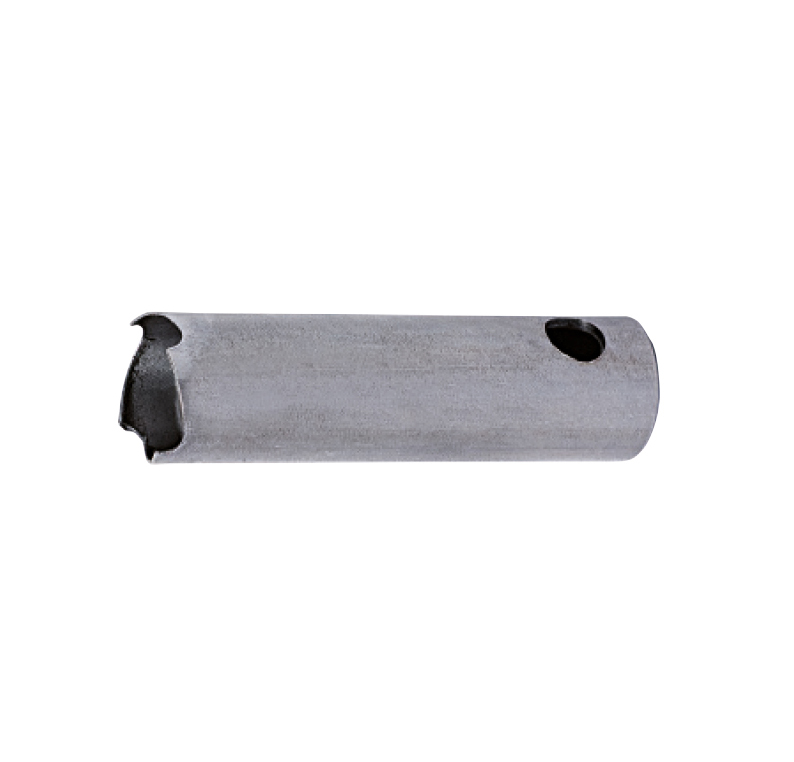

 HOLE OPENER TOOL FOR SIPHON - 1 pcs. |
€20,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
Vertical siphon for the condensate drain that prevents the formation of bad smells coming from the drainage pipe of air conditioning systems, thanks to the two horizontal/vertical inlets and outlets, its installation can be done both on the right and on the left regardless of the operation. Built in transparent material to allow a visual check of its operation and the regular production of condensation, the sealing o-rings prevent water leaks and the internal components are easily removable to allow periodic cleaning of the siphon.
The siphon only works vertically with the rubber fitting positioned at the top.
It can be supplied in the siphon only version (SKU 11833) or complete with box and cover (SKU 11832); a hole-opening tool is also available to facilitate installation operations (SKU 11832A).
Technical Features
| BOX SIZE | 204x239x57 mm |
|---|---|
| SIPHON DIAMETER | 20 mm |
| FLOW RATE | 100 l/h |
| BOX MATERIAL | PST |
| SIPHON MATERIAL | PP |
| HYDRAULIC CLOSING COLUMN | 70 mm |
| DRAIN OUTPUT | Ø 18/20 mm |
| SIPHON TOOL DIMENSIONS | 50x15x15 mm |
