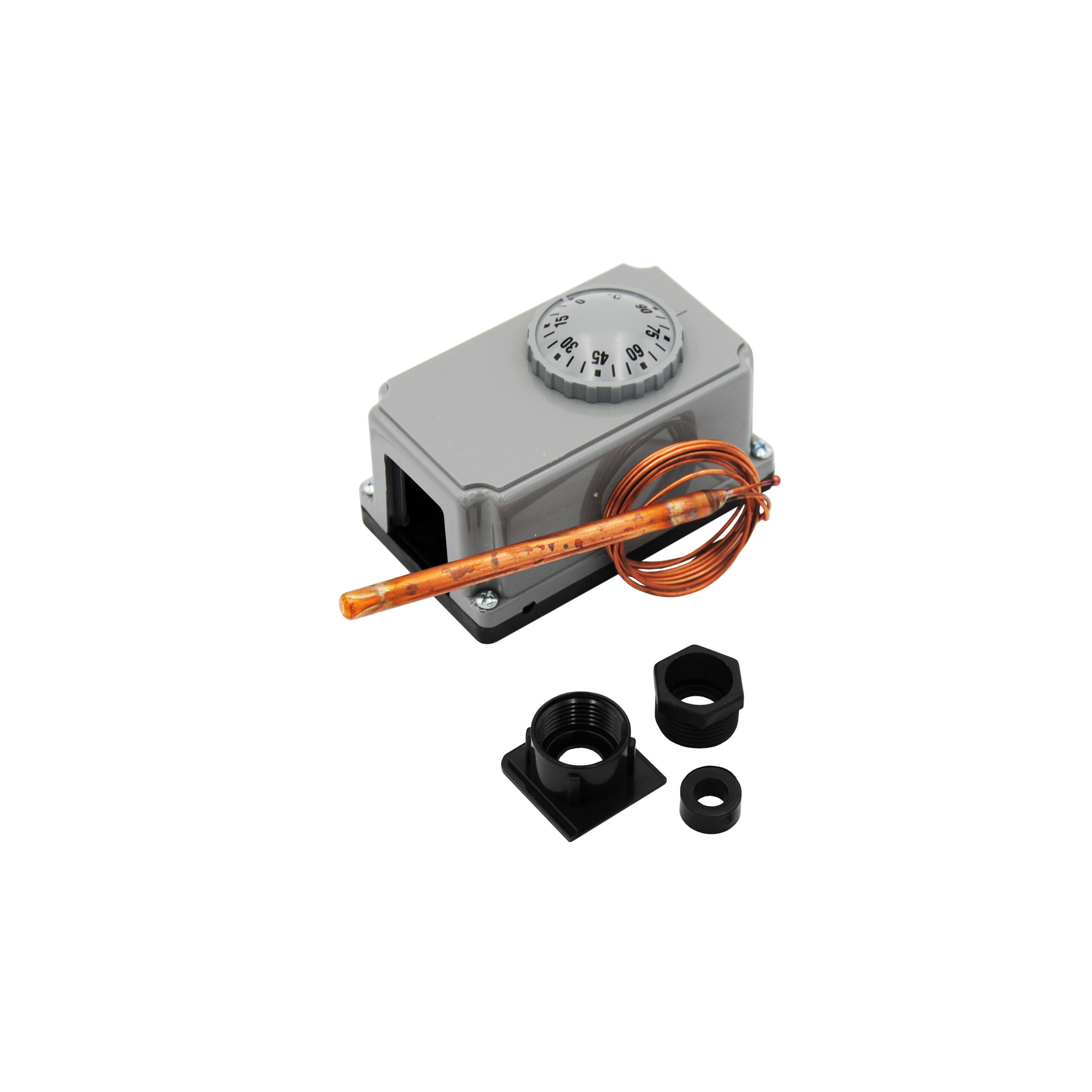

Immersion Thermostat with Capillary
Boxed with liquid expansion
CE, ENEC03, DIN, PED, EAC APPROVED
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000R03093 |
IMMERSION THERMOSTAT (INAIL) - L. 1000 mm |
€65,90 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
Boxed immersion thermostat with liquid expansion unipolar, with deviation contacts and complete with watertight protection pocket.
Technical Features
| CONTACTS | in deviation |
|---|---|
| ELECTRICAL CONTACT CAPACITY | 10 (2,5) A / 250 Vac |
| MAXIMUM HEAD TEMPERATURE | 80°C |
| MAXIMUM BULB TEMPERATURE | 125°C |
| REGULATION RANGE | 0°C ÷ 90°C |
| DEGREE OF PROTECTION | IP40 (not protected against the ingress of liquids, only protected against the ingress of solid objects larger than 1 mm) |
| THERMAL GRADIENT | 1°K/min |
| CAPILLARY LENGTH |
1000 mm |
You may also be interested in
-
Electronic Control Units for Fireplaces and Hydraulic Modules
Model WATER-SIMPLE and/or WATER-HD
2 products
view -

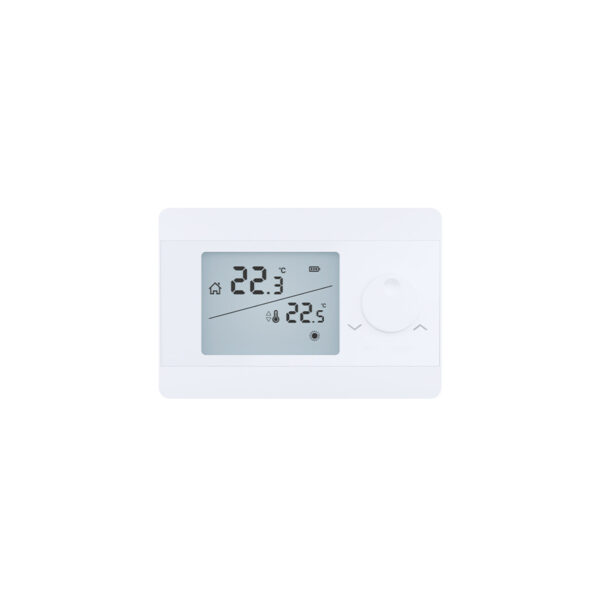

Electronic Daily Chronothermostat
