Horizontal Gas Taps
Model for LPG or Methane
COMPLIANT WITH EN 331 RULE
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000004201 |
HORIZONTAL TAP FOR LPG - 1/2" M |
€14,60 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000004208 |
HORIZONTAL TAP FOR LPG - 1/2" F |
€20,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000004209 |
HORIZONTAL TAP FOR METHANE - 1/2" F |
€17,15 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
0000004201A |
HORIZONTAL TAP FOR METHANE - 1/2" M |
€18,90 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

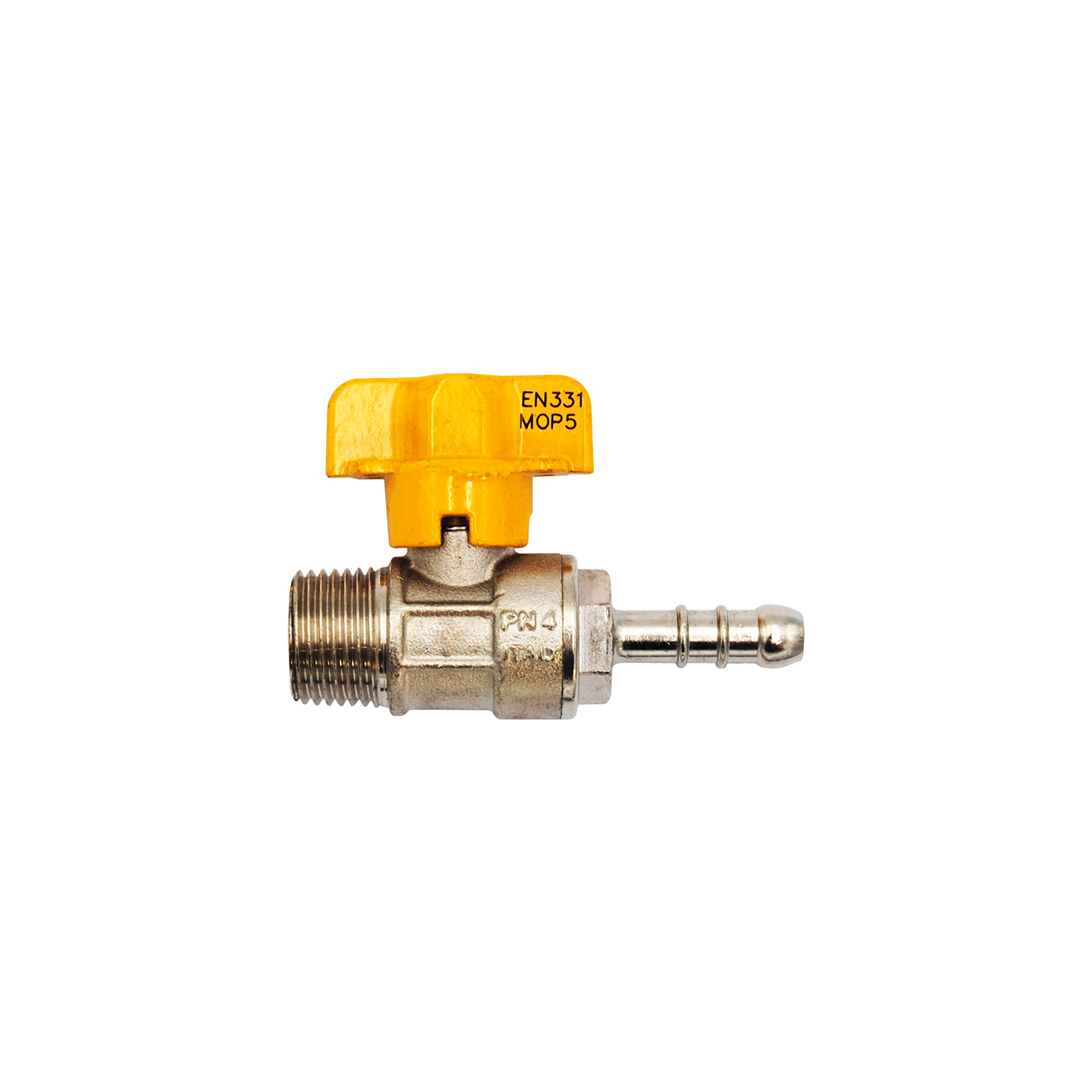

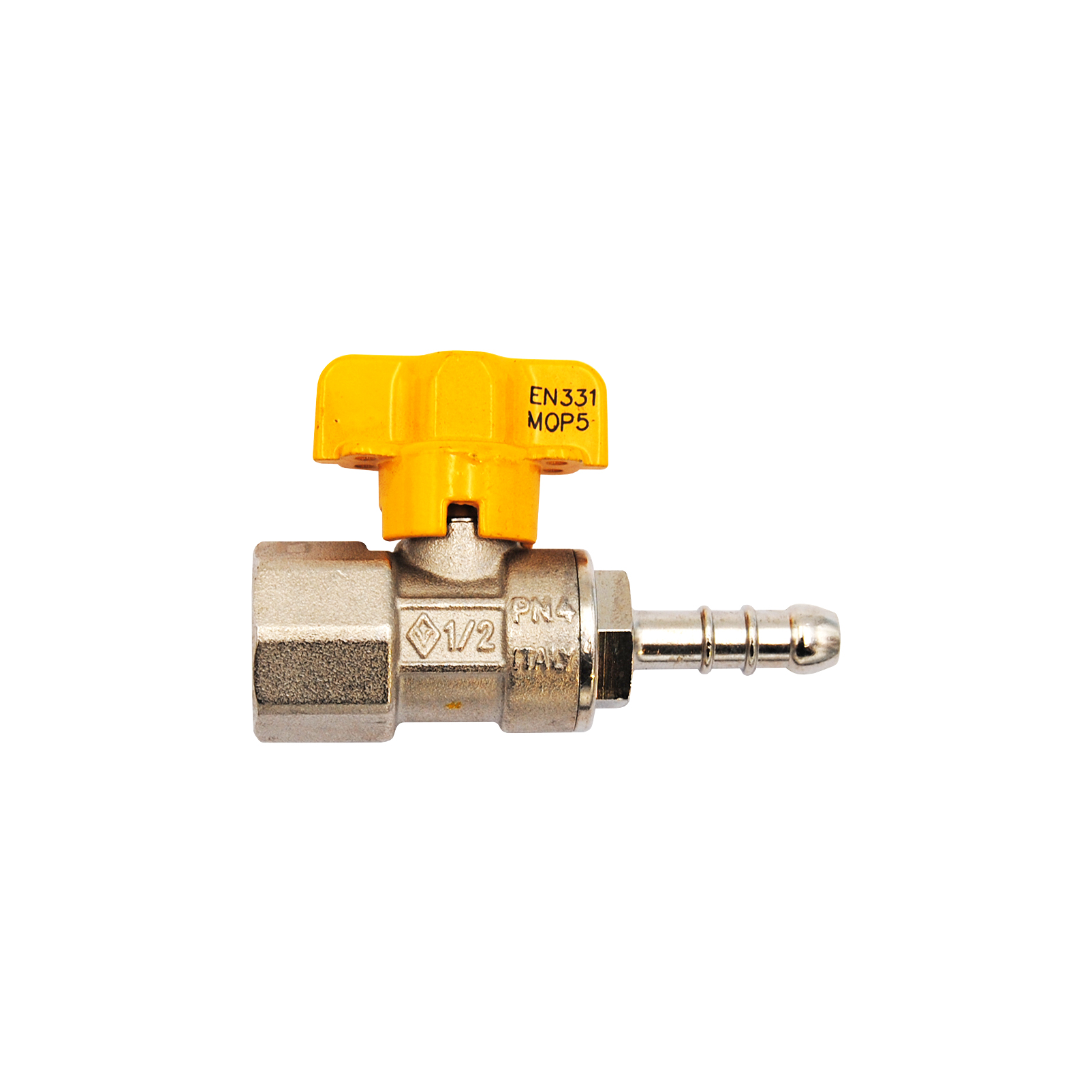

Horizontal taps for natural gas or LPG equipped with hose nozzle, available with male or female connection.

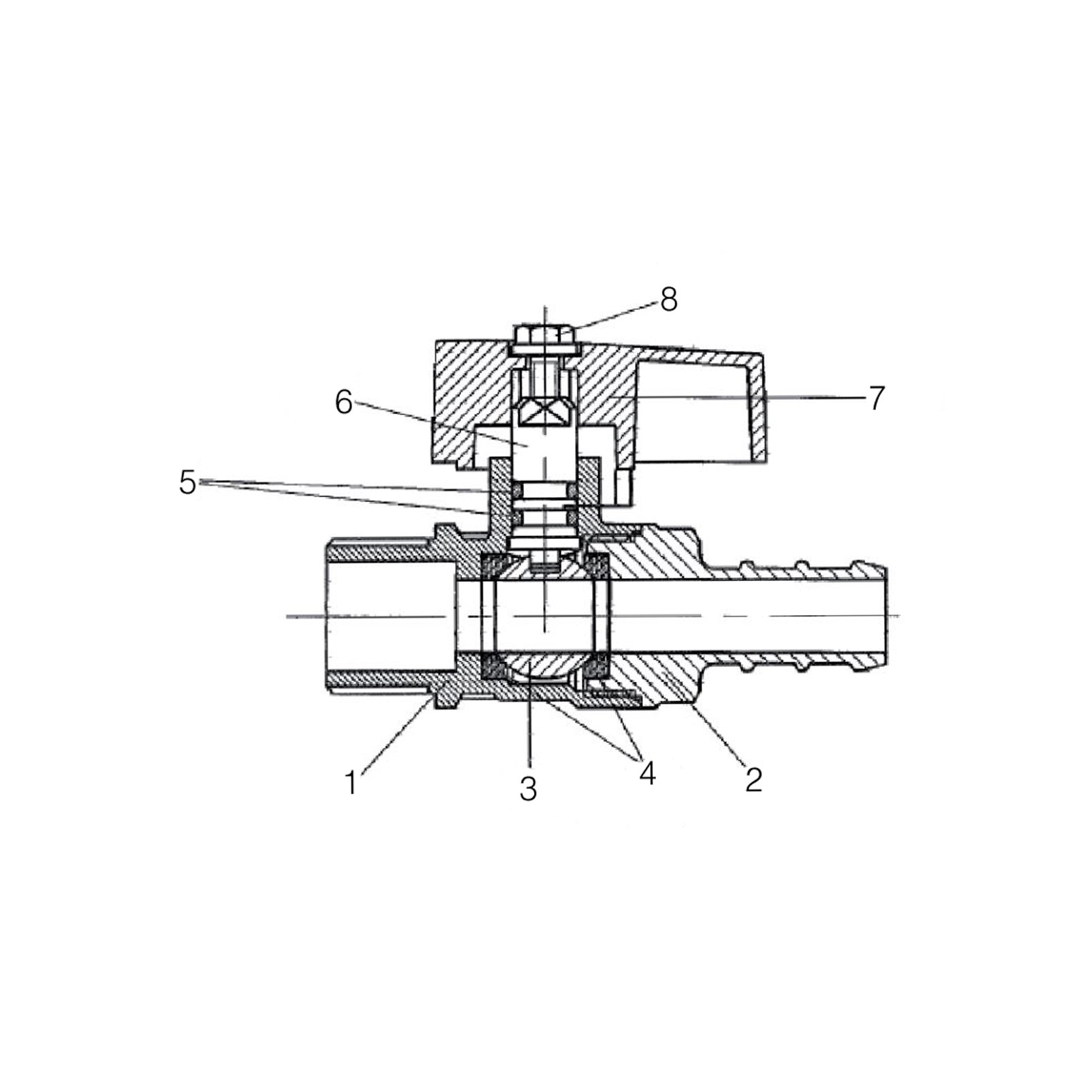

| TAP STRUCTURE (sku 4201 / 4201A) | ||
| 1 | BODY | nickel plated brass CW617N - UNI EN 12165/98 |
| 2 | SLEEVE | nickel plated brass CW617N - UNI EN 12165/98 |
| 3 | SEAT | PTFE |
| 4 | BALL | chrome plated brass CW614N - UNI EN 12164/98 |
| 5 | O-RING | NBR |
| 6 |
BEAM |
brass CW 614N - UNI EN 12164/98 |
| 7 |
HANDLE |
painted aluminum |
| 8 |
SCREW |
galvanized steel |

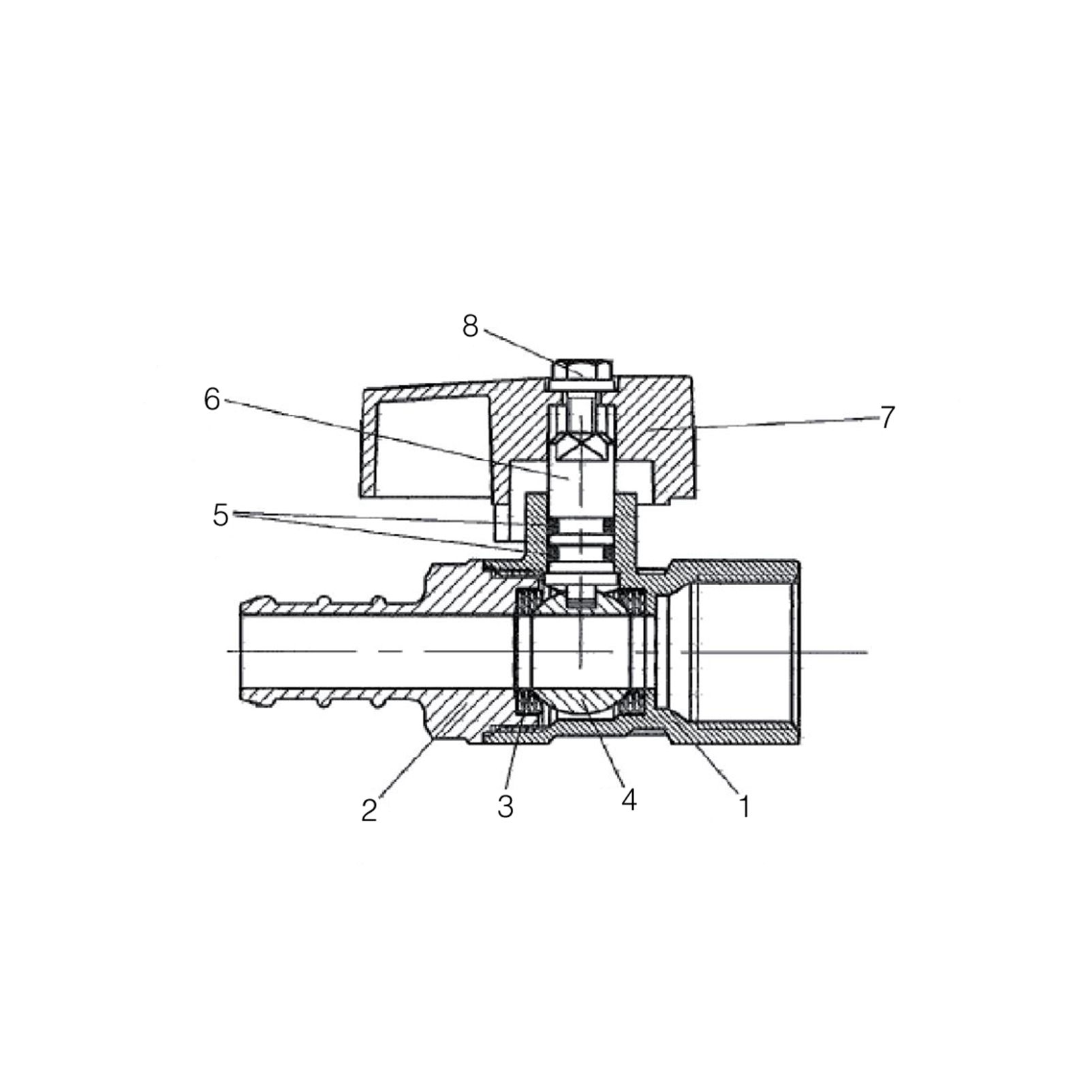

| STRUTTURA RUBINETTO (sku 4208 / 4209) | ||
| 1 | BODY | nickel plated brass CW617N - UNI EN 12165/98 |
| 2 | SLEEVE | nickel plated brass CW617N - UNI EN 12165/98 |
| 3 | SEAT | PTFE |
| 4 | BALL | chrome plated brass CW614N - UNI EN 12164/98 |
| 5 | O-RING | NBR |
| 6 |
BEAM |
brass CW 614N - UNI EN 12164/98 |
| 7 |
HANDLE |
painted aluminum |
| 8 |
SCREW |
galvanized steel |
Technical Features
| TYPE OF GAS |
LPG - sku 4201 / 4208 METHANE - sku 4201A / 4209 |
| OPERATING TEMPERATURE | - 20°C ÷ + 60°C |
| OPERATING PRESSURE |
5 bar |
| the valve must be kept in the open or closed position, avoid intermediate positions | |
| CONNECTION | F o M (thread UNI ISO 228/1) |

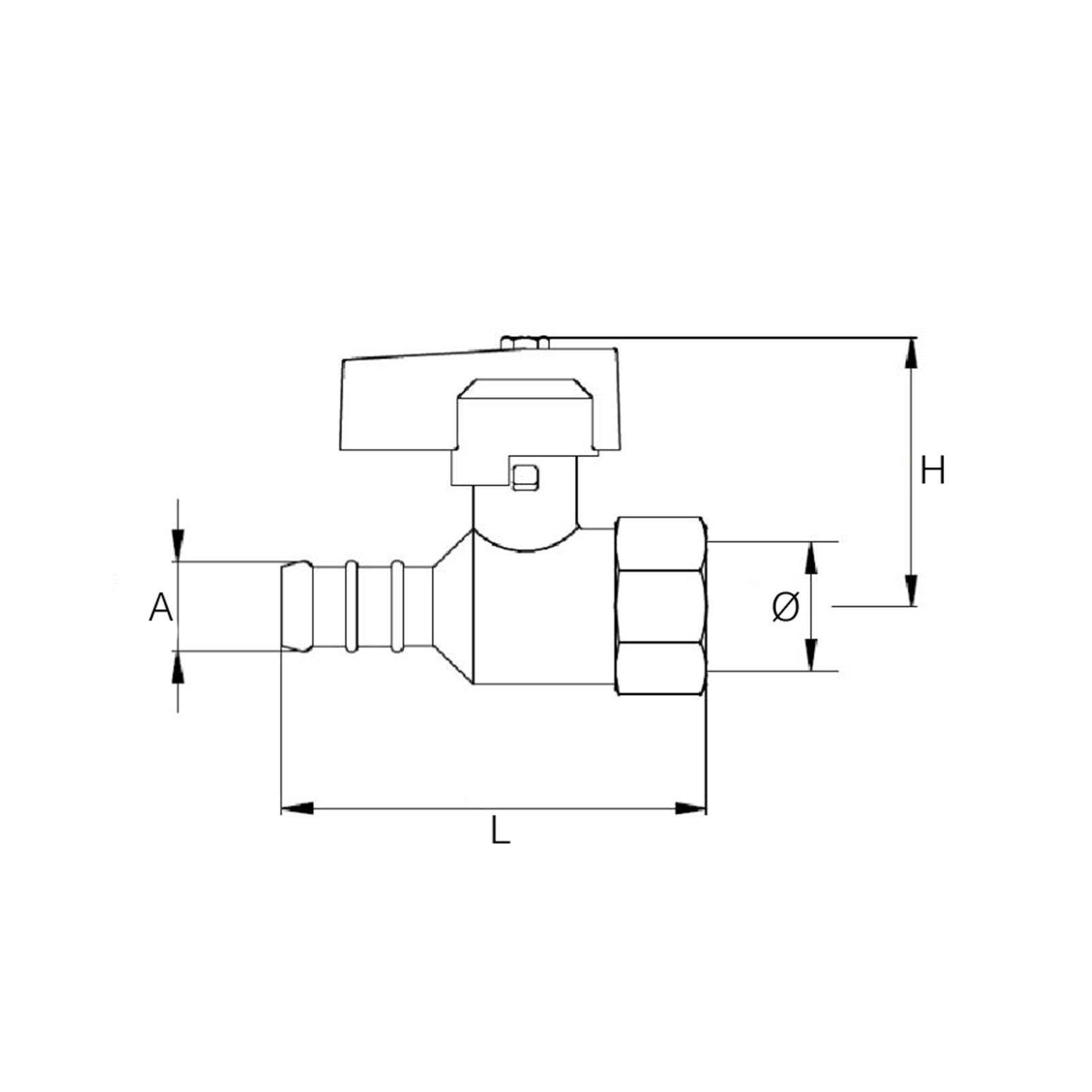

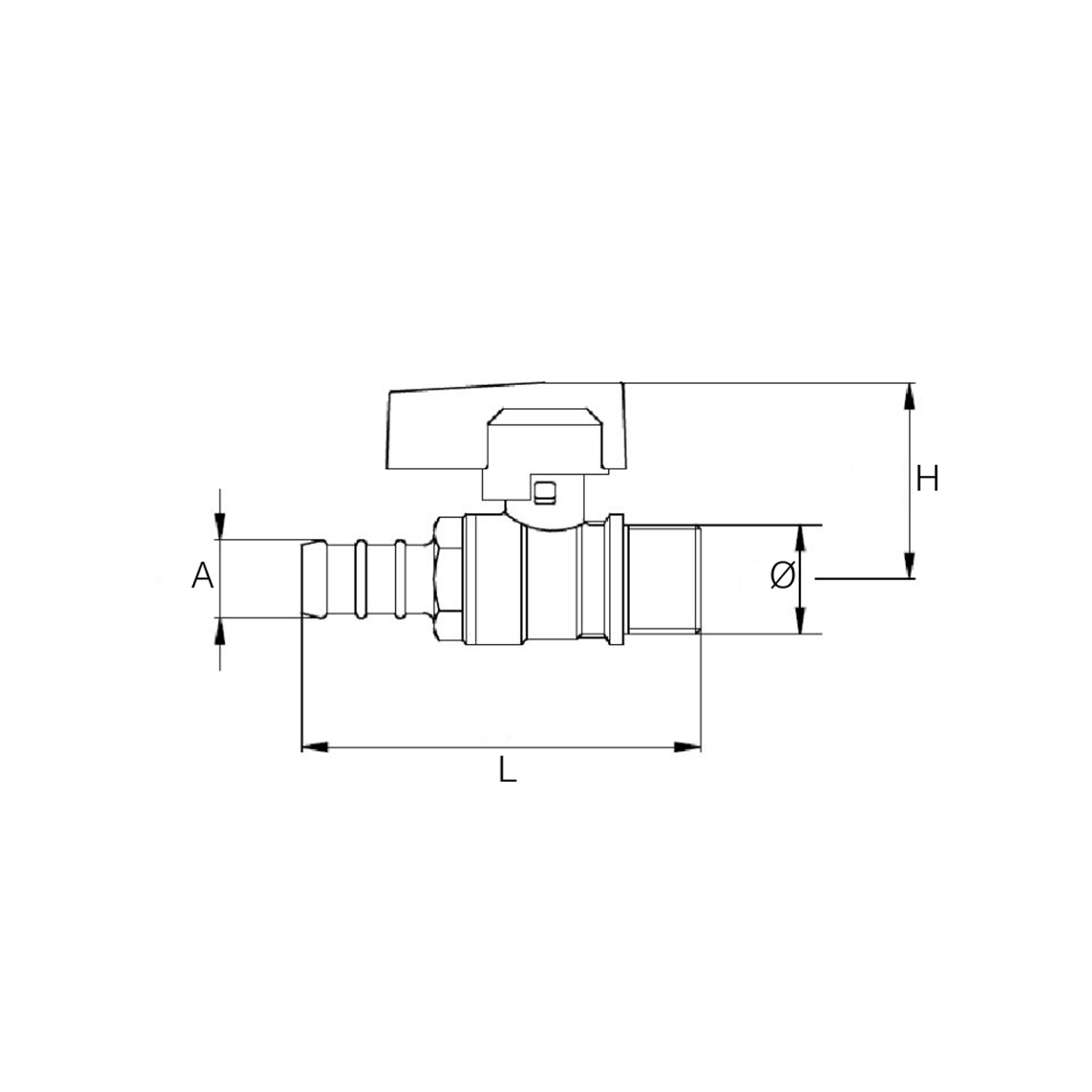

| SKU | Ø CONNECTION | A | H | L |
| 4201 | 1/2" M | 15 mm | 38 mm | 77 mm |
| 4201A | 1/2" M | 15 mm | 38 mm | 77 mm |
| 4208 | 1/2" F | 15 mm | 38 mm | 77 mm |
| 4209 | 1/2" F | 15 mm | 38 mm | 77 mm |
