High Pressure Regulator
Alfa 20 AP series, direct action regulation
ACCORDING TO EN 334 RULE
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000002430 |

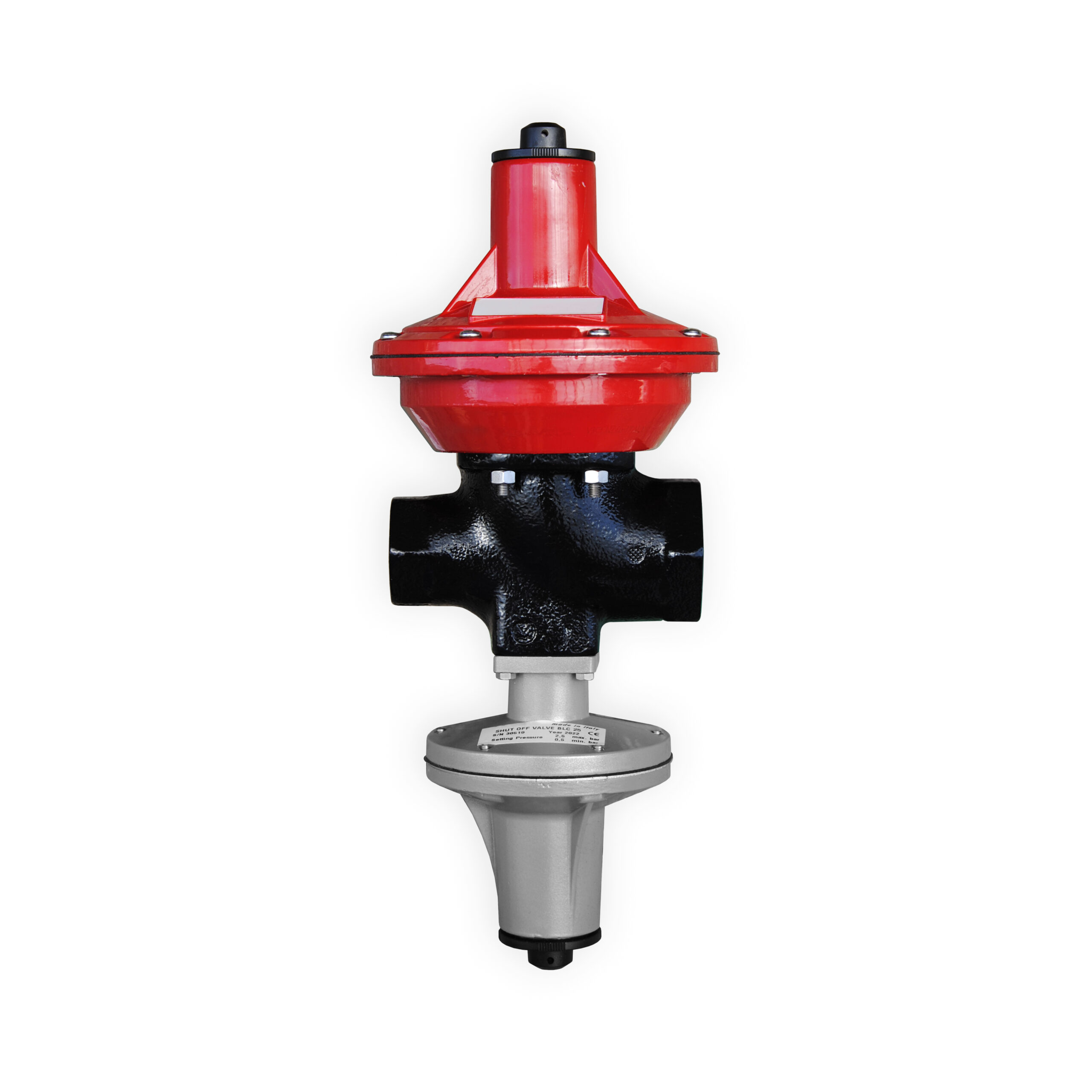

ALFA 20 AP SERIES REGULATOR - 1"x1" 1/2 CONNECTION |
€551,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000002432 |

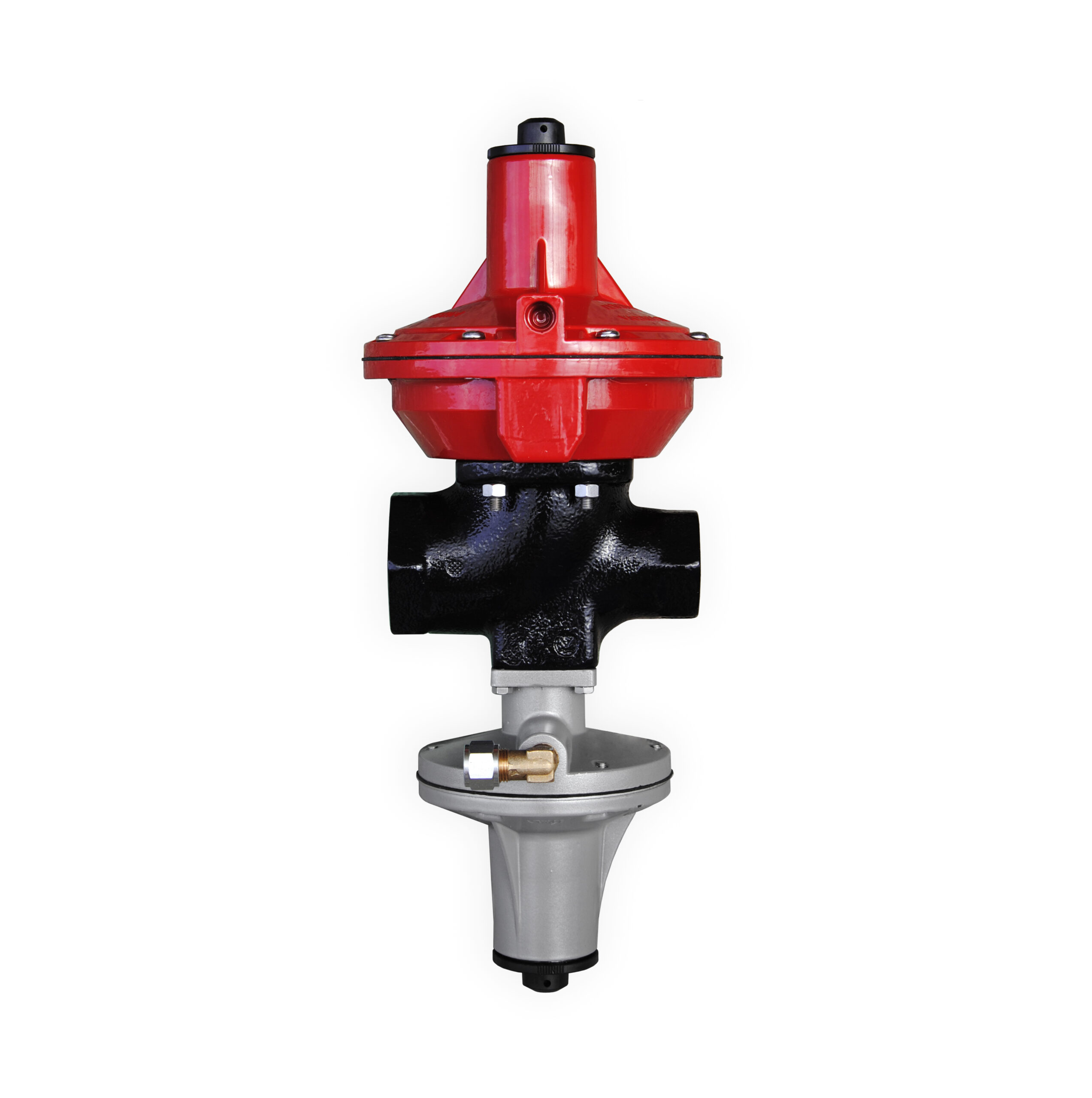

ALFA 20 AP SERIES REGULATOR - 1"x1" 1/2 CONNECTION - WITH BLOCK |
€950,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
Alfa 20 AP series regulator with direct action equipped with internal sensing line, suitable for the use of not corrosive gases as methane and LPG.
Also available the version with minimum and maximum pressure shut-off valve downstream (sku 2432).

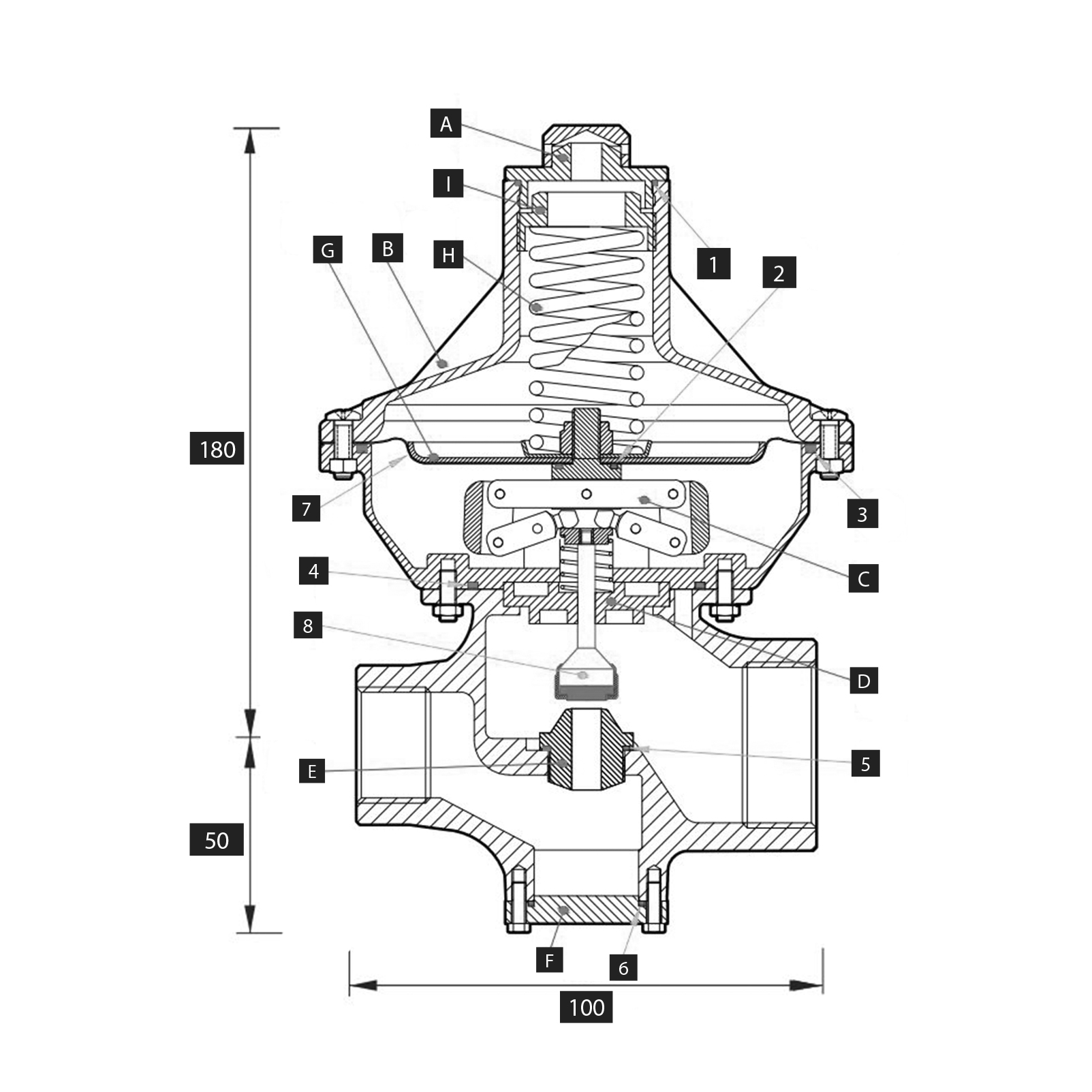

| REGULATOR STRUCTURE | |
|---|---|
| 1 | O-ring |
| 2 | O-ring |
| 3 | O-ring |
| 4 | O-ring |
| 5 | O-ring |
| 6 | O-ring |
| 7 | membrane |
| 8 | pill |
| A | plastic cap + O-ring |
| B | complete header |
| C | full leverage |
| D | complete block |
| E | shutter seat + O-ring |
| F | bottom plate + O-ring + screws |
| G | membrane protective plate |
| H |
|
| I | adjustment ferrule |
Technical Features
| FLOW RATE | see table underlying |
|---|---|
| INLET CONNECTION | 1" |
| OUTPUT CONNECTION | 1" 1/2 |
| INLET PRESSURE | max 18 bar |
| OUTPUT PRESSURE | 0,29 ÷ 2,1 bar |
| STANDARD OUTPUT PRESSURE | on request |
| WORKING TEMPERATURE | - 20°C ÷ + 60°C |
| MATERIALS |
|
| DIMENSIONS | 180 x 130 x 50 mm |
| FLOW RATE TABLE M3/H | INLET PRESSURE | ||||
|---|---|---|---|---|---|
| 3 Bar | 4 Bar | 5 Bar | 8 Bar | ||
| OUTLET PRESSURE | 0,35 Bar | 238 m3/h | 323 m3/h | 405 m3/h | 485 m3/h |
| 0,5 Bar | 235 m3/h | 322 m3/h | 404 m3/h | 485 m3/h | |
| 0,7 Bar | 228 m3/h | 319 m3/h | 403 m3/h | 486 m3/h | |
| 1 Bar | 213 m3/h | 313 m3/h | 401 m3/h | 485 m3/h | |
| 1,5 Bar | 167 m3/h | 294 m3/h | 329 m3/h | 480 m3/h | |
| 2 Bar | - | 260 m3/h | 374 m3/h | 470 m3/h | |
To obtain the LPG flow rates in kg/h, multiply the values in red by 1.42.
