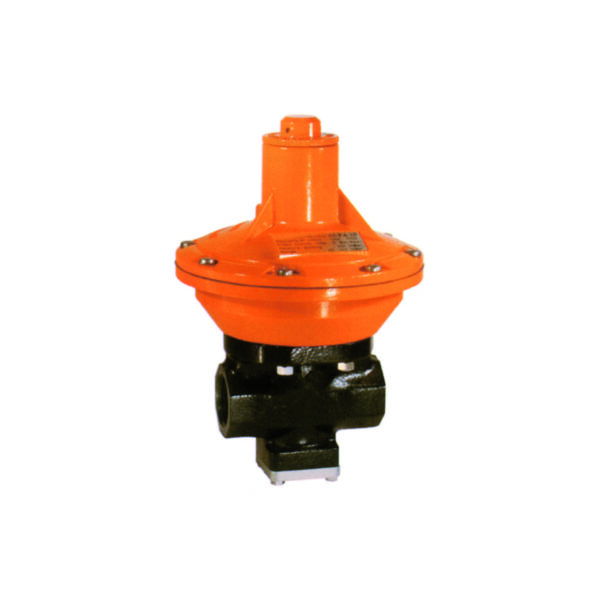

High Pressure Regulator
Alfa 10 AP series, with direct action regulation
ACCORDING TO THE EN 334 RULE
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000002418 |
ALFA 10 AP SERIES REGULATOR - 1"x1" CONNECTION |
€494,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000002420 |
ALFA 10 AP SERIES REGULATOR -1"x1" CONNECTION - WITH BLOCK |
€893,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

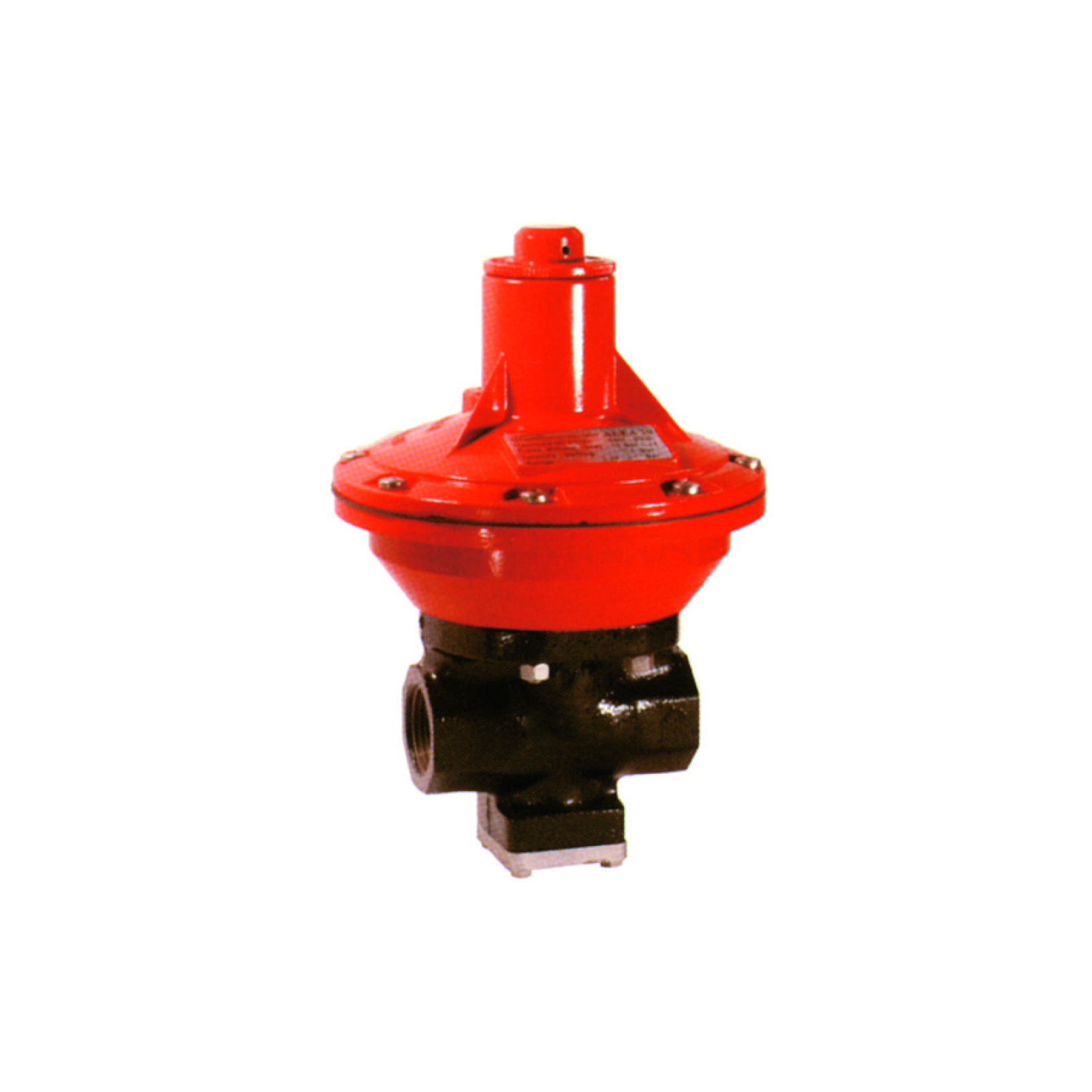

Alfa 10 AP series regulator with direct action, equipped with internal sensing line, suitable for the use of not corrosive gases as methane and LPG.
Also available the version with minimum and maximum pressure shut-off valve downstream (sku 2420).

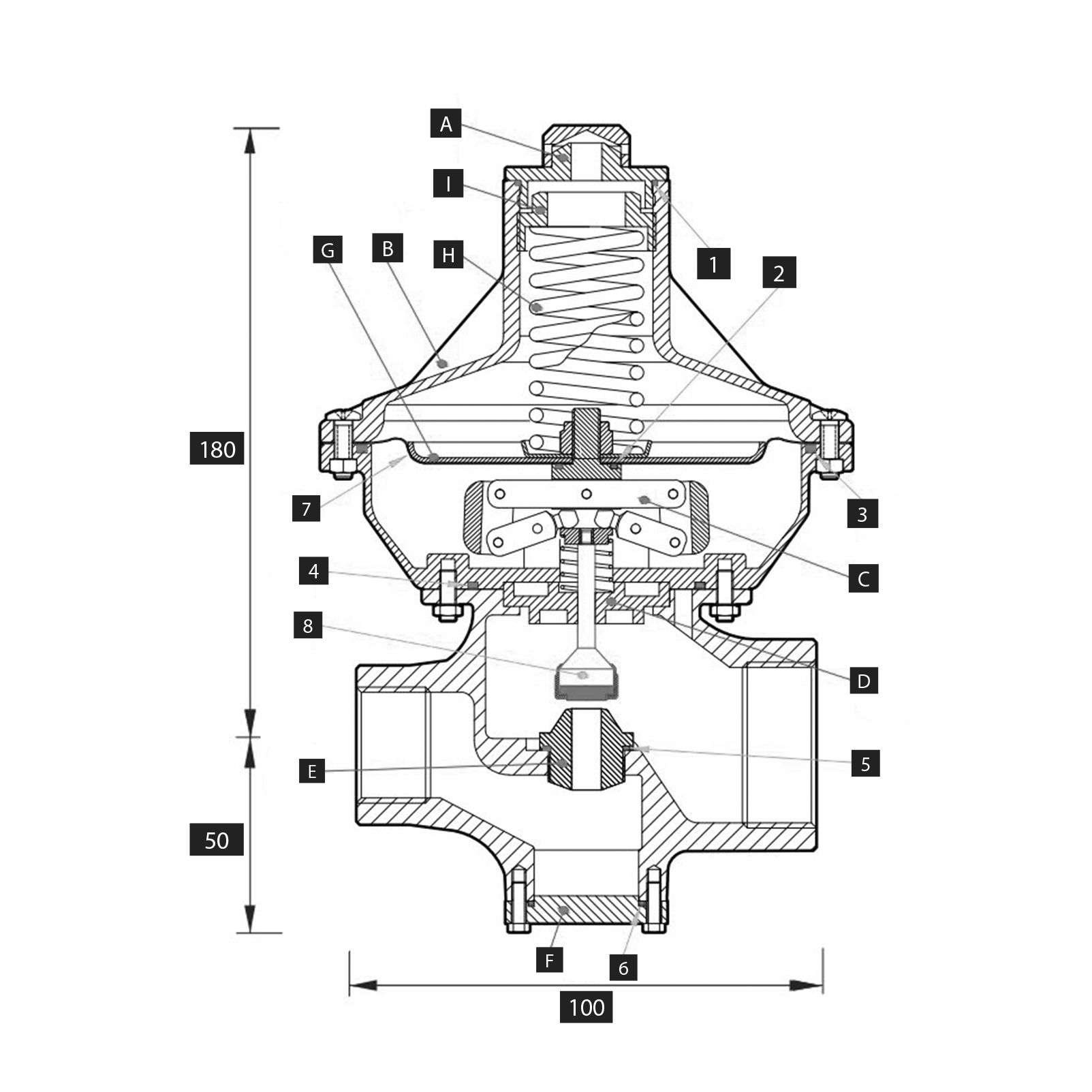

| REGULATOR STRUCTURE | |
|---|---|
| 1 | O-ring |
| 2 | O-ring |
| 3 | O-ring |
| 4 | O-ring |
| 5 | O-ring |
| 6 | O-ring |
| 7 | membrane |
| 8 | pill |
| A | plastic cap + O-ring |
| B | complete header |
| C | full leverage |
| D | complete block |
| E | shutter seat + O-ring |
| F | bottom plate + O-ring + screws |
| G | membrane protective plate |
| H |
|
| I | adjustment ferrule |
Technical Features
| FLOW RATE | see table underlying |
|---|---|
| INLET CONNECTION | 1" |
| OUTPUT CONNECTION | 1" |
| INLET PRESSURE | max 18 bar |
| OUTPUT PRESSURE | 0,29 ÷ 2,1 bar |
| STANDARD OUTPUT PRESSURE | on request |
| WORKING TEMPERATURE | - 20°C ÷ + 60°C |
| MATERIALS |
|
| DIMENSIONS | 180 x 100 x 50 mm |
| FLOW RATE TABLE M3/H | INLET PRESSURE | ||||
|---|---|---|---|---|---|
| 3 Bar | 4 Bar | 5 Bar | 8 Bar | ||
| OUTLET PRESSURE | 0,35 Bar | 127 m3/h | 172 m3/h | 215 m3/h | 258 m3/h |
| 0,5 Bar | 125 m3/h | 171 m3/h | 215 m3/h | 258 m3/h | |
| 0,7 Bar | 121 m3/h | 170 m3/h | 215 m3/h | 258 m3/h | |
| 1 Bar | 113 m3/h | 167 m3/h | 213 m3/h | 258 m3/h | |
| 1,5 Bar | 89 m3/h | 156 m3/h | 208 m3/h | 255 m3/h | |
| 2 Bar | - | 138 m3/h | 199 m3/h | 250 m3/h | |
To obtain the LPG flow rates in kg/h, multiply the values in red by 1.42.
