Gas Leak Detector
Model INC 95
COMPLIANT WITH UNI-CEI-CIG 70028 RULE
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000503428 |
GAS LEAK DETECTOR Mod. INC 95 CH4 |
€260,30 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000503429 |
GAS LEAK DETECTOR Mod. INC 95 GPL |
€260,30 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
INC 95, the detector complete with power supply and actuator device without the need to install additional accessories, characterized by the high reliability, practicality and versatility of a universal recessed system; it can be inserted in the frames and plates of the main manufacturers, without the need for additional external adapters.
Product features
- high selectivity, free from false alarms
- sensor end of life indication
- integrated microcontroller
- sensor failure control
- actuator relay to control external accessories
- compatible with frames: AVE, BTICINO Living, GEWISS Playbus, VIMAR Idea
Technical Features
| GAS DETECTED |
|
|---|---|
| POWER SUPPLY | 230 Vac 50 - 60 Hz (± 10%) |
| ABSORPTION | 3.3 VA (stand-by) |
| ACUSTIC SIGNAL | buzzer > 85 dbA a 1 meter |
| ALARM RELAY | 1, hermetic 250 Vac 5 A (NO / C / NC) |
| OPERATING TEMPERATURE | - 10°C ÷ + 40°C |
| RELATIVE HUMIDITY | 30 ÷ 90 % RH without condensation |
| DEGREE OF PROTECTION | IP40 (not protected against the ingress of liquids, however protected against the ingress of solid objects larger than 1 mm) |
| LED INDICATORS |
|
| CONTAINER | PC/ABS UL94-VO self-extinguishing |
| ASSEMBLY | recessed |
| PREHEATING TIME | < 30 seconds |
| RESPONSE TIME | < 15 seconds |
| TYPE OF SENSOR | catalytic |
| ALARM THRESHOLD | 10% L.I.E. |
| INTERFACE | 1 tasto (reset and test of the detector with counting of the years of life of the sensor) |

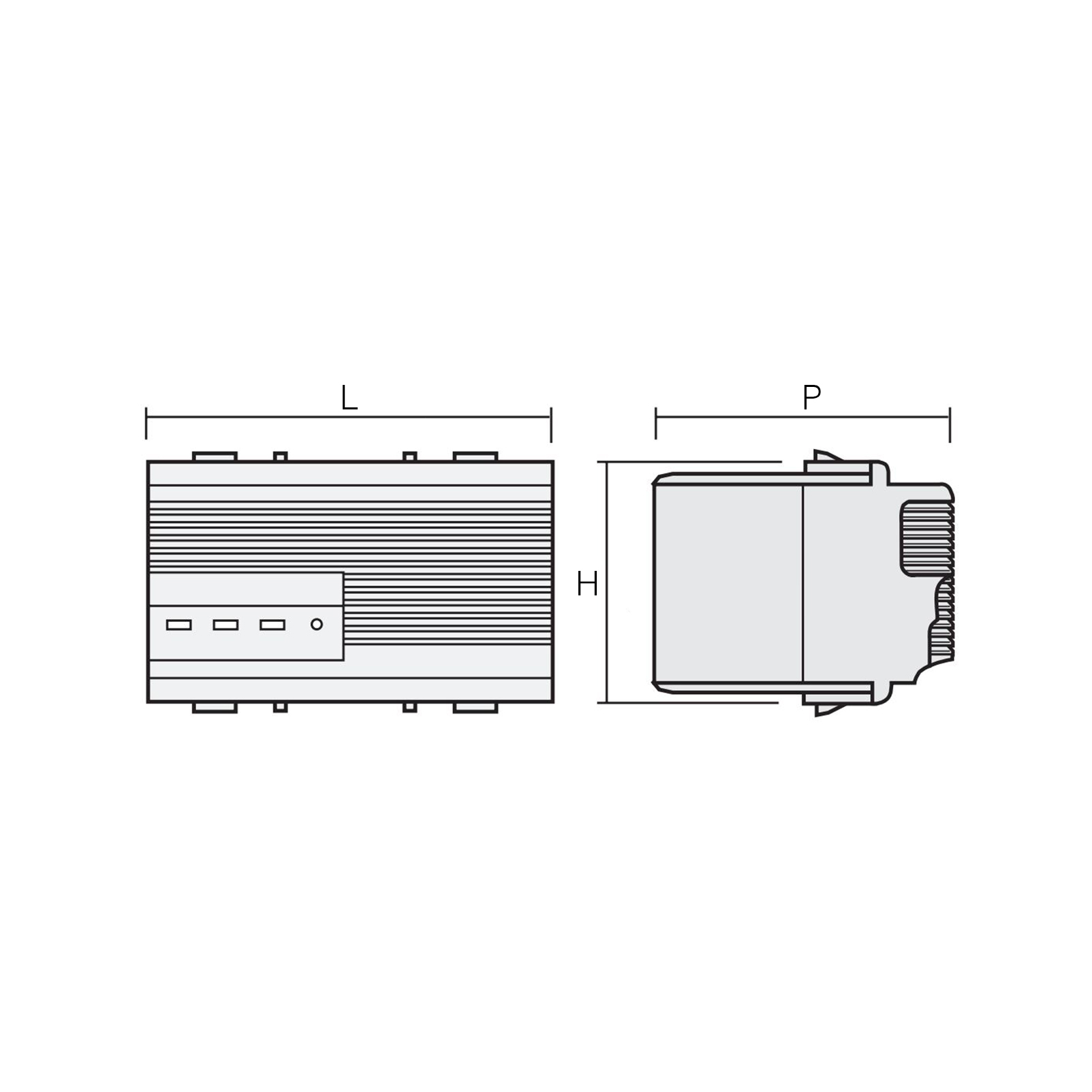

| DIMENSIONS | 74,5 x 44,5 x 57 mm (LxWxD) |
