Download Product Data Sheet

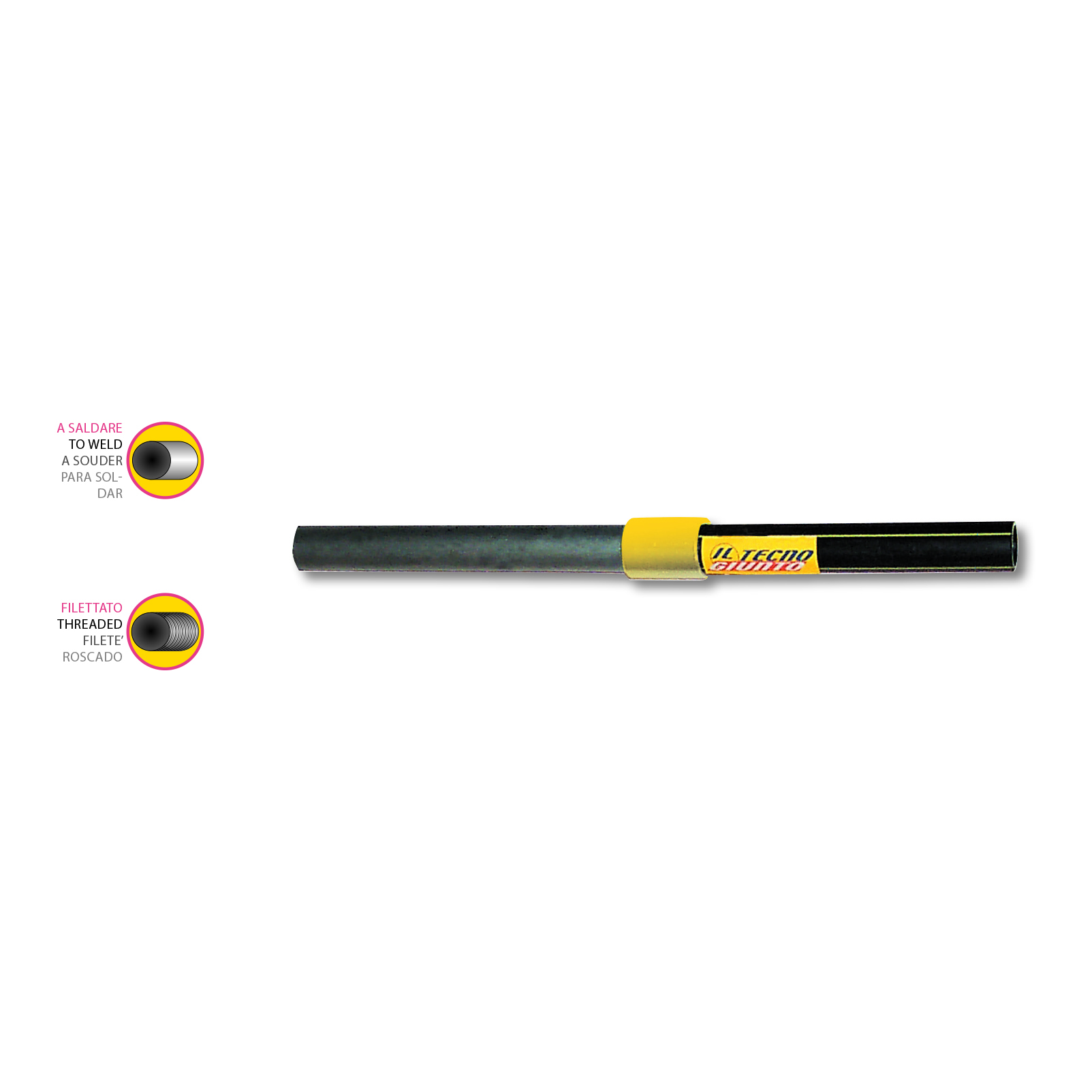

Galvanized Rectilinear Transition Fitting

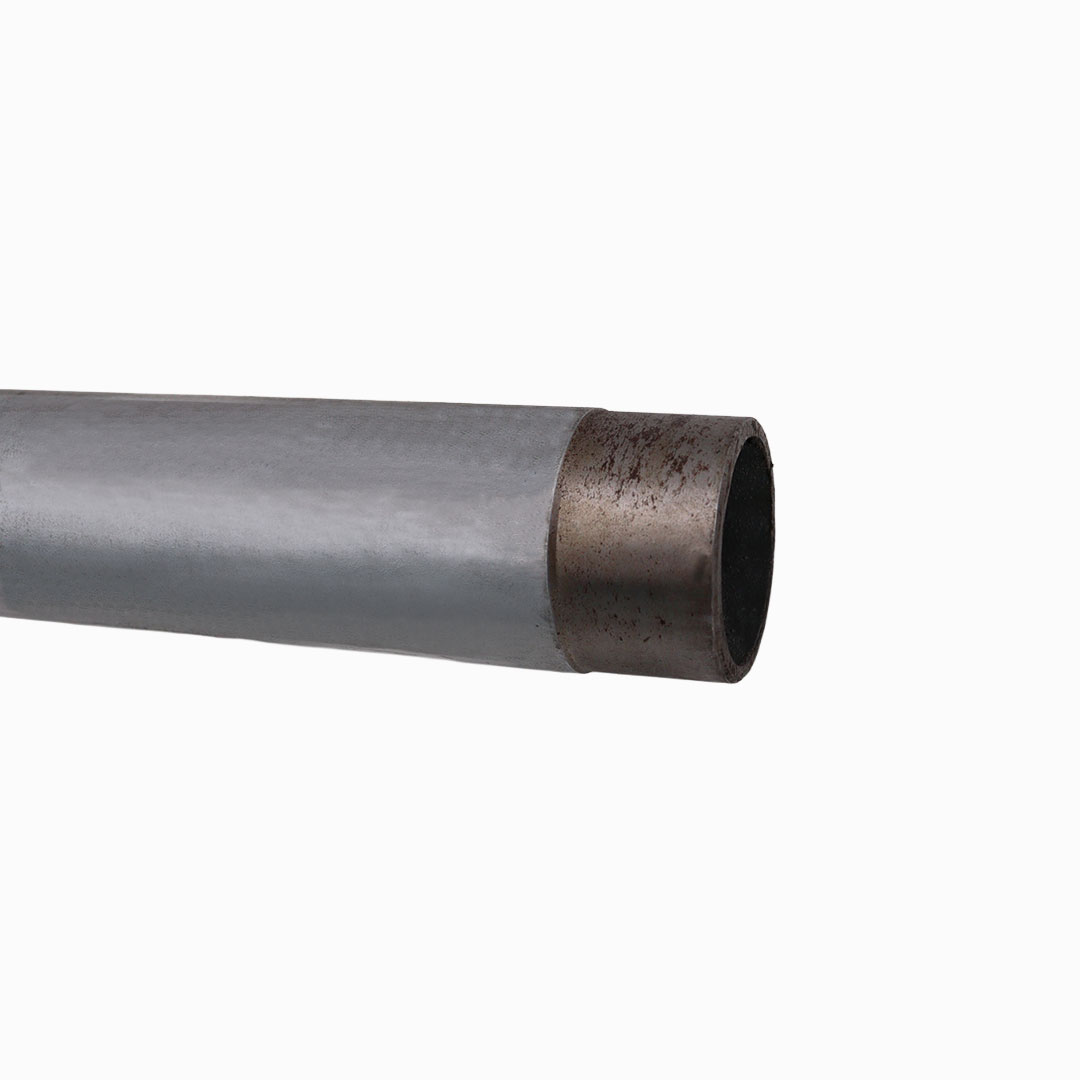

Weld version

DG - 7521BU0225 AND ISO 9001:2015 CERTIFICATES

sku model price info add to cart

00000020150

STRAIGHT WELDING TRANSITION FITTING - DN 3/4" - PE-D 25 mm - hot galvanized

€29,70 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
3 × 50 × 3 cm

Volume:
0.0006 m3

Weight:
0,65 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020151

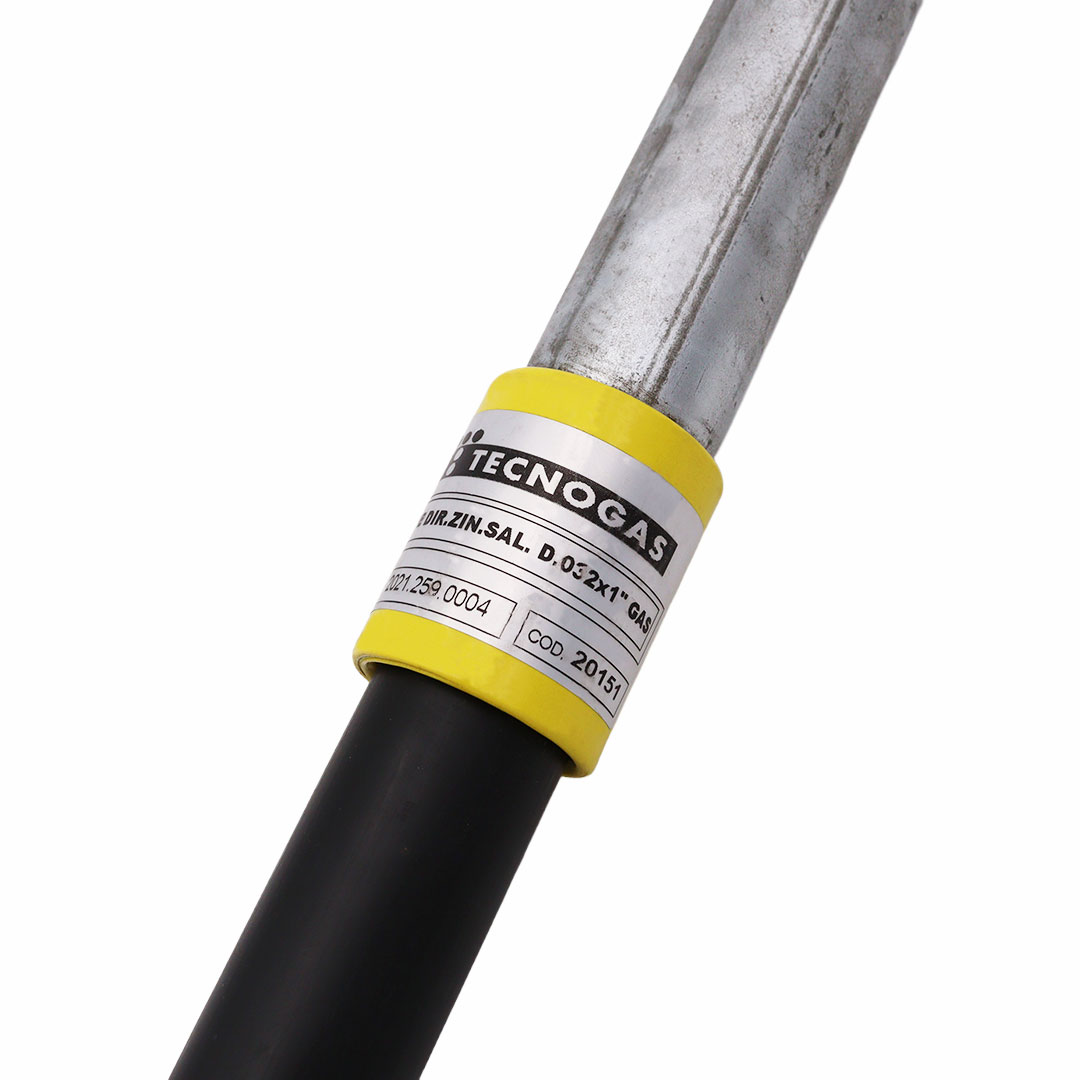

STRAIGHT WELDING TRANSITION FITTING - DN 1" - PE-D 32 mm - hot galvanized

€31,70 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
4 × 50 × 4 cm

Volume:
0.0008 m3

Weight:
0,87 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020152

STRAIGHT WELDING TRANSITION FITTING - DN 1" 1/4 - PE-D 40 mm - hot galvanized

€35,65 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
60 × 4 × 4 cm

Volume:
0.001 m3

Weight:
1,30 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020153

STRAIGHT WELDING TRANSITION FITTING - DN 1" 1/2 - PE-D 50 mm - hot galvanized

€37,65 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020154

STRAIGHT WELDING TRANSITION FITTING - DN 2" - PE-D 63 mm - hot galvanized

€48,95 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
52 × 7 × 7 cm

Volume:
0.0025 m3

Weight:
2,15 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020155

STRAIGHT WELDING TRANSITION FITTING - DN 2" 1/2 - PE-D 75 mm - hot galvanized

€78,70 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020156

STRAIGHT WELDING TRANSITION FITTING - DN 3" - PE-D 90 mm - hot galvanized

€113,90 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
53 × 10 × 10 cm

Volume:
0.0053 m3

Weight:
3,60 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020157

STRAIGHT WELDING TRANSITION FITTING - DN 4" - PE-D 125 mm - hot galvanized

€194,60 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
51 × 11 × 12 cm

Volume:
0.0068 m3

Weight:
5,85 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020158

STRAIGHT WELDING TRANSITION FITTING - DN 4" - PE-D 125 mm - hot galvanized

€271,20 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
15 × 51 × 15 cm

Volume:
0.0115 m3

Weight:
6,10 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020159

STRAIGHT WELDING TRANSITION FITTING - DN 6" - PE-D 160 mm - hot galvanized

€368,50 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
17 × 65 × 17 cm

Volume:
0.0188 m3

Weight:
12,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020160

STRAIGHT WELDING TRANSITION FITTING - DN 6" - PE-D 180 mm - hot galvanized

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000

 Info Request

00000020161

STRAIGHT WELDING TRANSITION FITTING - DN 8" - PE-D 200 mm - cold galvanized

€570,80 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
23,04 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020162

STRAIGHT WELDING TRANSITION FITTING - DN 8" - PE-D 225 mm - cold galvanized

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000

 Info Request

00000020165

GIUNTO TRANS. GAS POLIET/ACC.ZINC.SALD. 5"x140

€287,50 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020163

GIUNTO TRANS. GAS POLIET/ACC.ZINC. SALD. 10"x250

on request

Physical data

UM Base:
NR

Dimension:
27 × 74 × 27 cm

Volume:
0.0543 m3

Weight:
36,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000

 Info Request

Product informations

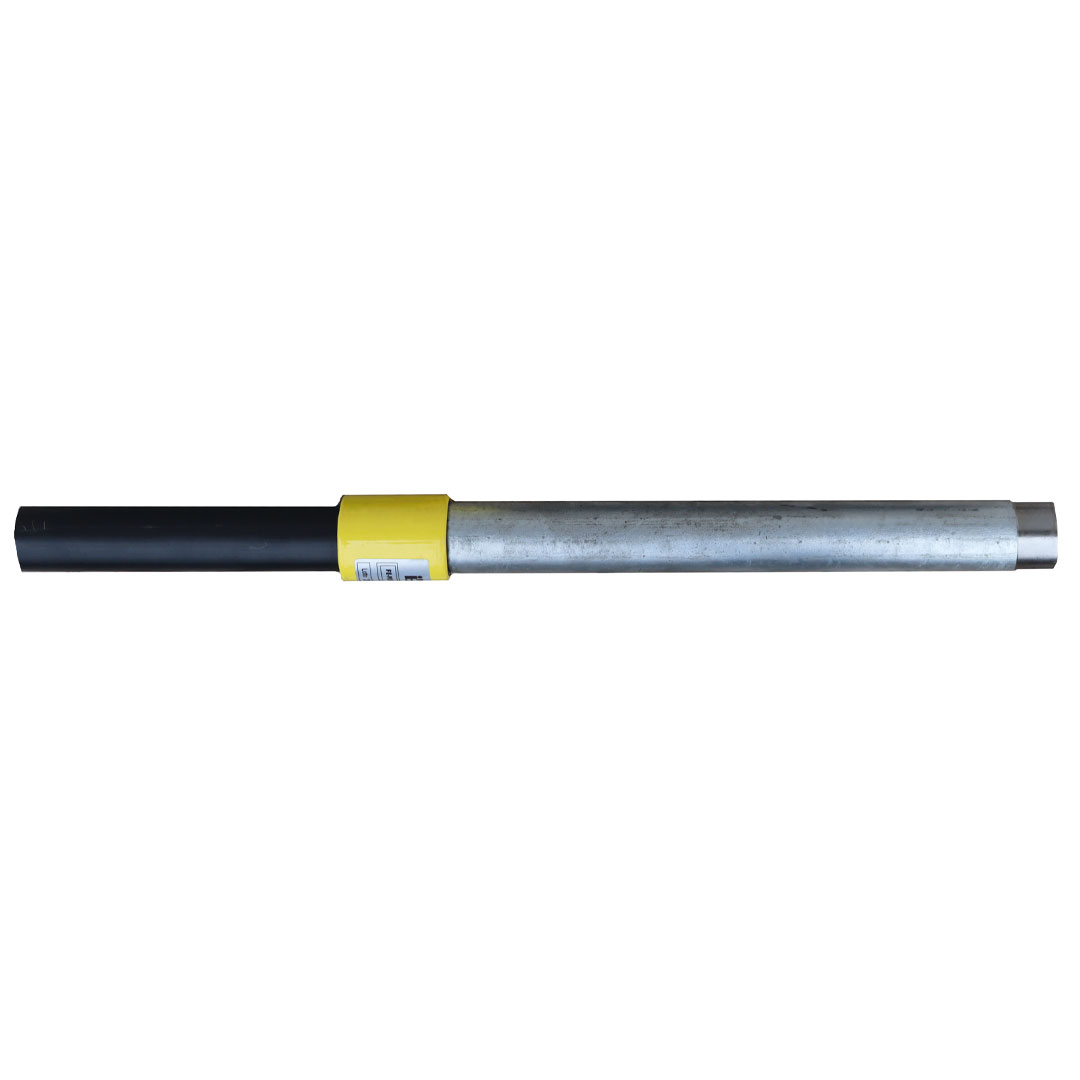

Transition fitting designed to allow the passage from a plant in plastic material (polyethylene) to a metal one, to allow fuel gas distribution plants to exit the ground. The joints of polyethylene pipes to metal pipes are made by welding connection for the conveyance of combustible gases under pressure.

The galvanized part must be protected from corrosion before burial by applying cold tar bandages or specific insulating tapes.

Technical Features

MATERIALS
  • EN 10255 galvanized steel pipe according to EN 10240-A1 (from D. 25 to D. 180)
  • cold galvanized UNI EN 10255 steel pipe (D. 200 / 225)
  • PE100 shank S5 SDR 11 (PN16)
TYPE OF GALVANIZING
  • hot-dip galvanizing according to EN 10240 (from SKU 20150 to 20160)
  • cold galvanizing (SKU 20161 / 20162)
NORMATIVE REQUIREMENTS
  • UNI EN 1555-3: plastic piping systems for the distribution of combustible gases - polyethylene (PE)
  • UNI 9736: fittings manufactured with mixed metal-polyethylene joint for use in combustion of combustible gases, water and other fluids under pressure and metal-polypropylene for use in conducts for water and other fluids under pressure
  • ISO 17885: plastic piping systems - mechanical fittings for pressure piping systems
  • UNI 9034: gas distribution conducts with maximum working pressure less than or equal to 0,5 MPa (5 bar) - jointing materials and systems
OPERATING TEMPERATURE 20°C
WELDABILITY can be welded with electrofusion pipes and fittings with a melt flow index between 0.2 and 1.4 gr/10 min



SKU PE-D DN KG (single piece) PACKAGING GALVANIZING
" mm
20150 25 mm 3/4" 26,7 0,7 24 pcs. hot dip
20151 32 mm 1" 33,4 1,0 15 pcs. hot dip
20152 40 mm 1" 1/4 42,2 1,3 12 pcs. hot dip
20153 50 mm 1" 1/2 48,3 1,5 8 pcs. hot dip
20154 63 mm 2" 60,3 2,4 6 pcs. hot dip
20155 75 mm 2" 1/2 73,0 3,4 4 pcs. hot dip
20156 90 mm 3" 88,9 4,0 3 pcs. hot dip
20157 110 mm 4" 114,3 6,2 2 pcs. hot dip
20158 125 mm 4" 114,3 6,6 1 pcs. hot dip
20165 140 mm 5" 141,3 10,5 1 pcs. hot dip
20159 160 mm 6" 168,3 13,4 1 pcs. hot dip
20160 180 mm 6" 168,3 13,8 1 pcs. hot dip
20161 200 mm 8" 219,1 21,9 1 pcs. cold
20162 225 mm 8" 219,1 23,5 1 pcs. cold
