Flexible Hoses for Place Group

Version completely in stainless steel

COMPLIANT WITH UNI 7129 RULE

sku model price info add to cart

00000006403

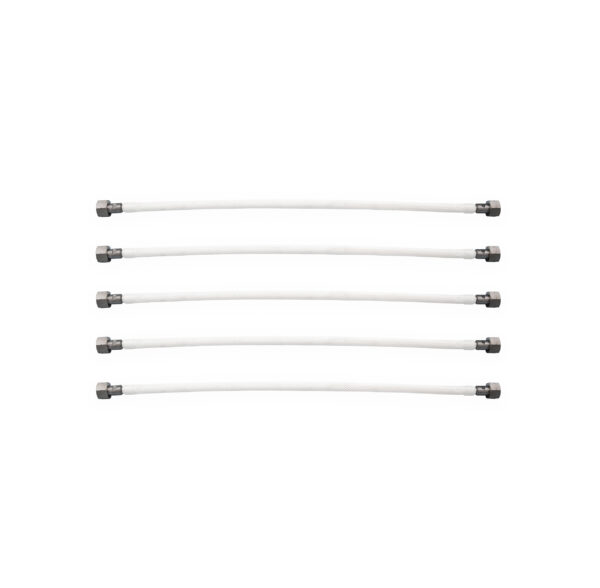

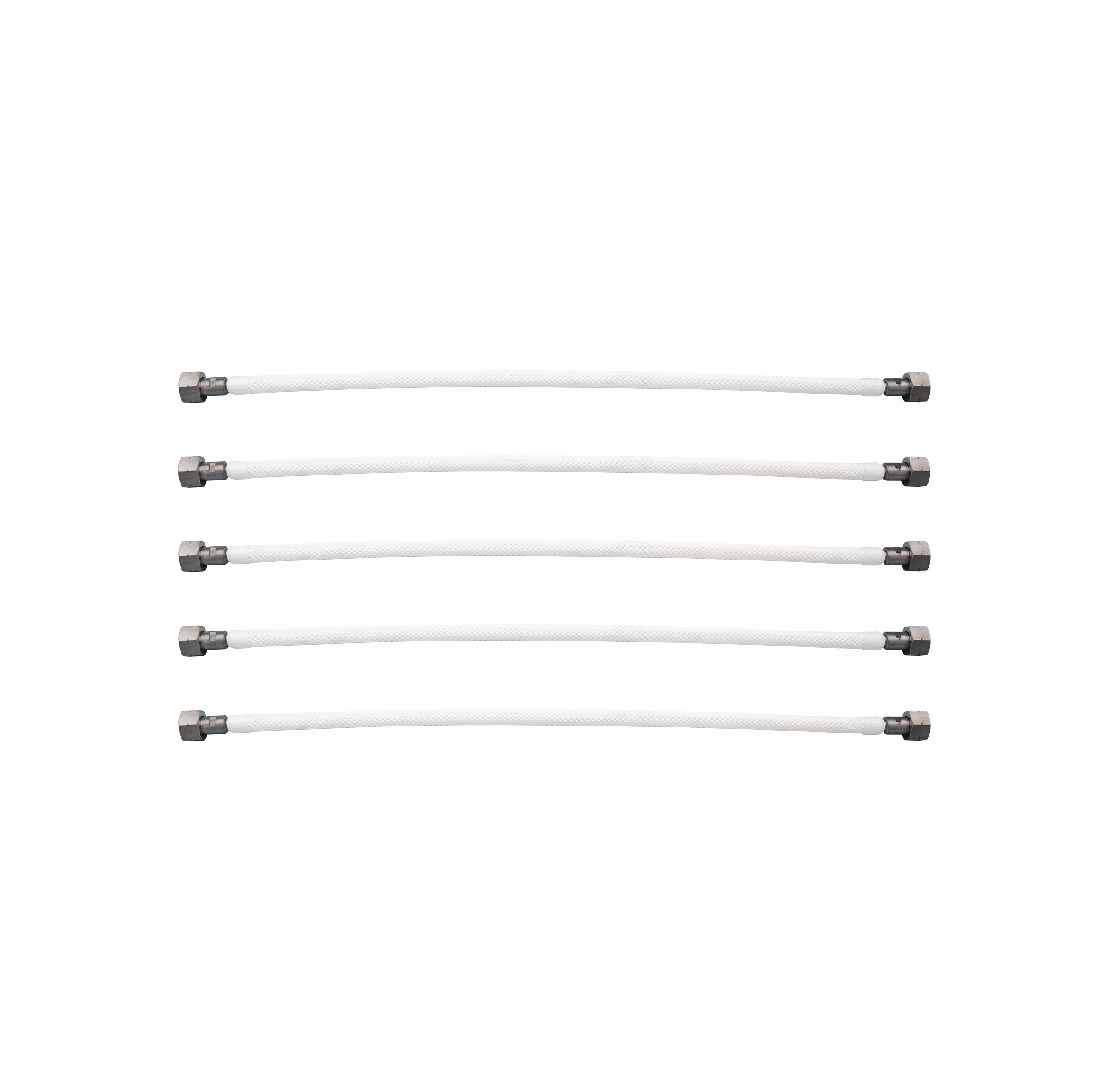

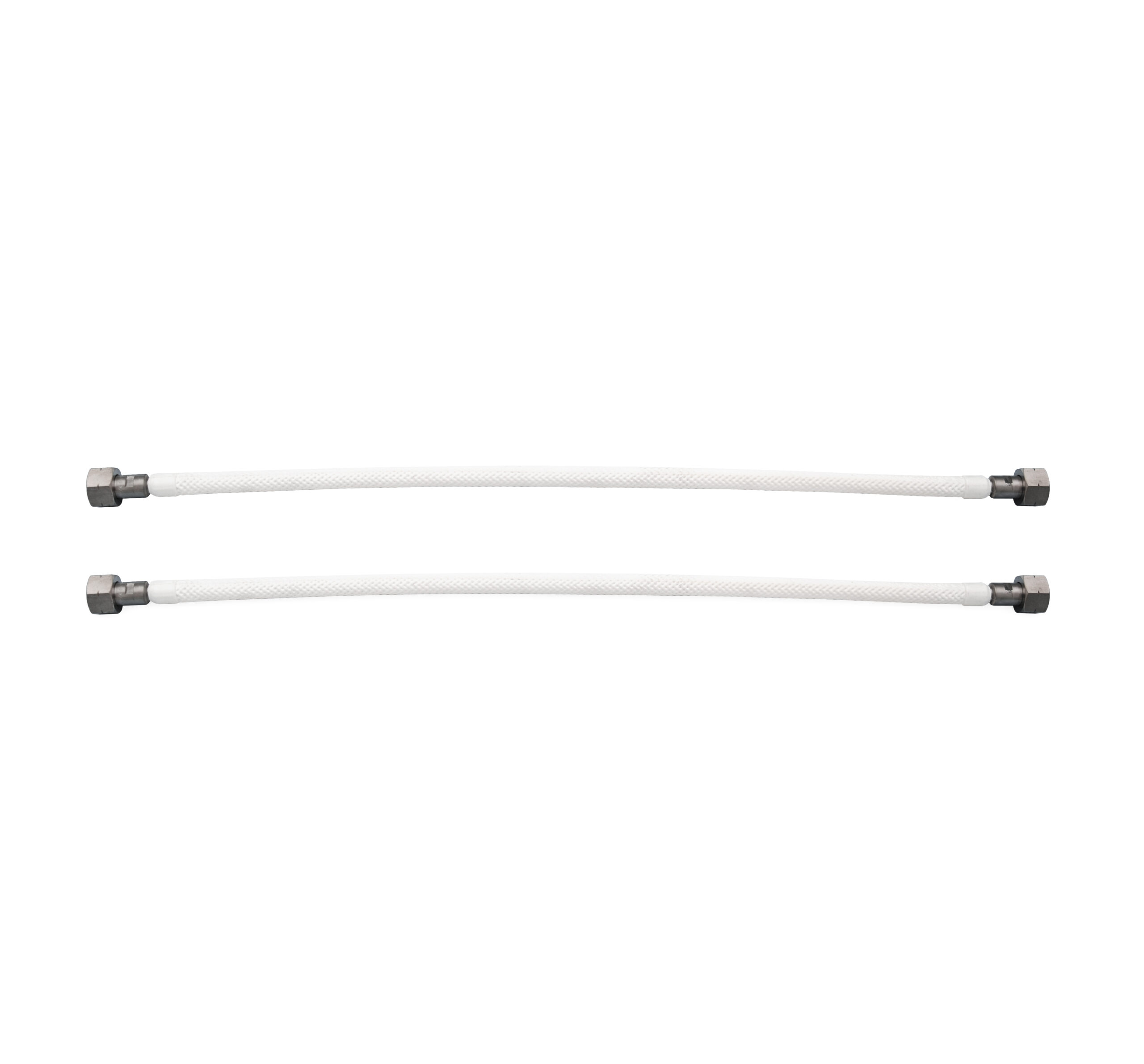

FLEXIBLE HOSE FOR PLACE GROUP - 120 cm - FF connection left

64,25 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
120 × 5 × 2 cm

Volume:
0.0012 m3

Weight:
0,50 kg

Minimum Order Quantity:
1

Customs data

Customs Code
40092200

Buy
Info Request

00000006407

FLEXIBLE HOSE FOR PLACE GROUP - 60 cm - FF connection left

49,90 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
63 × 9 × 3 cm

Volume:
0.0017 m3

Weight:
0,23 kg

Minimum Order Quantity:
1

Customs data

Customs Code
40092200

Buy
Info Request

Product informations

Flexible hoses for place group control entirely in stainless steel, with external coating in white PVC against saline oxidation.

Technical Features

OPERATING PRESSURE 20 bar
WORKING FLUID combustible gases
BURST PRESSURE 80 bar
MAX TEMPERATURE 100°C
BENDING RADIUS (minimum permissible in static conditions RP) 32 mm
RADIUS OF CURVATURE (minimum for RC cyclic movements) 130 mm
LENGTH 60 cm - 120 cm

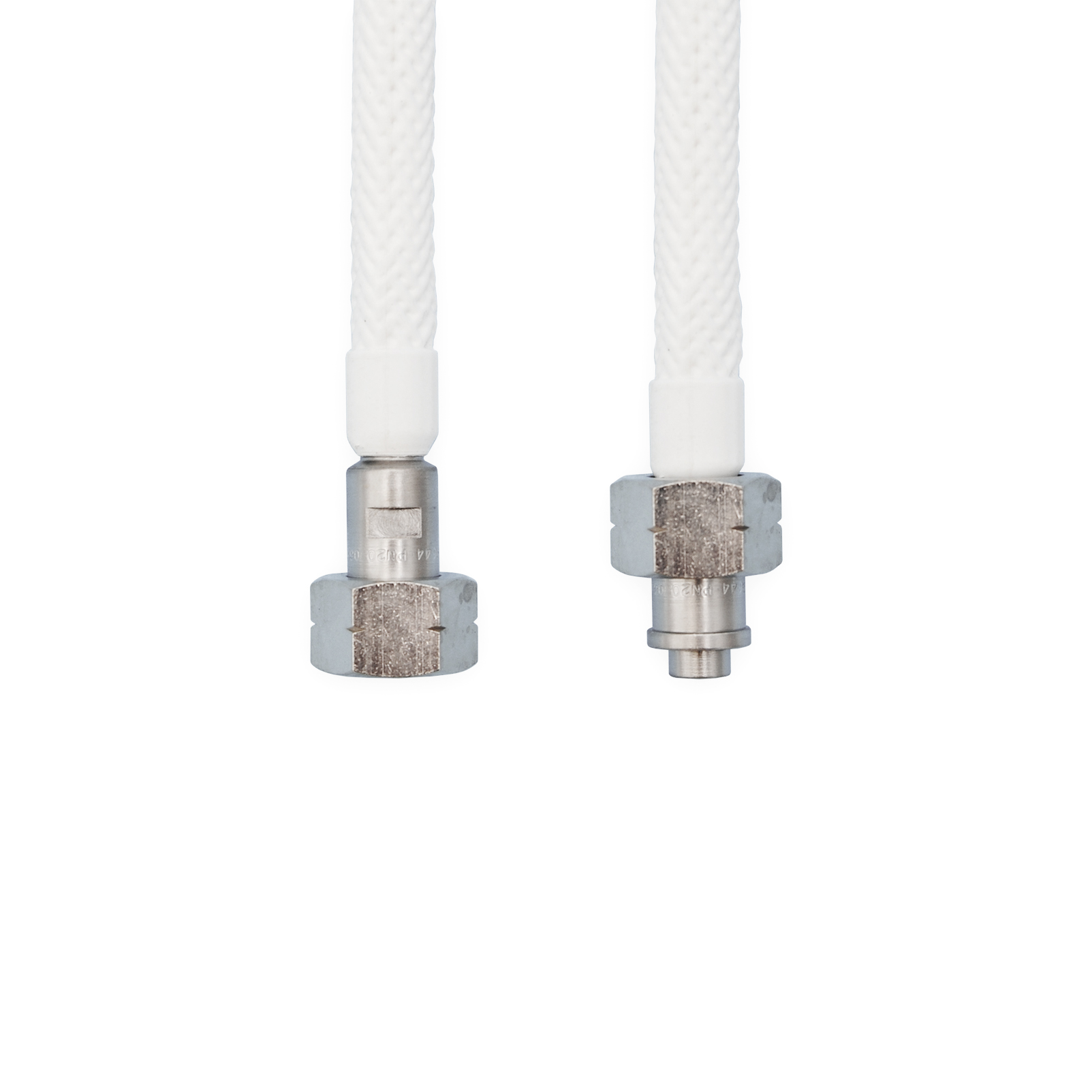

CONNECTION FF sx Ch 25
