Flanged Compensator Joint

Anti-vibration, built in stainless steel material

AVAILABLE FOR HIGHER PRESSURES WITH CE-TPED CERTIFICATION

sku model price info add to cart

00000020080

COMPENSATOR JOINT - DN 25 PN16

159,50 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
11 × 26 × 11 cm

Volume:
0.0034 m3

Weight:
2,76 kg

Minimum Order Quantity:
1

Customs data

Customs Code
83071000

Buy
Info Request

00000020081

COMPENSATOR JOINT - DN 32 PN16

189,35 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
28 × 14 × 14 cm

Volume:
0.0055 m3

Weight:
3,80 kg

Minimum Order Quantity:
1

Customs data

Customs Code
83071000

Buy
Info Request

00000020082

COMPENSATOR JOINT - DN 40 PN16

215,80 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
15 × 27 × 15 cm

Volume:
0.0062 m3

Weight:
4,60 kg

Minimum Order Quantity:
1

Customs data

Customs Code
83071000

Buy
Info Request

00000020083

COMPENSATOR JOINT - DN 50 PN16

264,60 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
16 × 30 × 16 cm

Volume:
0.0082 m3

Weight:
6,38 kg

Minimum Order Quantity:
1

Customs data

Customs Code
83071000

Buy
Info Request

00000020084

COMPENSATOR JOINT - DN 65 PN16

299,90 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
19 × 30 × 19 cm

Volume:
0.0108 m3

Weight:
7,80 kg

Minimum Order Quantity:
1

Customs data

Customs Code
83071000

Buy
Info Request

00000020085

COMPENSATOR JOINT - DN 80 PN16

370,45 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
30 × 20 × 20 cm

Volume:
0.012 m3

Weight:
9,70 kg

Minimum Order Quantity:
1

Customs data

Customs Code
83071000

Buy
Info Request

00000020086

COMPENSATOR JOINT - DN 100 PN16

454,60 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
22 × 30 × 22 cm

Volume:
0.0152 m3

Weight:
11,57 kg

Minimum Order Quantity:
1

Customs data

Customs Code
83071000

Buy
Info Request

00000020087

COMPENSATOR JOINT - DN 125 PN16

563,35 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
32 × 25 × 25 cm

Volume:
0.02 m3

Weight:
14,80 kg

Minimum Order Quantity:
1

Customs data

Customs Code
83071000

Buy
Info Request

00000020088

COMPENSATOR JOINT - DN 150 PN16

709,80 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
83071000

Buy
Info Request

00000020089

COMPENSATOR JOINT - DN 200 PN16

953,10 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
34 × 36 × 34 cm

Volume:
0.0416 m3

Weight:
29,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
83071000

Buy
Info Request

Product informations

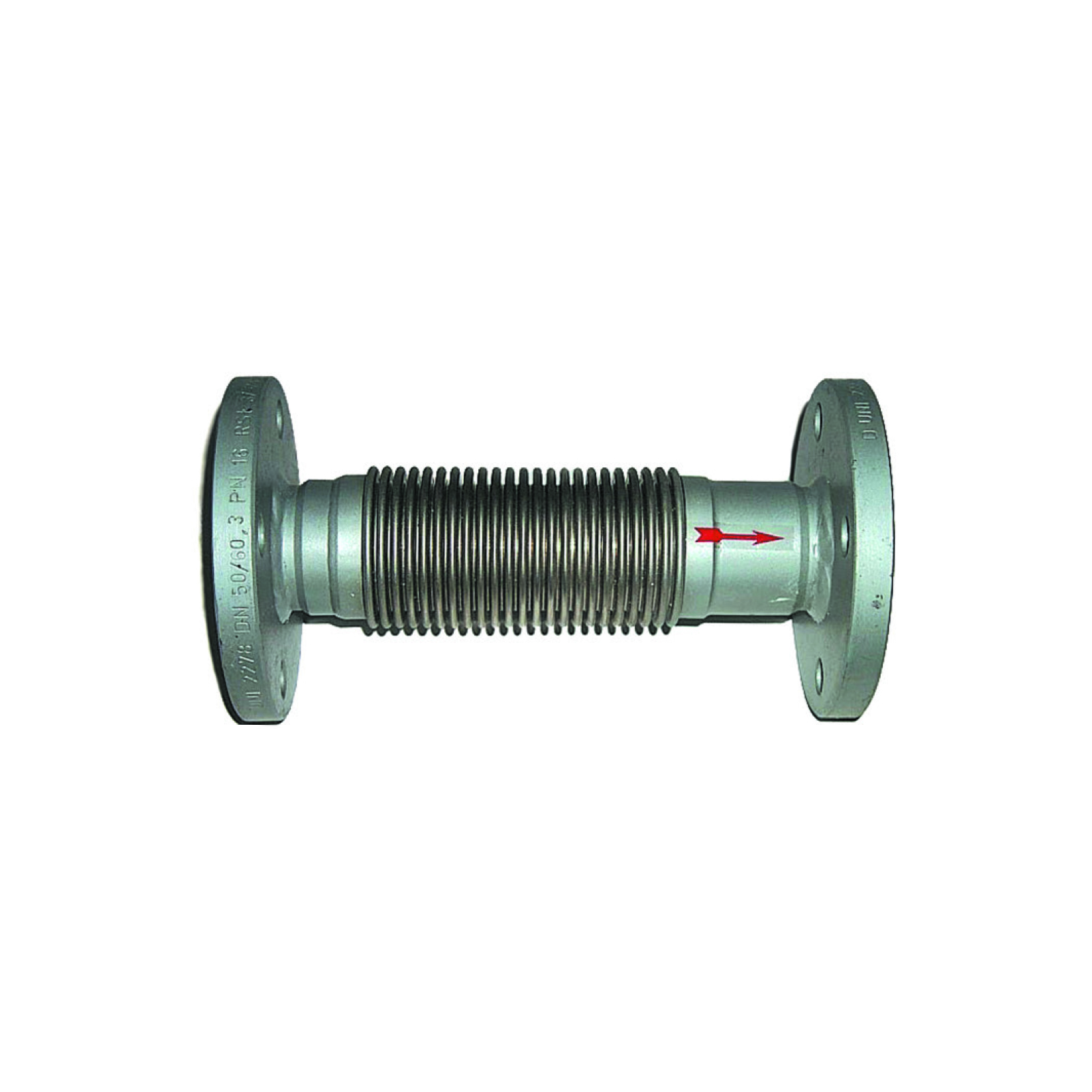

Flanged compensator joint consisting of a bellows with parallel waves in AISI 304 stainless steel, with an AISI 304 stainless steel conveyor inside and connected at the ends with a flange with UNI PN16 drilling; this product is ideal for absorbing axial expansion in heating systems.

Technical Features

MAX INLET PRESSURE 0,5 bar
MAX WORKING TEMPERATURE 100°C
MATERIALS bellows and connections: AISI 304 steel



GAUGE
SKU 20080 20081 20082 20083 20084 20085 20086 20087 20088 20089
CONNECTION 1" 1" 1/4 1" 1/2 2" 2" 1/2 3" 4" 5" 6" 8"
FREE LENGTH 260 mm 275 mm 275 mm 300 mm 300 mm 305 mm 310 mm 320 mm 350 mm 360 mm
