Download Product Data Sheet

Fiscal Turbine Gas Meters

Model TRZ2

FOR OTHER FLOW RATES ASK FOR QUOTANTIONS TO OUR TECHNICAL DEPARTMENTS

sku model price info add to cart

00000050650

FISCAL TURBINE GAS METERS - TRZ G65 DN50

€4.491,90 Excl. Taxes

Physical data

UM Base:
PZ

Dimension:
37 × 27 × 36 cm

Volume:
0.036 m3

Weight:
11,20 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90281000
Buy
Info Request

00000050651

FISCAL TURBINE GAS METERS - TRZ G100 DN80

€4.974,90 Excl. Taxes

Physical data

UM Base:
PZ

Dimension:
40 × 32 × 37 cm

Volume:
0.0474 m3

Weight:
21,20 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90281000
Buy
Info Request

00000050652

FISCAL TURBINE GAS METERS - TRZ G160 DN80

€4.974,90 Excl. Taxes

Physical data

UM Base:
PZ

Dimension:
37 × 27 × 36 cm

Volume:
0.036 m3

Weight:
21,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90281000
Buy
Info Request

00000050653

FISCAL TURBINE GAS METERS - TRZ G250 DN80

€4.974,90 Excl. Taxes

Physical data

UM Base:
PZ

Dimension:
37 × 27 × 36 cm

Volume:
0.036 m3

Weight:
21,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90281000
Buy
Info Request

00000050654

FISCAL TURBINE GAS METERS - TRZ G250 DN80

€5.600,00 Excl. Taxes

Physical data

UM Base:
PZ

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90281000
Buy
Info Request

00000050655

FISCAL TURBINE GAS METERS - TRZ G250 DN100

€5.600,00 Excl. Taxes

Physical data

UM Base:
PZ

Dimension:
39 × 33 × 38 cm

Volume:
0.0489 m3

Weight:
27,80 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90281000
Buy
Info Request

00000050656

FISCAL TURBINE GAS METERS - TRZ G400 DN100

€5.600,00 Excl. Taxes

Physical data

UM Base:
PZ

Dimension:
26 × 27 × 22 cm

Volume:
0.0157 m3

Weight:
10,80 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90281000
Buy
Info Request

Product informations

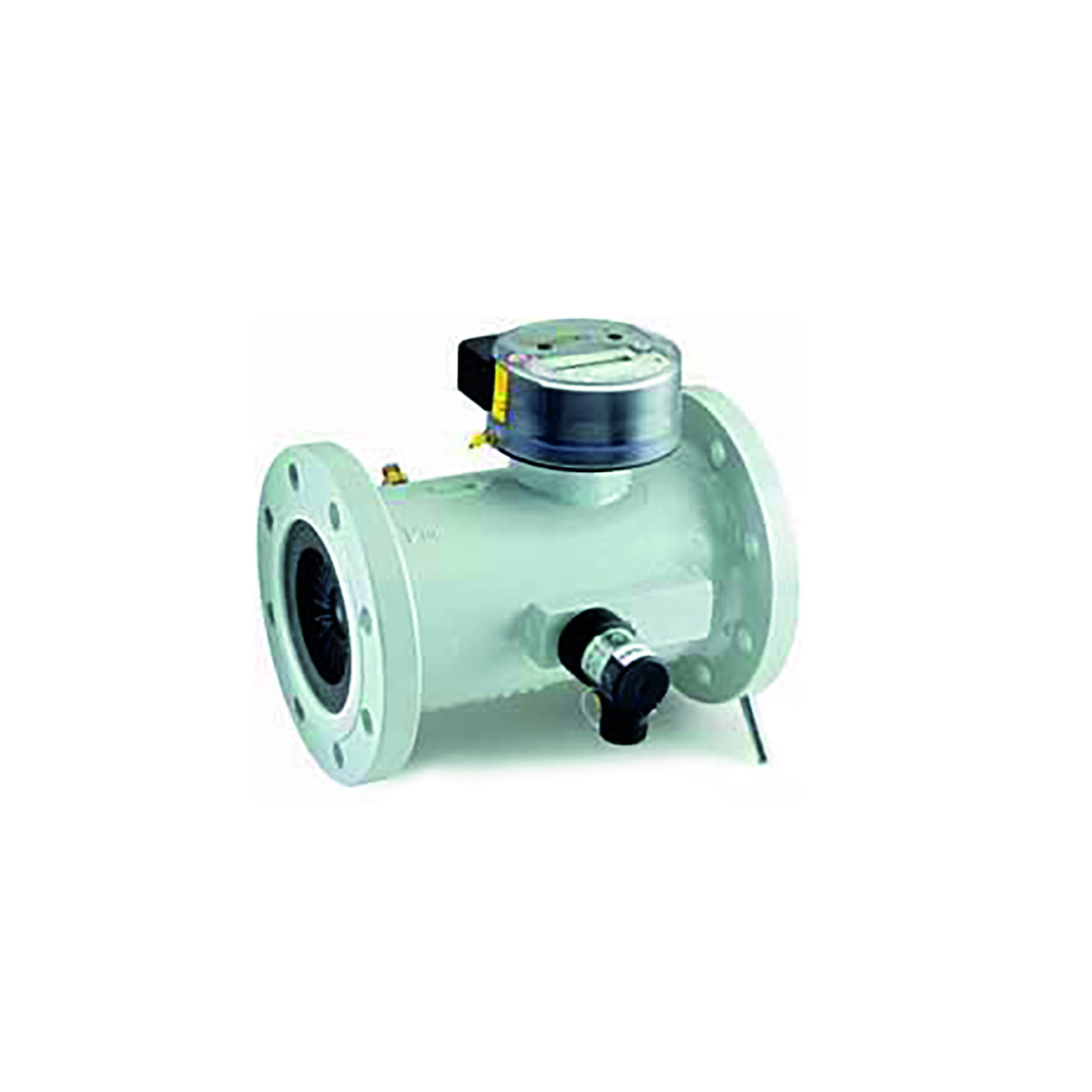

TRZ2, fiscal turbine gas meters particularly suitable for their high measurement accuracy, stability over time and their compact design; designed for testing systems, given their high precision and reproducibility, their turbines are particularly suitable for use as sample counters.



Materials

Depending on the pressure used, the case is constructed of ductile iron, steel, or welded steel; these meters meet stringent safety standards and are fireproof (HTB). For greater precision, the impeller is made of aluminum.



Product features

  • turbine gas meters with measuring cartridge
  • standard flow rectifier
  • thermowell on the gas meter case (optional)
  • verified and certified by the national metric office
  • PTB and European (CEE) and international approvals
  • suitable for natural gas, refinery gas, town gas, butane, ethylene, air, nitrogen and other gases on request
  • high frequency pulse generator (optional)
  • absolute ENCODER S1 (optional)

Technical Features

SIZE G 65 - G 1000
FLOW RATES 5 - 1600 m3/h
RATIO 1:20
NOMINAL DIAMETERS DN50 - DN150
PRESSURE RANGE PN 10 - 16 and ANSI 150 - 600
LENGTH 3 DN
DEGREE OF PROTECTION IP67 (protected against short immersions, up to 1 m deep and completely hermetic against dust and fumes)
COMPLIANCE manufactured in accordance with DIN EN ISO 9001:2000 (DIN EN ISO 14001), and meet European requirements and international rule (EN 12261, OIML, etc..)
