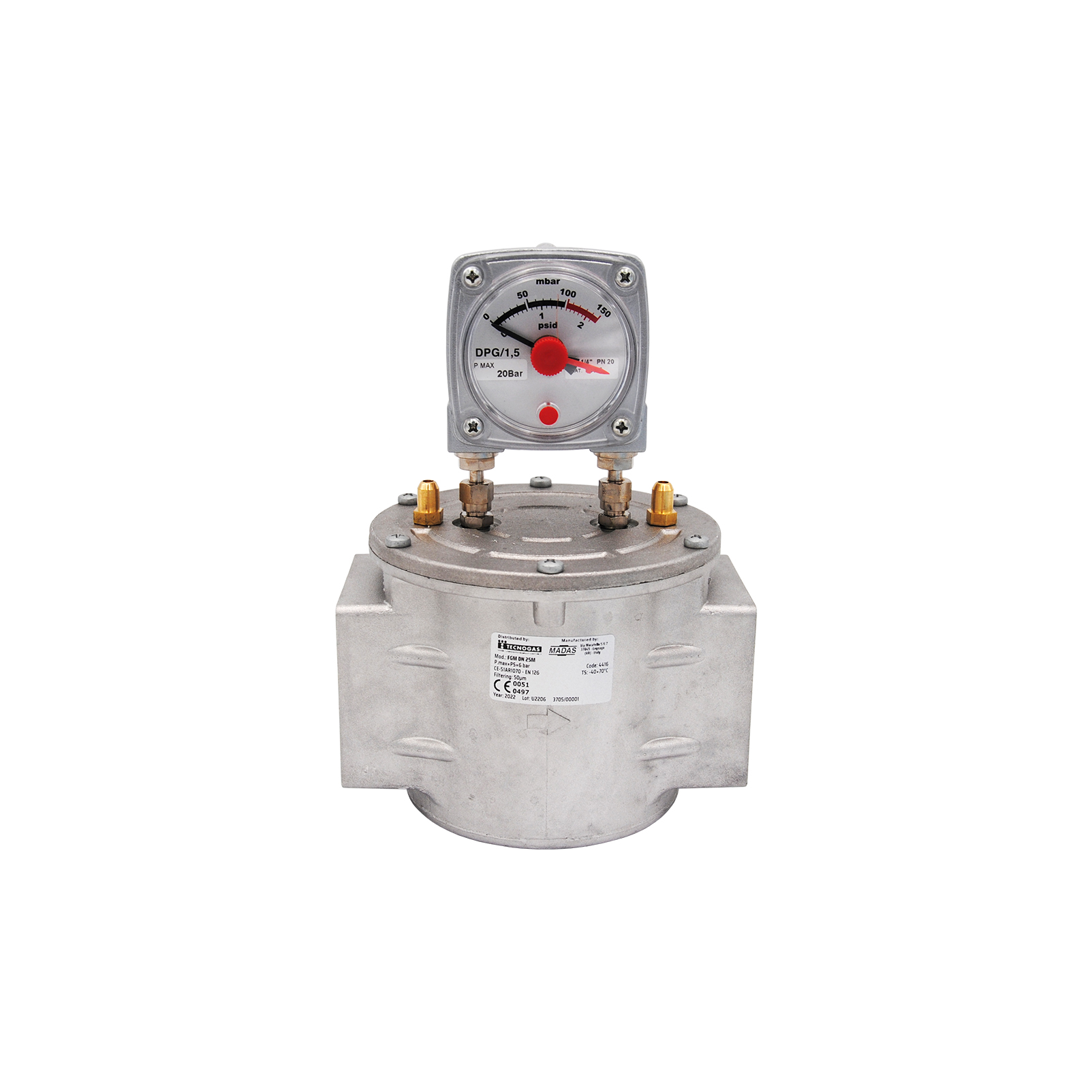

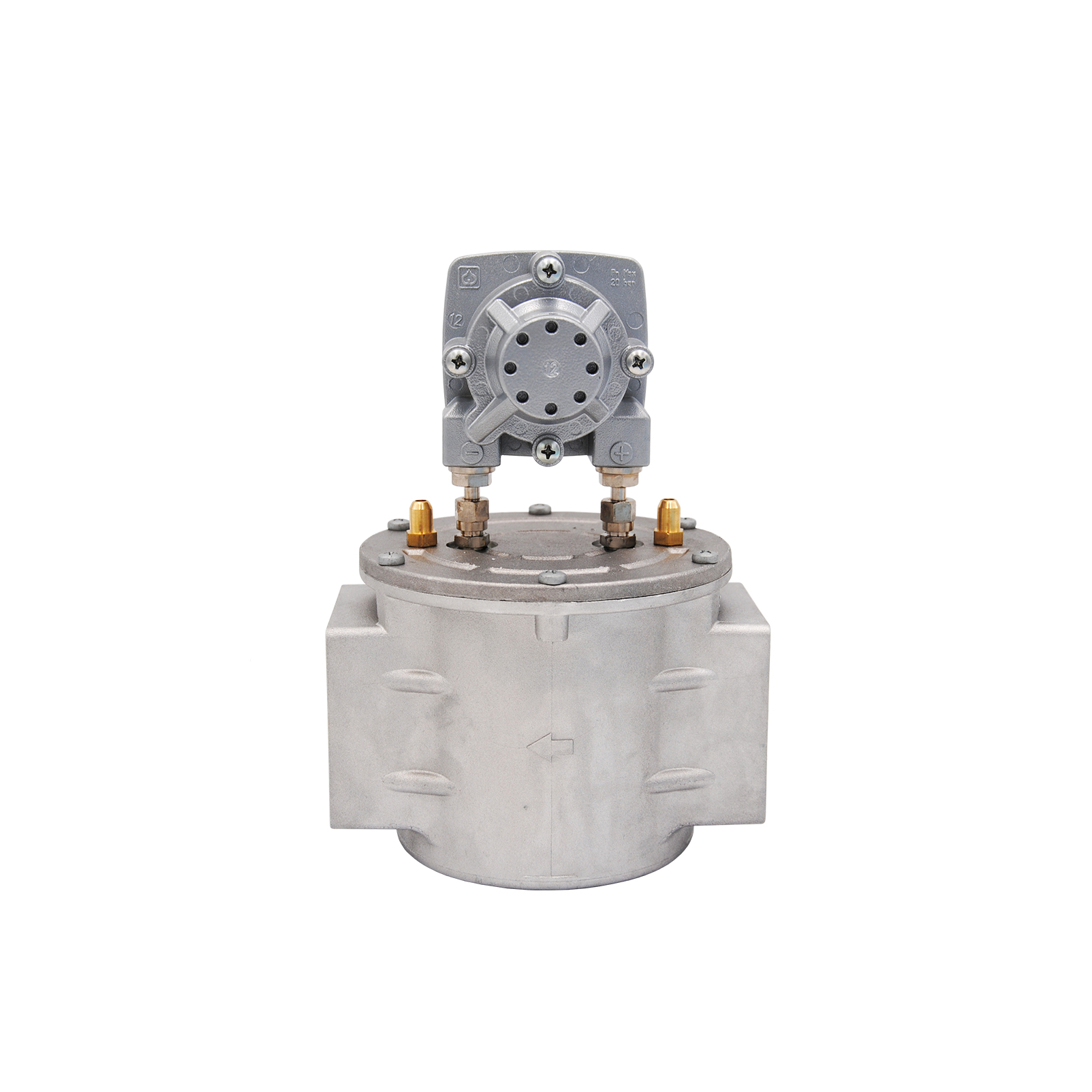

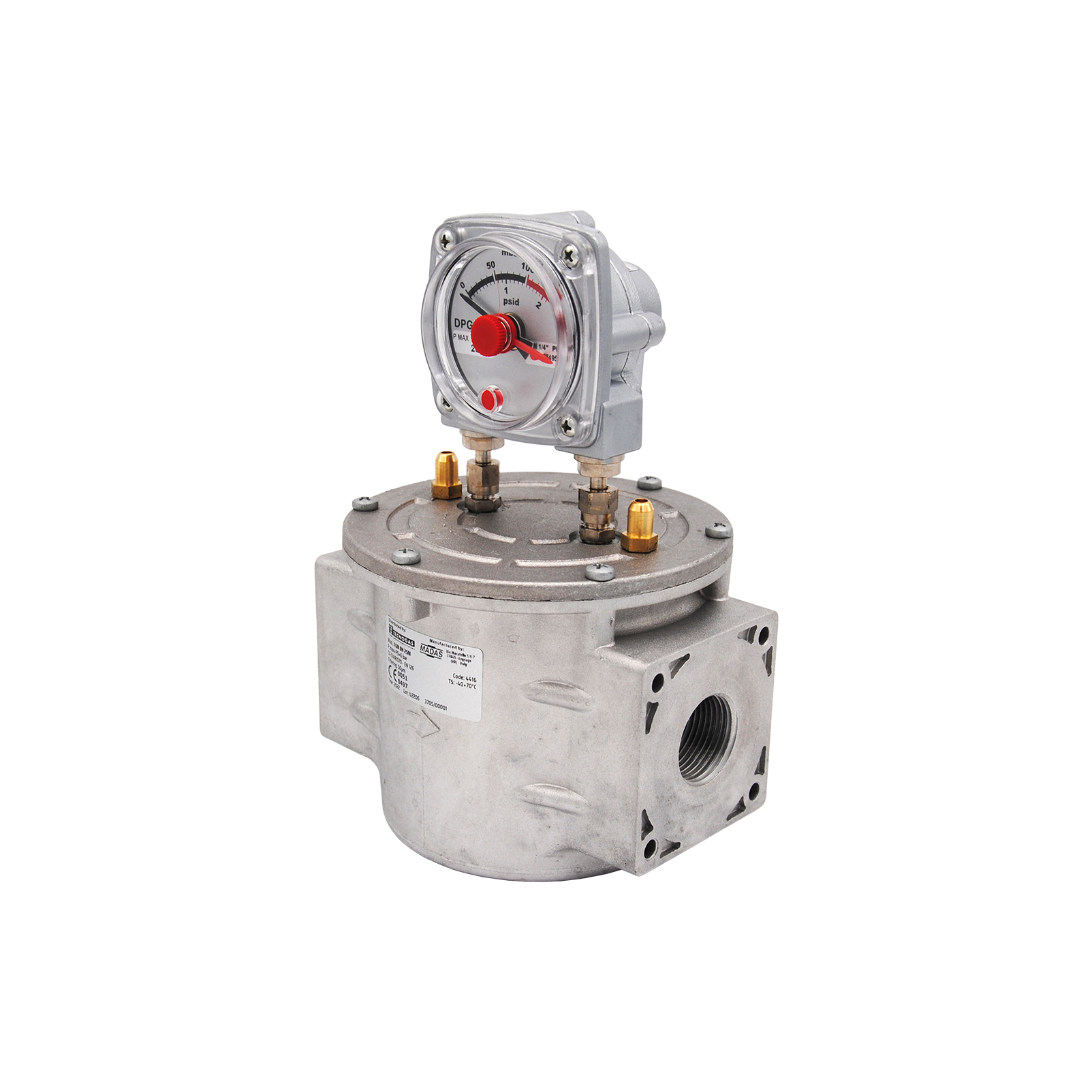

Cartridge Filter for LPG/Methane Gas
Max inlet pressure 6 bar
COMPLIANT WITH THE EN 126 RULE AND THE PED 2014/68/EU DIRECTIVE
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000004416 |
CARTRIDGE FILTER FOR LPG/METHANE GAS - Ø 1" connections |
€344,20 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000004417 |
CARTRIDGE FILTER FOR LPG/METHANE GAS - Ø 1" 1/2 connections |
€341,75 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000004419 |
CARTRIDGE FILTER FOR LPG/METHANE GAS - Ø 2" connections |
€345,40 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000004422 |
REPLACEMENT CARTRIDGE FOR FILTER SKU 4416 |
€7,90 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000004423 |
REPLACEMENT CARTRIDGE FOR FILTER SKU 4417 |
€25,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000004424 |
REPLACEMENT CARTRIDGE FOR FILTER SKU 4419 |
€7,90 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
Device that detain the dust particles transported by the gas and protects the system from possible obstruction, inside there is a filtering cartridge made of washable and completely removable synthetic material for complete inspection, cleaning and/or replacement.
Product features
- differential pressure gauge already installed
- possibility of at right angles use

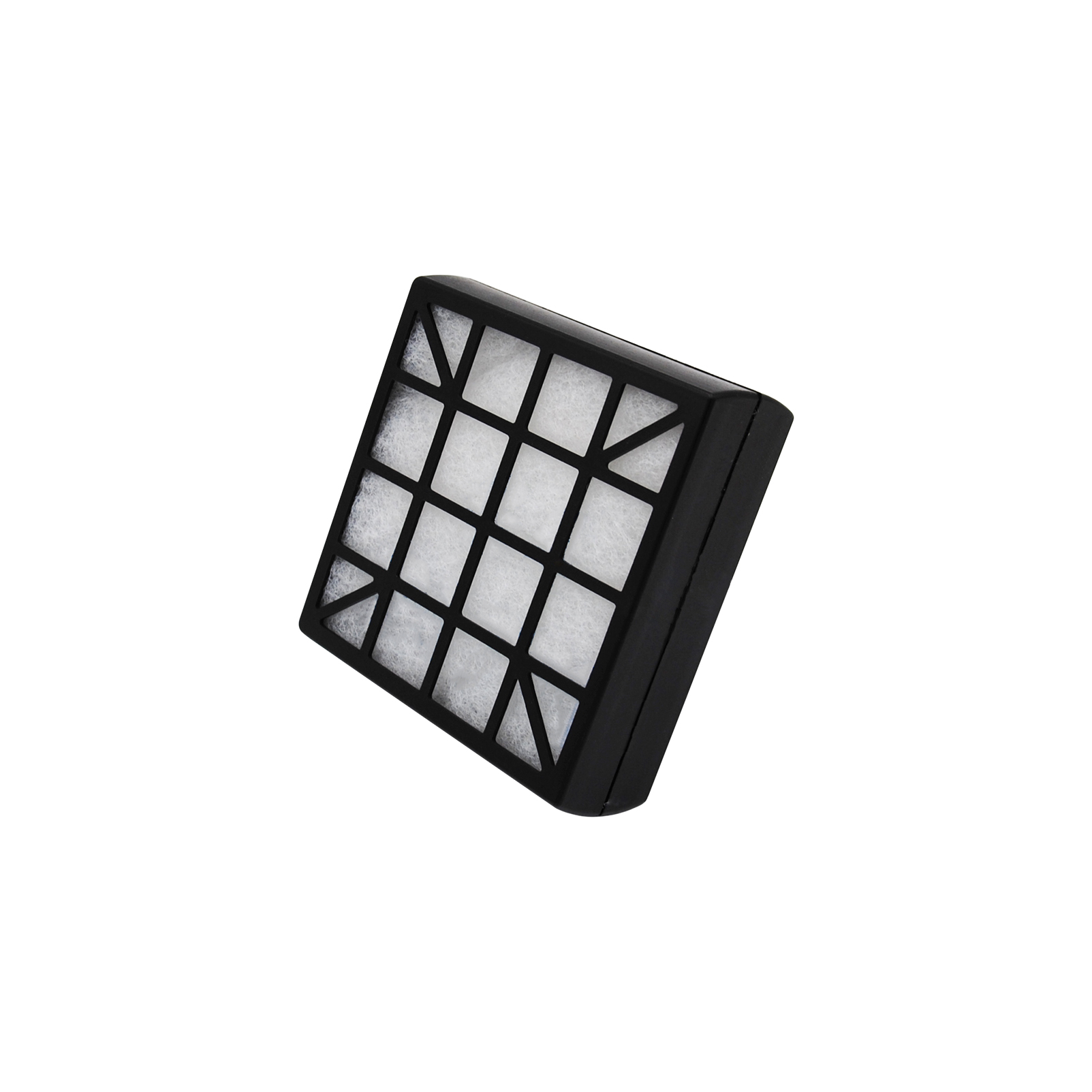

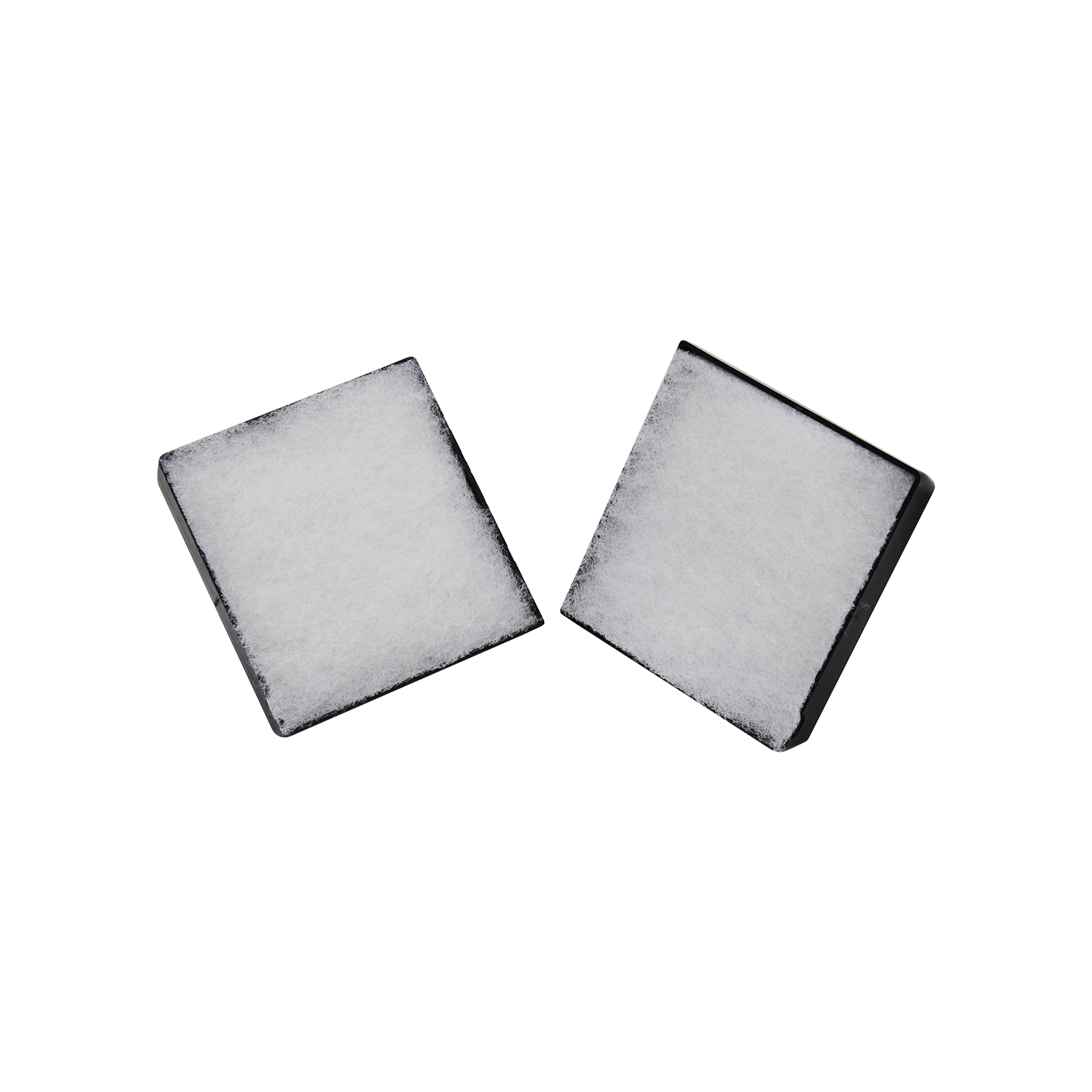

Replacement cartridges also available (sku 4422 / 4423 / 4424).
Technical Features
| USE | not aggressive gases of the three families (dry gases) |
|---|---|
| FLOW RATE | see data sheet in downloads below |
| MAX INLET PRESSURE | 6 bar |
| FILTRATION DEGREE | 50 µm |
| OPERATING TEMPERATURE | - 40°C ÷ + 70°C |
| INLET / OUTPUT CONNECTION |
|
| MATERIALS | built in aluminum |

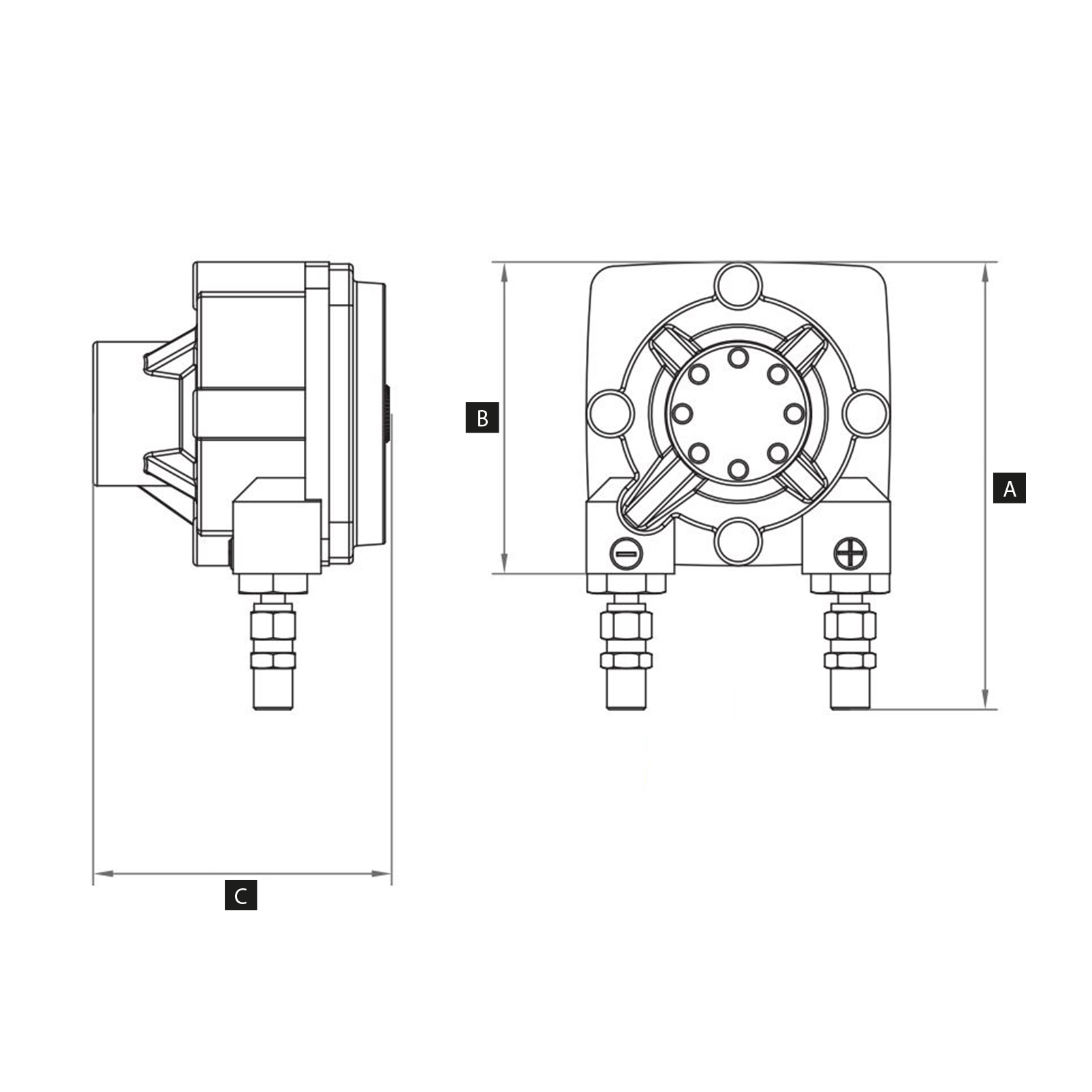

| PRESSURE GAUGE DIMENSIONS | 112 x 75 x 78 mm (AxBxC) |

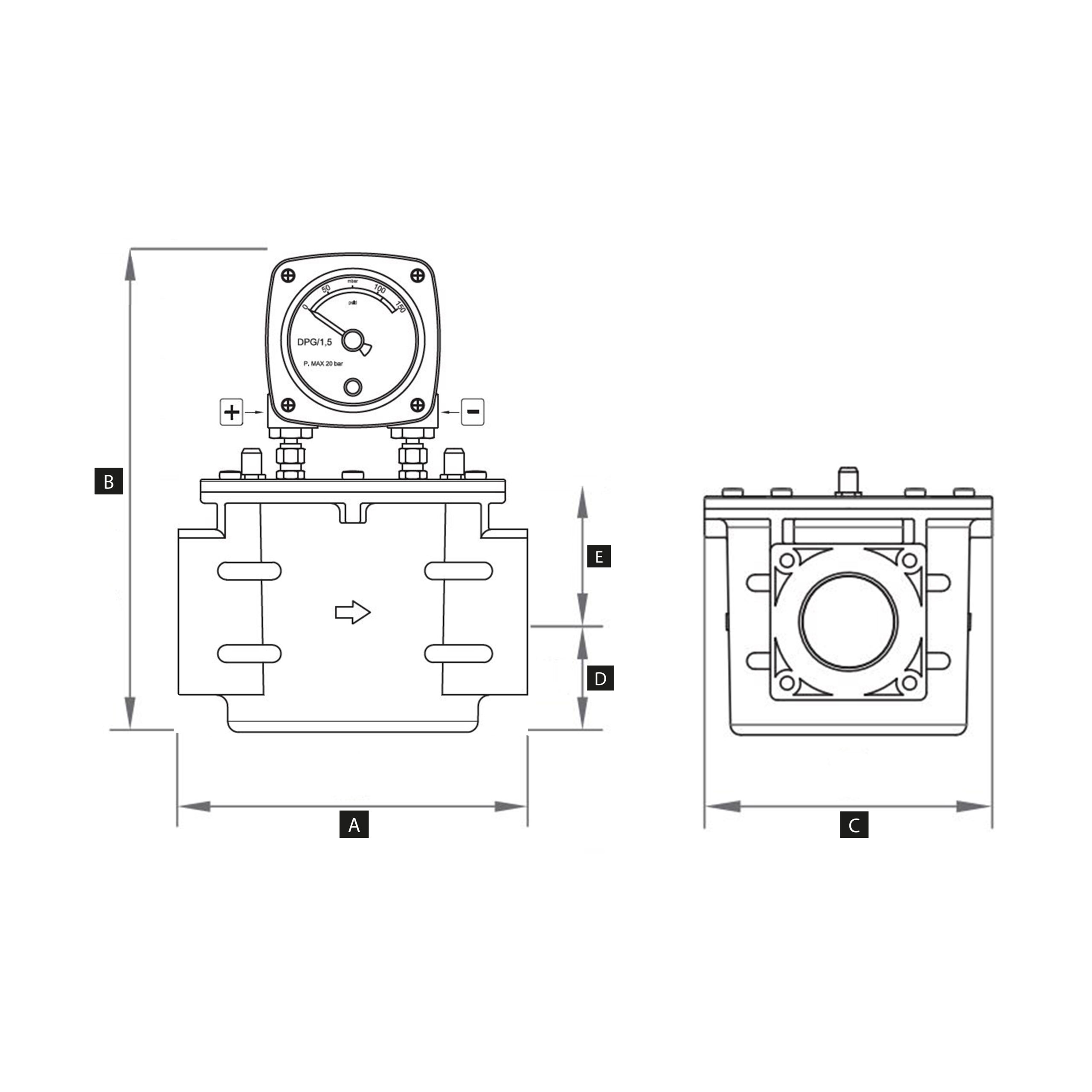

| OVERALL DIMENSIONS | ||||||
|---|---|---|---|---|---|---|
| SKU | TYPE OF CONNECTION | A | B | C | D | E |
| 4416 | threaded | 160 mm | 245 mm | 140 mm | 55 mm | 78 mm |
| 4417 | threaded | 160 mm | 245 mm | 140 mm | 55 mm | 78 mm |
| 4419 | threaded | 160 mm | 245 mm | 140 mm | 55 mm | 78 mm |
