Download Product Data Sheet

Methane Gas Filter

FM series, at 2 and/or 6 bar functioning

THE 1" - 1" 1/4 - 1" 1/2 -2" FILTERS CAN BE SUPPLIED WITH DN25 - DN 32 - DN 40 AND DN 50 FLANGE CONNECTIONS, ASK FOR A QUOTATION FROM OUR SALES OFFICE

COMPLIANT WITH THE EN 126 RULE AND THE PED 2014/68/EU DIRECTIVE

sku model price info add to cart

00000004461

FM SERIES METHANE FILTER - 1/2" FF connections - 2 bar

€37,85 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
11 × 14 × 8 cm

Volume:
0.0013 m3

Weight:
0,54 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000004462

FM SERIES METHANE FILTER - 3/4" FF connections - 2 bar

€37,85 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
11 × 13 × 8 cm

Volume:
0.0012 m3

Weight:
0,55 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000004463

FM SERIES METHANE FILTER - 1" FF connections - 2 bar

€37,85 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
12 × 7 × 10 cm

Volume:
0.0008 m3

Weight:
0,53 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000004464

FM SERIES METHANE FILTER - 1" 1/4 FF connections - 2 bar

€61,90 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
18 × 15 × 11 cm

Volume:
0.003 m3

Weight:
1,34 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000004465

FM SERIES METHANE FILTER - 1" 1/2 FF connections - 2 bar

€61,90 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
15 × 18 × 11 cm

Volume:
0.003 m3

Weight:
1,28 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000004466

FM SERIES METHANE FILTER - 2" FF connections - 2 bar

€73,10 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
14 × 16 × 10 cm

Volume:
0.0024 m3

Weight:
1,33 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

000004461/6

FM SERIES METHANE FILTER - 1/2" FF connections - 6 bar

€41,65 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
11 × 13 × 8 cm

Volume:
0.0012 m3

Weight:
0,68 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

000004462/6

FM SERIES METHANE FILTER - 3/4" FF connections - 6 bar

€41,65 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
11 × 13 × 8 cm

Volume:
0.0013 m3

Weight:
0,65 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

000004463/6

FM SERIES METHANE FILTER - 1" FF connections - 6 bar

€41,65 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
11 × 13 × 8 cm

Volume:
0.0012 m3

Weight:
0,65 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

000004464/6

FM SERIES METHANE FILTER - 1" 1/4 FF connections - 6 bar

€75,60 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
15 × 18 × 11 cm

Volume:
0.003 m3

Weight:
1,34 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

000004465/6

FM SERIES METHANE FILTER - 1" 1/2 FF connections - 6 bar

€75,60 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
15 × 18 × 11 cm

Volume:
0.003 m3

Weight:
1,26 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

000004466/6

FM SERIES METHANE FILTER - 2" FF connections - 6 bar

€80,80 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
14 × 16 × 10 cm

Volume:
0.0024 m3

Weight:
1,33 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

Product informations

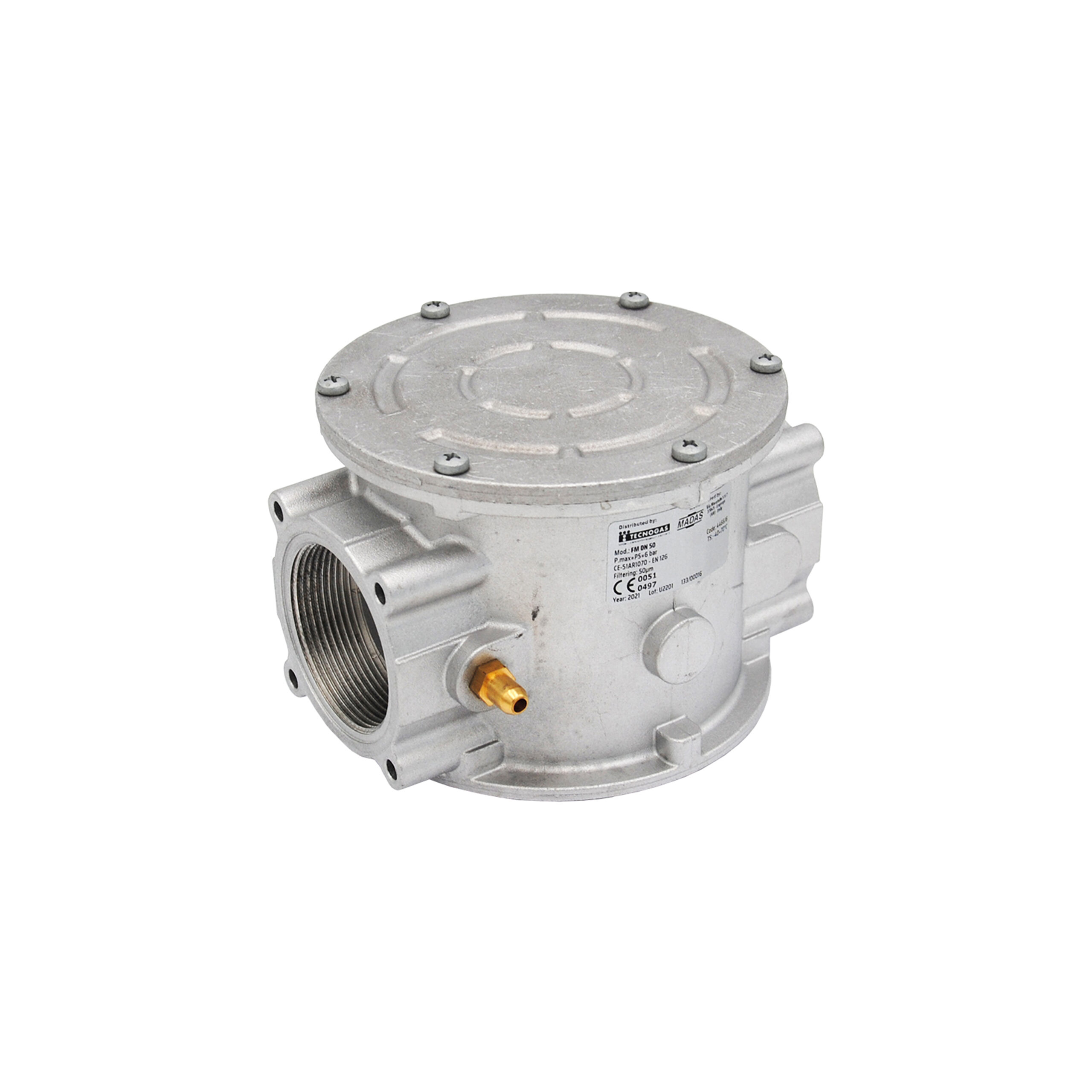

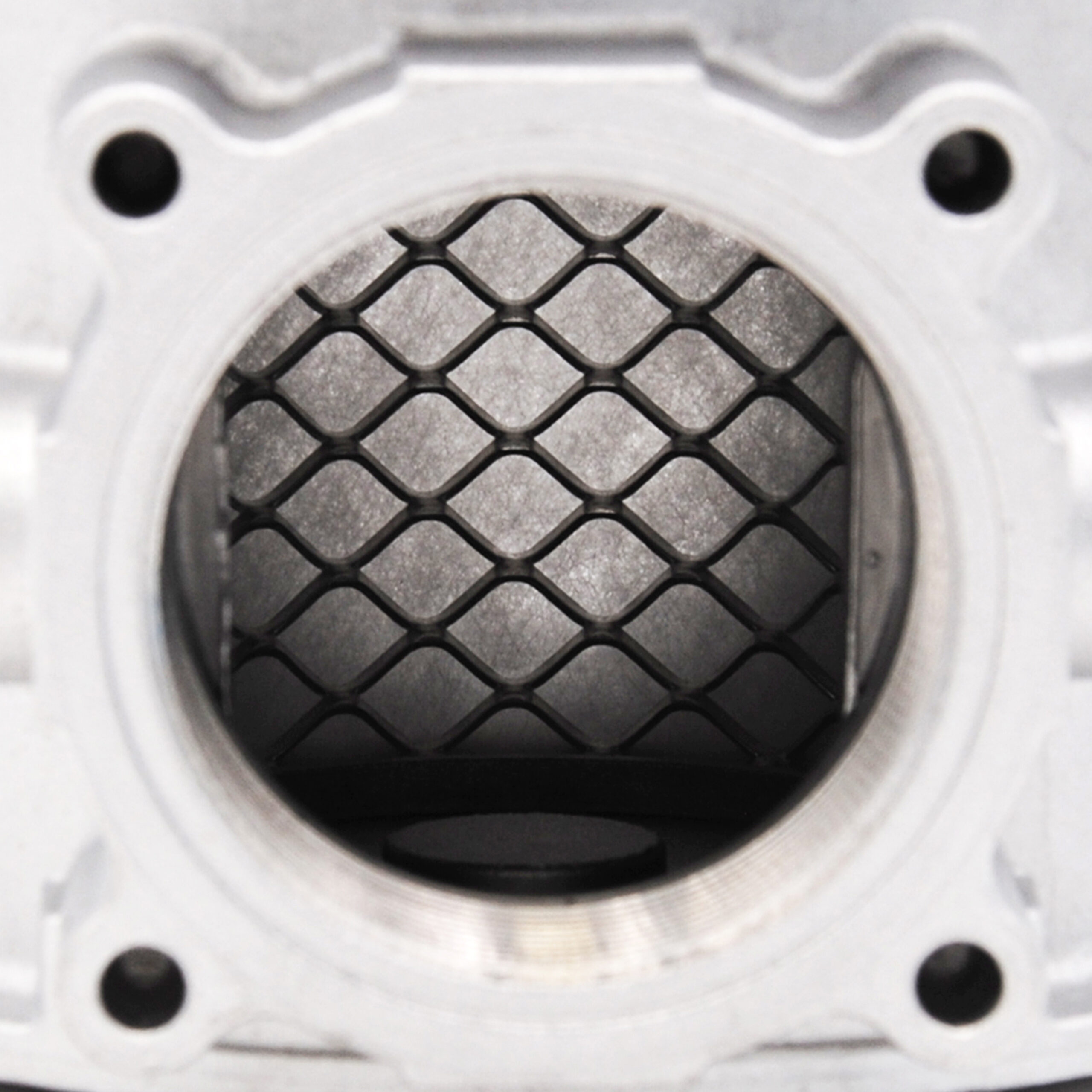

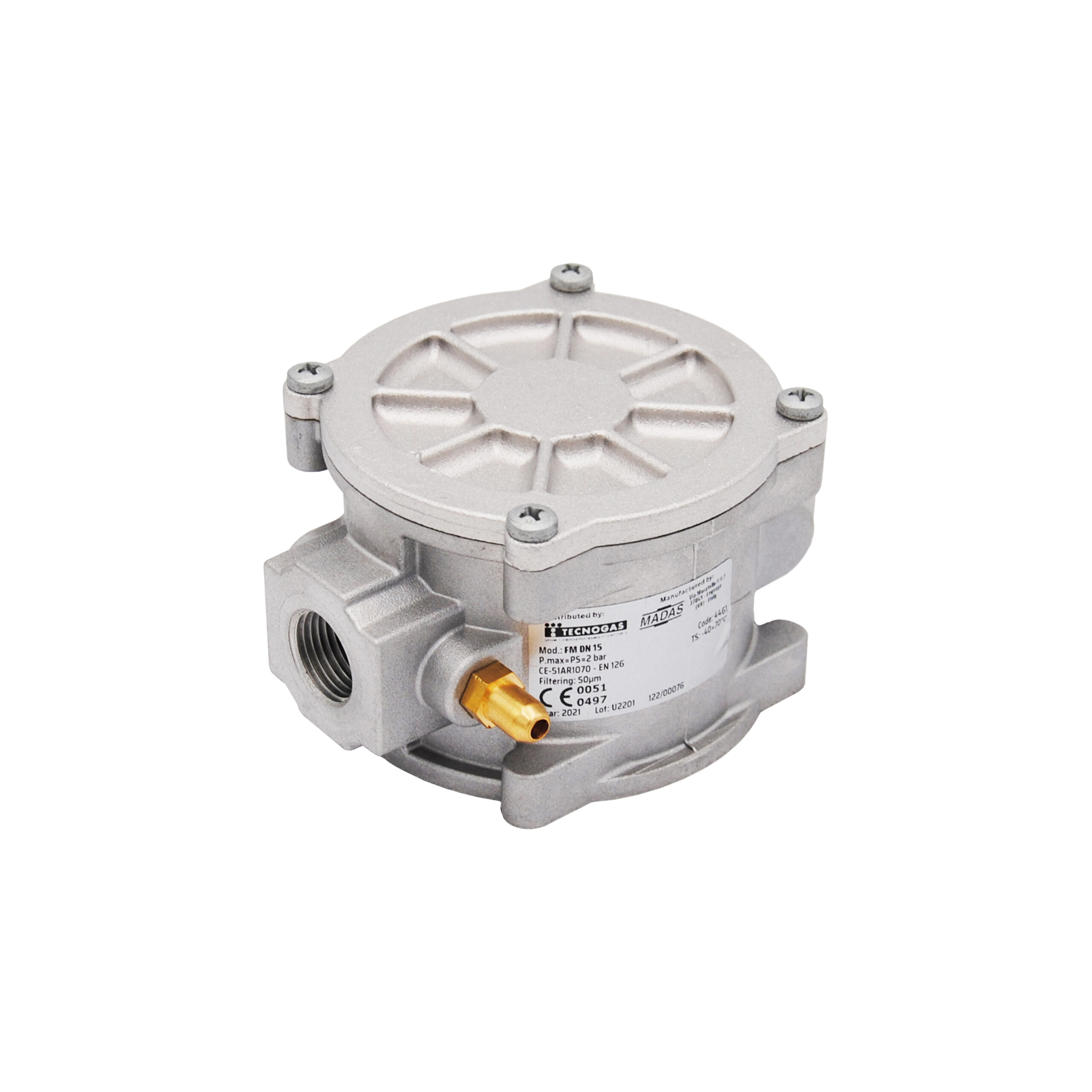

Filter for methane gas, composed of a filter cartridge made of washable and completely removable synthetic material for total inspection, cleaning and/or replacement; this device holds the dust particles carried by the gas and protects the all system from possible obstructions. Equipped with inlet pressure tap for pressure control.

Also available the version for Biogas.

Technical Features

USE not aggressive gases of the three families (dry gases)
FLOW RATE see data sheet in downloads below
MAXIMUM WORKING PRESSURE
  • 2 bar (sku 4461 - 4462 - 4463 - 4464 - 4465 - 4466)
  • 6 bar (sku 4461/6 - 4462/6 - 4463/6 - 4464/6 - 4465/6 - 4466/6)
FILTERING DEGREE ≤ 50 µm
MECHANICAL RESISTANCE group 2 (according to EN 13166)
OPERATING TEMPERATURE - 20°C ÷ + 70°C
MATERIALS aluminum body

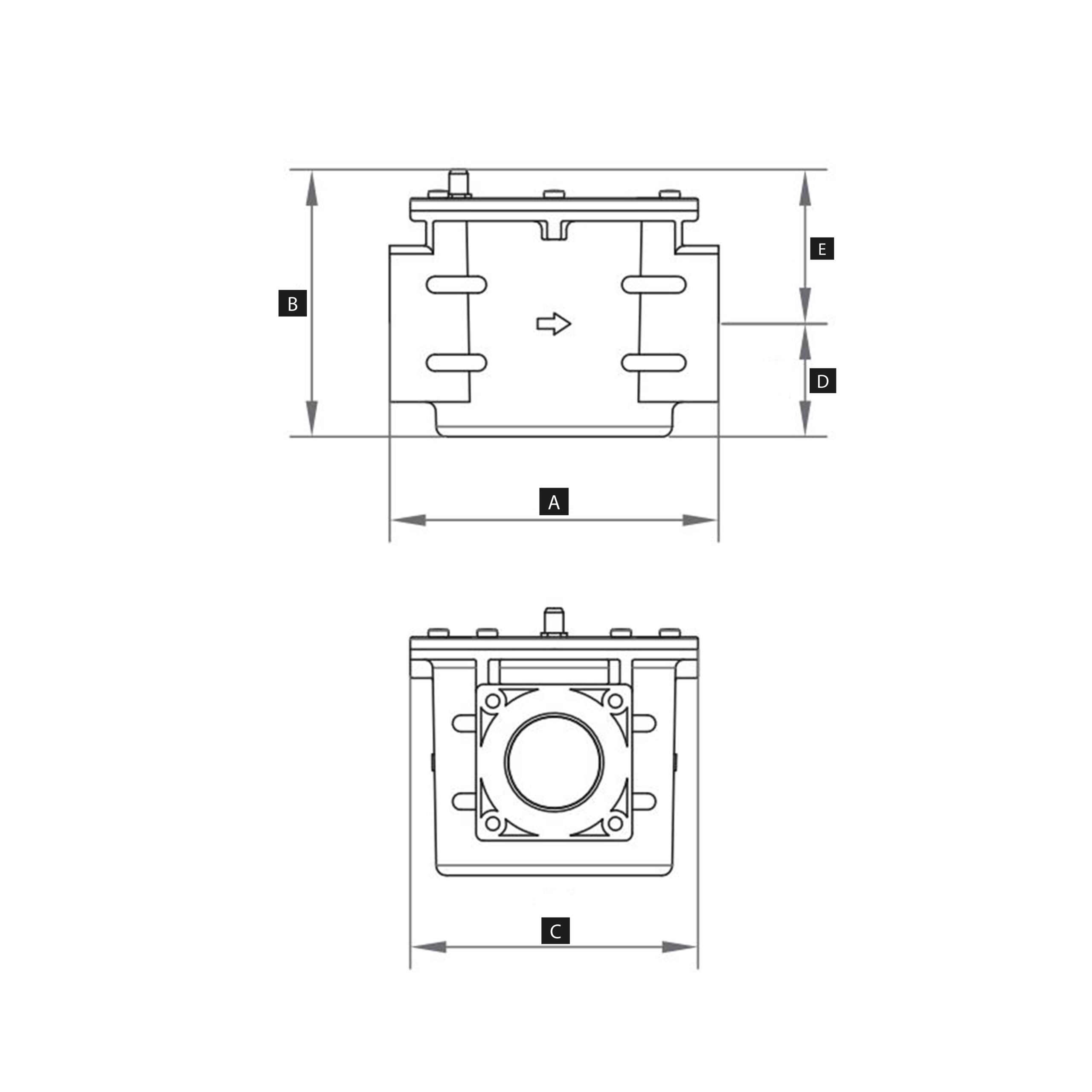

OVERALL DIMENSIONS
SKU CONNECTIONS A B C D E
4461 1/2" FF 120 mm 71 mm 94 mm 29,5 mm 41,5 mm
4462 3/4" FF 120 mm 71 mm 94 mm 29,5 mm 41,5 mm
4463 1" FF 120 mm 71 mm 94 mm 29,5 mm 41,5 mm
4464 1" 1/4 FF 160 mm 87 mm 140 mm 37 mm 50 mm
4465 1" 1/2 FF 160 mm 87 mm 140 mm 37 mm 50 mm
4466 2" 160 mm 113 mm 140 mm 45,5 mm 67,5 mm
4461/6 1/2" FF 120 mm 75 mm 94 mm 29,5 mm 45,5 mm
4462/6 3/4" FF 120 mm 75 mm 94 mm 29,5 mm 45,5 mm
4463/6 1" FF 120 mm 75 mm 94 mm 29,5 mm 45,5 mm
4464/6 1" 1/4 FF 160 mm 87 mm 140 mm 37 mm 50 mm
4465/6 1" 1/2 FF 160 mm 87 mm 140 mm 37 mm 50 mm
4466/6 2" FF 160 mm 113 mm 140 mm 45,5 mm 67,5 mm
