Download Product Data Sheet

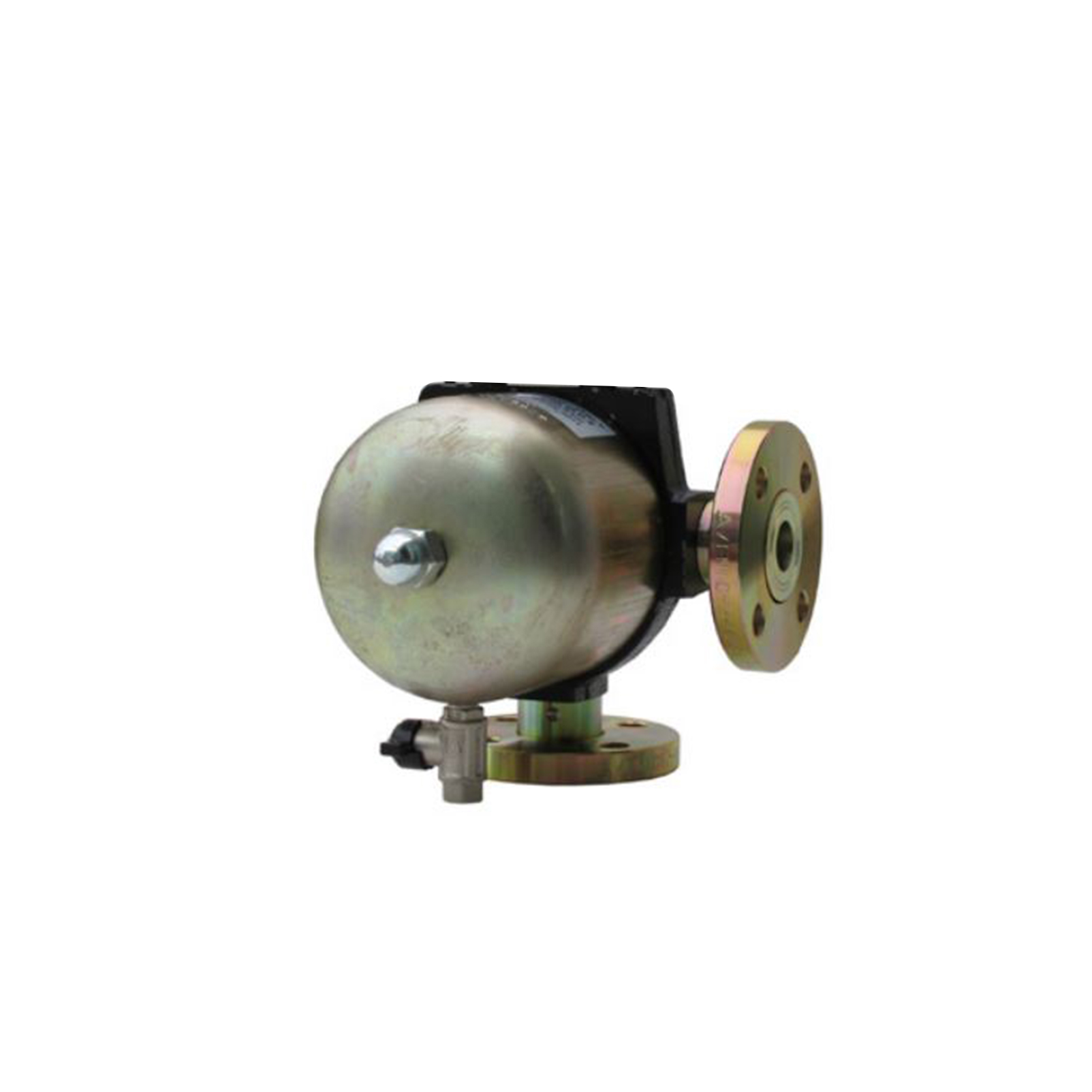

Flanged Filter for Methane Gas PN16

G 0,5 cartridge model

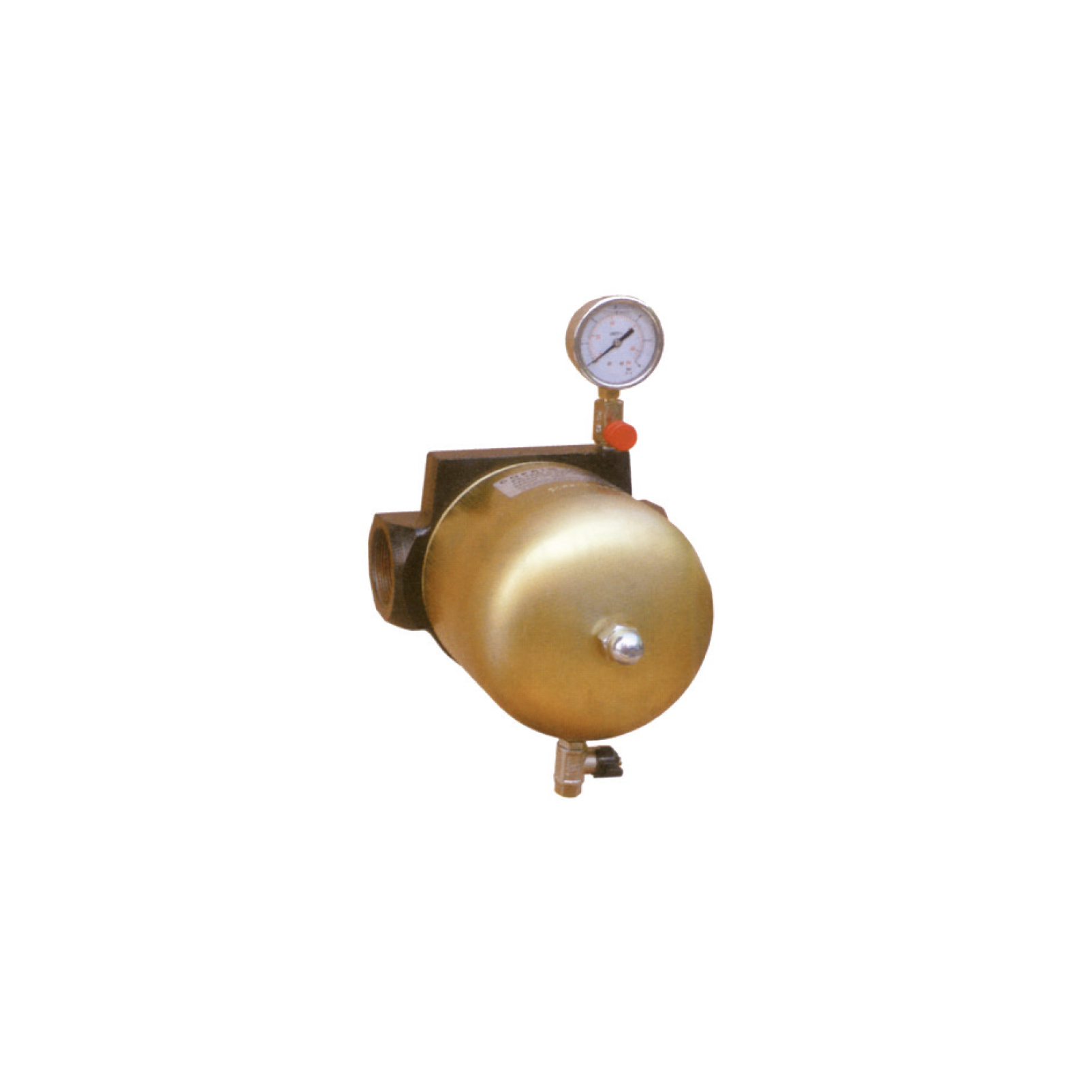

ON REQUEST, ALSO AVAILABLE COMPLETE WITH DIFFERENTIAL PRESSURE GAUGE

sku model price info add to cart

00000004496

FLANGED FILTER FOR METHANE GAS Mod. G 0,5 IN LINE - 1" x 1" connections

€513,00 Excl. Taxes

Physical data

UM Base:
PZ

Dimension:
23 × 16 × 24 cm

Volume:
0.0088 m3

Weight:
5,56 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818099
Buy
Info Request

00000004497

FLANGED FILTER FOR METHANE GAS Mod. G 0,5 SQUARE - 1" x 1" connections

€513,00 Excl. Taxes

Physical data

UM Base:
PZ

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818099
Buy
Info Request

00000004498

FLANGED FILTER FOR METHANE GAS Mod. G 0,5 IN LINE - DN 25 x DN 25 connections

€684,00 Excl. Taxes

Physical data

UM Base:
PZ

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818099
Buy
Info Request

00000004499

FLANGED FILTER FOR METHANE GAS G Mod. G 0,5 SQUARE - DN 25 x DN 25 connections

€684,00 Excl. Taxes

Physical data

UM Base:
PZ

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818099
Buy
Info Request

Product informations

Cartridge filter for methane gas G 0,5 model, designed to detain the solid particles carried by the gas, protecting the entire system from possible obstruction.



Technical Features

INLET PRESSURE 8 bar
FILTERING DEGREE 5 micron
INLET CONNECTION
  • 1" - sku 4496 / 4497
  • DN 25 PN 16 - sku 4498 / 4499
OUTPUT CONNECTION
  • 1" - sku 4496 / 4497
  • DN 25 PN 16 - sku 4498 / 4499
OPERATING TEMPERATURE - 15°C ÷ + 60°C
MATERIALS polyester resin cartridge with metal support

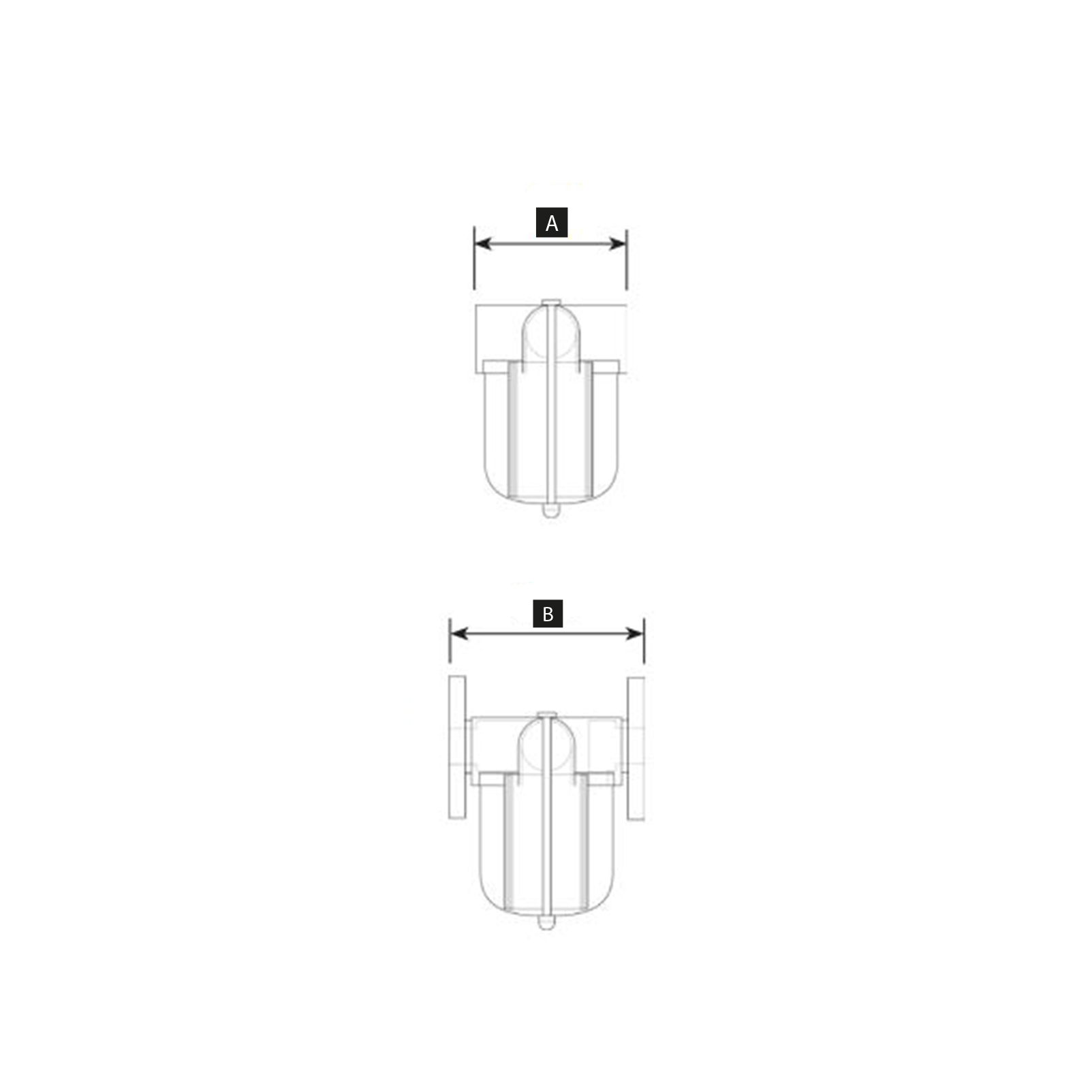

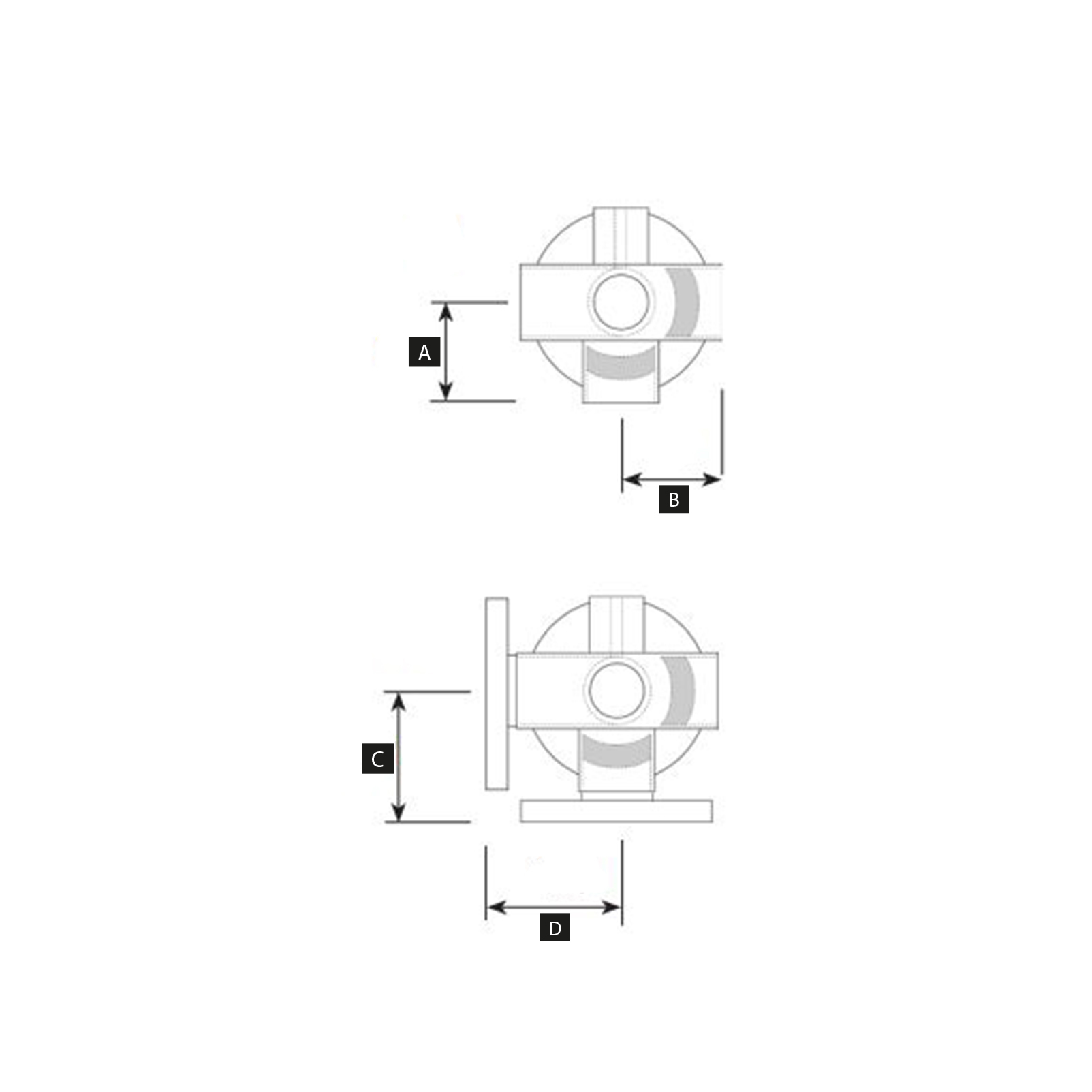

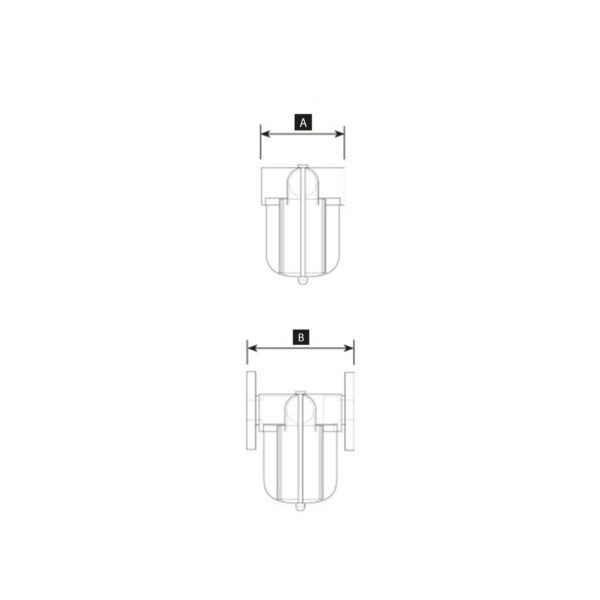

OVERALL DIMENSIONS
SKU VERSION A B C D
4496 G 0,5 - in line 150 mm 220 mm - -
4497 G 0,5 - square 80 mm 75 mm 115 mm 110 mm
4498 G 0,5 - in line 150 mm 220 mm - -
4499 G 0,5 - square 220 mm 115 mm 115 mm 110 mm
