Filling Group
With interception tap and filter
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000070131 |

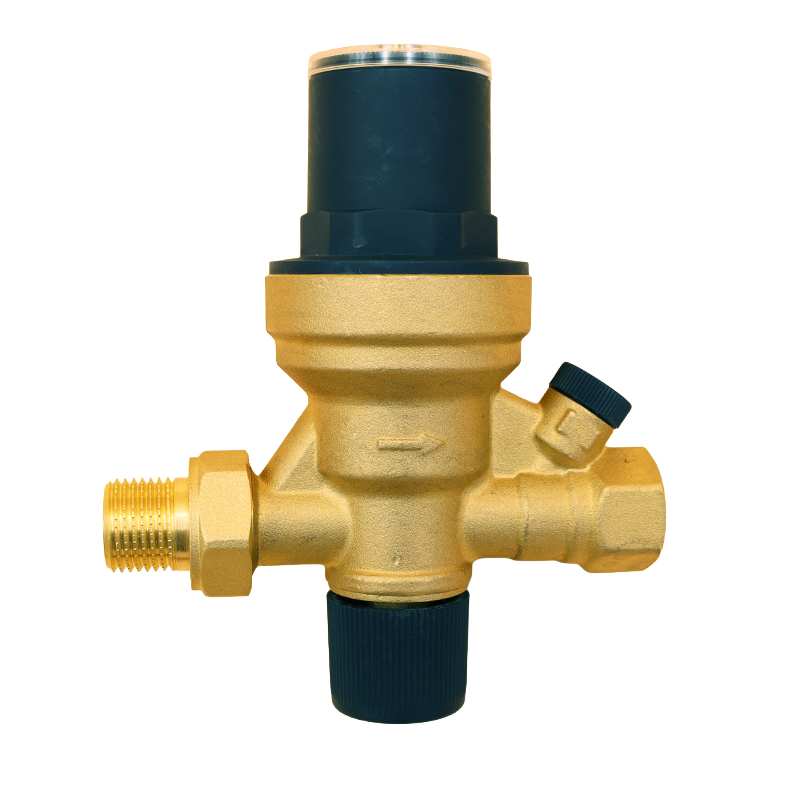

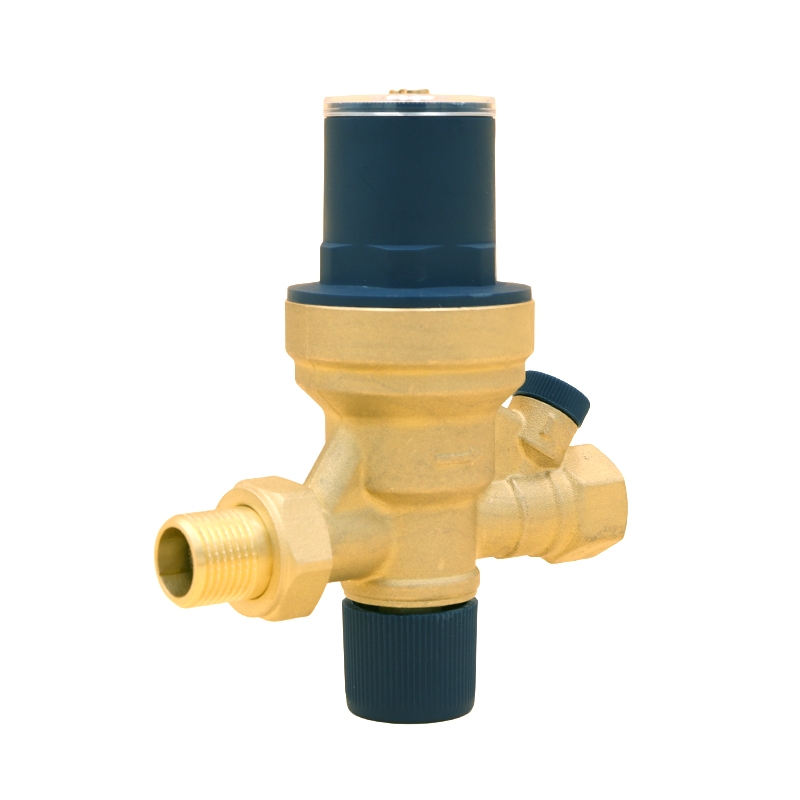

FILLING GROUP GRR - 1/2" - complete with pressure gauge |
€48,65 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

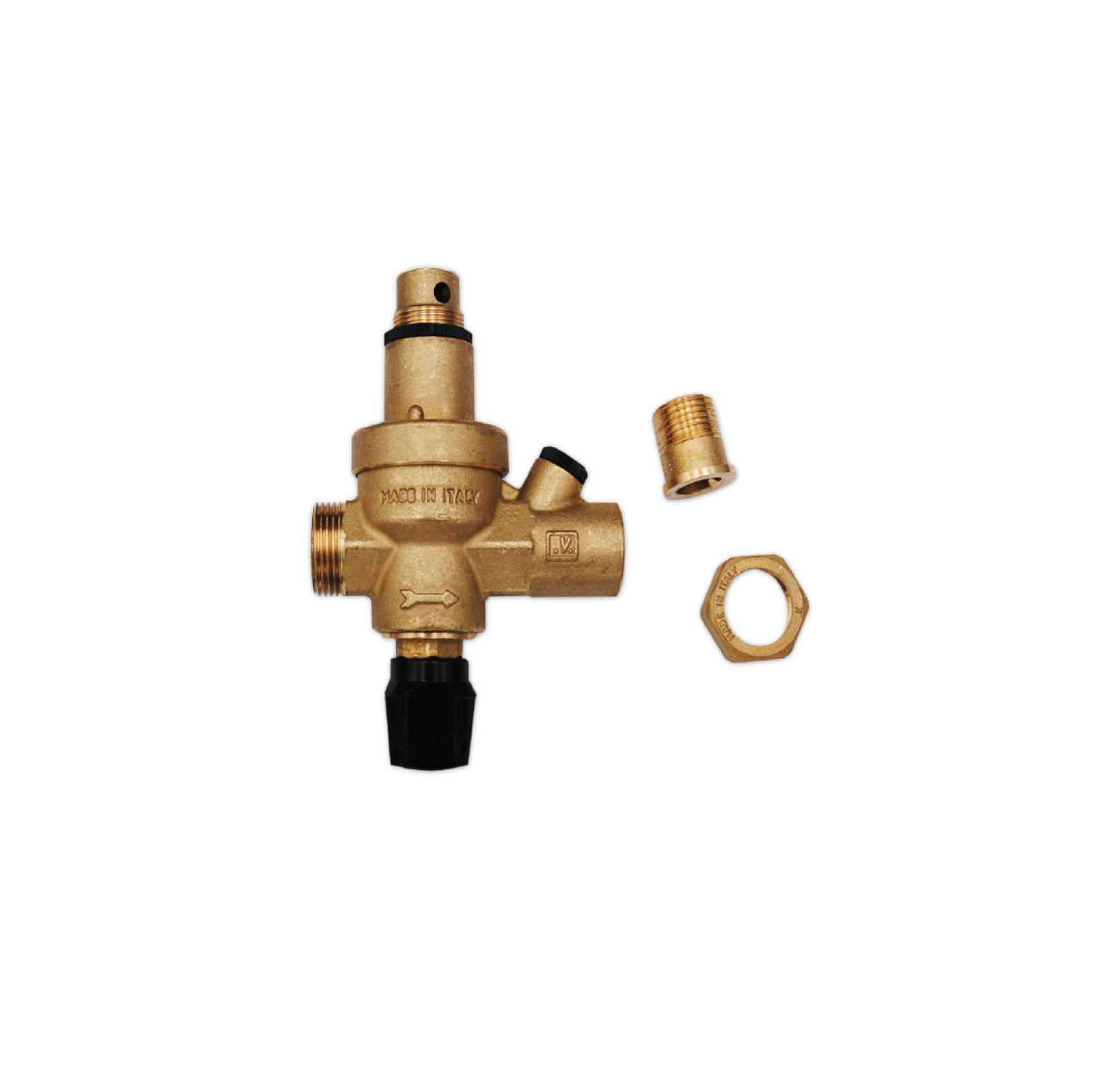

Filling group in brass, suitable for filling and stabilizing the pressure inside closed circuit heating systems, when the system pressure drops below the set level, this automatically opens, filling the water system until the correct pressure is restored.

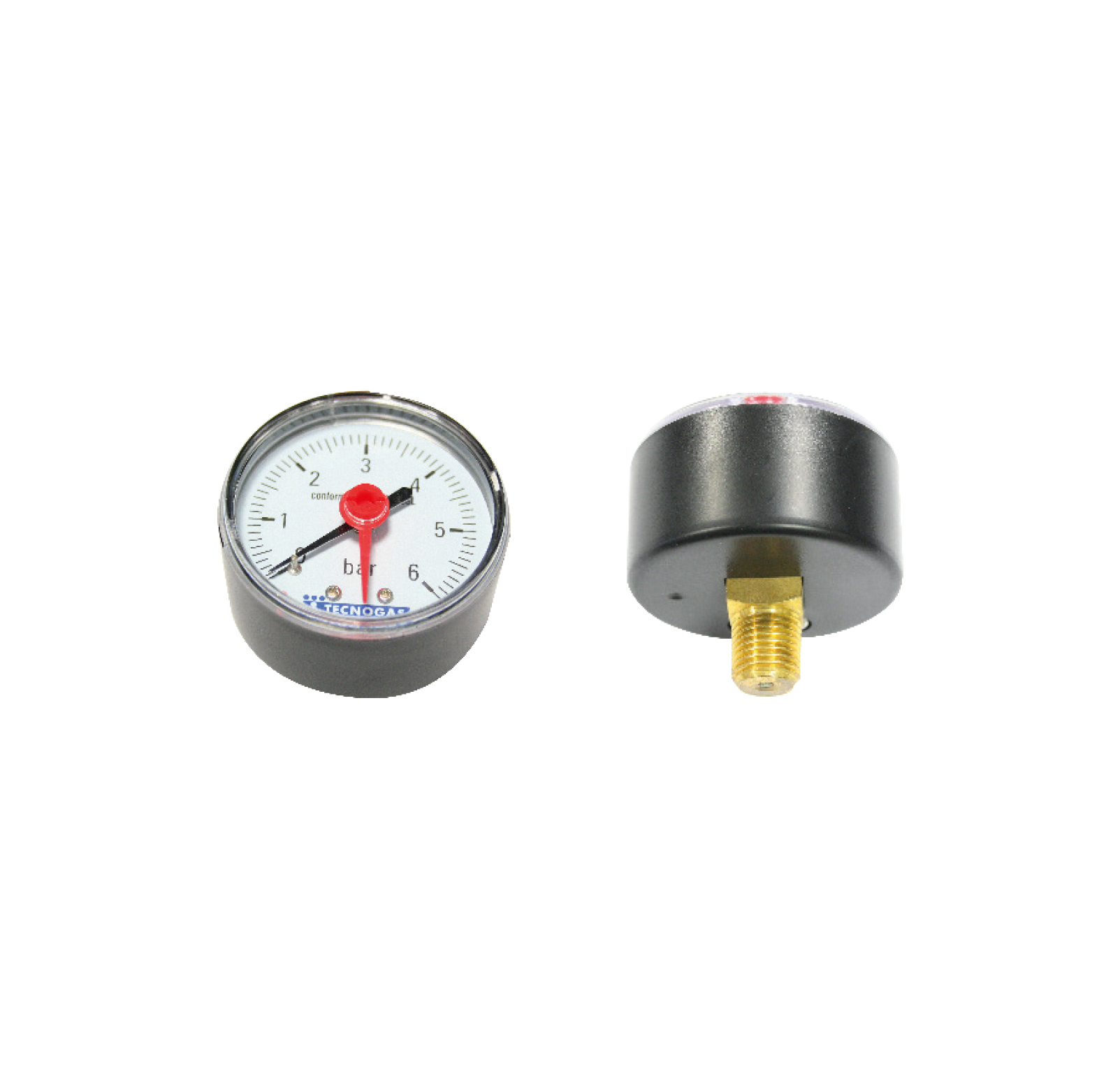

Product complete with pressure gauge with rear connection (SKU R01597)
Product features
- it can be installed in any position, in fact the product is not affected by the effects of gravity during its operation
- the incoming water flow can be stopped manually, using the integrated stopcock
- for correct operation of the entire heating system, the recommended pressure must not exceed 2 bar
- integrated filter, stopcock and check valve
- external finish in yellow brass
Technical Features
| MAX INLET PRESSURE | 16 bar |
|---|---|
| REGULATION RANGE | 0,5 bar - 4 bar (pre-setting 1.5 bar) |
| MAX TEMPERATURE | 80°C |
| CONNECTIONS | 1/2" (FF ISO 228 thread) |
| MATERIAL |
|
| DIMENSIONS | 140 x 122 mm (HxL) |
| SKU R01597 | |
|---|---|
| CASE MATERIAL | ABS |
| GLASS MATERIAL | plastic |
| QUADRANT MATERIAL | ABS |
| CLASS | 1,6 |
| MANUAL ELEMENT | copper alloy spring |
| WORKING TEMPERATURE | - 20°C ÷ + 80°C |
| COMPLIANT WITH THE STANDARD | UNI EN 837-1 |
| CONNECTIONS | 1/4" - posterior |
| DIAMETER | Ø 50 mm |
| PRESSURE | 0 ÷ 6 bar |
