Female Fitting for Copper Pipe

Brass model

COMPLIANT WITH UNI EN 1254-2 AND UNI EN 10226-1 RULES

sku model price info add to cart

00000004920

FEMALE FITTING FOR COPPER PIPE - Ø 10 mm x 3/8" F

€3,30 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
3 × 2 × 2 cm

Volume:
0 m3

Weight:
0,04 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84811099
Buy
Info Request

00000004921

FEMALE FITTING FOR COPPER PIPE - Ø 12 mm x 3/8" F

€3,20 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,03 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84811099
Buy
Info Request

00000004922

FEMALE FITTING FOR COPPER PIPE - Ø 14 mm x 3/8" F

€3,60 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84811099
Buy
Info Request

00000004923

FEMALE FITTING FOR COPPER PIPE - Ø 10 mm x 1/2" F

€5,90 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
2 × 3 × 2 cm

Volume:
0 m3

Weight:
0,05 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84811099
Buy
Info Request

00000004924

FEMALE FITTING FOR COPPER PIPE - Ø 12 mm x 1/2" F

€6,50 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
2 × 4 × 2 cm

Volume:
0 m3

Weight:
0,05 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84811099
Buy
Info Request

00000004925

FEMALE FITTING FOR COPPER PIPE - Ø 14 mm x 1/2" F

€7,85 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
4 × 2 × 2 cm

Volume:
0 m3

Weight:
0,08 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84811099
Buy
Info Request

00000004926

FEMALE FITTING FOR COPPER PIPE - Ø 16 mm x 1/2" F

€9,00 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
4 × 3 × 3 cm

Volume:
0 m3

Weight:
0,08 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84811099
Buy
Info Request

00000004927

FEMALE FITTING FOR COPPER PIPE - Ø 18 mm x 1/2" F

€6,20 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
2 × 4 × 2 cm

Volume:
0 m3

Weight:
0,08 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84811099
Buy
Info Request

00000004932

FEMALE FITTING FOR COPPER PIPE - Ø 22 mm x 3/4" F

€11,90 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
4 × 3 × 3 cm

Volume:
0 m3

Weight:
0,13 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84811099
Buy
Info Request

Product informations

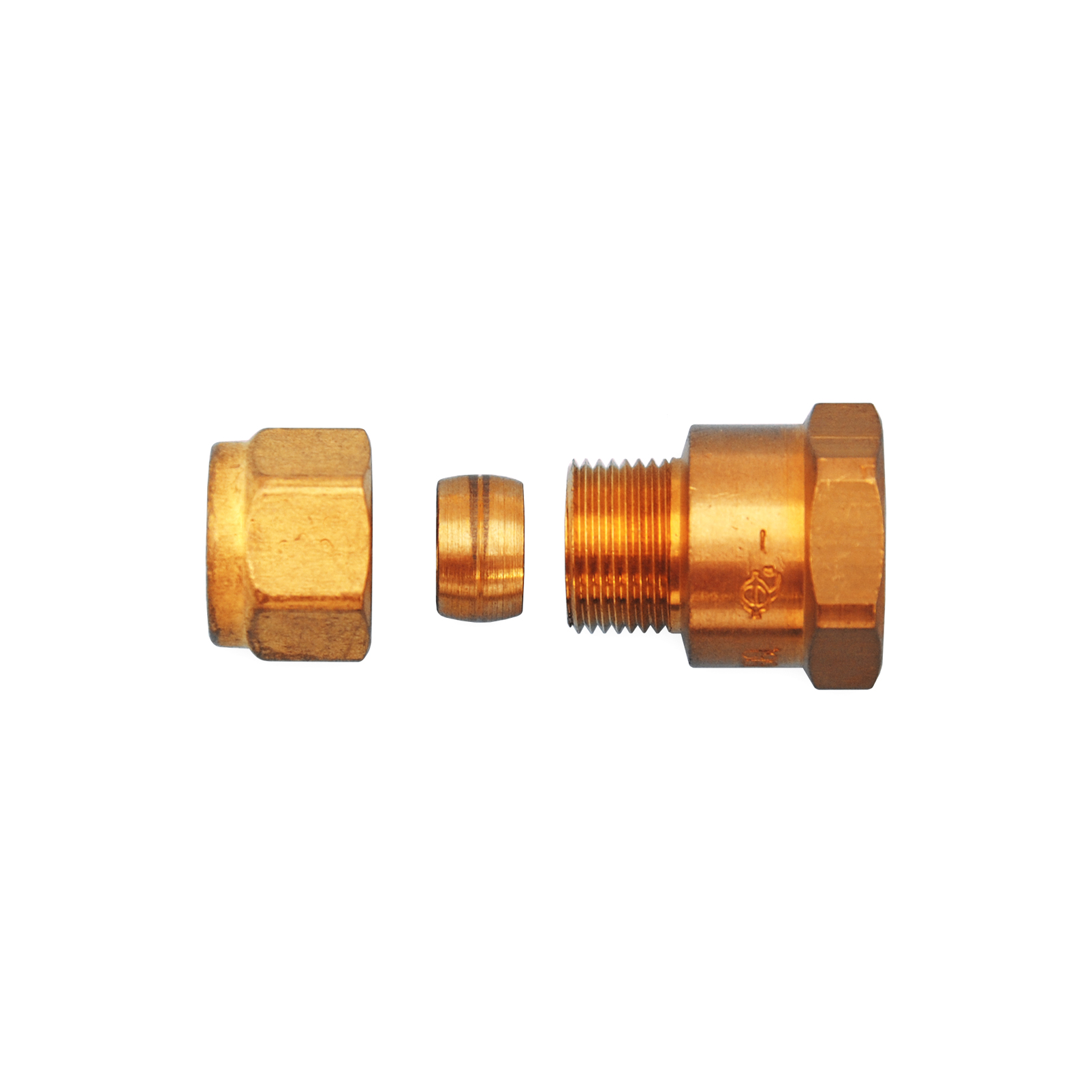

All-metal sealed compression fitting, equipped with a thread conforming to UNI EN 10226-1: "Threading of pipes for tight coupling on the thread."



Product features

  • usable for heating, gas and sanitary water
  • extreme simplicity of assembly
  • suitable for contact with drinking water
  • possibility of installation on civil and industrial systems
  • compatible for copper pipes for sanitary applications according to EN 1057

Technical Features

SKU MEASURE MATERIALS APPLICATIONS
4920 Ø 10 mm x 3/8" F
  • nut: brass CW614N - UNI EN 12164
  • ogive: brass CW603N - UNI EN 12164
  • body: brass CW617N/CW612N - UNI EN 12165
  • drinking water: - 20°C ÷ + 120°C (max. 16 bar)
  • domestic hot water: - 20°C ÷ + 120°C (max. 16 bar)
  • radiator: - 20°C ÷ + 120°C (max. 16 bar)
  • gas: - 20°C ÷ + 70°C (max. 1 bar)
4921 Ø 12 mm x 3/8" F
4922 Ø 15 mm x 3/8" F
4923 Ø 10 mm x 1/2" F
4924 Ø 12 mm x 1/2" F
4925 Ø 14 mm x 1/2" F
4926 Ø 16 mm x 1/2" F
4927 Ø 18 mm x 1/2" F
4932 Ø 22 mm x 3/4" F
