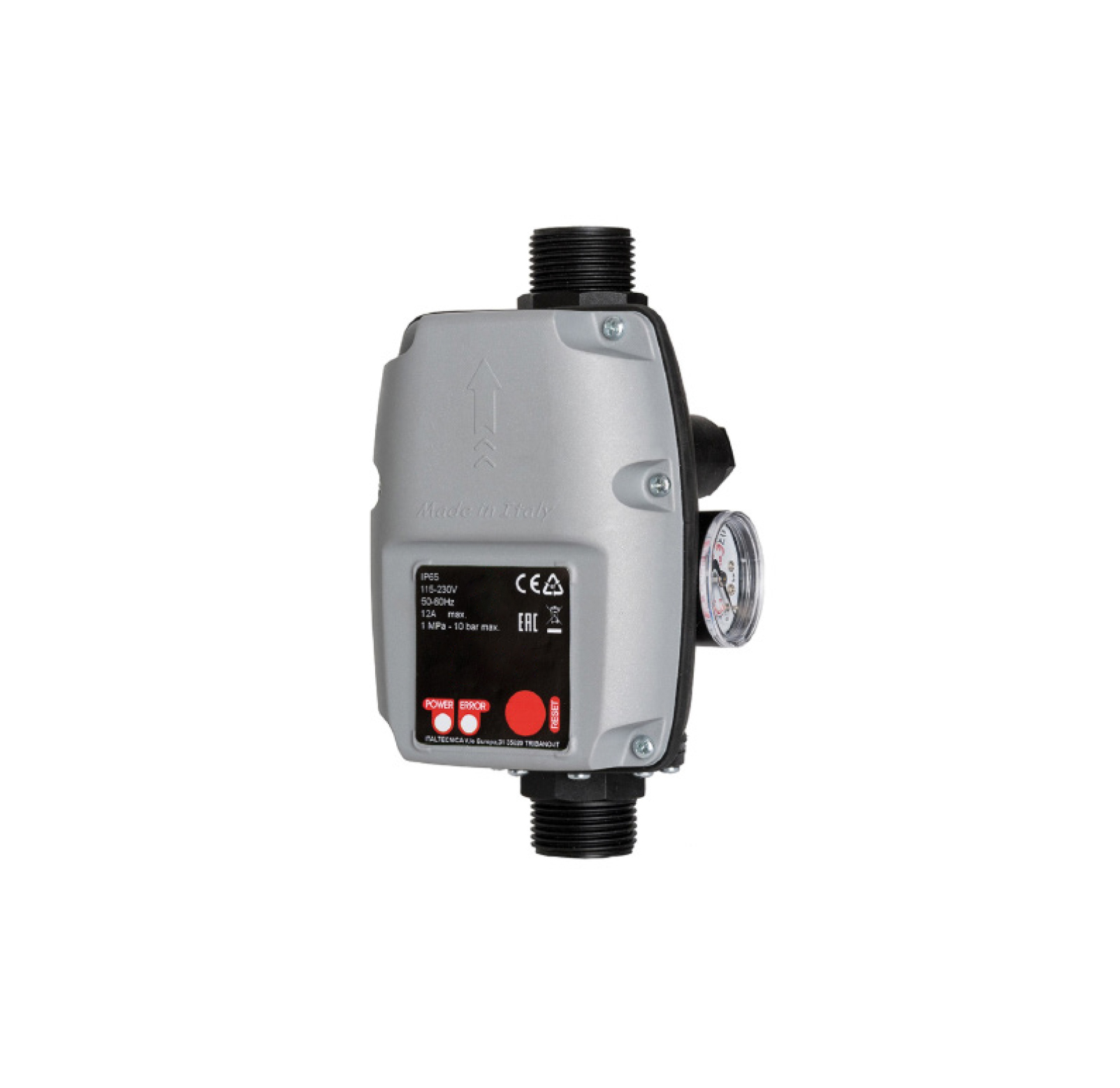

Electronic Device for Pump Control

Electronic device for the control of electric pumps.

Product features

• automatically controls the start and stop of any single-phase electric pump
• it totally replaces the traditional system made up of a pressure switch and expansion tank
• starts the electric pump following a decrease in pressure (opening of the taps) and stops it when the flow of liquid is interrupted at the maximum pressure of the electric pump (closing of the taps)
• protects against dry running
• integrated check valve that can be inspected
• integrated autoreset, after blockage due to lack of water, it performs each restart attempt at longer time intervals for a total of 10 attempts
• standard anti-blocking protection, every 24 hours of non-use, turns the pump for 10 seconds to avoid blocking of the rotor
• adjustable range pressure
• possibility of both vertical and horizontal installation
• easy to replace electronic board
• it does not require maintenance
• installation in by-pass mode
• minimum flow for continuous pump operation reduced to 2.5 l/min
• redesigned internal water passage duct allows a pressure drop of only 0.45 bar at 100 l/min
• complete with connection cable
• use only with water, max salinity 0.05%
