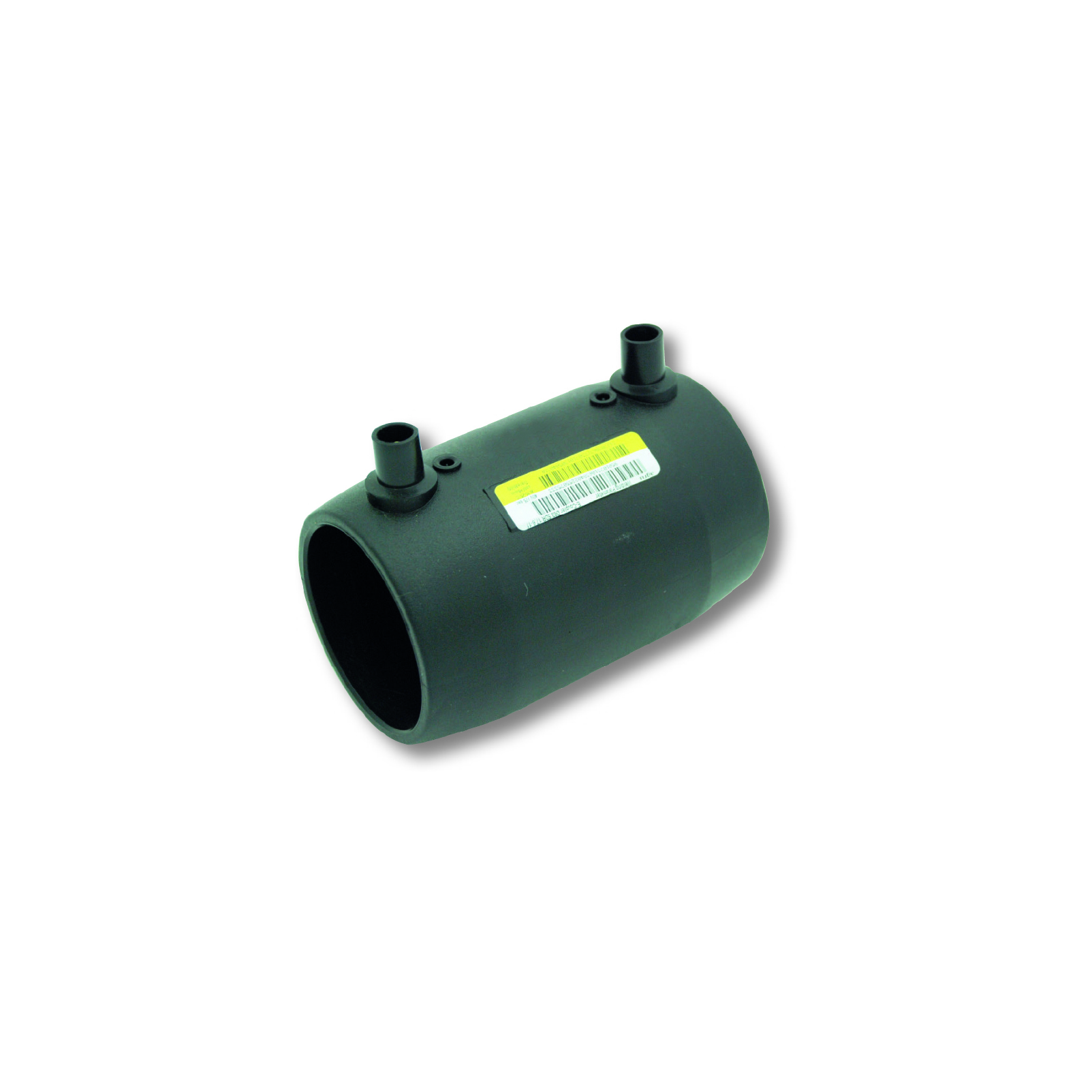

Electro-Weldable Sleeve with Automatic Pin

For water and gas

COMPLIANT WITH UNI EN 12201-3 AND UNI EN 1555-3 RULE

sku model price info add to cart

00000021201

ELECTRO-WELDABLE SLEEVE WITH AUTOMATIC PIN - Ø 20 mm

€6,65 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
7 × 5 × 3 cm

Volume:
0.0001 m3

Weight:
0,05 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000021203

ELECTRO-WELDABLE SLEEVE WITH AUTOMATIC PIN - Ø 32 mm

€7,15 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
9 × 6 × 4 cm

Volume:
0.0002 m3

Weight:
0,06 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000021204

ELECTRO-WELDABLE SLEEVE WITH AUTOMATIC PIN - Ø 40 mm

€7,90 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
10 × 8 × 5 cm

Volume:
0.0004 m3

Weight:
0,10 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000021205

ELECTRO-WELDABLE SLEEVE WITH AUTOMATIC PIN - Ø 50 mm

€10,85 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
11 × 8 × 6 cm

Volume:
0.0006 m3

Weight:
0,16 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000021206

ELECTRO-WELDABLE SLEEVE WITH AUTOMATIC PIN - Ø 63 mm

€11,35 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
13 × 10 × 8 cm

Volume:
0.001 m3

Weight:
0,25 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000021207

ELECTRO-WELDABLE SLEEVE WITH AUTOMATIC PIN - Ø 75 mm

€18,10 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
14 × 9 × 9 cm

Volume:
0.0011 m3

Weight:
0,37 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000021208

ELECTRO-WELDABLE SLEEVE WITH AUTOMATIC PIN - Ø 90 mm

€19,55 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
14 × 11 × 11 cm

Volume:
0.0017 m3

Weight:
0,45 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000021209

ELECTRO-WELDABLE SLEEVE WITH AUTOMATIC PIN - Ø 110 mm

€24,20 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
14 × 15 × 14 cm

Volume:
0.0029 m3

Weight:
0,70 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000021210

ELECTRO-WELDABLE SLEEVE WITH AUTOMATIC PIN - Ø 125 mm

€35,85 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
1,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000021211

ELECTRO-WELDABLE SLEEVE WITH AUTOMATIC PIN - Ø 140 mm

€43,40 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000021212

ELECTRO-WELDABLE SLEEVE WITH AUTOMATIC PIN - Ø 160 mm

€45,20 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
20 × 18 × 20 cm

Volume:
0.0074 m3

Weight:
1,73 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000021213

ELECTRO-WELDABLE SLEEVE WITH AUTOMATIC PIN - Ø 180 mm

€70,70 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
21 × 20 × 21 cm

Volume:
0.0092 m3

Weight:
2,47 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000021214

ELECTRO-WELDABLE SLEEVE WITH AUTOMATIC PIN - Ø 200 mm

€77,20 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
23 × 19 × 23 cm

Volume:
0.0101 m3

Weight:
2,32 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000021215

ELECTRO-WELDABLE SLEEVE WITH AUTOMATIC PIN - Ø 225 mm

€106,90 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000021216

ELECTRO-WELDABLE SLEEVE WITH AUTOMATIC PIN - Ø 250 mm

€173,40 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

Product informations

Injection molded fitting in virgin PE100, for gas and water applications.



Product features

  • modular system with resistance embedded in the body of the fitting
  • smooth internal surface in the welding area in order to guarantee greater safety when inserting the pipe into the fitting, with better heat emission of the resistance
  • 4 mm automatic pin
  • designed, built and tested according to the highest quality standards, combined with the most modern technologies
  • check that both pipes and the fitting to be joined are compatible, only materials compatible between them can be joined together (the safety fittings can be welded with pipes having SDR from 17.6 up to SDR 7.4)
  • the safety fittings are approved for use in the water and gas sector (in Italy by the Istituto Italiano dei Plastici)

Technical Features

MATERIAL Virgin PE100 (high density polyethylene with minimum guaranteed breaking load value of 80 Mpa for 50 years at 20°C)
MAX WORKING PRESSURE PN16 water / 10 bar gas (depending on the welded pipe and any local regulations on the pressure of the pipe)
THICKNESS SDR11/7,4
TEMPERATURE RANGE - 10°C ÷ + 40°C

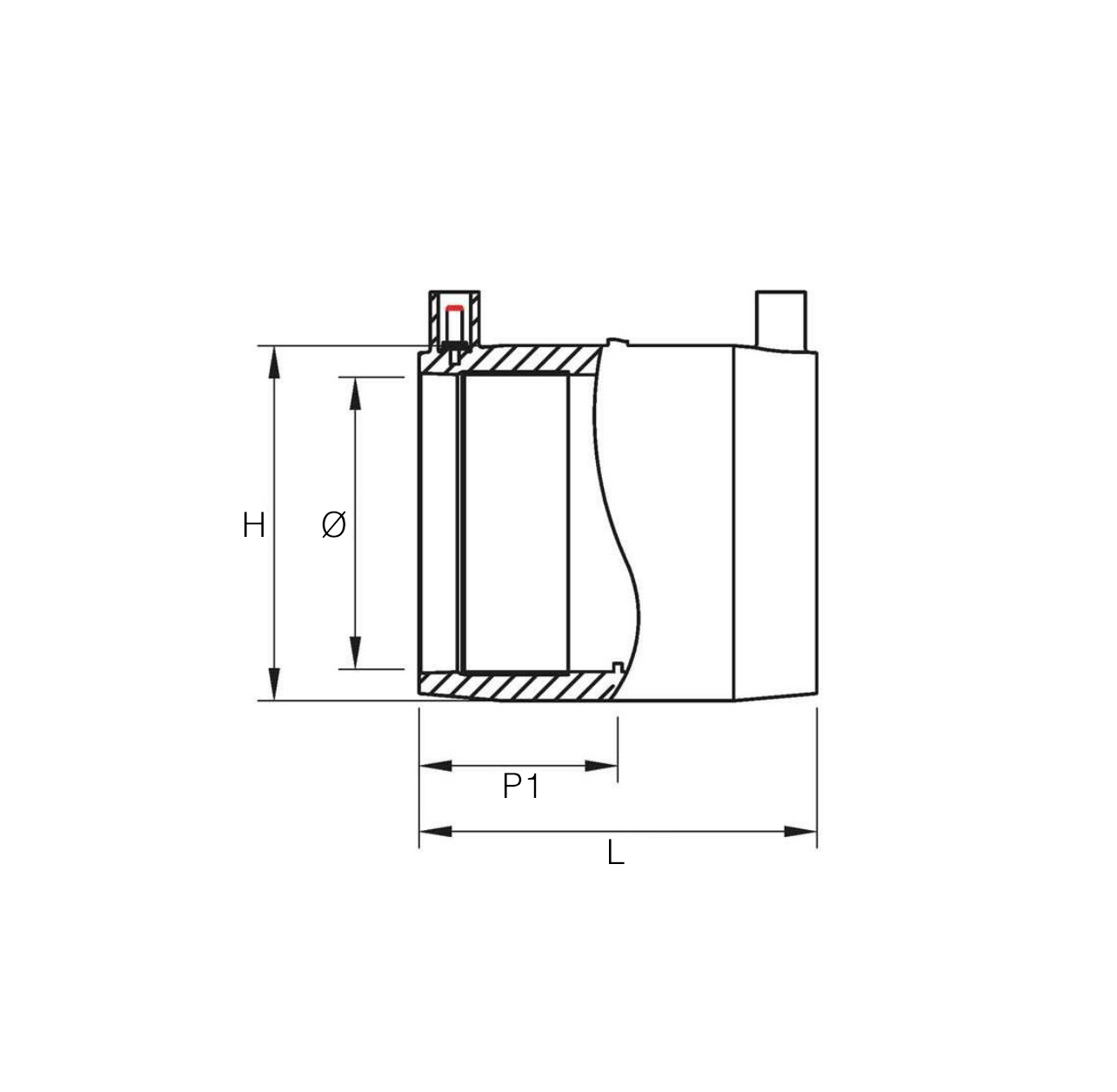

SKU

WIDTH (L)

 P1

HEIGHT (H)

 DIAMETER FUSION TIME COOLING TIME KG (single piece) PACKAGING
21201 77 mm 37,5 mm 29 mm Ø 20 mm 35 sec. 3 min. 0,036 10 pcs.
21202 77 mm 37,5 mm 33,5 mm Ø 25 mm 30 sec. 3 min. 0,041 10 pcs.
21203 77 mm 37,5 mm 43 mm Ø 32 mm 45 sec. 3 min. 0,062 10 pcs.
21204 91 mm 44 mm 51,5 mm Ø 40 mm 40 sec. 5 min. 0,086 10 pcs.
21205 91 mm 44 mm 61,5 mm Ø 50 mm 90 sec. 5 min. 0,102 5 pcs.
21206 102 mm 50 mm 78 mm Ø 63 mm 35 sec. 3 min. 0,1695 5 pcs.
21207 122 mm 59,5 mm 92,5 mm  Ø 75 mm 50 sec. 5 min. 0,265 5 pcs.
21208 122 mm 60 mm 109,5 mm Ø 90 mm 90 sec. 10 min. 0,355 5 pcs.
21209 144 mm 70 mm 133 mm Ø 110 mm 160 sec. 10 min. 0,57 2 pcs.
21210 154 mm 75 mm 151 mm Ø 125 mm 200 sec. 10 min. 0,79 2 pcs.
21211 165 mm 81 mm 173 mm Ø 140 mm 160 sec. 10 min. 1,12 2 pcs.
21212 175 mm 86 mm 195 mm Ø 160 mm 300 sec. 20 min. 1,412 2 pcs.
21213 187 mm 92 mm 219 mm Ø 180 mm 360 sec. 20 min. 1,924 1 pcs.
21214 187 mm 92 mm 242 mm Ø 200 mm 440 sec. 20 min. 2,312 1 pcs.
21215 222 mm 111 mm 270 mm Ø 225 mm 600 sec. 30 min. 3,65 1 pcs.
21216 222 mm 111 mm 303 mm Ø 250 mm 900 sec. 30 min. 4,8 1 pcs.
