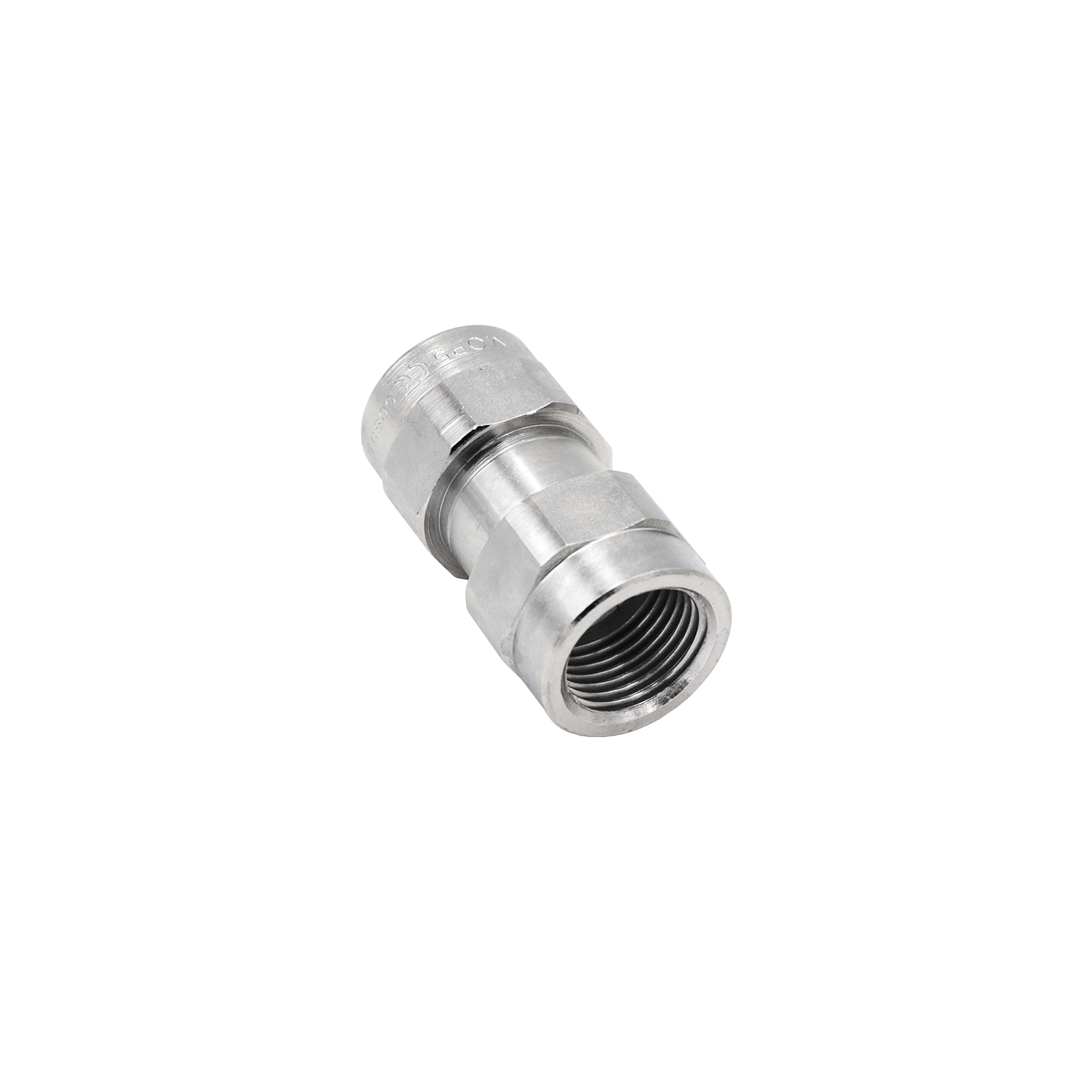

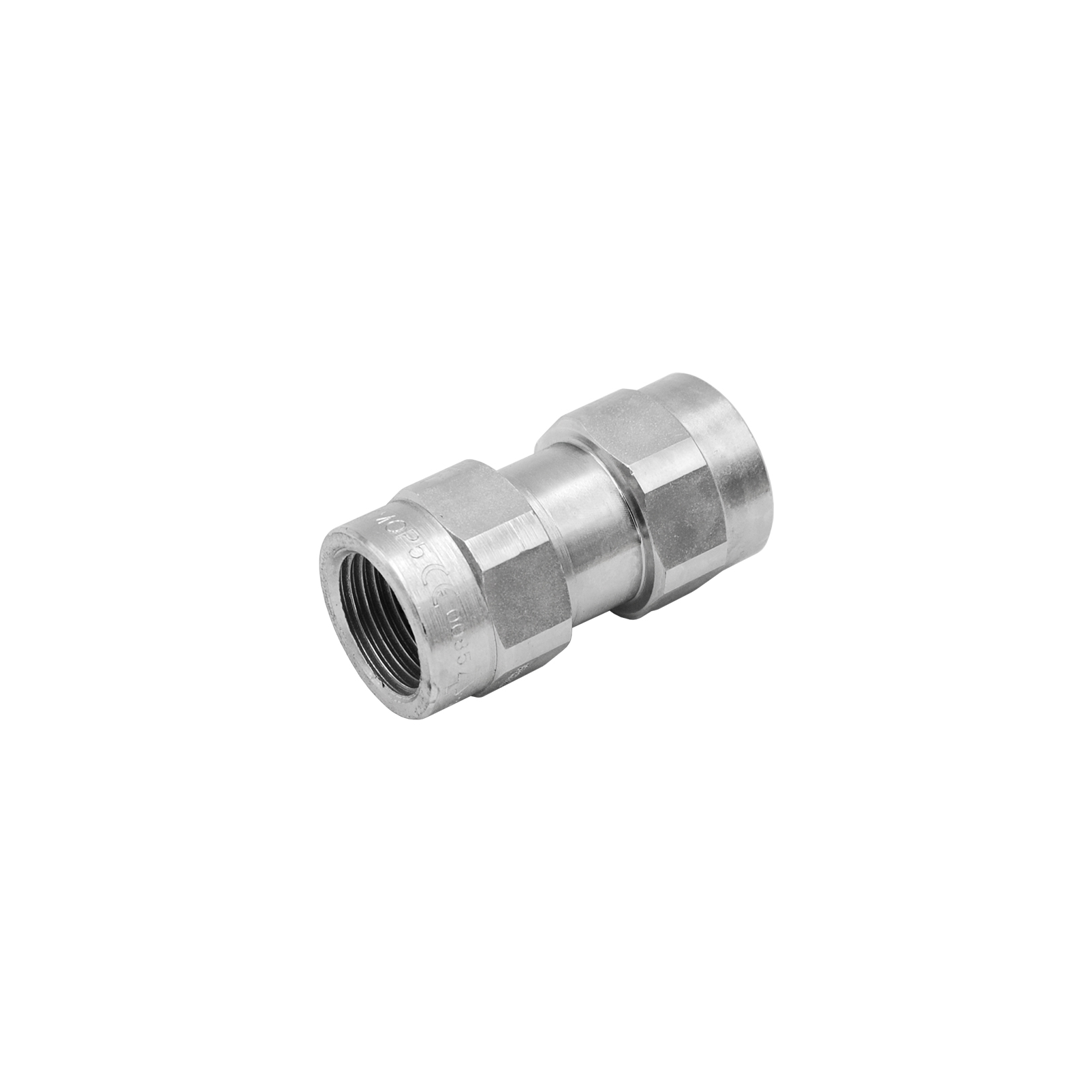

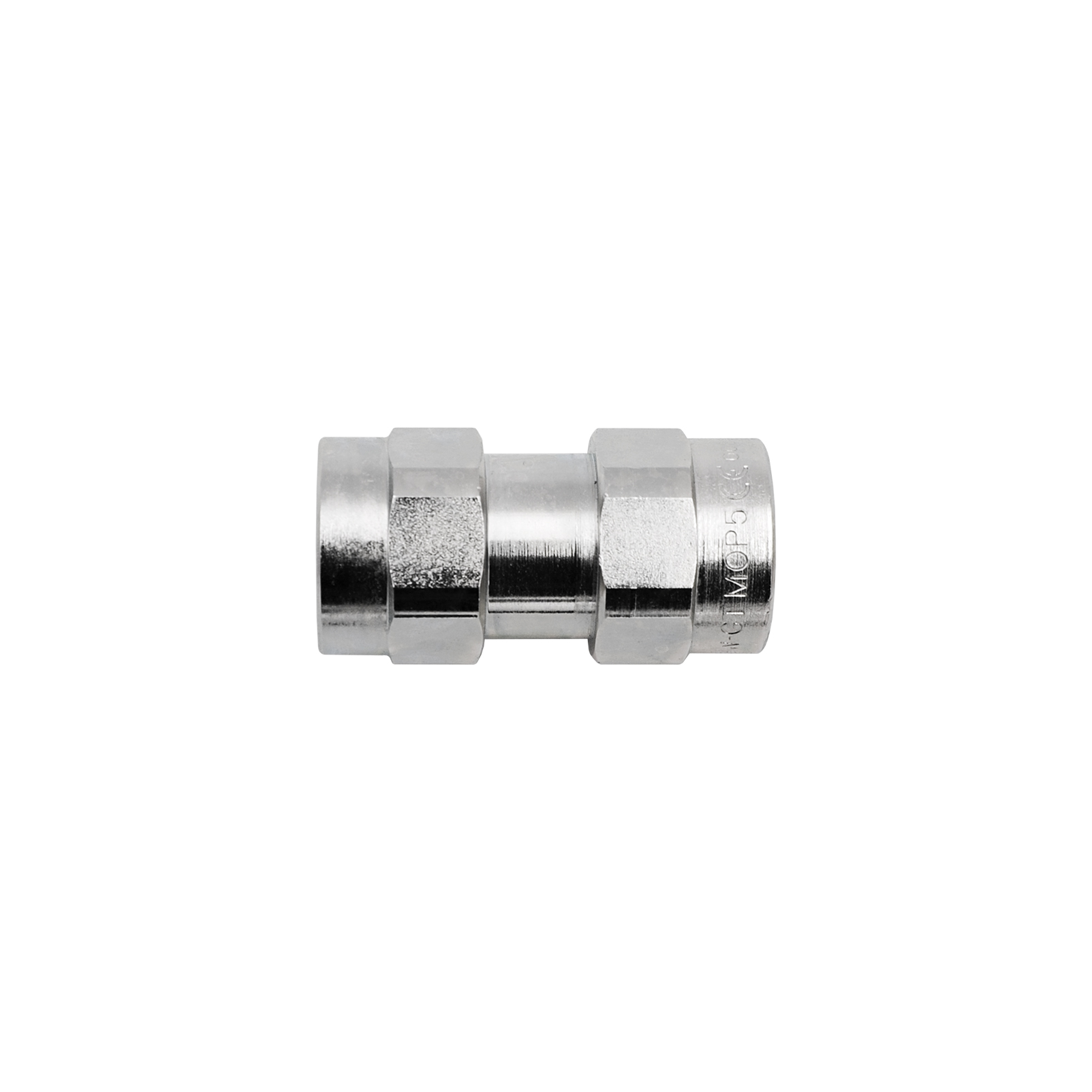

Thermal Activated Safety Device
For gas systems
OTHER DIMENSIONS AVAILABLE ON REQUEST
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000004296 |
THERMAL ACTIVATED SAFETY DEVICE - 1/2" FF connections |
€26,30 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000004297 |
THERMAL ACTIVATED SAFETY DEVICE - 3/4" FF connections |
€45,30 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000004298 |
THERMAL ACTIVATED SAFETY DEVICE - 1" FF connections |
€58,10 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
Safety device designed to block the flow of gas and prevent it from leaving the distribution network in the event of fire, its activation take place between 90°C and 100°C and its function is guaranteed at 650°C for 30 minutes.
Technical Features

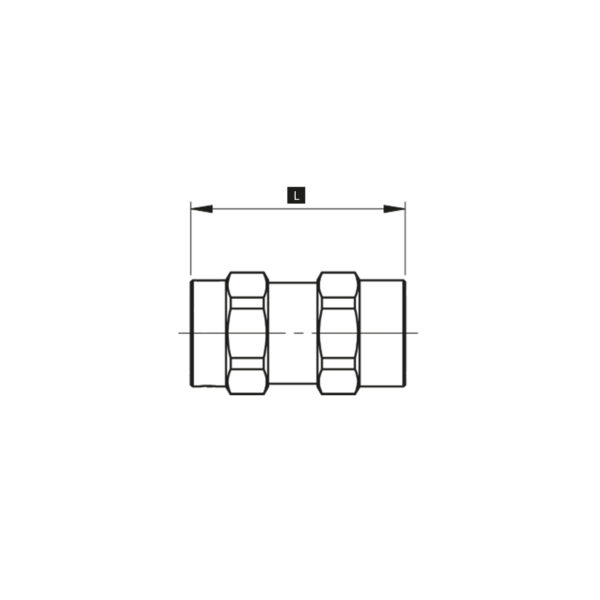

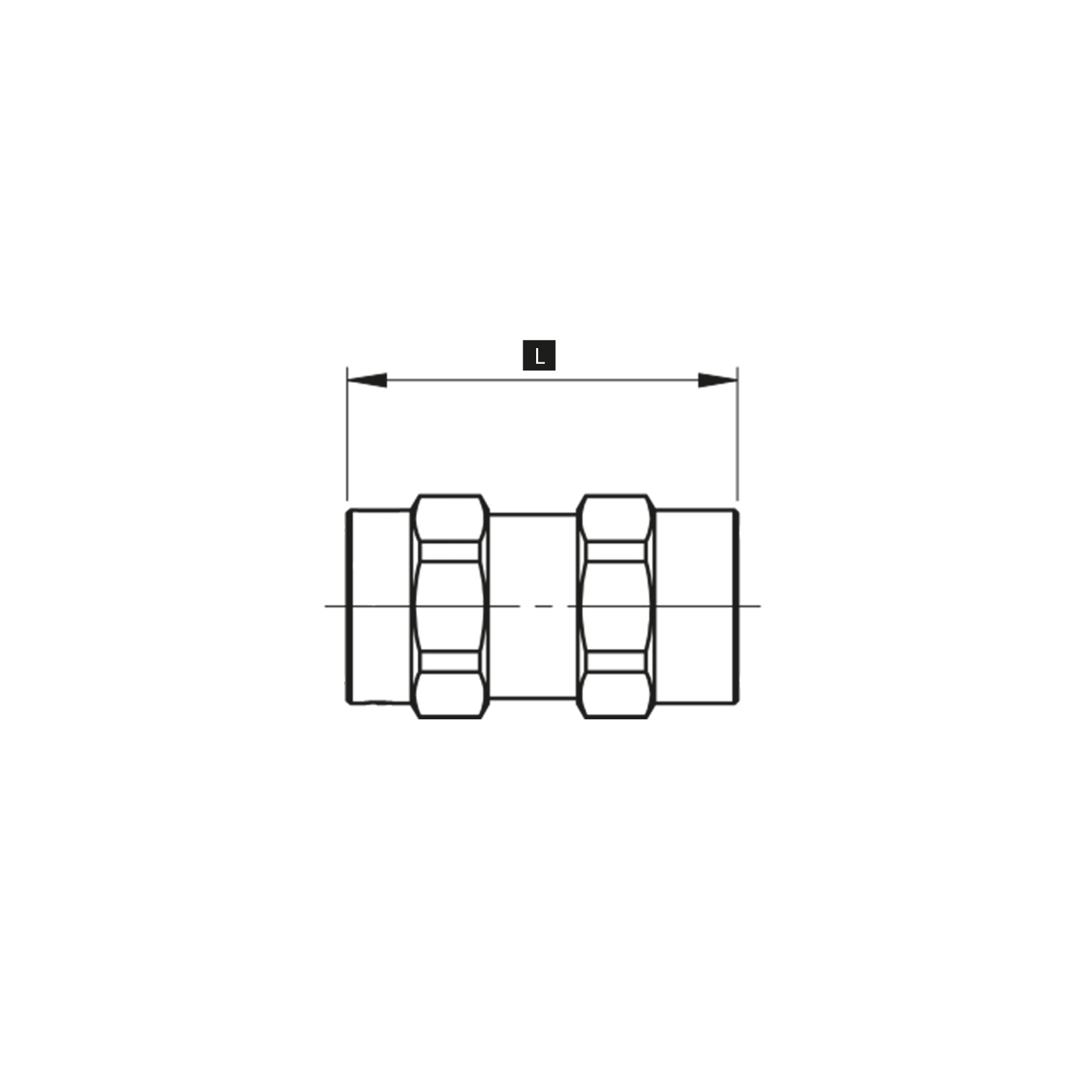

| SKU | CONNECTION | OPERATING PRESSURE | OPERATING TEMPERATURE | INTERVENTION TEMPERATURE | WORK APPLICATION | HEAT RESISTANCE | DIMENSIONS |
|---|---|---|---|---|---|---|---|
| 4296 | 1/2" FF | MOP 5 | - 20°C ÷ + 60°C | 100°C - 5K | for all types of gas as specified in EN 437 and DVGW G260/1 | HTB GT 5 650°C x 30' | L 55 mm |
| 4297 | 3/4" FF | L 61 mm | |||||
| 4298 | 1" FF | L 69 mm |
