DIN Bar Master Board

Model CRD

COMPLIANT WITH EN 50271 RULE

sku model price info add to cart

00000554411

DIN BAR MASTER BOARD Vers. A - CRD/1 - 1 ZONE 230 Vac / 12 Vac

€216,95 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
15 × 7 × 10 cm

Volume:
0.0011 m3

Weight:
0,34 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90268020
Buy
Info Request

00000554413

DIN BAR MASTER BOARD Vers. A - CRD/2 - 2 ZONES 230 Vac / 12 Vac

€265,05 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
15 × 7 × 10 cm

Volume:
0.001 m3

Weight:
0,35 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90268020
Buy
Info Request

00000554416

DIN BAR MASTER BOARD Vers. A - CRD/3 - 3 ZONES 230 Vac / 12 Vac

€331,30 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
16 × 7 × 10 cm

Volume:
0.0012 m3

Weight:
0,42 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90268020
Buy
Info Request

00000554418

DIN BAR MASTER BOARD Vers. A - CRD/4 - 4 ZONES 230 Vac / 12 Vac

€399,00 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
10 × 15 × 7 cm

Volume:
0.001 m3

Weight:
0,40 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90268020
Buy
Info Request

00000554431

DIN BAR MASTER BOARD Vers. B - CRD/1 - 1 ZONE 12 Vdc

€261,50 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
15 × 7 × 10 cm

Volume:
0.001 m3

Weight:
0,14 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90268020
Buy
Info Request

00000554433

DIN BAR MASTER BOARD Vers. B - CRD/2 - 2 ZONES 12 Vdc

€299,50 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
15 × 7 × 10 cm

Volume:
0.001 m3

Weight:
0,15 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90268020
Buy
Info Request

00000554436

DIN BAR MASTER BOARD Vers. B - CRD/3 - 3 ZONES 12 Vdc

€318,50 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
15 × 7 × 10 cm

Volume:
0.0011 m3

Weight:
0,20 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90268020
Buy
Info Request

00000554438

DIN BAR MASTER BOARD Vers. B - CRD/4 - 4 ZONES 12 Vdc

€399,00 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
15 × 7 × 10 cm

Volume:
0.001 m3

Weight:
0,20 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90268020
Buy
Info Request

Product informations

Bar control units with microprocessor addressed to applications in thermal power plants, for tertiary use and industries where monitoring of 1 to 4 gas sensors or up to 10 smoke and/or fire sensors per zone is required; they are designed for hooking onto the DIN rail 3 modules for the 1 and 2 zone version, 6 modules for the 3 and 4 zone version.



These control units can be used with the remote gas detectors produced by TECNOGAS (RMPS) or with any 4 ÷ 20 mA sensor; they work with a supply voltage at:

  • 230 Vac with internal, stabilized power supply protected against short circuits and overloads - version A
  • 12 Vac with external power supply (sku 554411 / 554413 / 554416 / 554418) - version A
  • 12 Vdc with external power supply (sku 554431 / 554433 / 554436 / 554438) - version B

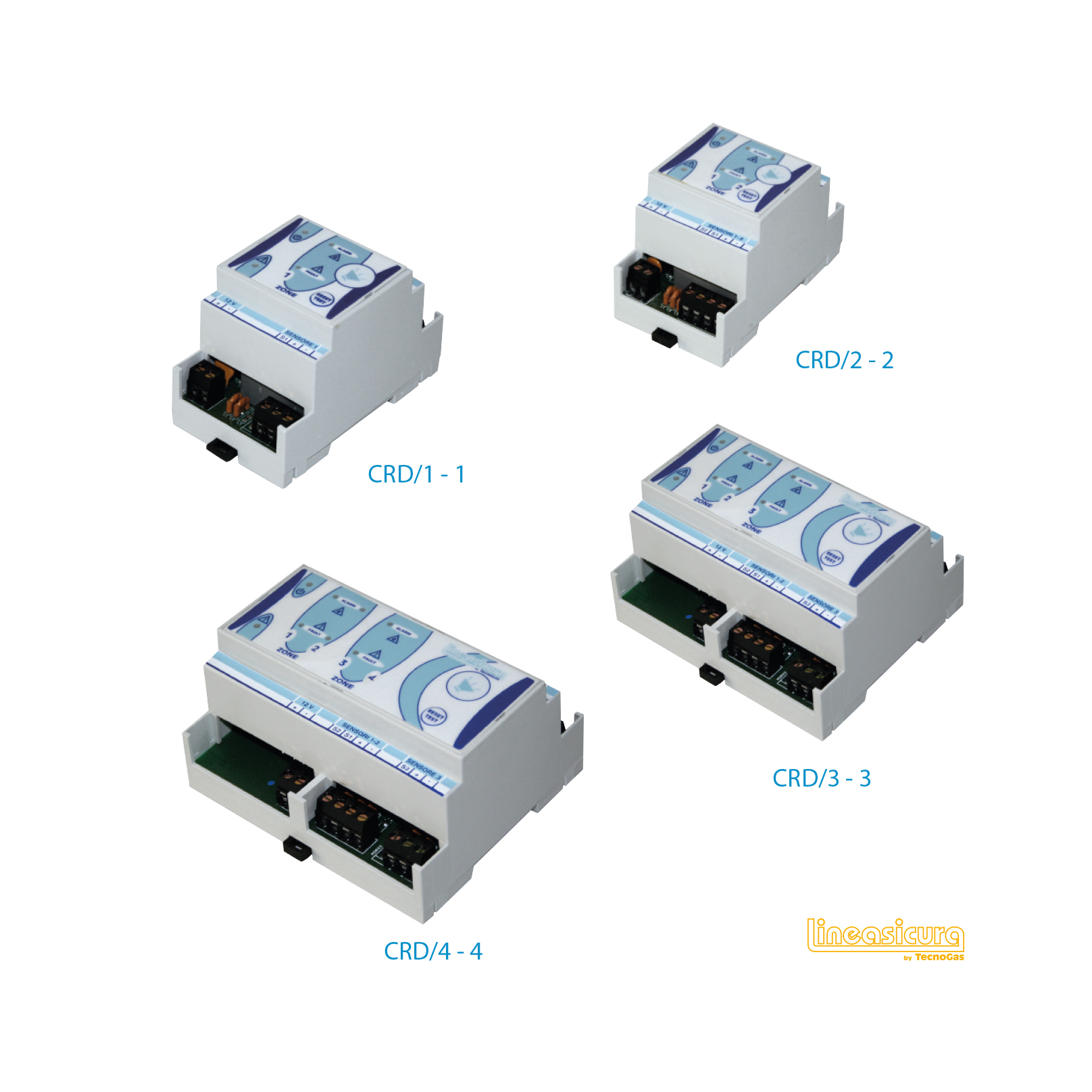

TECNOGAS CRD plants are produced in 4 versions:

  • CRD/1 to one zone in a 3 DIN module container
  • CRD/2 two zones in 3 DIN module container
  • CRD/3 with three zones in a 6 DIN module container
  • CRD/4 with four zones in a 6 DIN module container

Technical Features

Mod. CRD 1 - 2 Mod. CRD 3 - 4
POWER SUPPLY version A: 230 Vac - 12 Vac version B: 12 Vdc
SENSOR LINE VOLTAGE 12 Vdc 12 Vdc
NUMBER OF LINES 1-2 3-4
SMOKE SENSORS PER LINE Max 10 Max 10
GAS DETECTORS FOR LINE Max 1 Max 1
LOAD LIMITATIONS 0.6 A 1.1 A
RELÈ ALLARME C NO NC 10 A 1 1
ACOUSTIC SIGNAL at 1 m 10 db to 12 V to 30 cm
ALARM LED (red) 2 4
DETECTOR FAULT LED (yellow) 2 4
LED POWER (green) 1 1
SYSTEM FAULT LED (yellow) 1 1
END OF LINE RESISTOR (included in the package) 3300 Ω 3300 Ω
complete with buzzer, power, Test-Reset key and visual signaling of system failure, sensor failure, sensor alarm
