Daily or weekly Chronothermostat with Opentherm Protocol
Model ORION OT
CE AND OpenTherm HOMOLOGATED
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000080642 |
DIGITAL DAILY CHRONOTHERMOSTAT - Mod. ORION OT |
€180,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000080643 |
DIGITAL WEEKLY CHRONOTHERMOSTAT - Mod. ORION OT |
€200,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
ORION OT, the Class V Erp daily or weekly chronothermostat, which uses the OpenTherm communication protocol, it combines simplicity of programming with energy savings of around 4% on the bill.
Product features
- 2 temperatures that can be set in 30 minute steps
- large LCD display that allows you to view the temperature detected, time or temperature set, active day of the week and operating mode
- 24 time micro-push buttons and other controls protected by a minimal cover which makes it suitable for any installation environment
- ideal product for those who have different habits depending on the time of day and take advantage of different environments throughout the day
Technical Features
| POWER SUPPLY | via BUS cable from Opentherm boiler |
|---|---|
| ErP CLASS | V (- 4%) in Opentherm mode |
| SYSTEM TYPE | heating / conditioning |
| TYPE OF PROGRAMMING | weekly on two temperature levels |
| MINIMUM TIME SLOT FOR PROGRAMMING | 30 minutes |
| MAXIMUM CONTACT RATING | 5A (1A) 250Vac (ON/OFF mode only) |
| DIFFERENTIAL | adjustable between 0.1 and 2.0 K (standard 0.2 K) |
| OPTIONS | 12/24H clock format |
| TEMPERATURE REGULATION RANGE | 5°C ÷ 35°C |
| DISPLAY | Backlit LCD only if combined with OpenTherm boilers |
| OPERATING MODE |
|

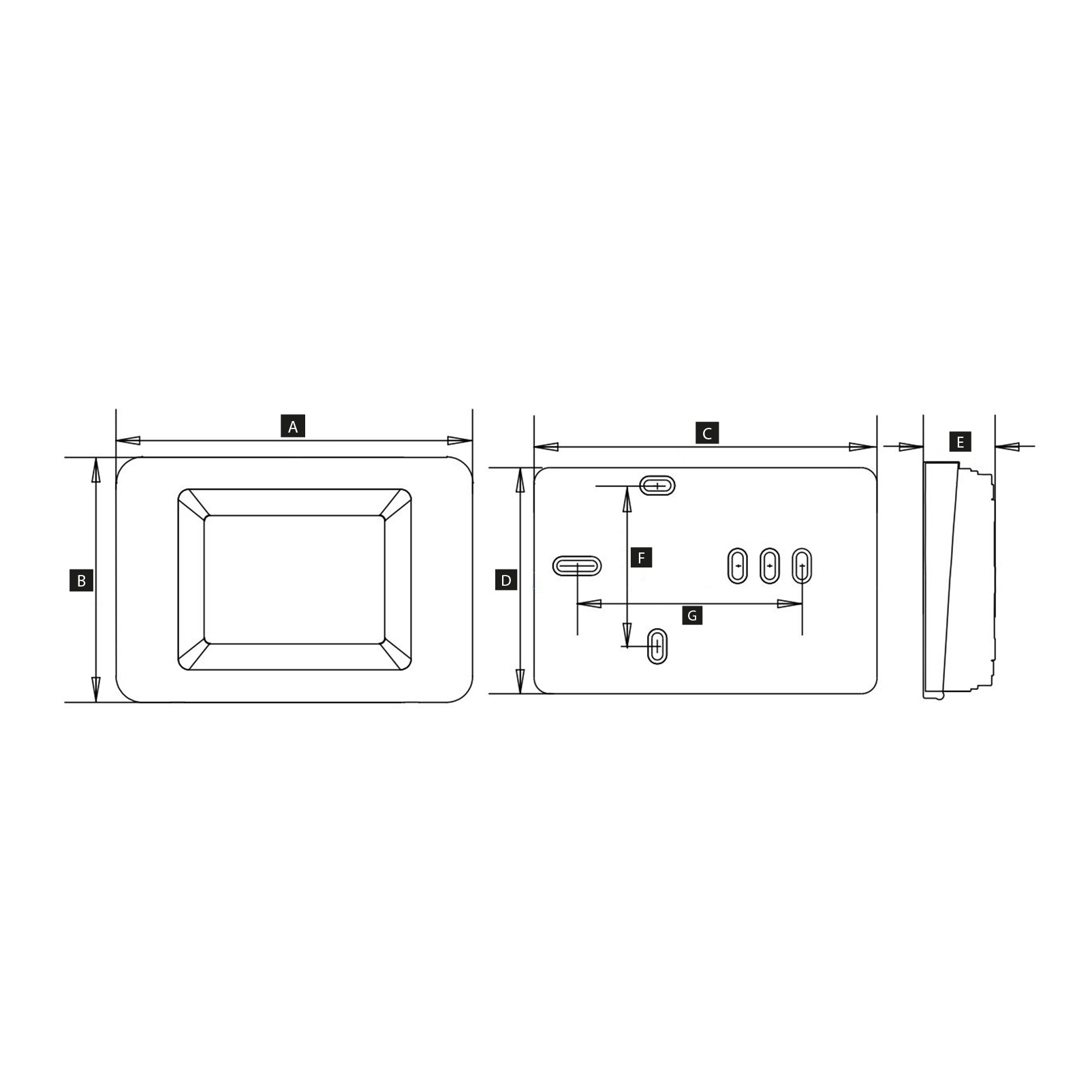

| DIMENSIONS | ||||||
|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G |
| 136 mm | 93 mm | 128 mm | 84 mm | 29 mm | 60 mm | 83 mm |
