Hydraulic Crimping Tool

For FastPipe® SYSTEM

sku model price info add to cart

00000011960

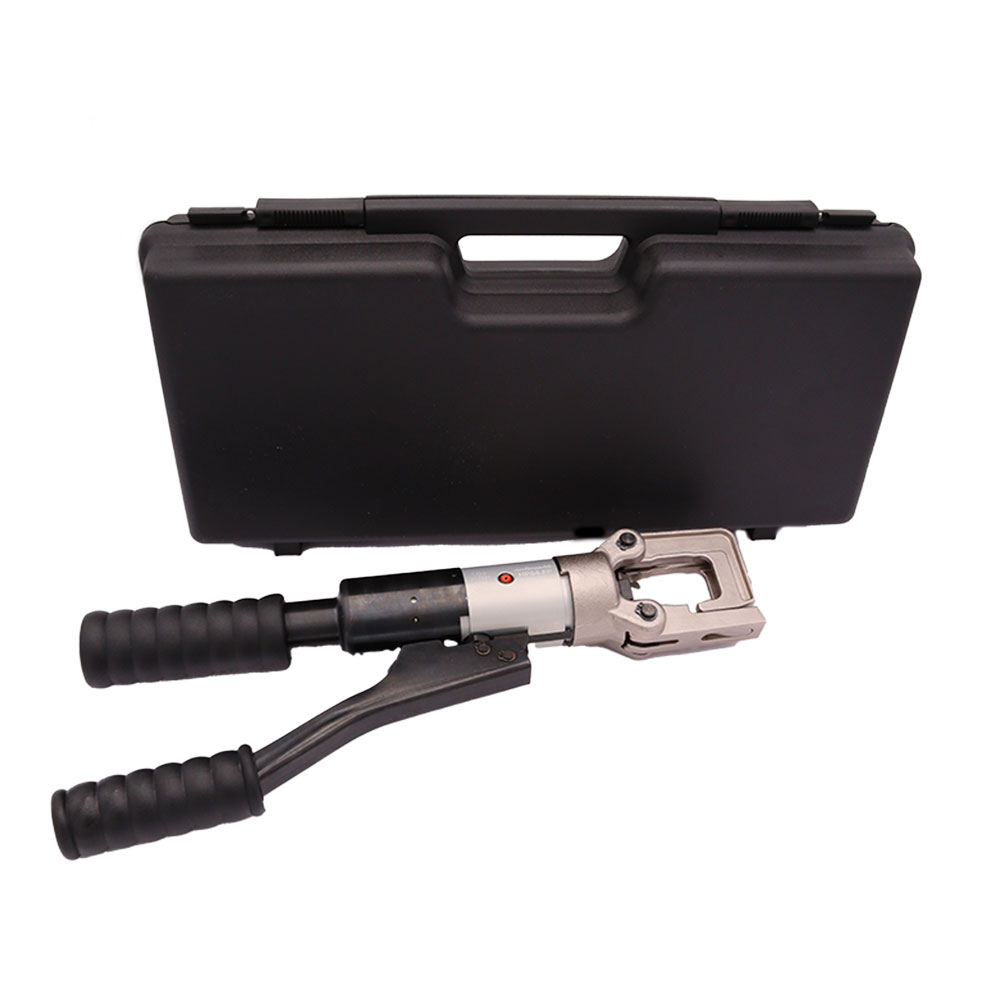

MANUAL HYDRAULIC CRIMPING TOOL Mod. HT51D-TG for FastPipe®

2.184,00 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
45 × 10 × 28 cm

Volume:
0.0126 m3

Weight:
4,39 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84678900

Buy
Info Request

00000011959

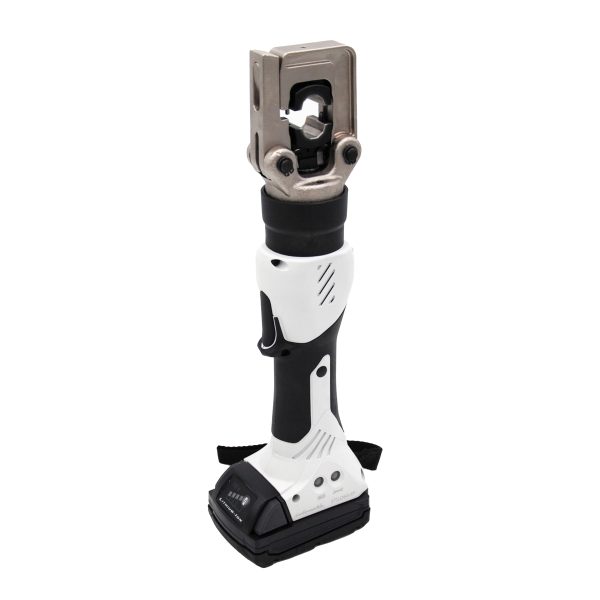

BATTERY-POWERED HYDRAULIC CRIMPING TOOL Mod. STILO64 for FastPipe®

4.333,95 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84678900

Buy
Info Request

Product informations

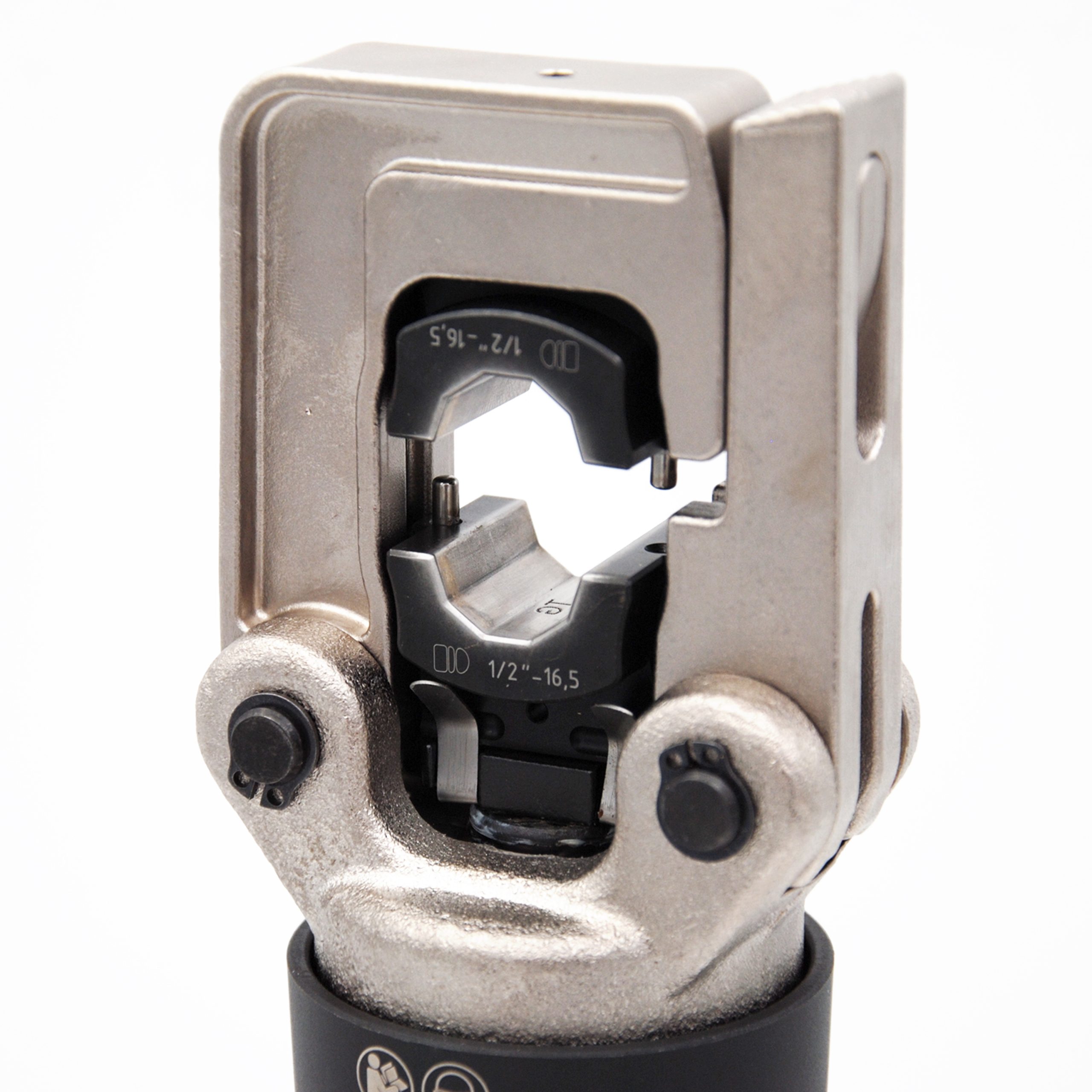

Manual or battery-operated hydraulic crimping machine that achieves 64kN clamping force to crimp the FastPipe® Fitting Kit and proceed to connect the air conditioning units.

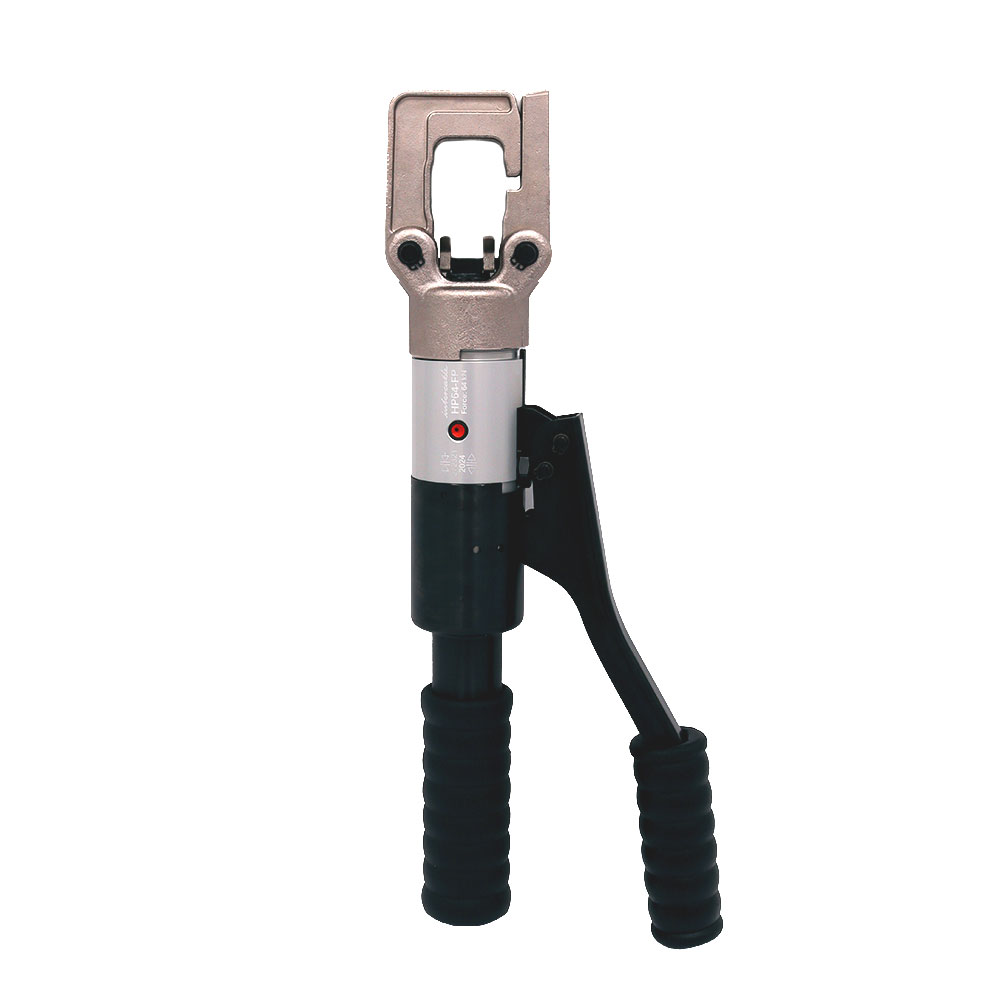

  • Manual crimping tool Mod. HP64 (SKU 11960), an oil-driven, lightweight, handy tool with small overall dimensions; thanks to its limited angular opening of the movable handle equipped with automatic return, the operator can make the approach of the connector dies with one hand, employing the other for positioning.

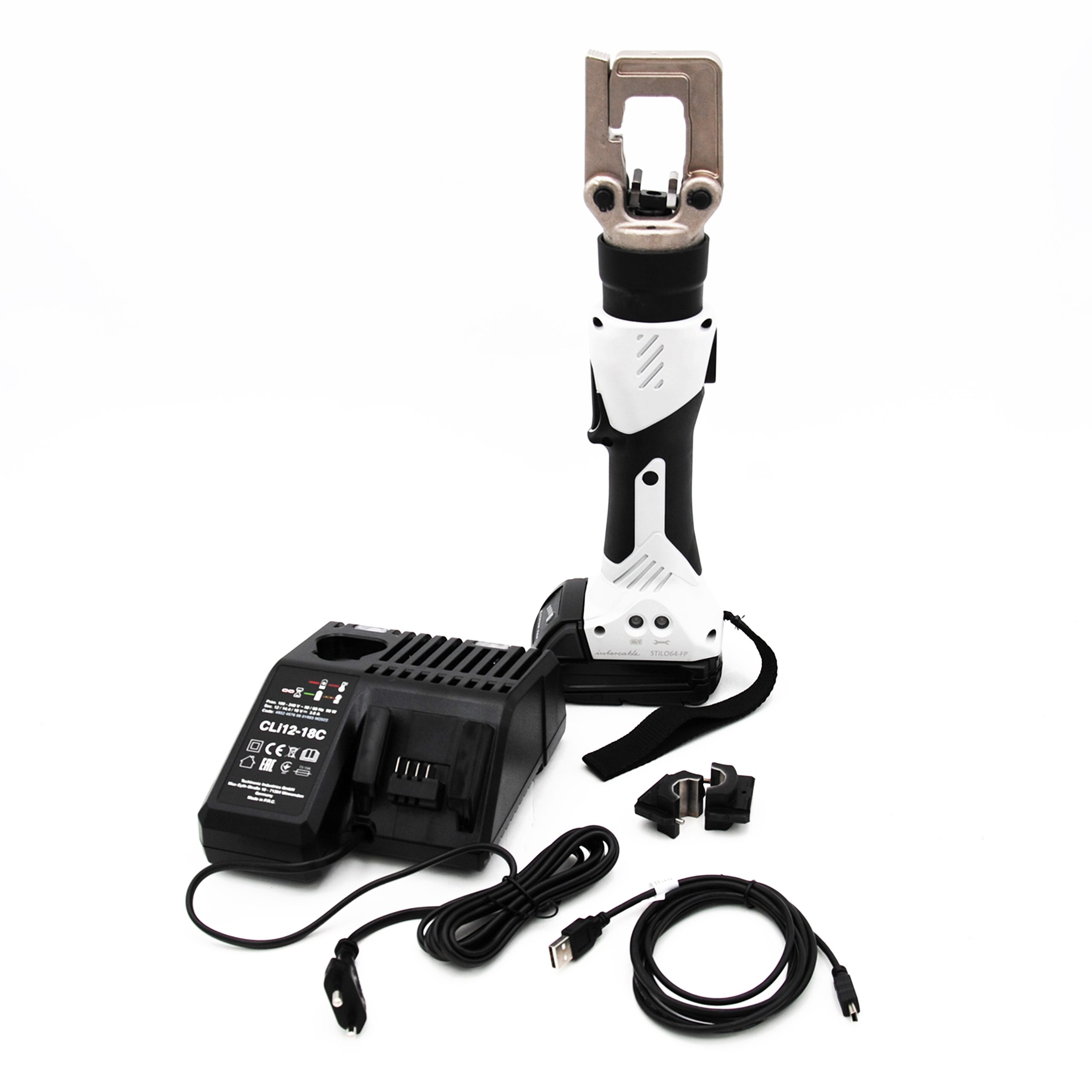

  • Automatic crimping tool Mod. STILO64 (SKU 11959), battery-powered portable tool with hydraulic two-speed system, the first fast approach speed and the second slower power speed ensuring optimal use of available energy; equipped with maximum pressure sensor and safety valve.

Technical Features

MANUAL CRIMPING MACHINE SKU 11960
CRIMPING FORCE 64 kN
RATED OPERATING PRESSURE 710 bar
OPERATING SPEED
  • rapid advancement of the piston
  • slow work

switching from one to the other is automatic

SAFETY maximum pressure valve
DIMENSIONS 395x172 mm (HxW)
WEIGHT 2,6 mm



AUTOMATIC CRIMPING MACHINE SKU 11959
RATED CRIMPING FORCE 64 kN
MAXIMUM LIFT 16 mm
BATTERY VOLTAGE 18 V
BATTERY TYPE Li-Ion 18V-2Ah (RA20)
BATTERY CHARGING TIME 30 minutes
CROSS-SECTION FOR CRIMPING 6 - 240 mm²
OPERATING TEMPERATURE - 10°C ÷ + 40°C
DIMENSIONS 380x126x82 mm (LxHxP)
WEIGHT 3,1 kg (battery included)
