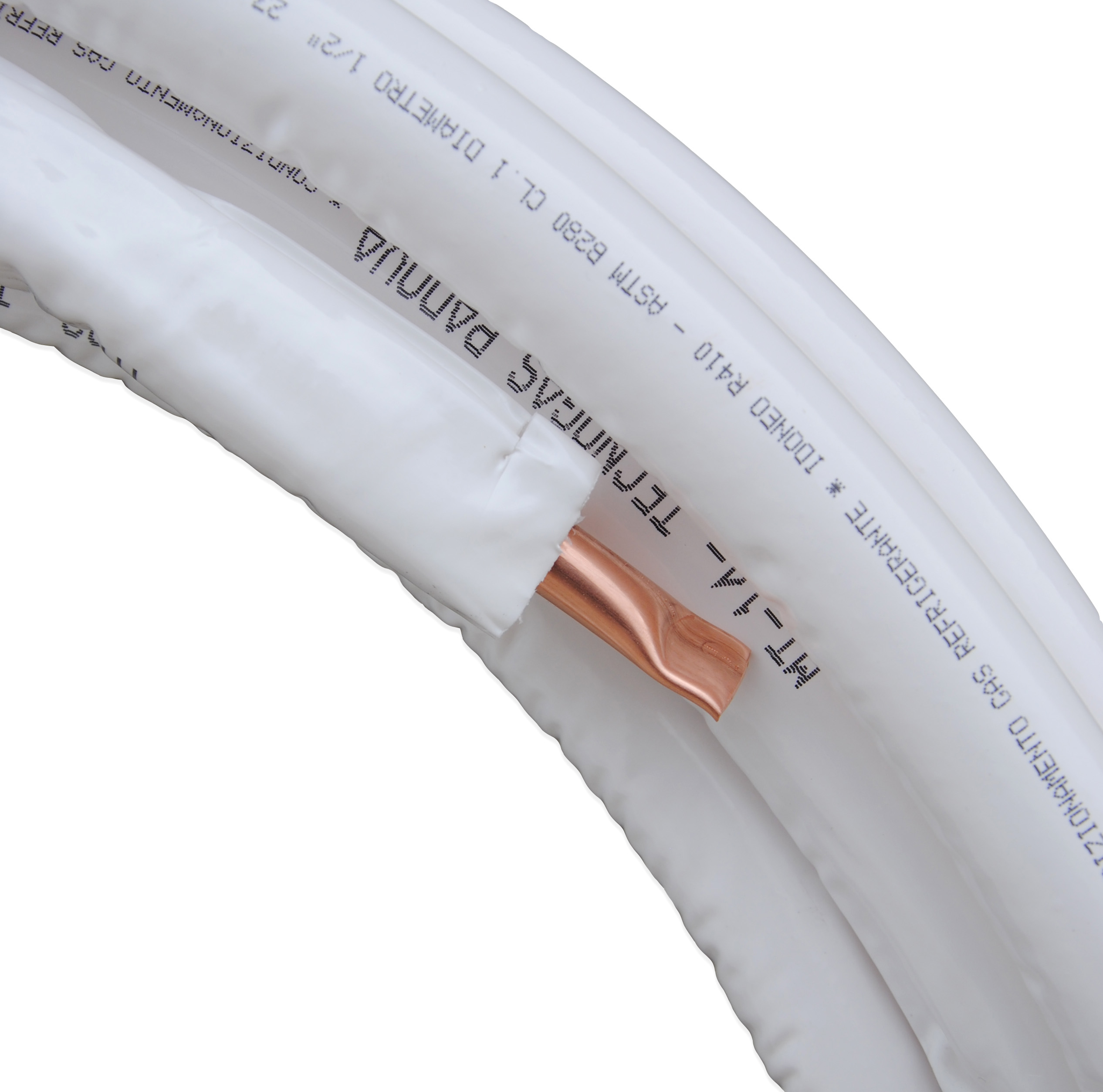

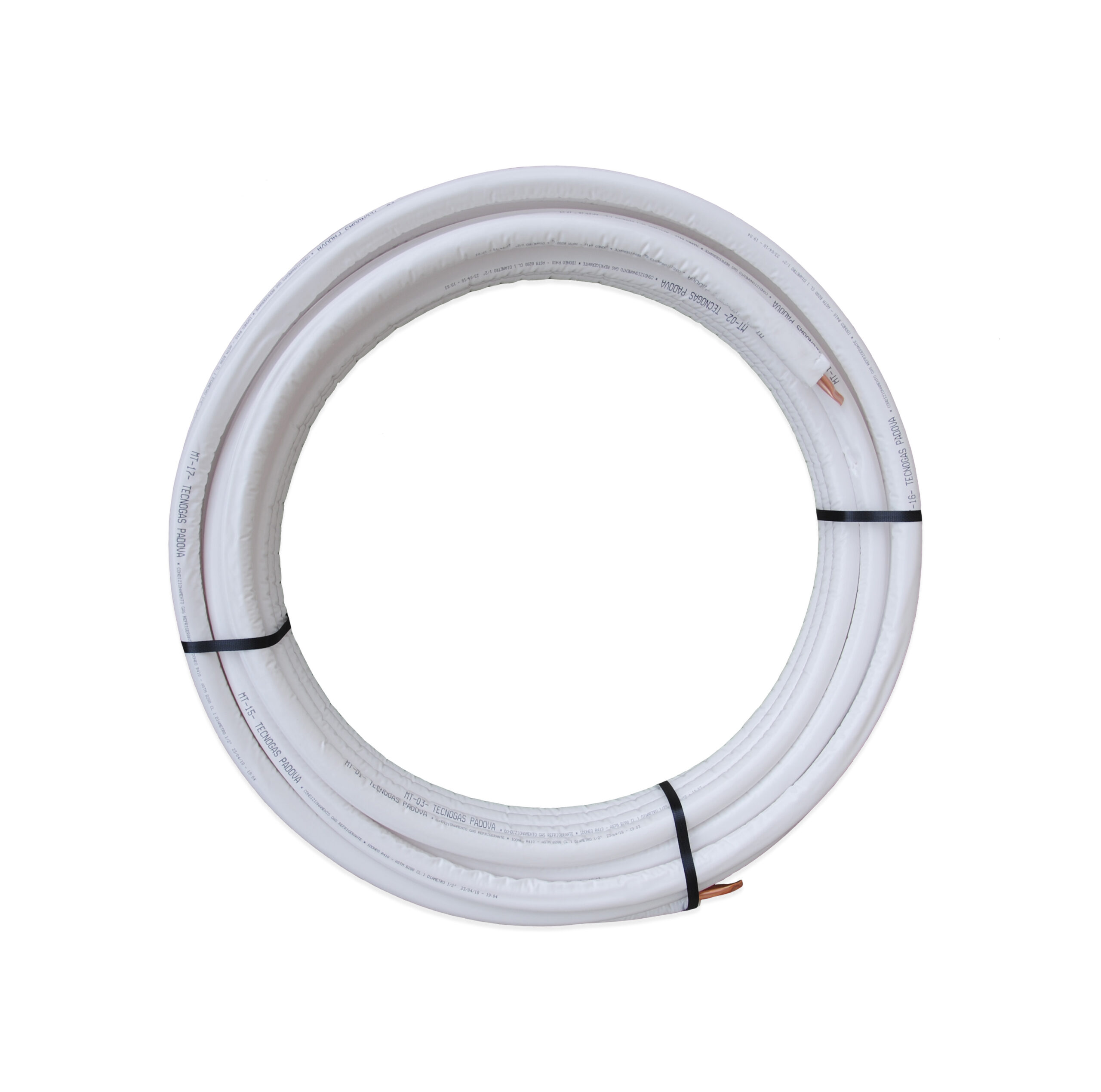

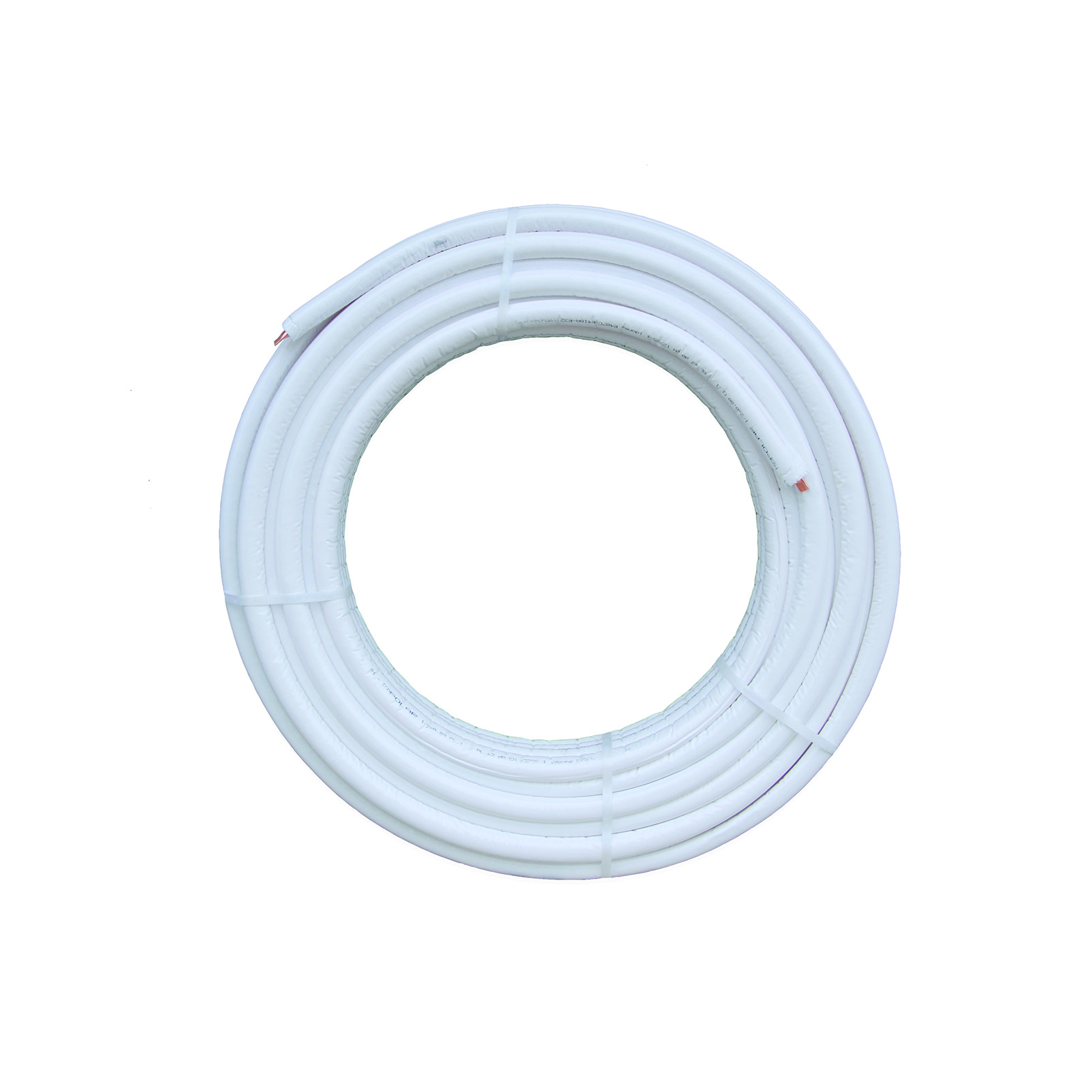

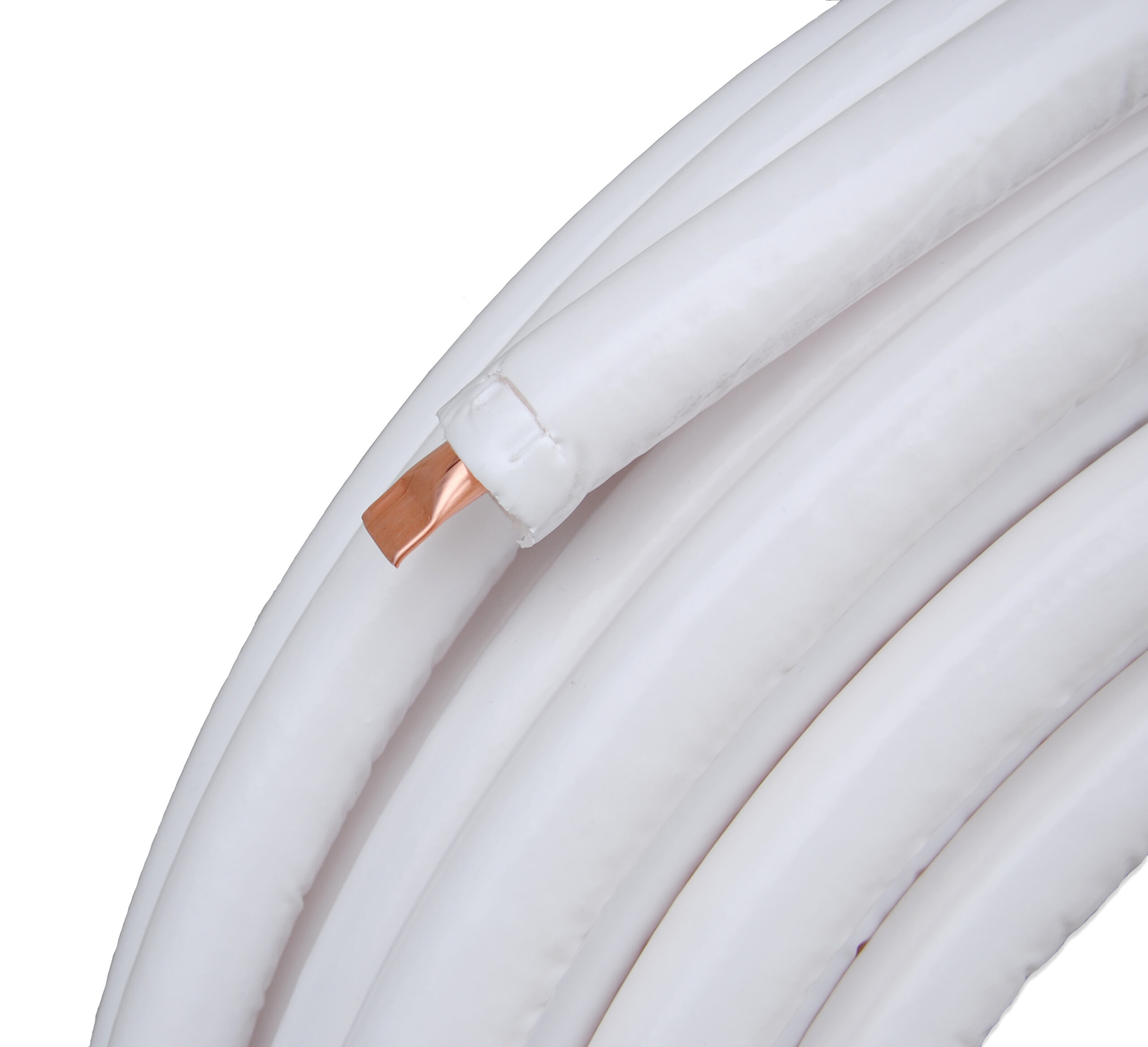

Copper tube in roll

Specific for air conditioning systems and the transport of refrigerant gases

sku	model	price	info	add to cart
00000011120	COPPER PIPE L.W.C - 1/4" - thk./Cu 0,80 mm - thk./insulation 6 mm	on request	Physical data UM Base: MT Dimension: 100 × 2 × 2 cm Volume: 0.0004 m³ Weight: 0,13 kg Minimum Order Quantity: 50 Customs data Customs Code 74111090	Info Request
00000011121	COPPER PIPE L.W.C - 3/8" - thk./Cu 0,80 mm - thk./insulation 6 mm	on request	Physical data UM Base: MT Dimension: 100 × 2 × 2 cm Volume: 0.0004 m³ Weight: 0,21 kg Minimum Order Quantity: 50 Customs data Customs Code 74111090	Info Request
00000011122	COPPER PIPE L.W.C - 1/2" - thk./Cu 1,00 mm - thk./insulation 10 mm	on request	Physical data UM Base: MT Dimension: 100 × 3 × 3 cm Volume: 0.0009 m³ Weight: 0,34 kg Minimum Order Quantity: 25 Customs data Customs Code 74111090	Info Request
00000011123	COPPER PIPE L.W.C - 1/2" - thk./Cu 0,80 mm - thk./insulation 6 mm	on request	Physical data UM Base: MT Dimension: 100 × 3 × 3 cm Volume: 0.0012 m³ Weight: 0,28 kg Minimum Order Quantity: 50 Customs data Customs Code 74111090	Info Request
00000011124	COPPER PIPE L.W.C - 5/8" - thk./Cu 1,00 mm - thk./insulation 10 mm	on request	Physical data UM Base: MT Dimension: 100 × 3 × 3 cm Volume: 0.0012 m³ Weight: 0,42 kg Minimum Order Quantity: 25 Customs data Customs Code 74111090	Info Request
00000011125	COPPER PIPE L.W.C - 3/4" - thk./Cu 1,00 mm - thk./insulation 10 mm	on request	Physical data UM Base: MT Dimension: 100 × 5 × 5 cm Volume: 0.0025 m³ Weight: 0,50 kg Minimum Order Quantity: 25 Customs data Customs Code 74111090	Info Request
00000011128	COPPER PIPE L.W.C - 7/8" - thk./Cu 1,00 mm - thk./insulation 10 mm	on request	Physical data UM Base: MT Dimension: 10 × 4 × 4 cm Volume: 0.0002 m³ Weight: 0,60 kg Minimum Order Quantity: 25 Customs data Customs Code 74111090	Info Request
000011120/1	COPPER PIPE L.W.C - 1/4" - thk./Cu 1,00 mm - thk./insulation 6 mm	on request	Physical data UM Base: MT Dimension: 100 × 2 × 2 cm Volume: 0.0004 m³ Weight: 0,16 kg Minimum Order Quantity: 50 Customs data Customs Code 74111090	Info Request
000011121/1	COPPER PIPE L.W.C - 3/8" - thk./Cu 1,00 mm - thk./insulation 6 mm	on request	Physical data UM Base: MT Dimension: 100 × 2 × 2 cm Volume: 0.0006 m³ Weight: 0,24 kg Minimum Order Quantity: 50 Customs data Customs Code 74111090	Info Request

Product informations

Copper pipe specifically for air conditioning systems and the transport of refrigerant gases; the pipe is sold in coils, with the copper diameter expressed in inches as per EN 12735-1.

Product features

each roll is stapled at the end to keep its inner surface clean
the insulation material is extruded polyethylene foam
LDPE (low-density polyethylene) inner sheath with high mechanical strength
tubing is available in thicknesses: 0.8 mm and 1 mm

Technical Features

*MATERIAL*	ACR Cu-DHP 99 min seamless annealed without welding
FIRE BEHAVIOUR	insulation material B_L-s1-d0
*RESISTANCE*	water vapor diffusion resistance factor (anti-condensation) > 15000 mm/mK
*THERMAL CONDUCTIVITY*	40°C ≤ 0,40
*TEMPERATURE OF USE*	- 80°C ÷ + 100°C

*PIPE SKU*	*DIMENSIONS*	*LENGTH*	*COPPER THICKNESS*	*THK./INSULATION*	*MAXIMUM PRESSURE*
11120	1/4" - 6.35 mm	50 m	0,80 mm	6 mm	130 bar
11121	3/8" - 9.52 mm	50 m	0,80 mm	6 mm	87 bar
11123	1/2" - 12.70 mm	50 m	0,80 mm	6 mm	80 bar
11120/1	1/4" - 6.35 mm	50 m	1,00 mm	6 mm	150 bar
11121/1	3/8" - 9.52 mm	50 m	1,00 mm	6 mm	100 bar
11122	1/2" - 12.70 mm	25 m	1,00 mm	10 mm	80 bar
11124	5/8" - 15.87 mmv	25 m	1,00 mm	10 mm	63 bar
11125	3/4" - 19.05 mm	25 m	1,00 mm	10 mm	58 bar
11128	7/8" - 22.22 mm	25 m	1,00 mm	10 mm	50 bar
