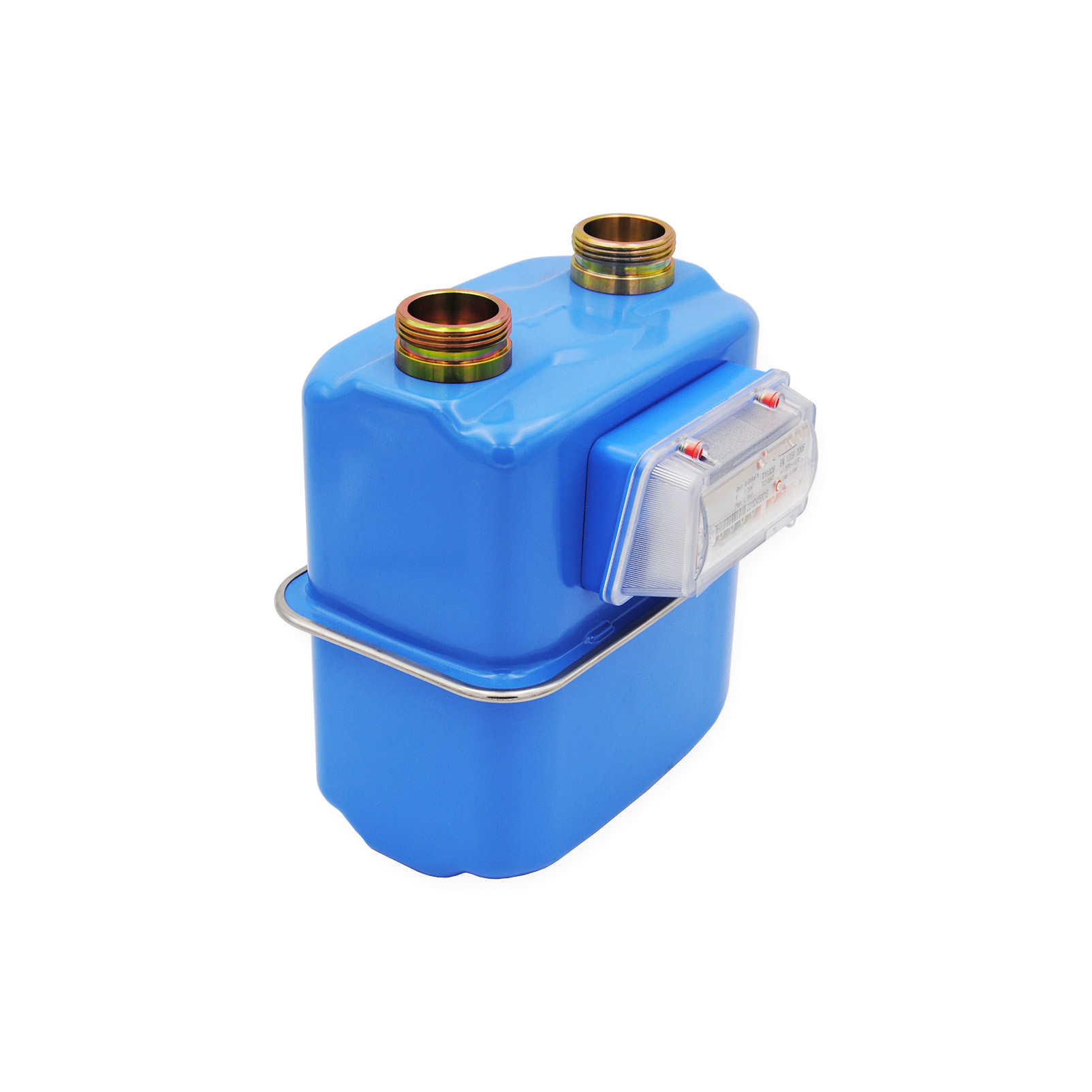

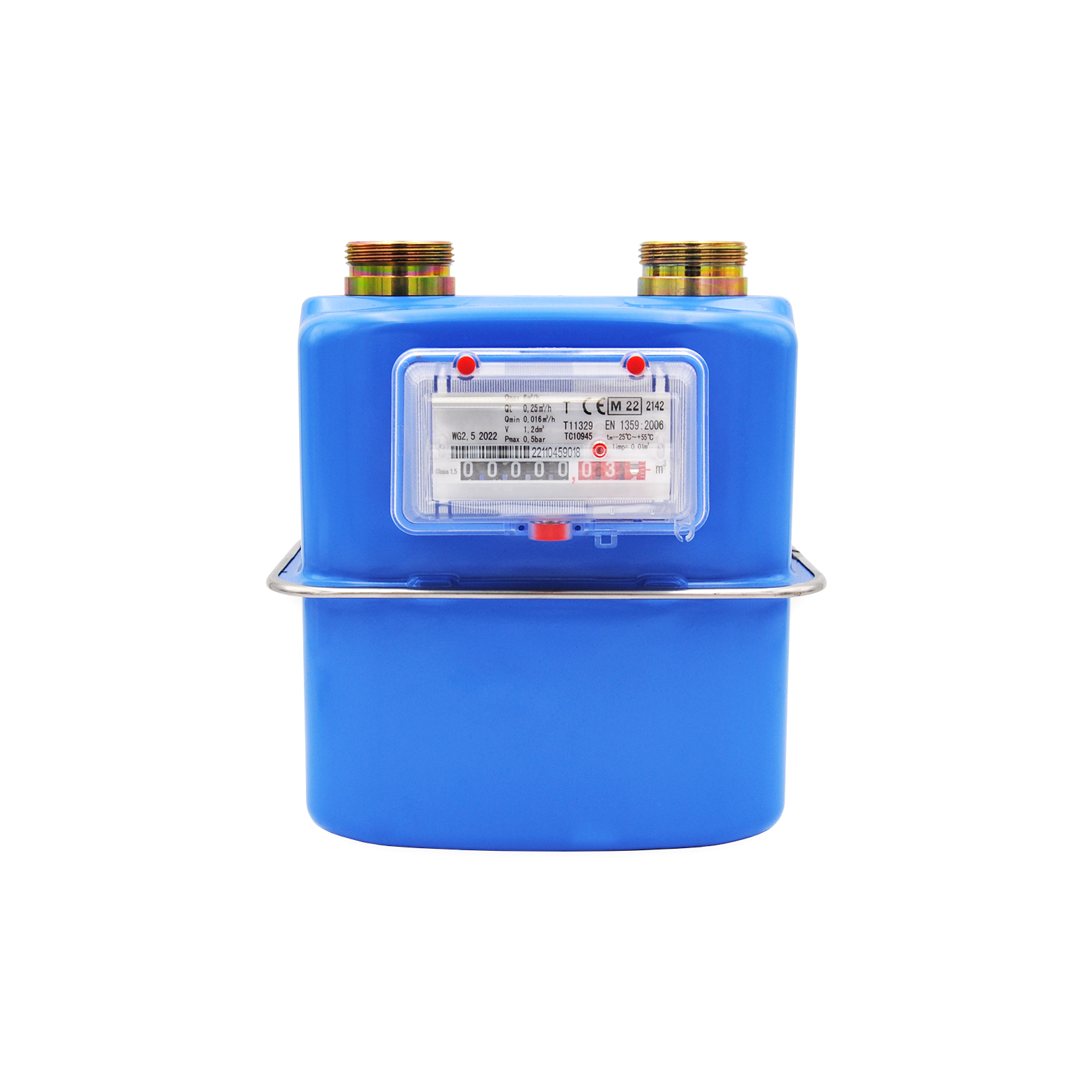

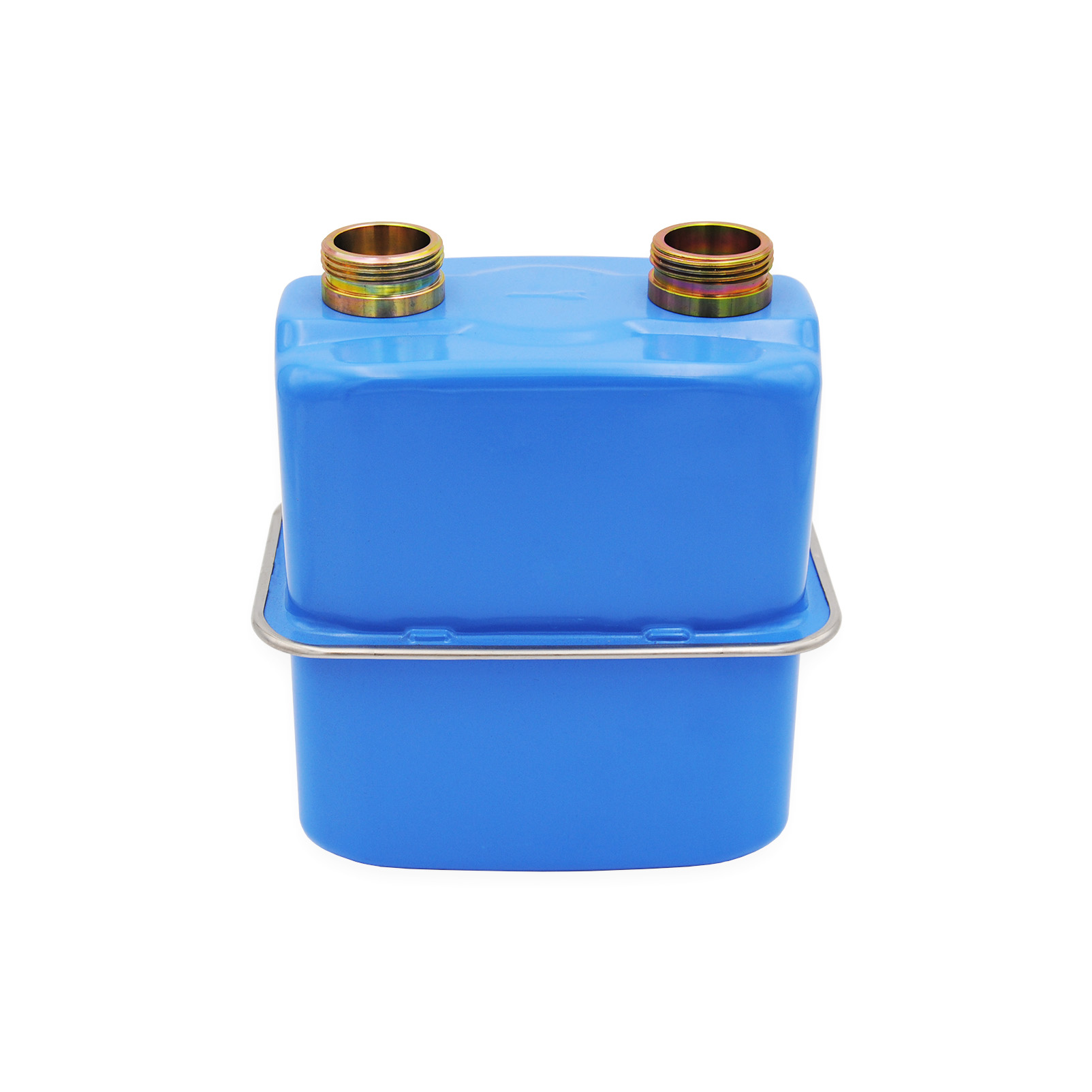

Deformable Side Volumetric Gas Meter

Class G 2,5 – G 4

ON REQUEST AVAILABLE WITH PULSE EMITTER AND G 2,5 AND G 4 VERSIONS WITH MAX MEASUREMENT PRESSURE 2 BAR

sku model price info add to cart

00000050401

VOLUMETRIC GAS METER WITH DEFORMABLE SIDE G 4 CLASS - 1" 1/4 M connections

120,35 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
20 × 25 × 17 cm

Volume:
0.0085 m3

Weight:
2,10 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90281000

Buy
Info Request

00000050420

TWIN WIRE FOR G 2,5 / G 4 / G 6

47,30 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
3 × 2 × 3 cm

Volume:
0 m3

Weight:
0,01 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90289090

Buy
Info Request

0000050420Z

TWIN WIRE FOR G 2,5 / G 4

63,00 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
9 × 2 × 10 cm

Volume:
0.0002 m3

Weight:
0,03 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90289090

Buy
Info Request

Product informations

Volumetric gas meter with the ability to operate correctly in different flow rates and offer precise measurement; indeed, unlike other domestic meters, this meter is able to account for even the most significant flow rates. Equipped with integrated calibration system and valve movement system which optimizes the relation to the gas flow rate and guarantees linearity of the error curve even at low flow rates.

Also available the cable with REED for pulse emitter.



Technical Features

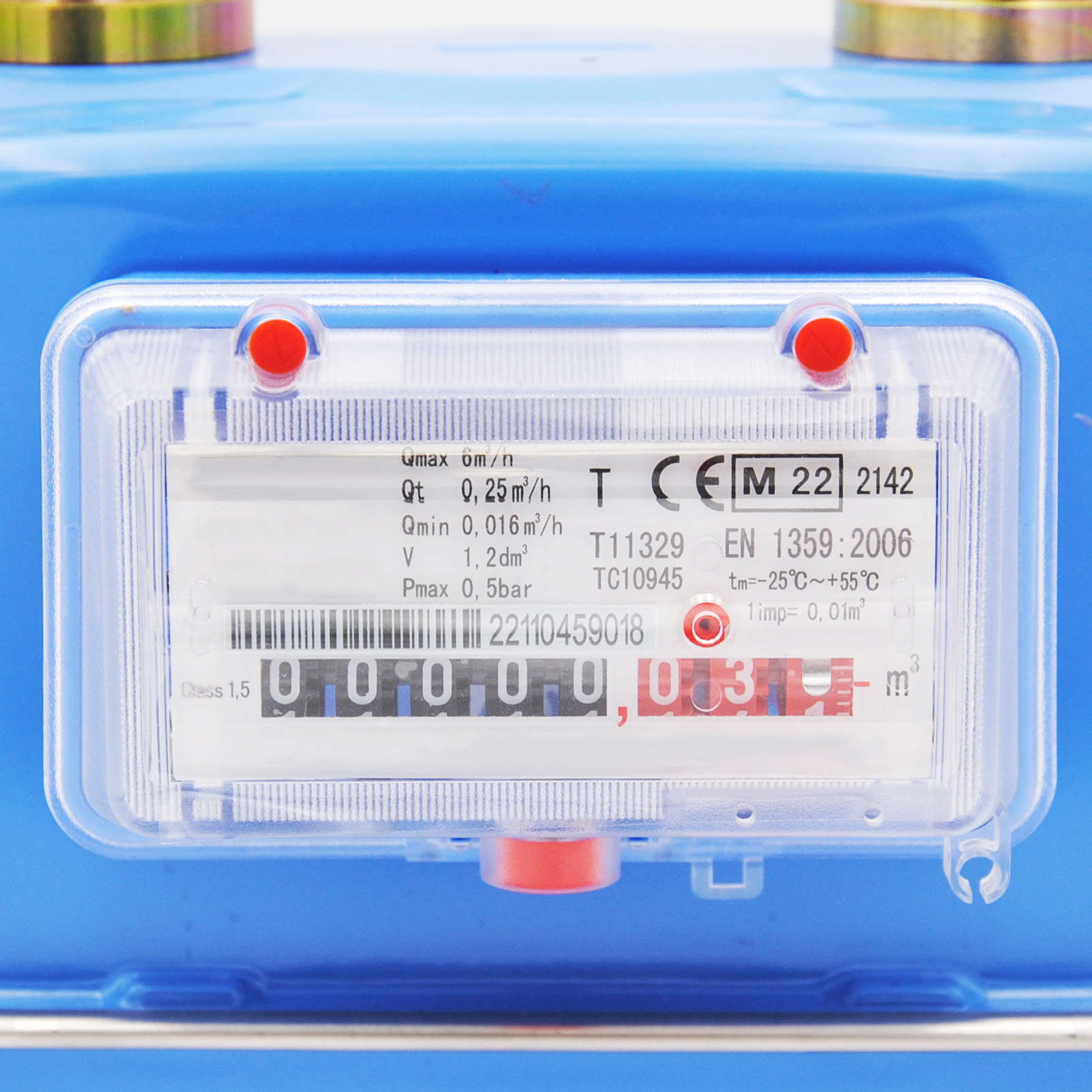

MEASURING PRESSURE 36 mbar
MAXIMUM CASING PRESSURE 1 bar
METROLOGICAL APPROVALS MID class 1,5
TRANSITION CAPACITY Qt 0,25 m3/h
MAXIMUM CAPACITY Qmax 6 m3/h
MINIMUM CAPACITY Qmin 0,016 m3/h
OPERATING PRESSURE 0 ÷ 500 mbar
CYCLIC VOLUME 1,2 l
OPERATING TEMPERATURE - 25°C ÷ + 55°C

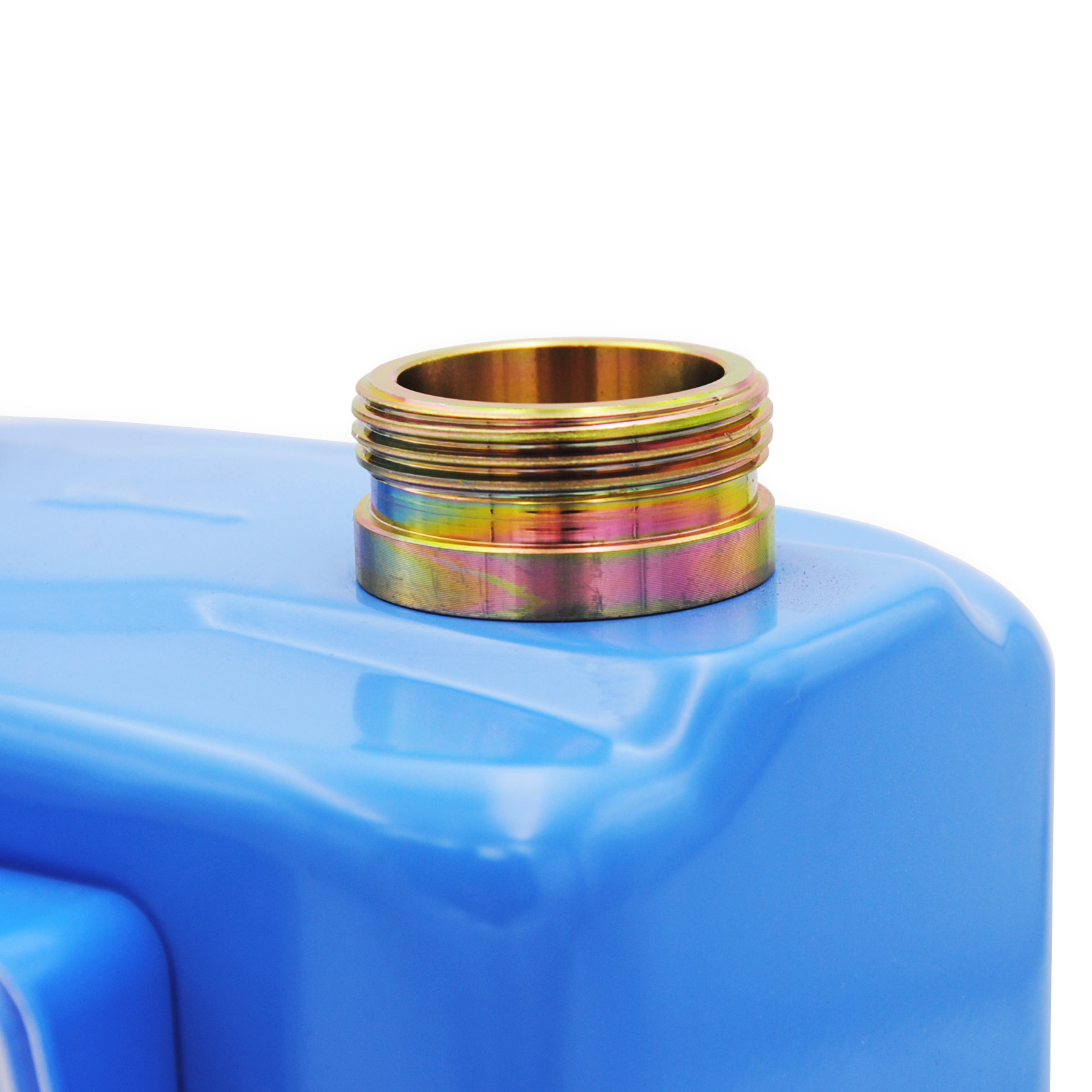

INLET CONNECTION 1 1/4" M
OUTPUT CONNECTION 1 1/4" M
MATERIAL sheet metal case
WEIGHT 1,9 kg

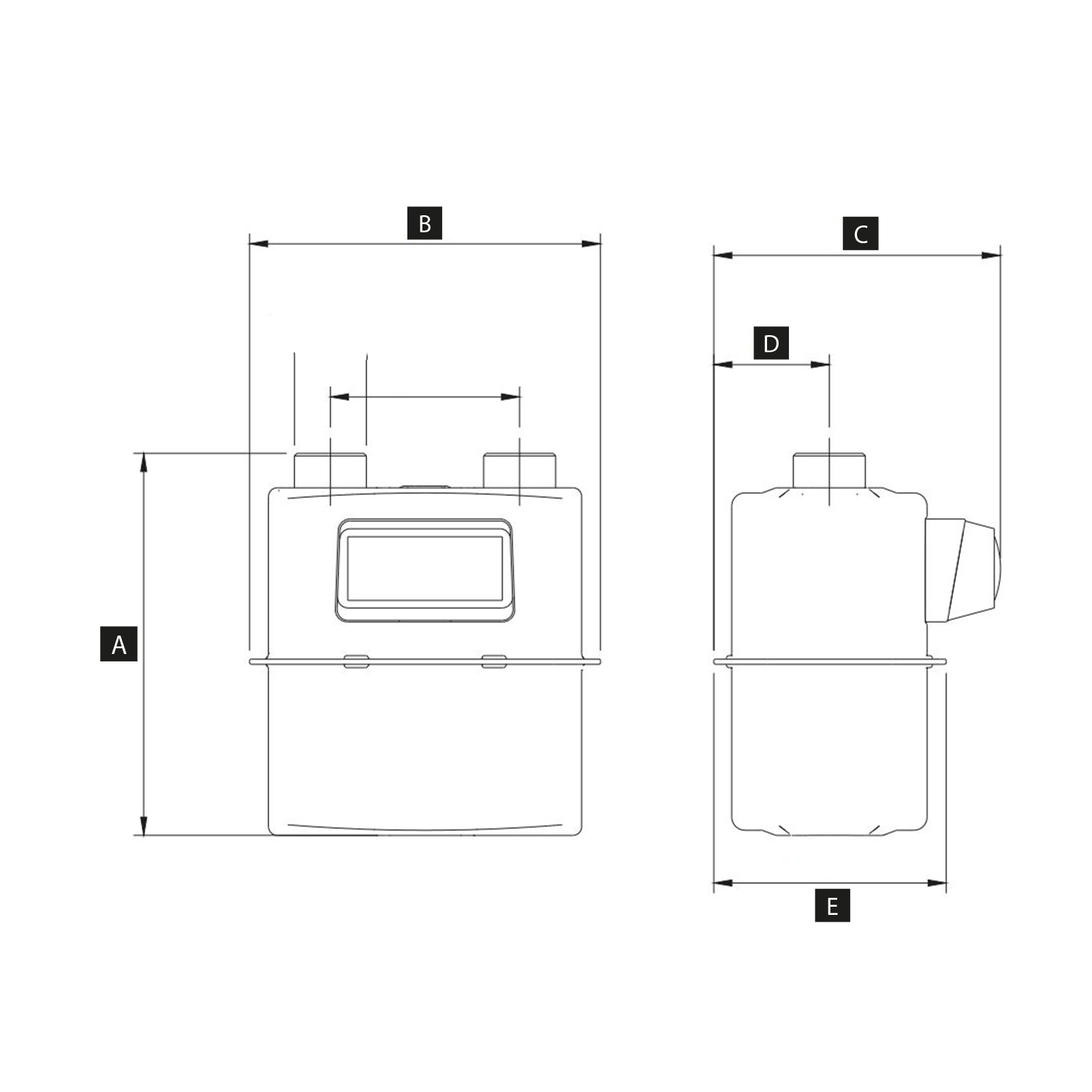

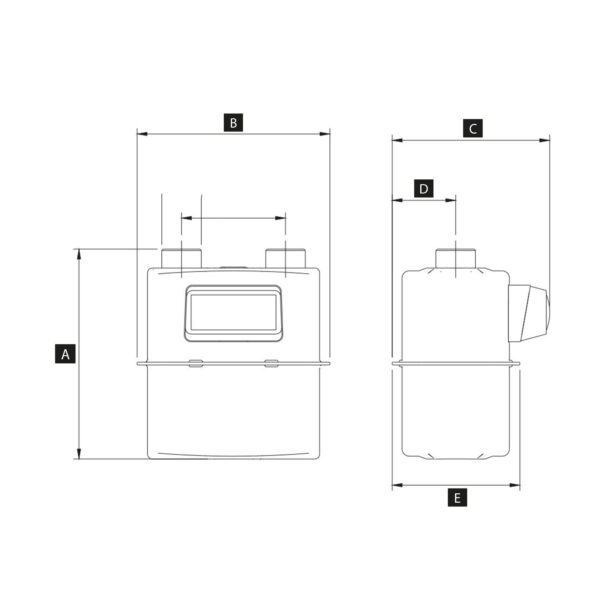

SKU CLASS USE INTERAXLE SPACING A B C D E
50400A G 2,5 LPG 110 mm 219 mm 204 mm 168 mm 67 mm 135 mm
50401 G 4 LPG - CH4 110 mm 219 mm 204 mm 168 mm 67 mm 135 mm
