Condensing Trap

For single wall rigid system

UNI EN 14471 - UNI 11528 - UNI 7129 RULES

sku model price info add to cart

00000051285

CONDENSING TRAP - Ø 60 mm*

€12,25 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
10 × 7 × 7 cm

Volume:
0.0006 m3

Weight:
0,04 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39269097
Buy
Info Request

00000051288

CONDENSING TRAP - Ø 80 mm*

€15,70 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
9 × 9 × 9 cm

Volume:
0.0009 m3

Weight:
0,05 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39269097
Buy
Info Request

00000051358

CONDENSING TRAP - Ø 50 mm

€4,50 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39269097
Buy
Info Request

00000051360

CONDENSING TRAP - Ø 125 mm

€13,60 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
13 × 15 × 13 cm

Volume:
0.0025 m3

Weight:
0,15 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39269097
Buy
Info Request

00000051361

CONDENSING TRAP - Ø 160 mm

€19,45 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39269097
Buy
Info Request

00000051362

CONDENSING TRAP - Ø 200 mm

€168,95 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39269097
Buy
Info Request

00000051740

CONDENSING TRAP - Ø 100 mm*

€19,40 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
10 × 10 × 10 cm

Volume:
0.001 m3

Weight:
0,08 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39269097
Buy
Info Request

Product informations

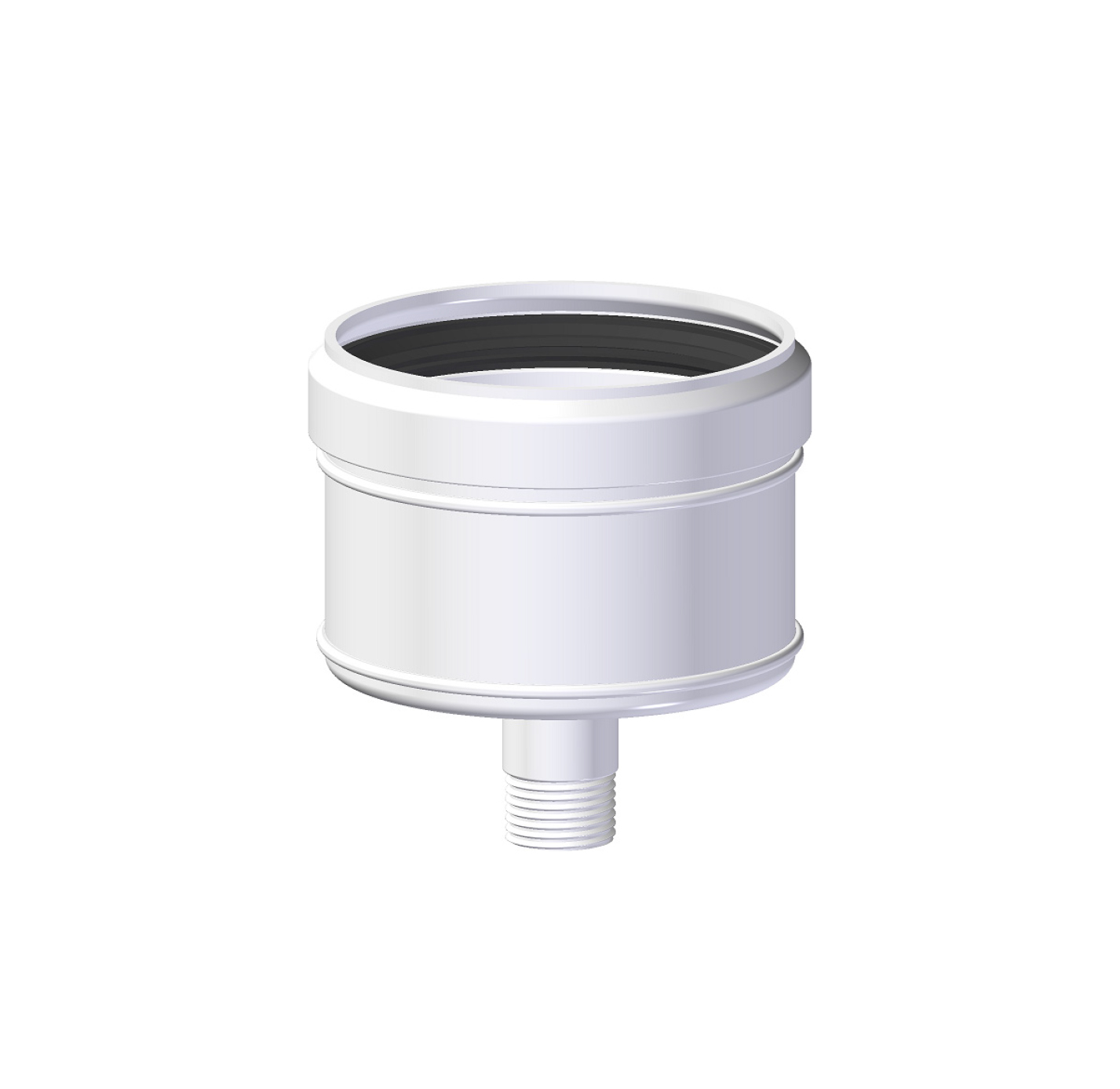

Condensing trap, lower element of the flue system which plugs the lower part and which conveys the condensate formed inside into a 1/2" GAS threaded connection.



Product features

  • made in diameters: Ø 50 mm - Ø 60 mm - Ø 80 mm - Ø 100 mm - Ø 125 mm - Ø 160 mm - Ø 200 mm
  • finished in RAL 9010 color (*Also available in black PPs)

Technical Features

DESIGNATION T120 H1 W 2 O00 LI E U
TYPE OF MATERIAL self-extinguishing PPs
PRESSURE RESISTANCE with EPDM gaskets conforming to the EN 14241 standard
APPLICATION RANGE condensing boilers and cooking steam exhaust
CORROSION RESISTANCE type 2
SUITABLE FUELS methane gas
FIRE REACTION Class "E" (according to EN 13501-1)
OPERATING TEMPERATURE continuous operation up to 120°C wet under pressure with EPDM gasket

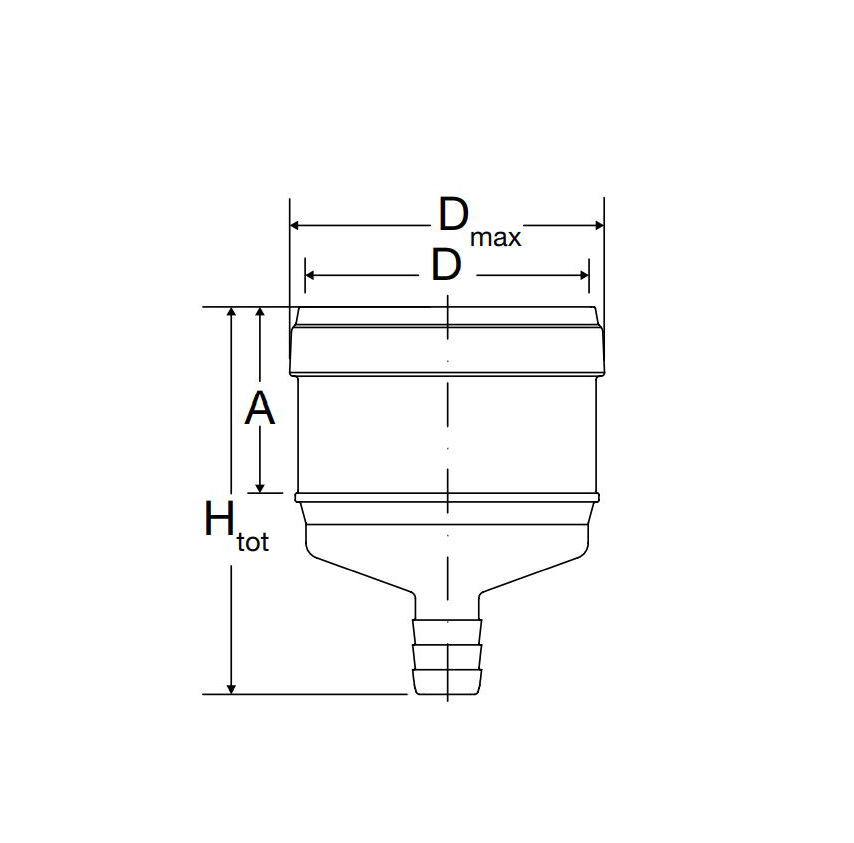

SKU D Dmax A Htot THICKNESS
51358  Ø 50 mm - - - -
51285  Ø 60 mm 70 50 105 2,1
51288  Ø 80 mm 90 53 110 2,4
51740  Ø 100 mm 112 56 118 2,7
51360  Ø 125 mm 135 61 141 3
51361  Ø 160 mm 171 66 154 3
51362  Ø 200 mm - - - -
