Condensation Discharge Pump FLOWATCH VISION
Model Flowatch Vision
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000011947 |
 CONDENSATION DISCHARGE PUMP FLOWATCH VISION |
€190,90 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

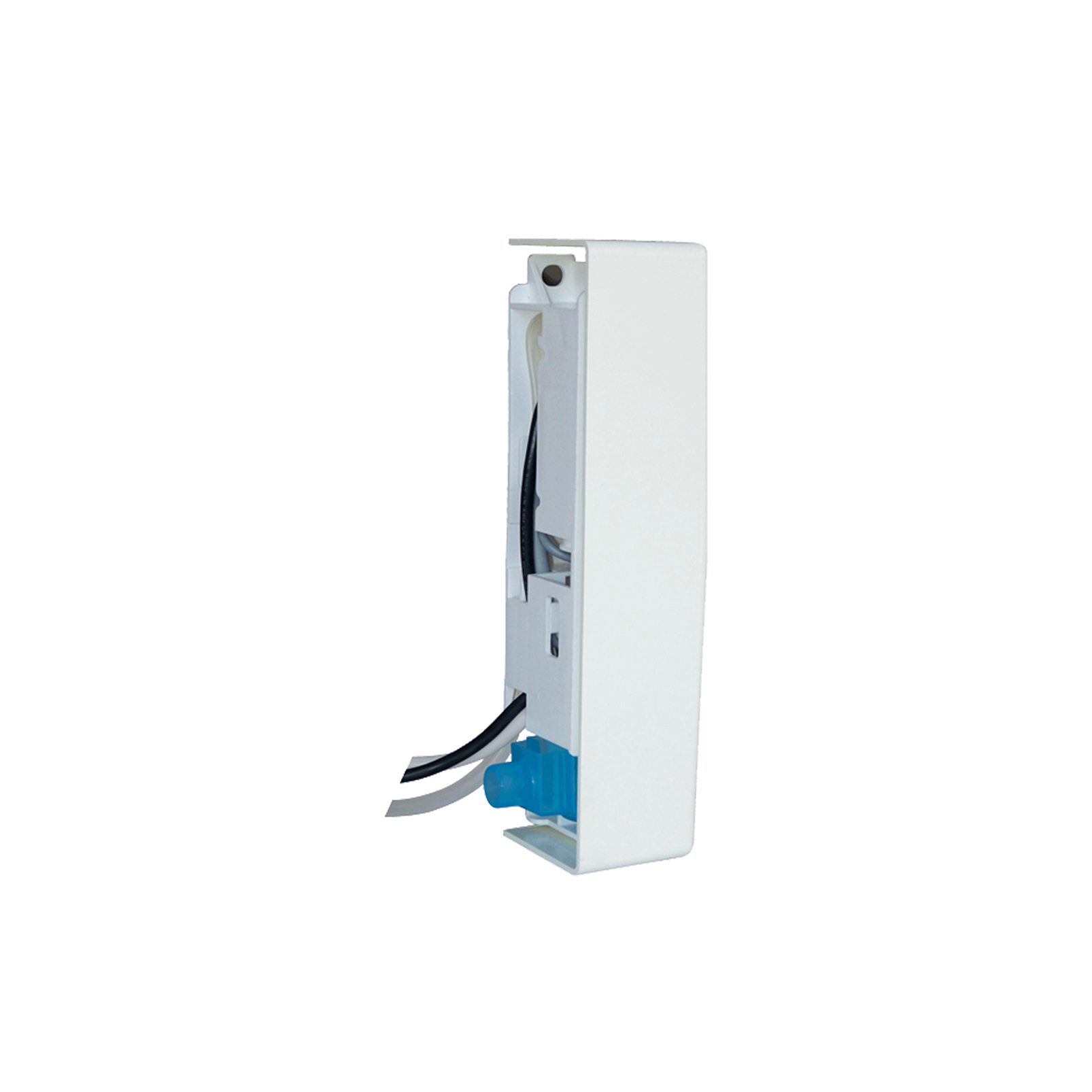

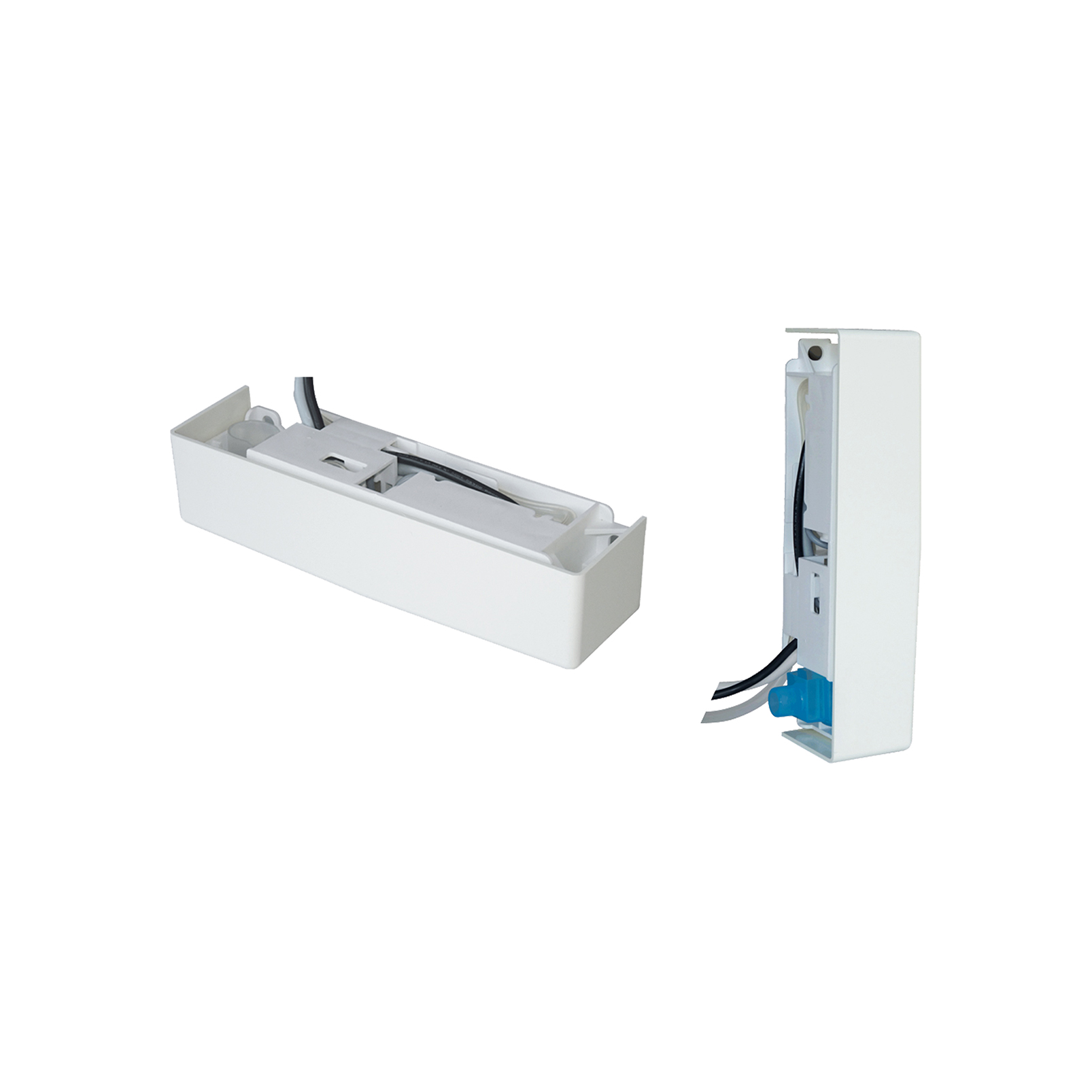

FLOWATCH VISION is the monobloc pump for the condensate drain of air conditioners up to 10 kW, which can be installed both vertically and horizontally and, thanks to its small size, can be positioned in any type of environment. Its tank and integrated filter are easily accessible and removable for routine maintenance.

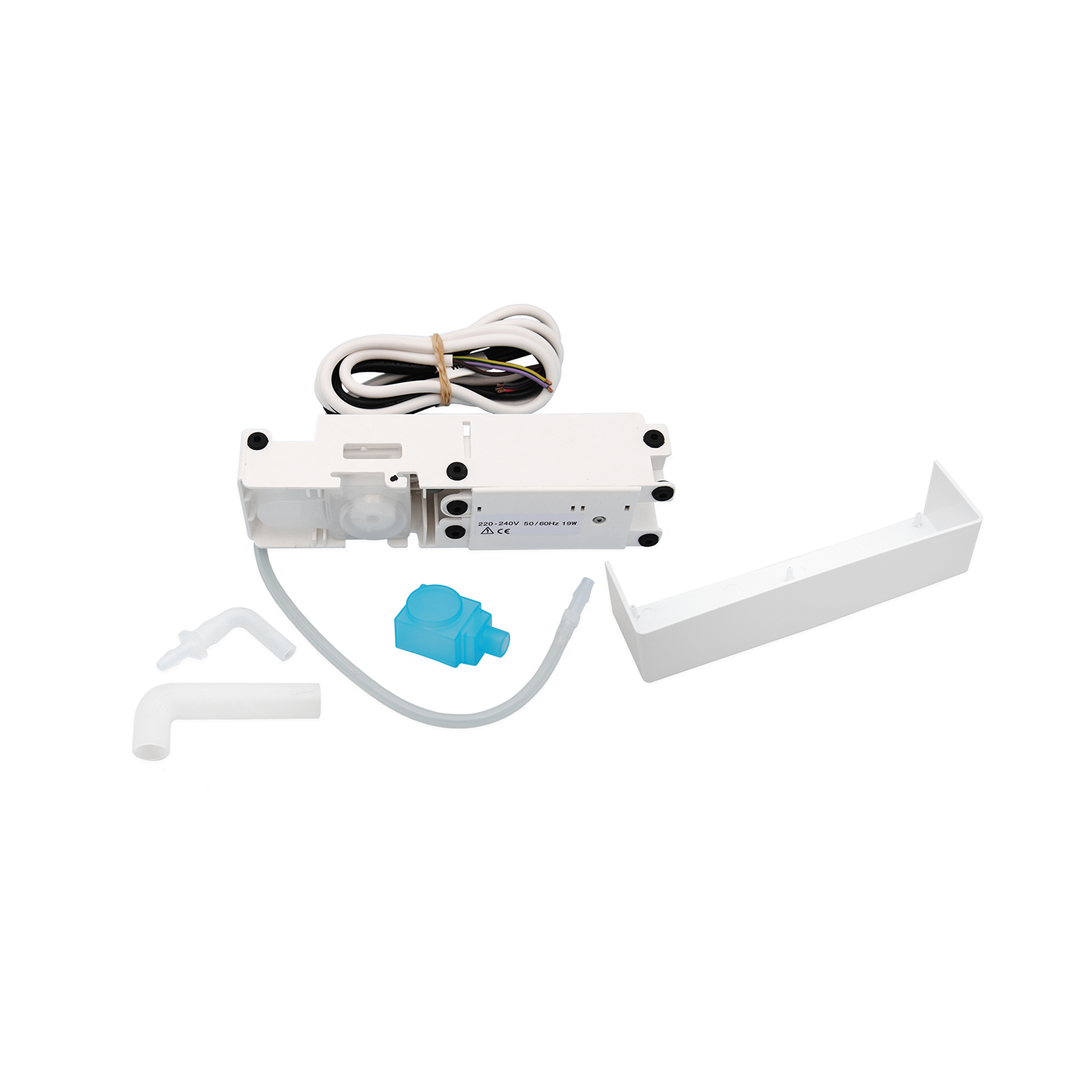

The kit includes

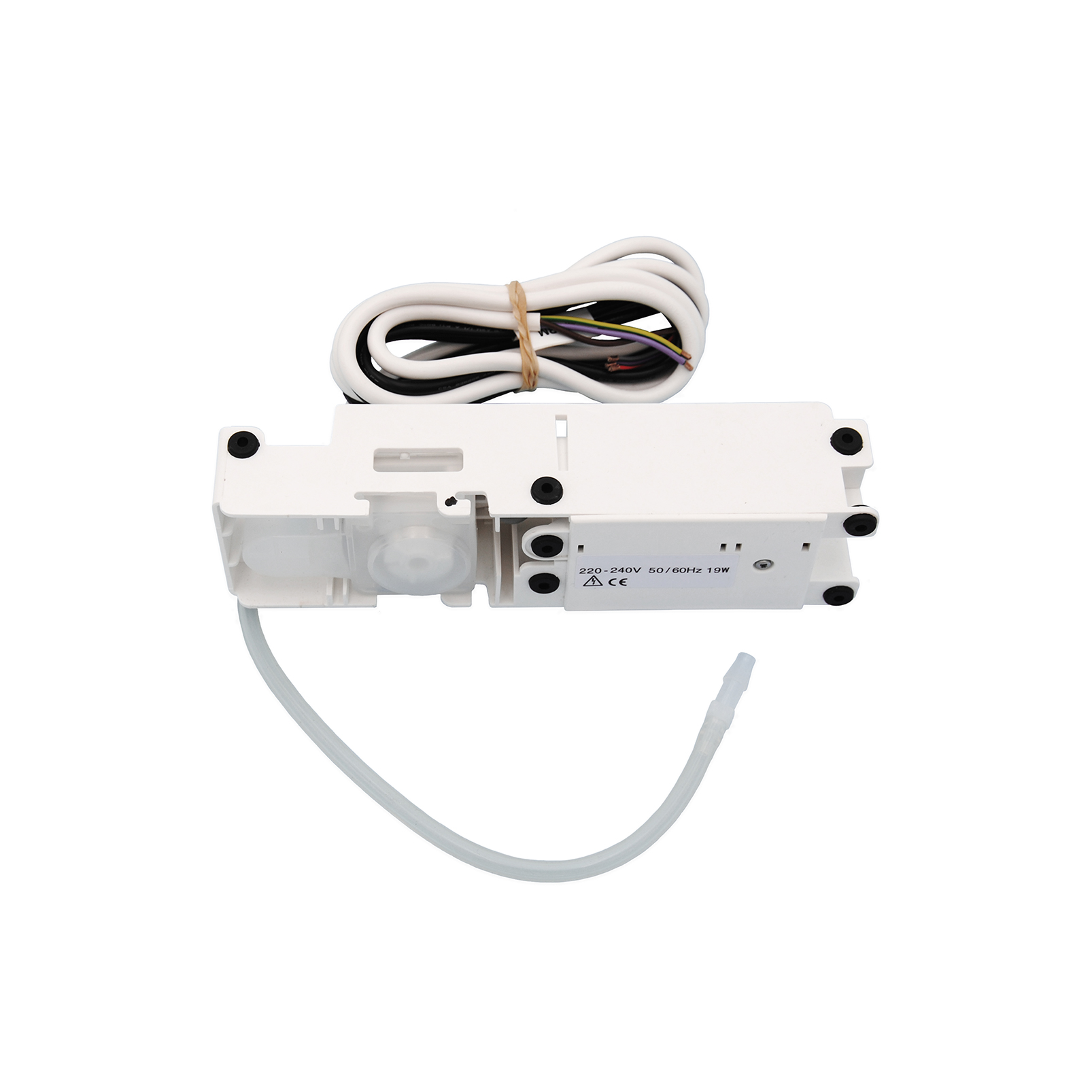

- FLOWATCH VISION pump

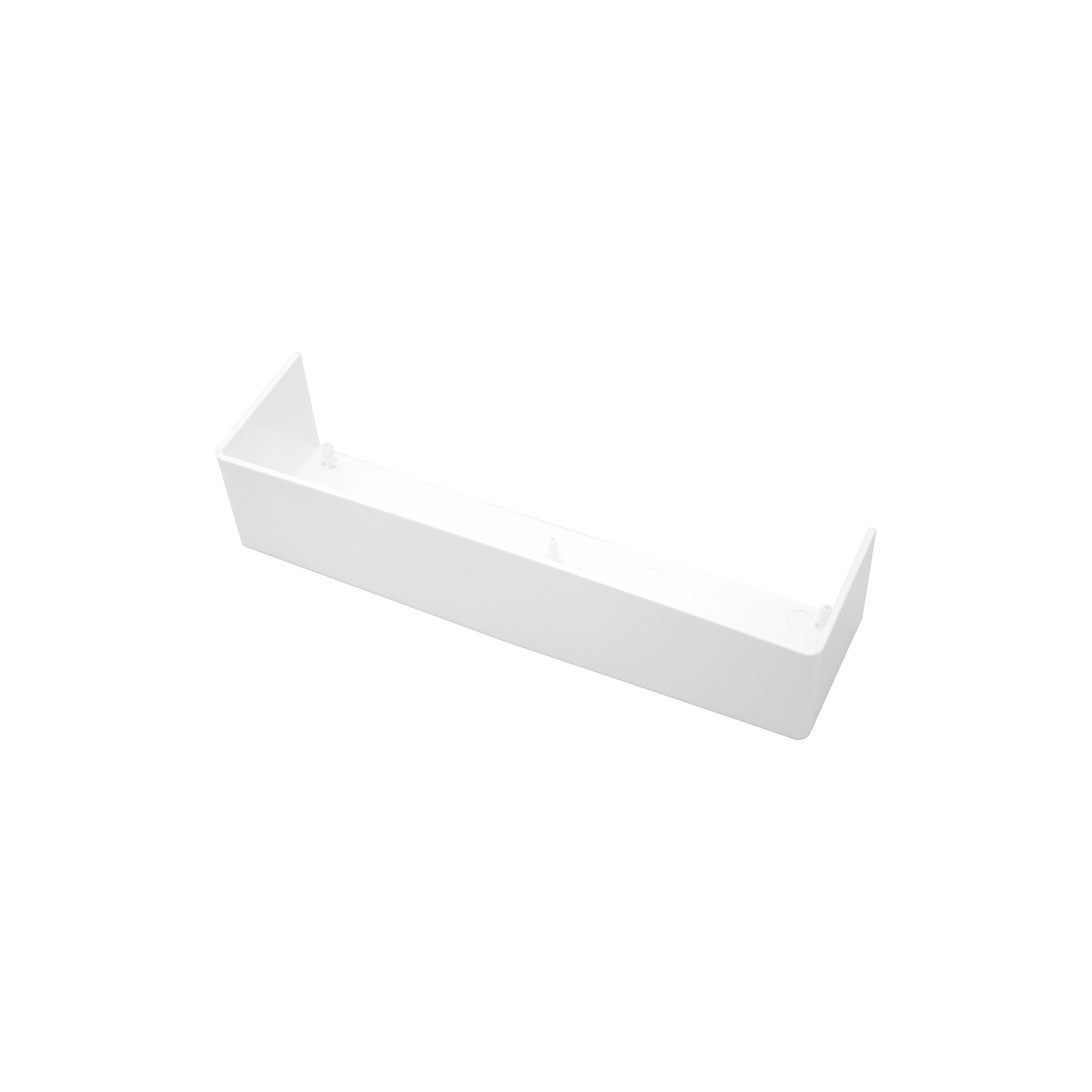

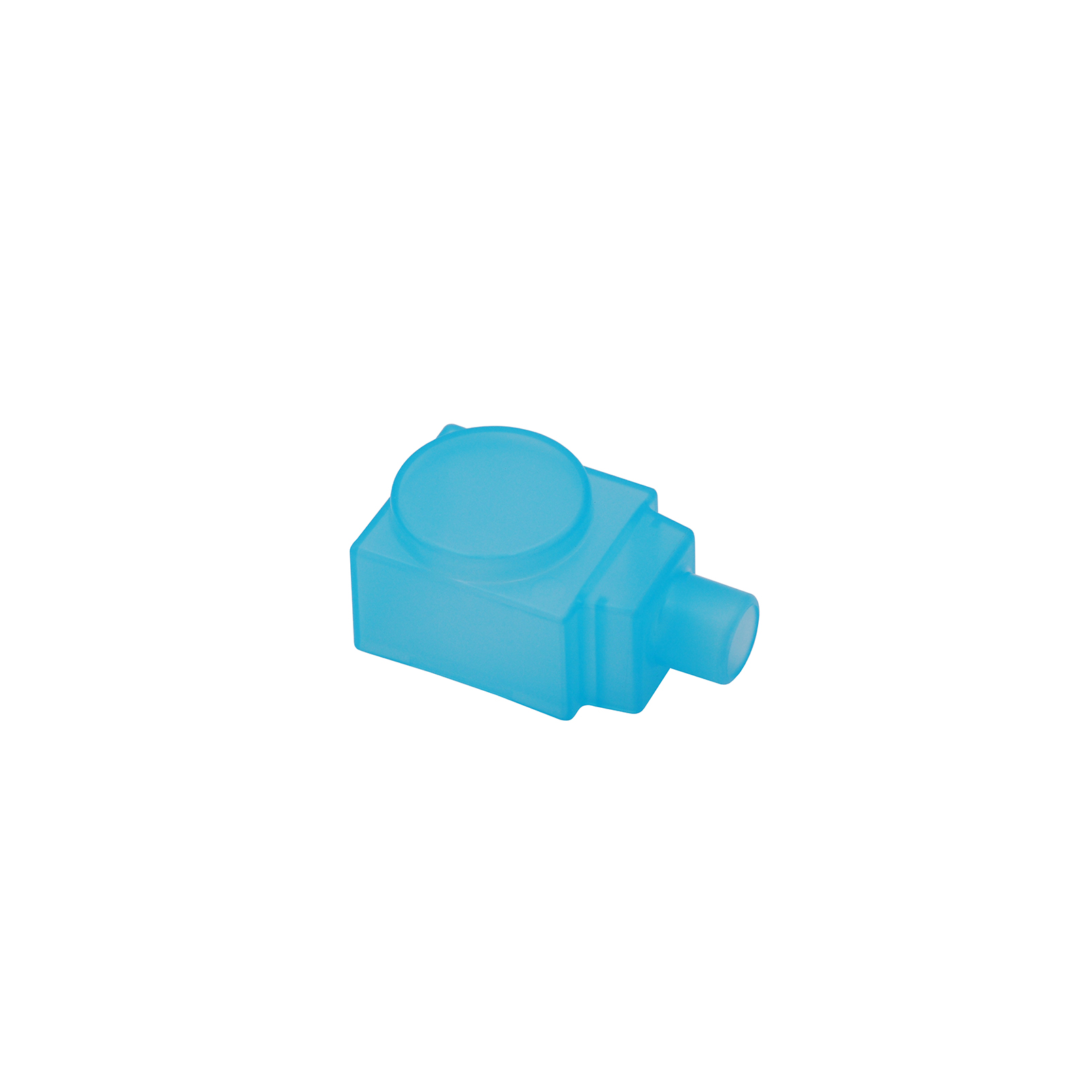

- tank for vertical installation

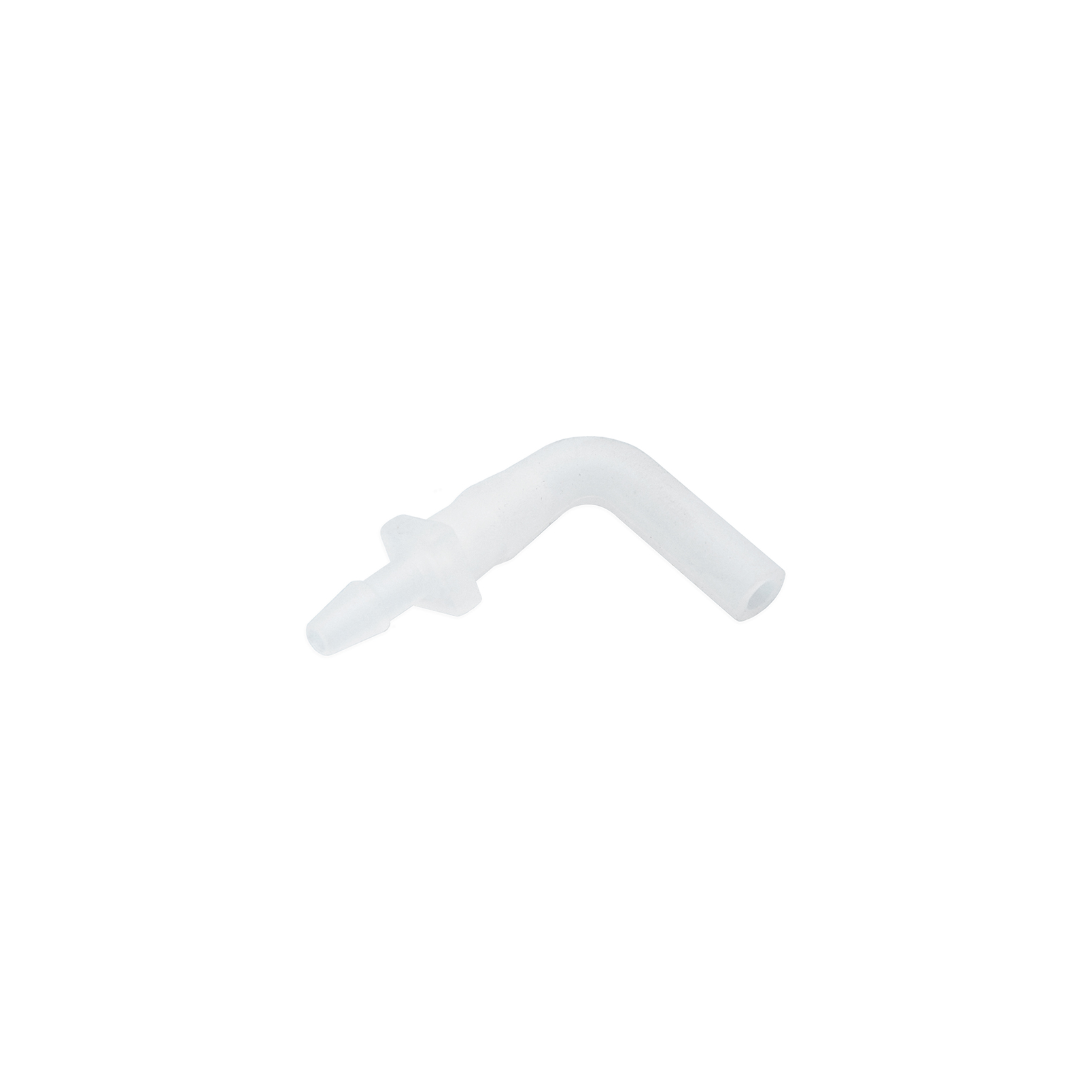

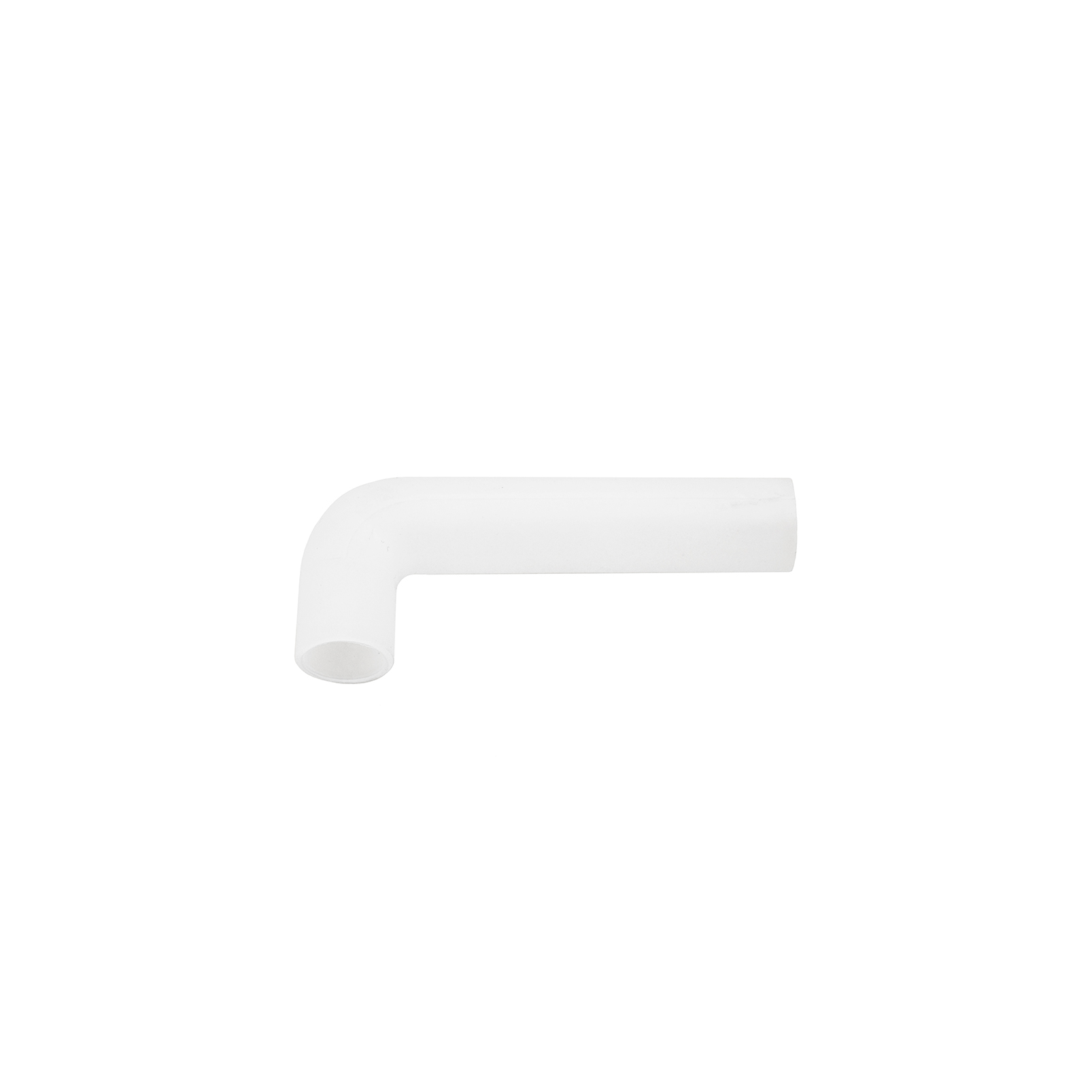

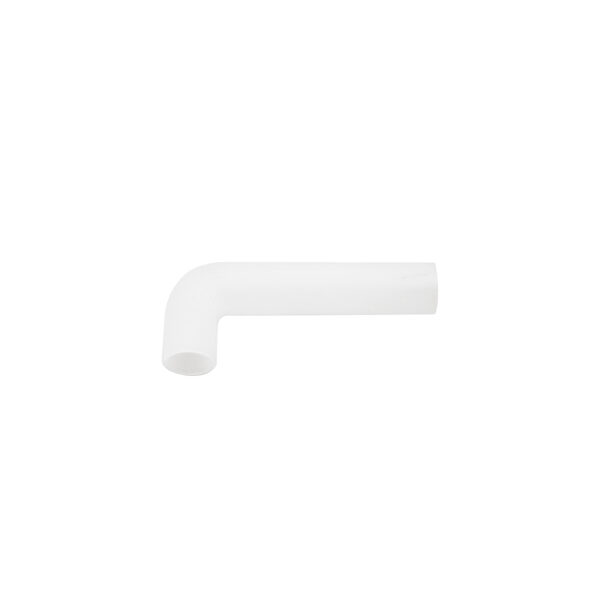

- inlet pipe
- 1 tightening band

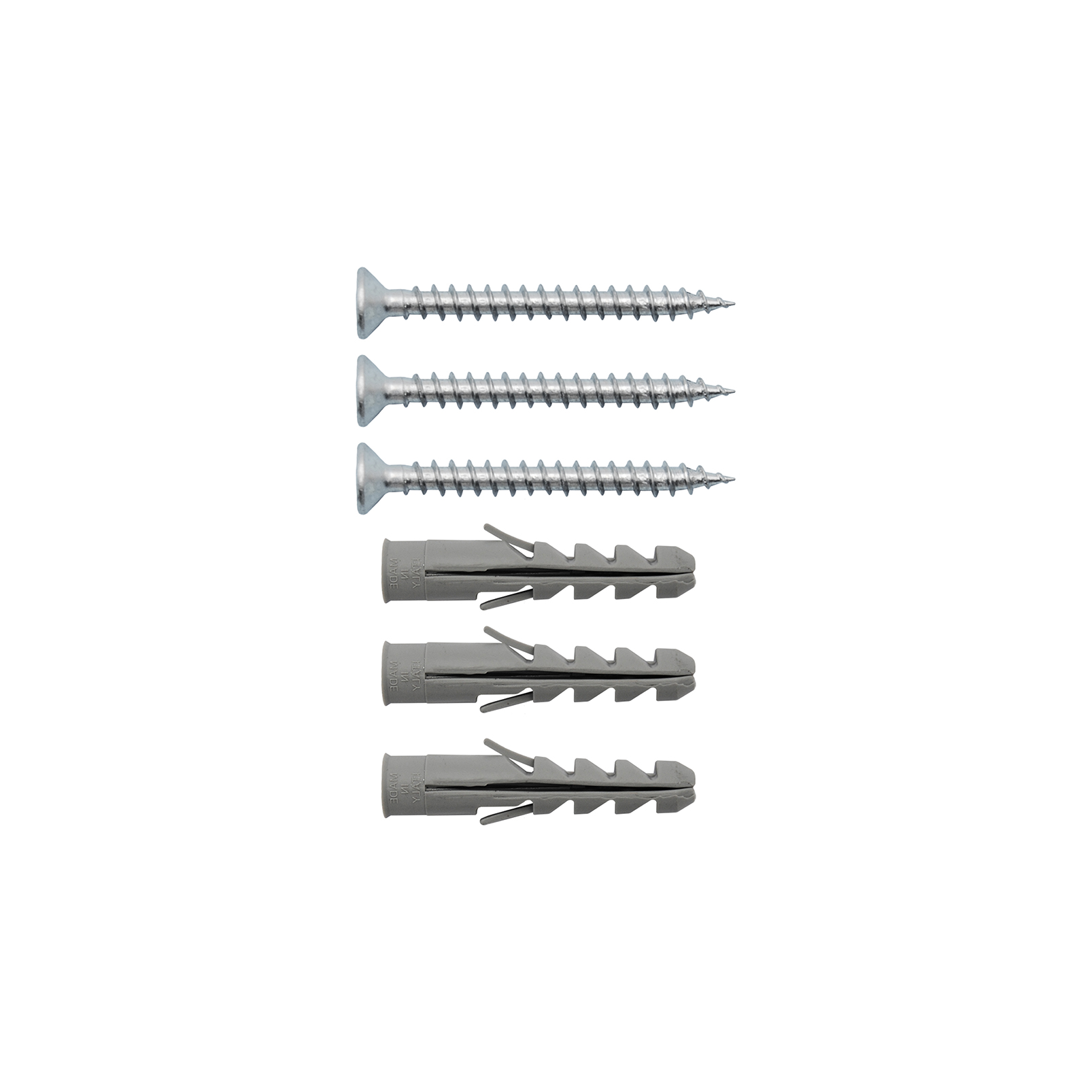

- screws and plugs
Technical Features
| POWER SUPPLY | 230 V 50/60 Hz 19 W |
|---|---|
| MAXIMUM FLOW RATE | 15 l/h |
| DISCHARGE HEAD | 10 m |
| ALLARM | integrated |
| SOUND LEVEL | < 21 dB(A) |
| DEGREE OF PROTECTION | IPX3 (Protected against solid bodies larger than Ø 2.5 mm and protected against falling water at an angle within ± 60°) |
| DIMENSIONS | 230x61,5x55 mm |
