Cold Water Meter

Single jet cold water meter 8 rollers

sku model price info add to cart

00000070306

COLD WATER METER - L. 110 mm - Ø 1/2"

47,65 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
14 × 9 × 10 cm

Volume:
0.0013 m3

Weight:
0,46 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90282000

Buy
Info Request

00000070307

COLD WATER METER - L. 130 mm - Ø 3/4"

65,40 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
9 × 10 × 16 cm

Volume:
0.0015 m3

Weight:
0,87 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90282000

Buy
Info Request

00000070308

COLD WATER METER - L. 160 mm - Ø 1"

133,70 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
11 × 13 × 20 cm

Volume:
0.003 m3

Weight:
1,91 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90282000

Buy
Info Request

Product informations

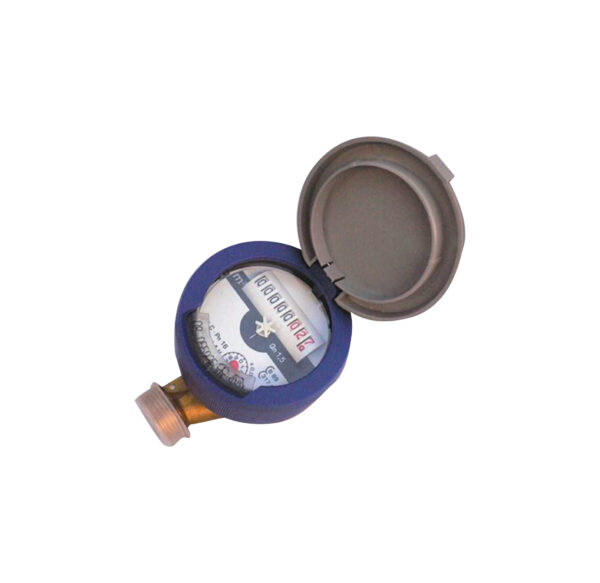

Cold water meter with dry dial-plate and 8 rolls.



Product features

  • single jet 8 rolls
  • MID homologated
  • class B
  • complete with fittings

Technical Features

SKU 70306
MAX CAPACITY 3 m3/h
NORMAL CAPACITY 1,5 m3/h
MINIMUM CAPACITY 15 l/h
MINIMUM READING 0,05 l/h
MAX PRESSURE 16 bar
WORKING TEMPERATURE 0 ÷ 30°C
DIAMETER  Ø 1/2"
LENGTH 110 mm



SKU 70307
MAX CAPACITY 5 m3/h
NORMAL CAPACITY 2,5 m3/h
MINIMUM CAPACITY 25 l/h
MINIMUM READING 0,05 l/h
MAX PRESSURE 16 bar
WORKING TEMPERATURE 0 ÷ 30°C
DIAMETER  Ø 3/4"
LENGTH 130 mm



SKU 70308
MAX CAPACITY 7 m3/h
NORMAL CAPACITY 3,5 m3/h
MINIMUM CAPACITY 35 l/h
MINIMUM READING 0,05 l/h
MAX PRESSURE 16 bar
WORKING TEMPERATURE 0 ÷ 30°C
DIAMETER  Ø 1"
LENGTH 160 mm
