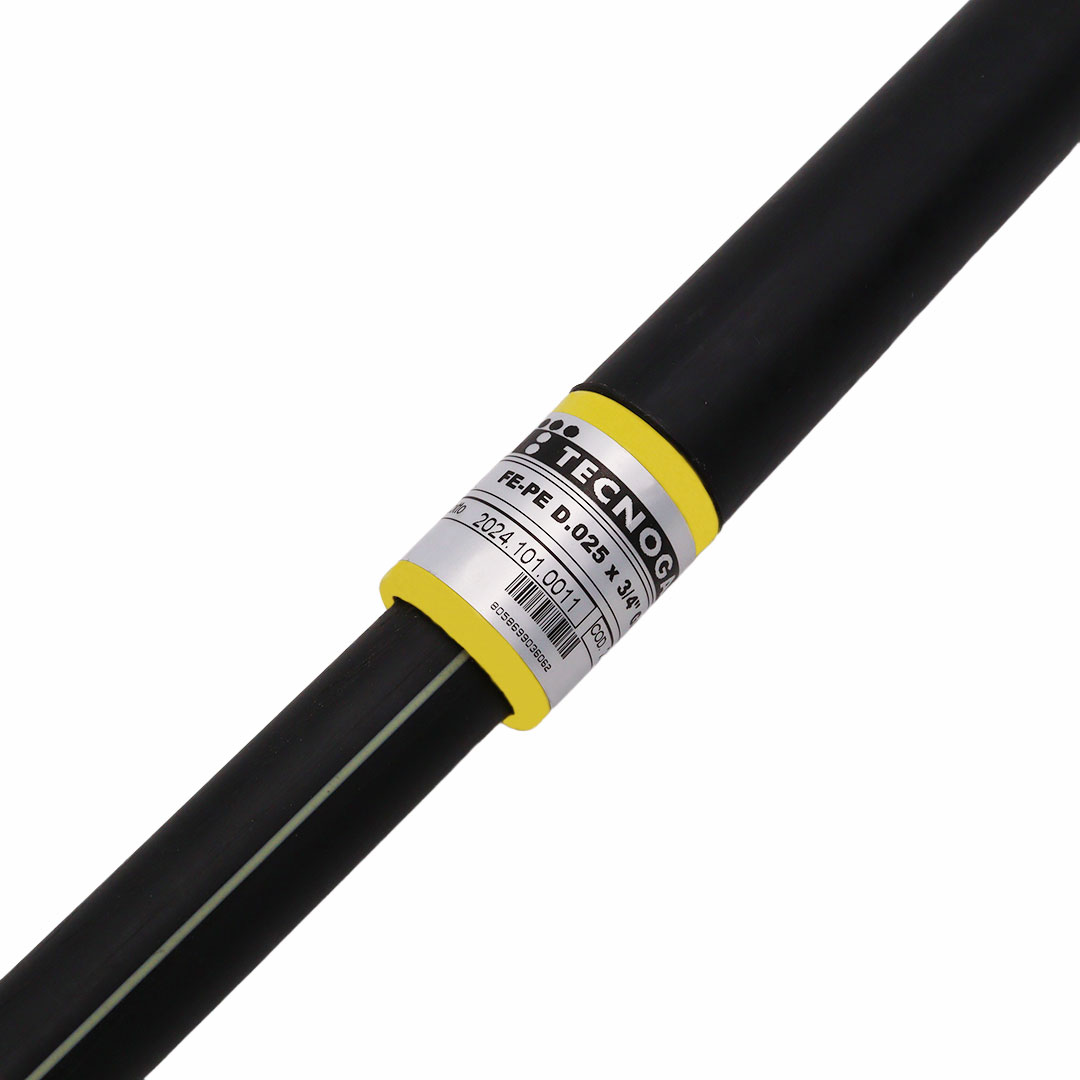

Rectilinear PE/Steel Coated Transition Fitting

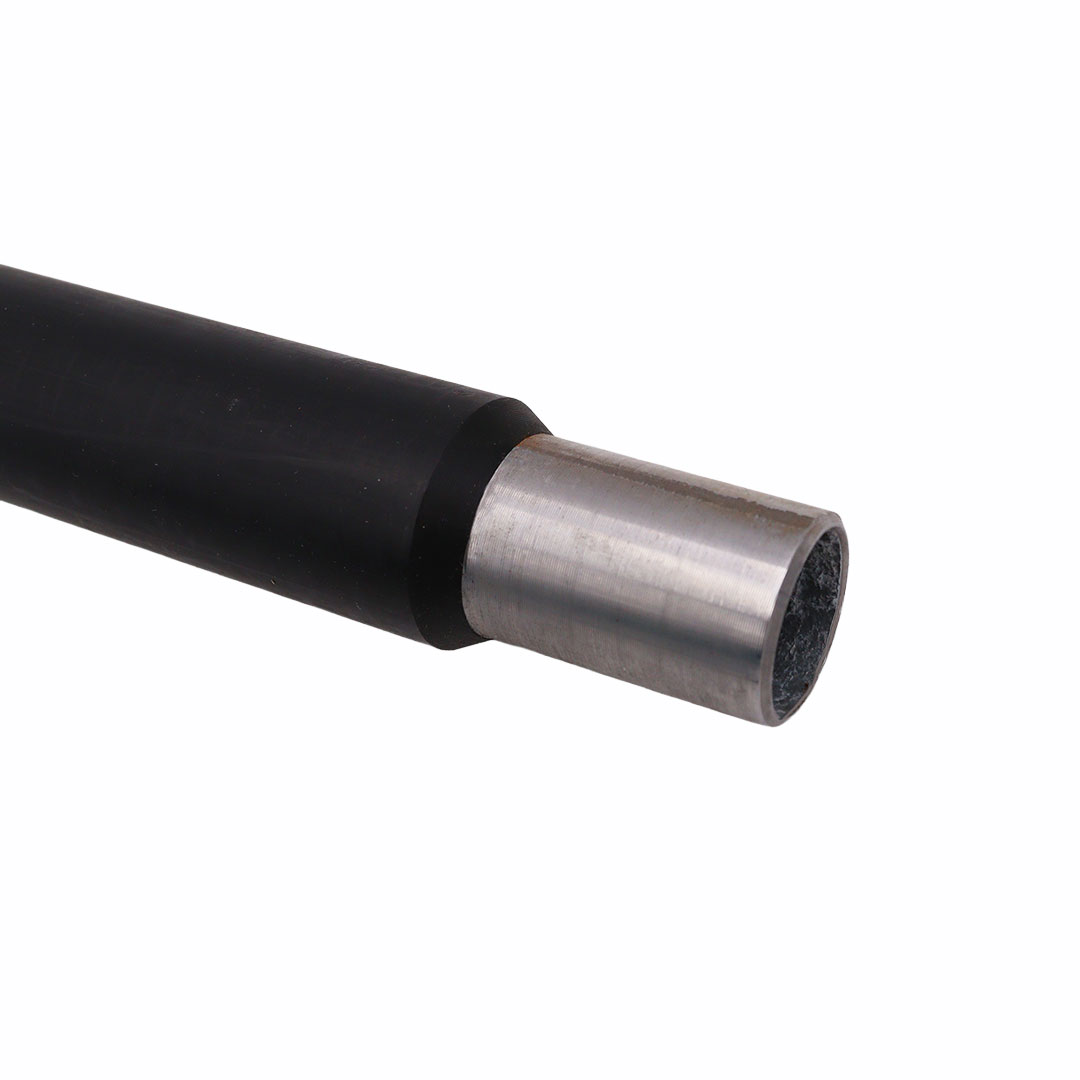

Weld version

DG - 7521BU0225 AND ISO 9001:2015 CERTIFICATES

sku model price info add to cart

00000020350

TRANSITION FITTING GALVANIZED COATED FOR WELDING - DN 3/4" - PE-D 25 mm

€35,65 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
49 × 2 × 3 cm

Volume:
0.0004 m3

Weight:
0,63 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020351

TRANSITION FITTING GALVANIZED COATED FOR WELDING - DN 1" - PE-D 32 mm

€37,65 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
51 × 3 × 3 cm

Volume:
0.0006 m3

Weight:
0,81 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020352

TRANSITION FITTING GALVANIZED COATED FOR WELDING - DN 1" 1/4 - PE-D 40 mm

€43,60 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
1,20 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020353

TRANSITION FITTING GALVANIZED COATED FOR WELDING - DN 1" 1/2 - PE-D 50 mm

€45,55 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020354

TRANSITION FITTING GALVANIZED COATED FOR WELDING - DN 2" - PE-D 63 mm

€49,50 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
55 × 7 × 7 cm

Volume:
0.0027 m3

Weight:
1,80 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020355

TRANSITION FITTING GALVANIZED COATED FOR WELDING - DN 2" 1/2 - PE-D 75 mm

€93,20 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
53 × 8 × 8 cm

Volume:
0.0034 m3

Weight:
3,20 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020356

TRANSITION FITTING GALVANIZED COATED FOR WELDING - DN 3" - PE-D 90 mm

€130,45 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
11 × 54 × 11 cm

Volume:
0.0065 m3

Weight:
4,04 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020357

TRANSITION FITTING GALVANIZED COATED FOR WELDING - DN 3" - PE-D 110 mm

€246,35 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
53 × 12 × 12 cm

Volume:
0.0076 m3

Weight:
6,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020358

TRANSITION FITTING GALVANIZED COATED FOR WELDING - DN 4" - 125 mm

€310,50 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
51 × 15 × 15 cm

Volume:
0.0115 m3

Weight:
6,60 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020359

TRANSITION FITTING GALVANIZED COATED FOR WELDING - DN 5" - PE-D 140 mm

€339,50 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
16 × 53 × 16 cm

Volume:
0.0136 m3

Weight:
7,44 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020360

TRANSITION FITTING GALVANIZED COATED FOR WELDING - DN 6" - PE-D 160 mm

€434,70 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
19 × 59 × 19 cm

Volume:
0.0213 m3

Weight:
12,83 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020361

TRANSITION FITTING GALVANIZED COATED FOR WELDING - DN 6" - PE-D 180 mm

€455,40 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020362

TRANSITION FITTING GALVANIZED COATED FOR WELDING - DN 8" - PE-D 200 mm

€603,15 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020363

TRANSITION FITTING GALVANIZED COATED FOR WELDING - DN 8" - PE-D 225 mm

€590,00 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

Product informations

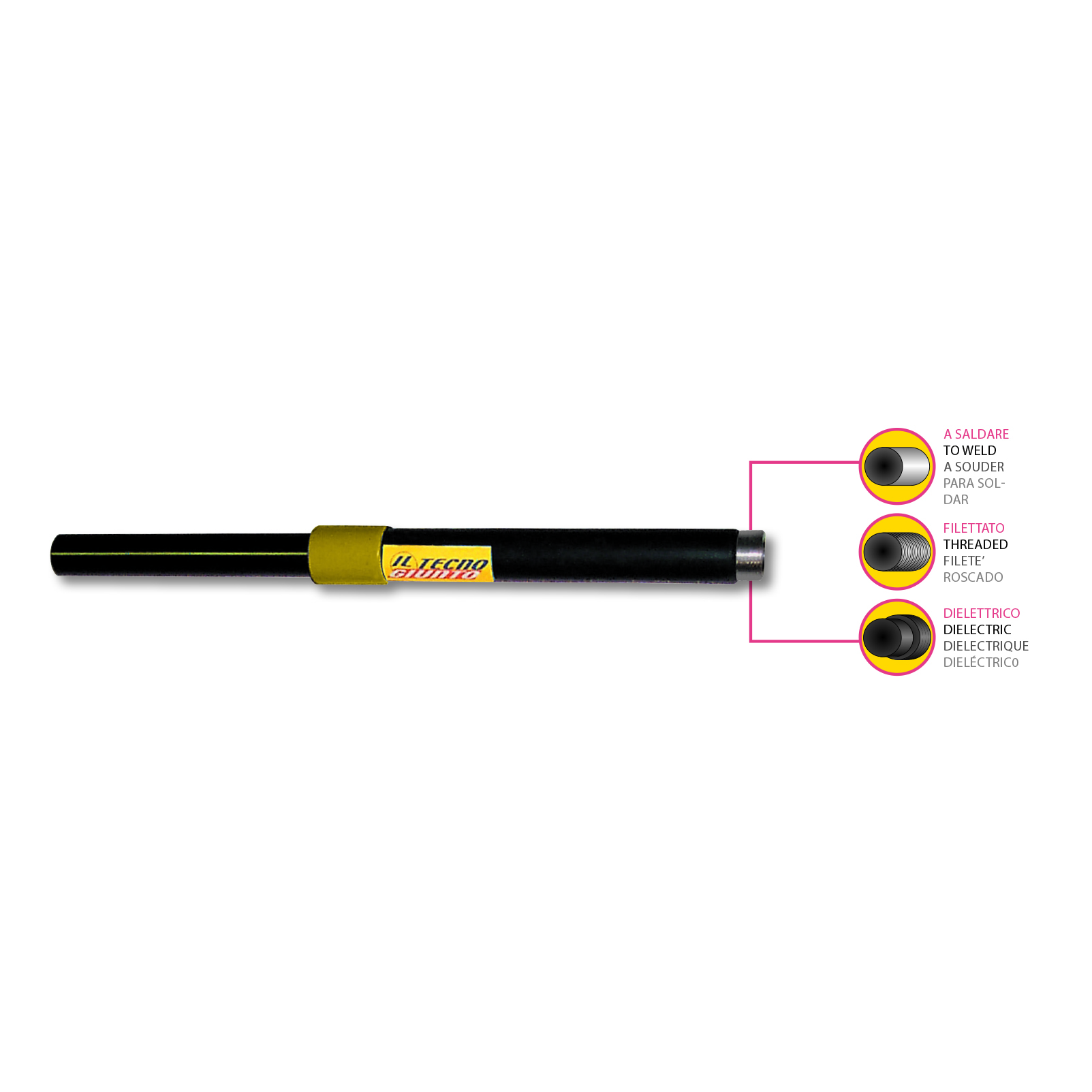

Transition fitting designed to allow the passage from a plant in plastic material (polyethylene) to a metal one, to allow fuel gas distribution plants to exit the ground. The joints of polyethylene pipes to metal pipes are made by welding connection for the conveyance of combustible gases under pressure.

Couplings with different diameters are supplied on request.

Technical Features

MATERIALS
  • UNI EN 10255 steel pipe coated according to UNI 9099 - polycoat (R3R triple layer coating, with resistance to earth greater than 1000 Ω)
  • PE100 S5 SDR11 (PN16) shank
NORMATIVE REQUIREMENTS
  • UNI EN 1555-3: plastic piping systems for the distribution of combustible gases - polyethylene (PE)
  • UNI 9736: fittings manufactured with mixed metal-polyethylene joint for use in combustion of combustible gases, water and other fluids under pressure and metal-polypropylene for use in conducts for water and other fluids under pressure
  • ISO 17885: plastic piping systems - mechanical fittings for pressure piping systems
  • UNI 9034: gas distribution conducts with maximum working pressure less than or equal to 0,5 MPa (5 bar) - jointing materials and systems
OPERATING TEMPERATURE 20°C
WELDABILITY can be welded with electrofusion pipes and fittings with a melt flow index between 0.2 and 1.4 gr/10 min



SKU PE DIAMETER DN KG (single piece) PACKAGING
" mm
20350 25 mm 3/4" 26,7 0,7 24 pcs.
20351 32 mm 1" 33,4 1,0 15 pcs.
20352 40 mm 1" 1/4 42,2 1,3 12 pcs.
20353 50 mm 1" 1/2 48,3 1,5 8 pcs.
20354 63 mm 2" 60,3 2,4 6 pcs.
20355 75 mm 2" 1/2 73,0 3,4 4 pcs.
20356 90 mm 3" 88,9 4,0 3 pcs.
20357 110 mm 4" 114,3 6,2 2 pcs.
20358 125 mm 4" 114,3 6,6 2 pcs.
20359 140 mm 5" 141,3 10,5 1 pcs..
20360 160 mm 6" 168,3 13,4 1 pcs.
20361 180 mm 6" 168,3 13,8 1 pcs.
20362 200 mm 8" 219,1 21,9 1 pcs.
20363 225 mm 8" 219,1 23,5 1 pcs.
