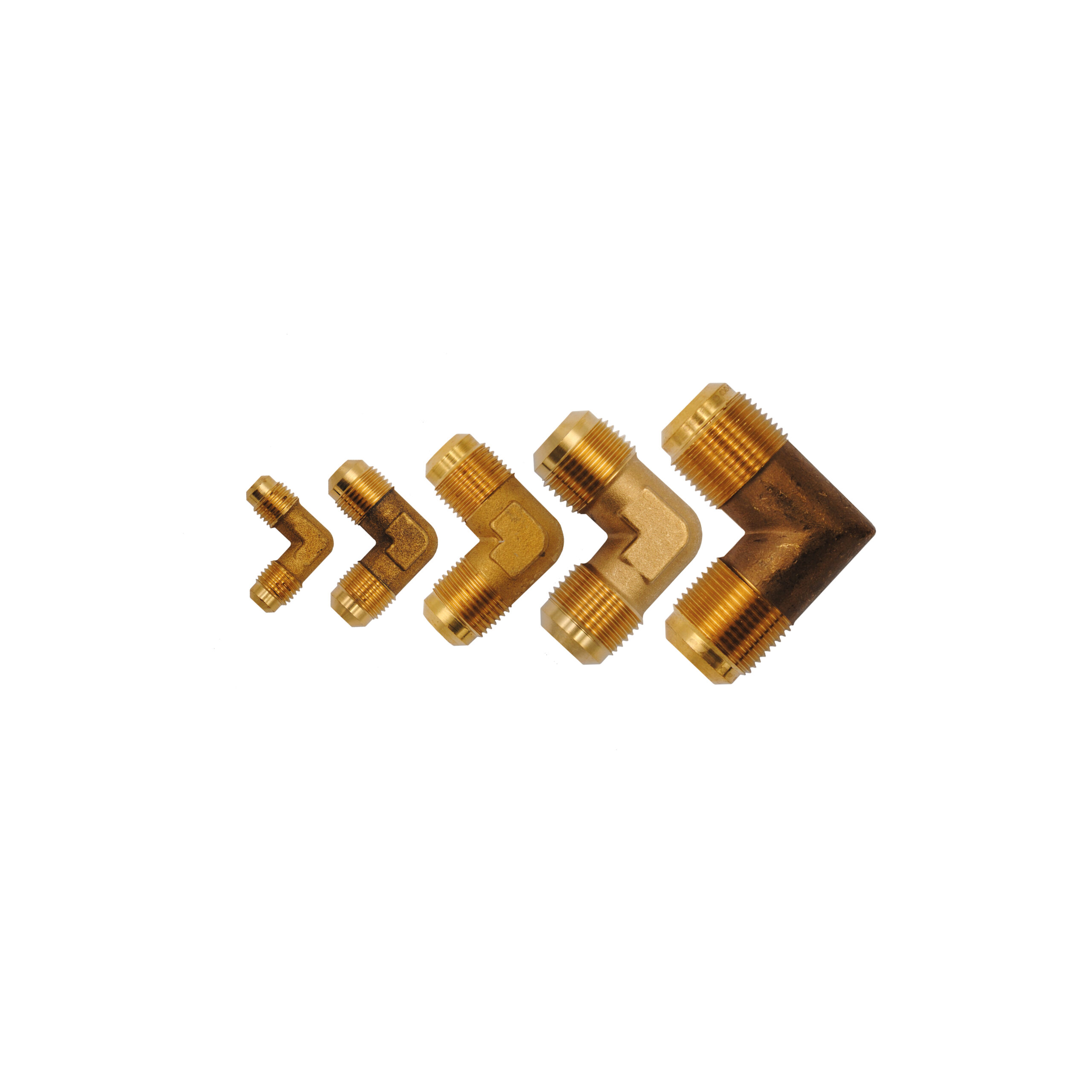

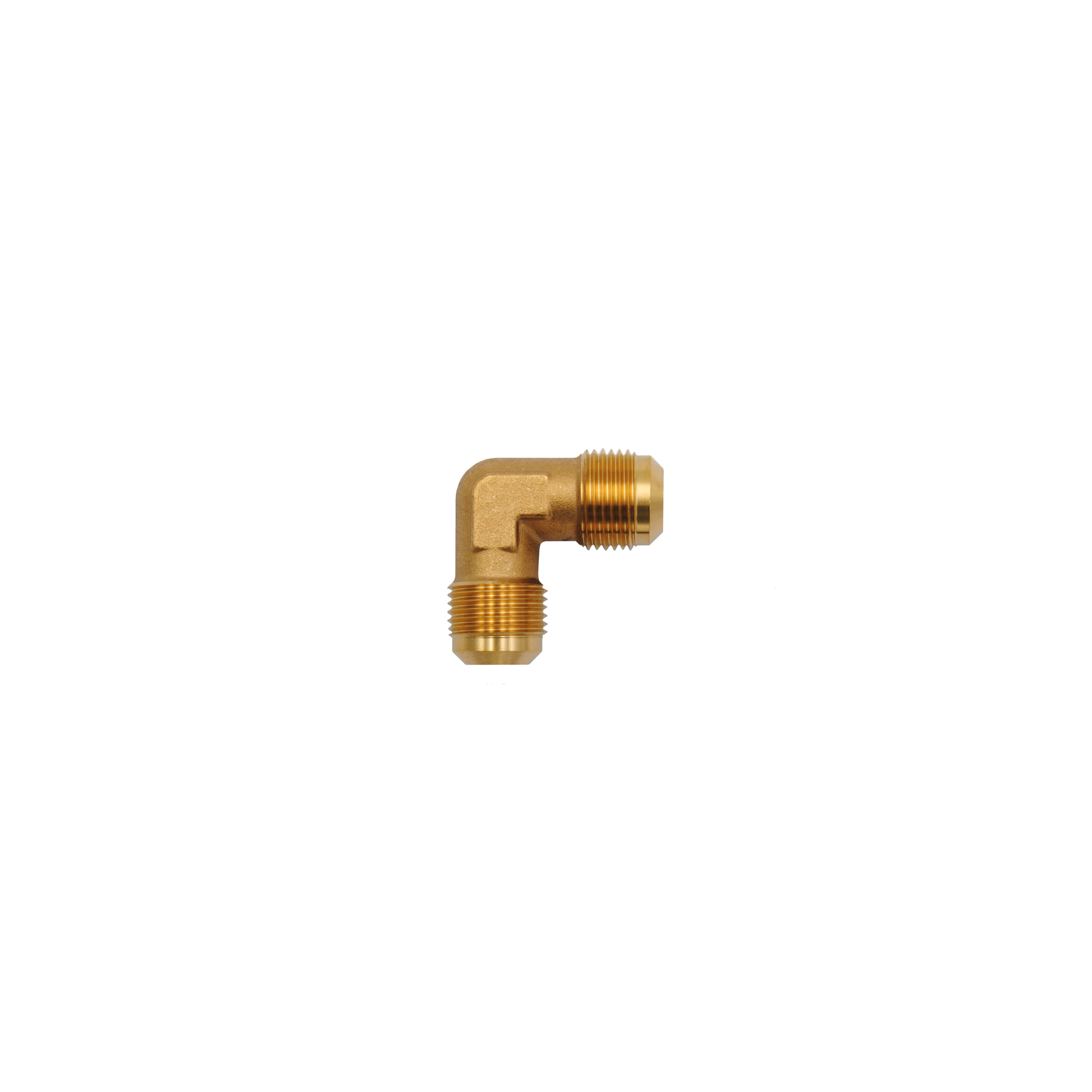

90° Brass Connections in Inches
For copper pipes
APPROVED CE (PED, RoHS, REACH), EAC
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000011320 |

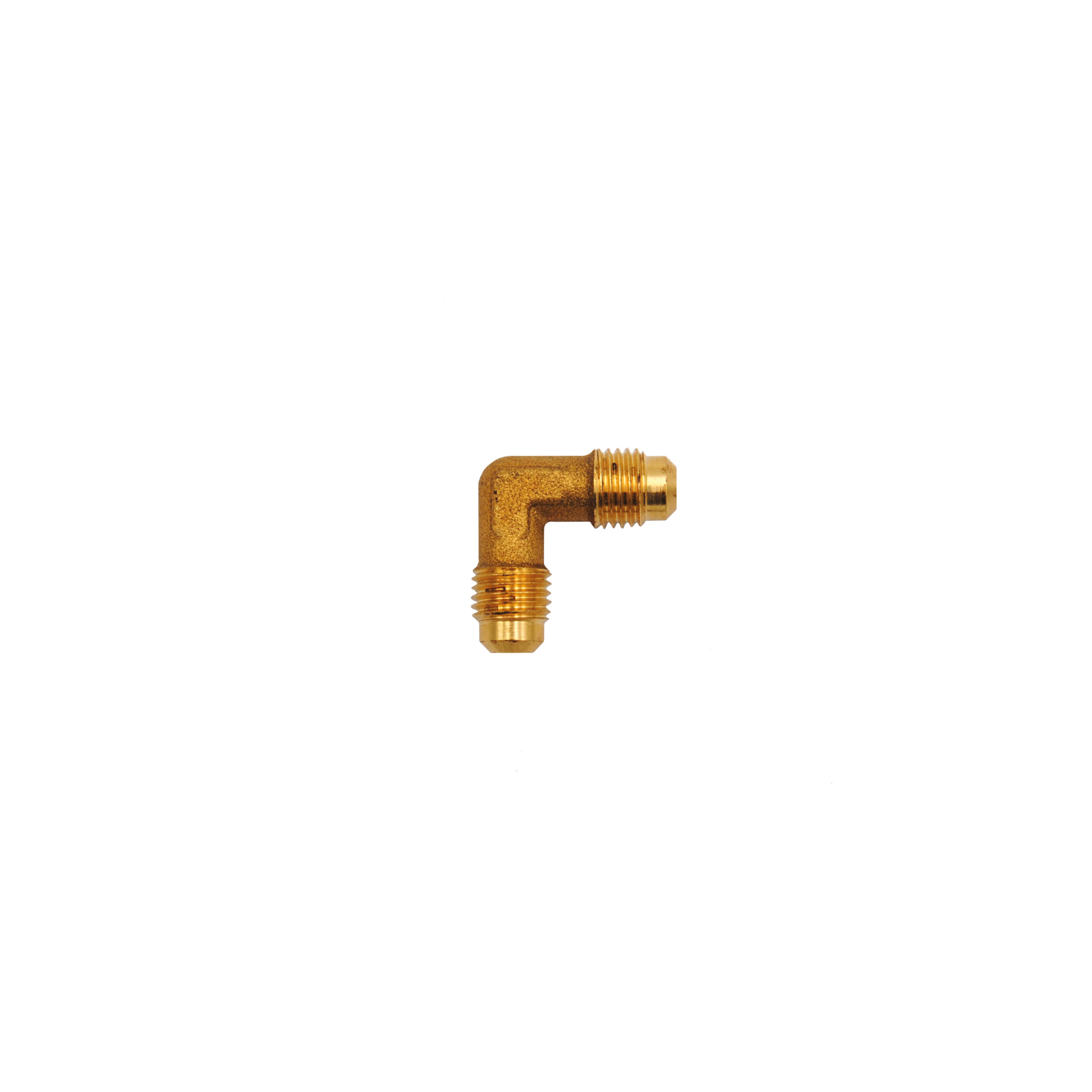

 90° BRASS CONNECTION - 1/4"x1/4" SAE - 10 pz. |
€5,15 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000011321 |
 90° BRASS CONNECTION - 3/8"x3/8" SAE - 10 pz. |
€9,40 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000011322 |
 90° BRASS CONNECTION - 1/2"x1/2" SAE - 10 pz. |
€14,05 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000011323 |
 90° BRASS CONNECTION - 5/8"x5/8" SAE - 10 pz. |
€12,60 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000011324 |
 90° BRASS CONNECTION - 3/4"x3/4" SAE - 10 pz. |
€30,60 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
90° brass connections for refrigeration and air-conditioning systems comply to DIN 8912 standard, SAE J513 standard, U.S. Military Standards MS‐35867 through MS35873 inclusive, MS‐35919, MS‐24815 and MS‐16993.
Product features
- manufactured from brass forgings (compliant to standards EN 12420 and EN 12165) or drawn brass rod (compliant to standard EN 12164) which eliminate the possibility of leakage due to porosity in the material
- accurately machined and fully protected against damage during shipping, handling and storage to assure tight leakproof joints
- smooth interior finish provides unrestricted flow and reduced pressure drop
- smooth sealing surfaces finish and tight tollerances to eliminate the risk of leakage
- risk category as per Art. 4 Par. 3 of Directive PED 2014/68/EU
- suitable for HCFC, HFC and R744 (CO2) refrigerants. Not suitable for ammonia
Technical Features
| SKU | THREAD ANSI/ASME B1.1 | FLARE CONNECTION SAE J513 | ||
|---|---|---|---|---|
| ext thread (male) | fext thread (male) | ext flare (male) | fext flare (male) | |

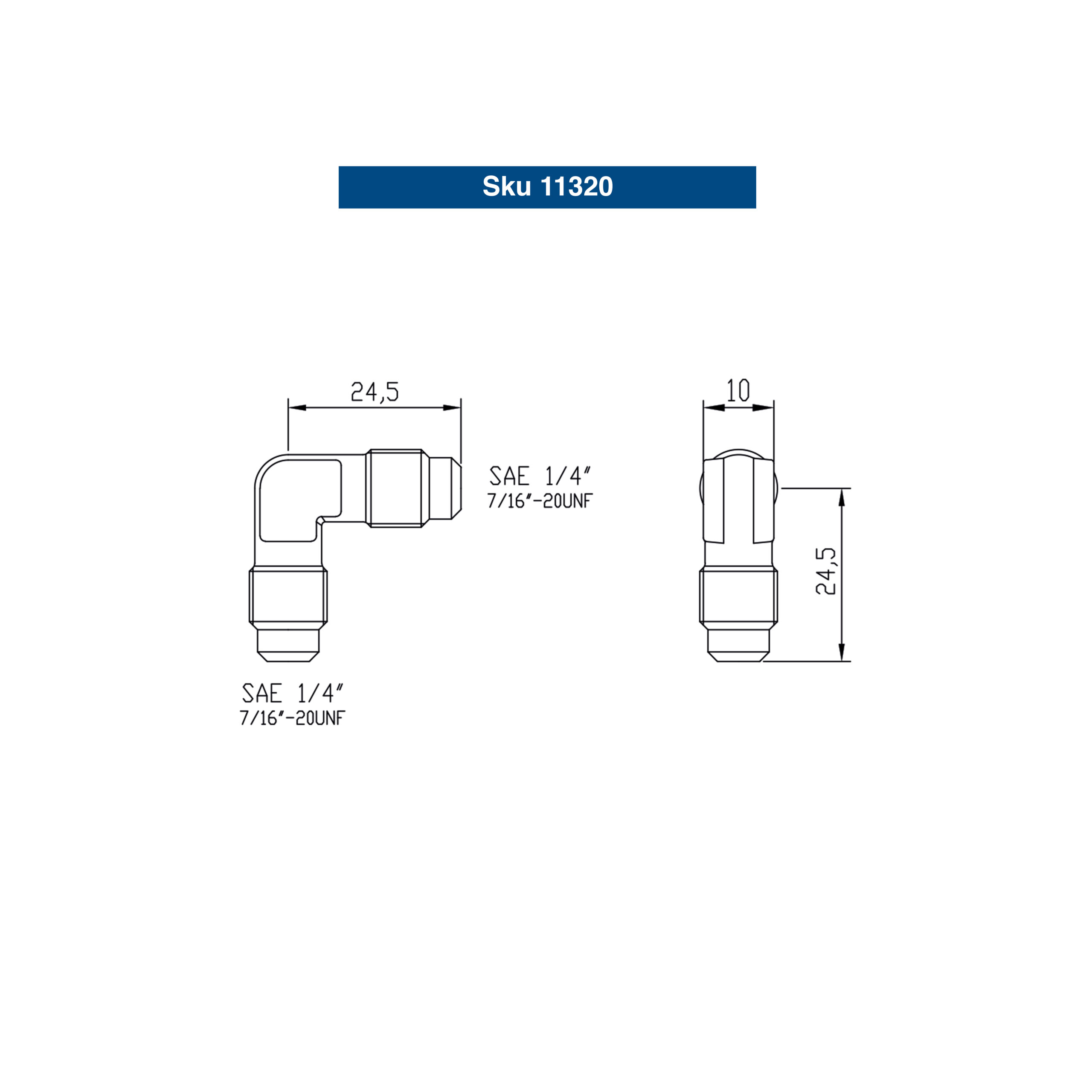

| 11320 | 7/16" - 20 UNF | 7/16" - 20 UNF | 1/4" | 1/4" |

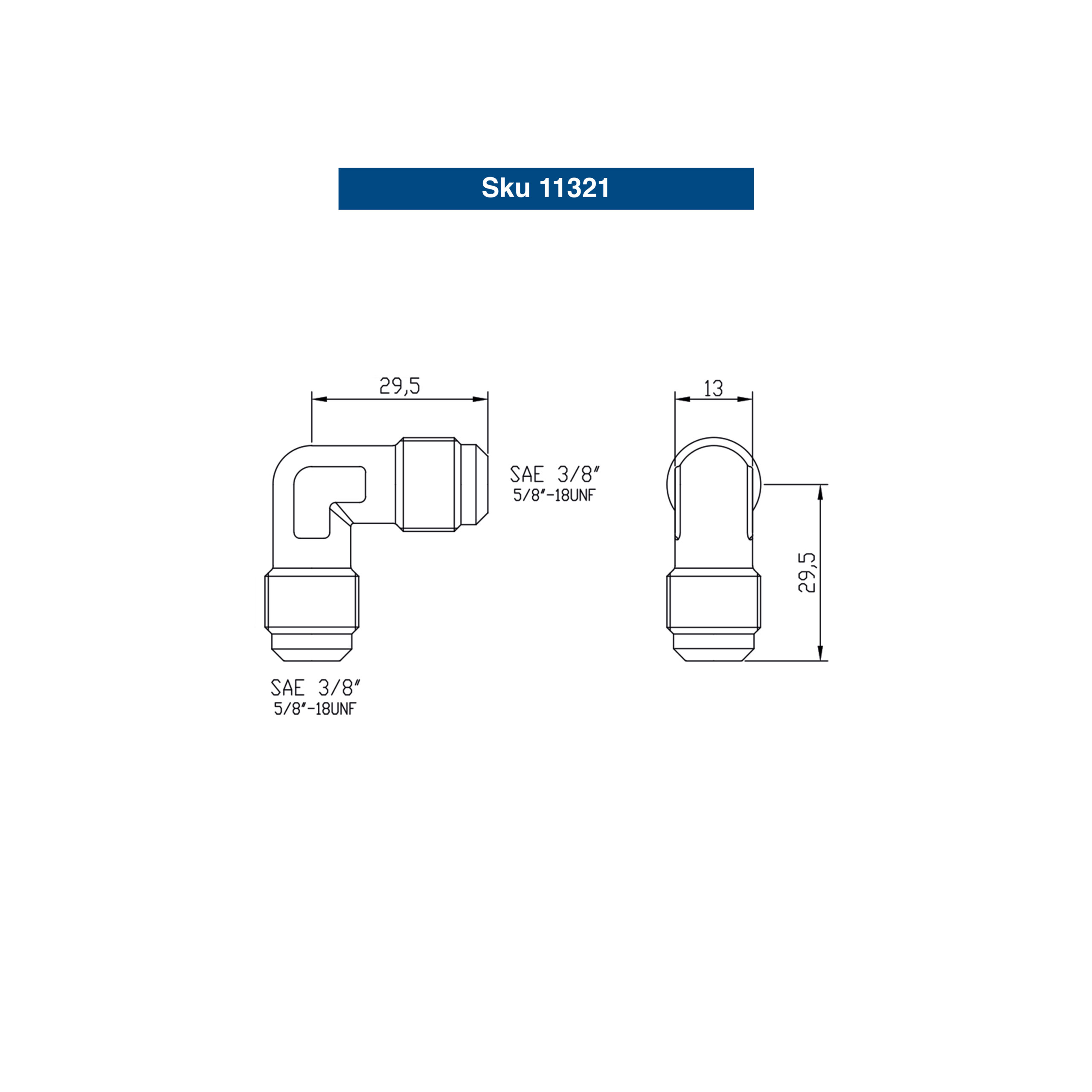

| 11321 | 5/8" - 18 UNF | 5/8" - 18 UNF | 3/8" | 3/8" |

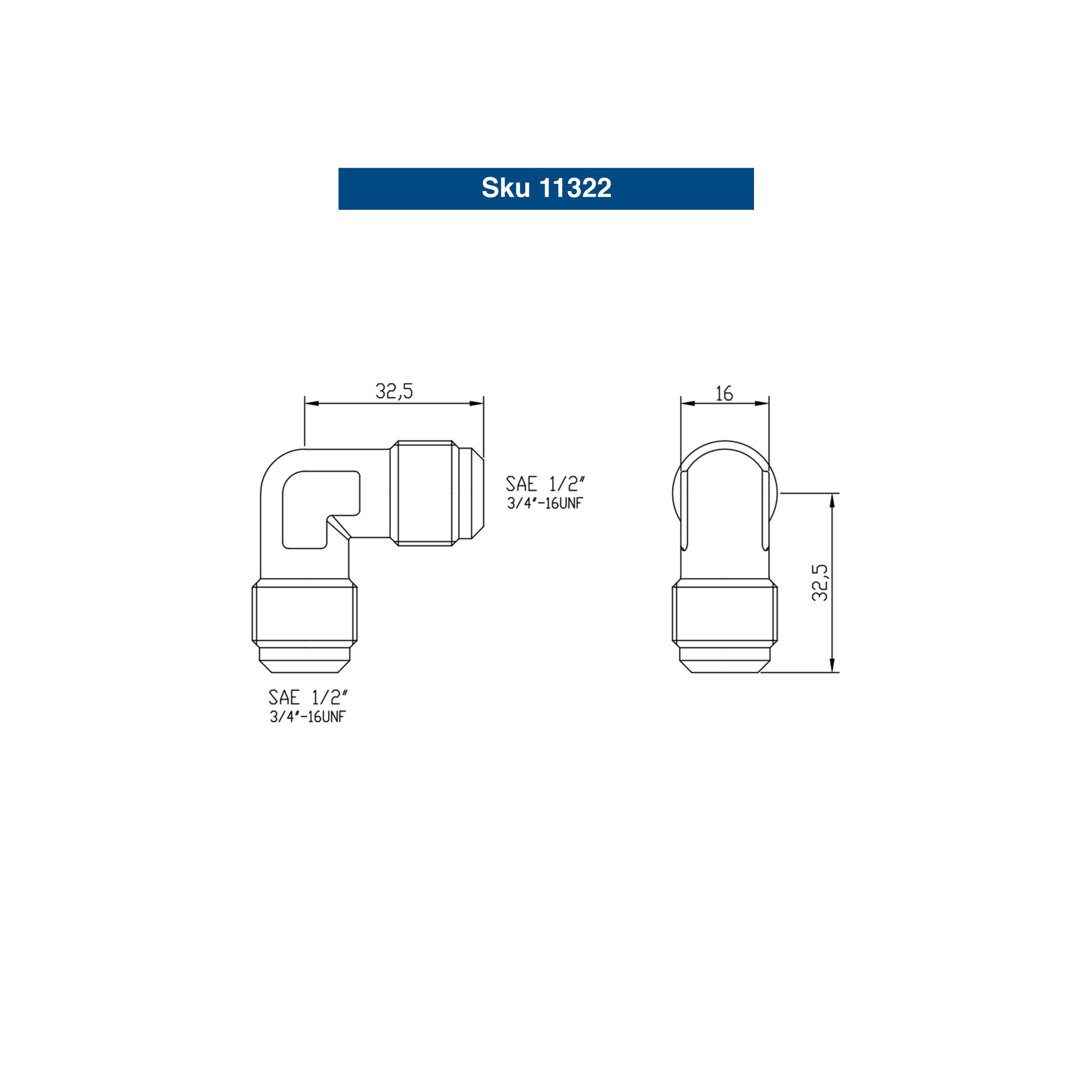

| 11322 | 3/4" - 16 UNF | 3/4" - 16 UNF | 1/2" | 1/2" |

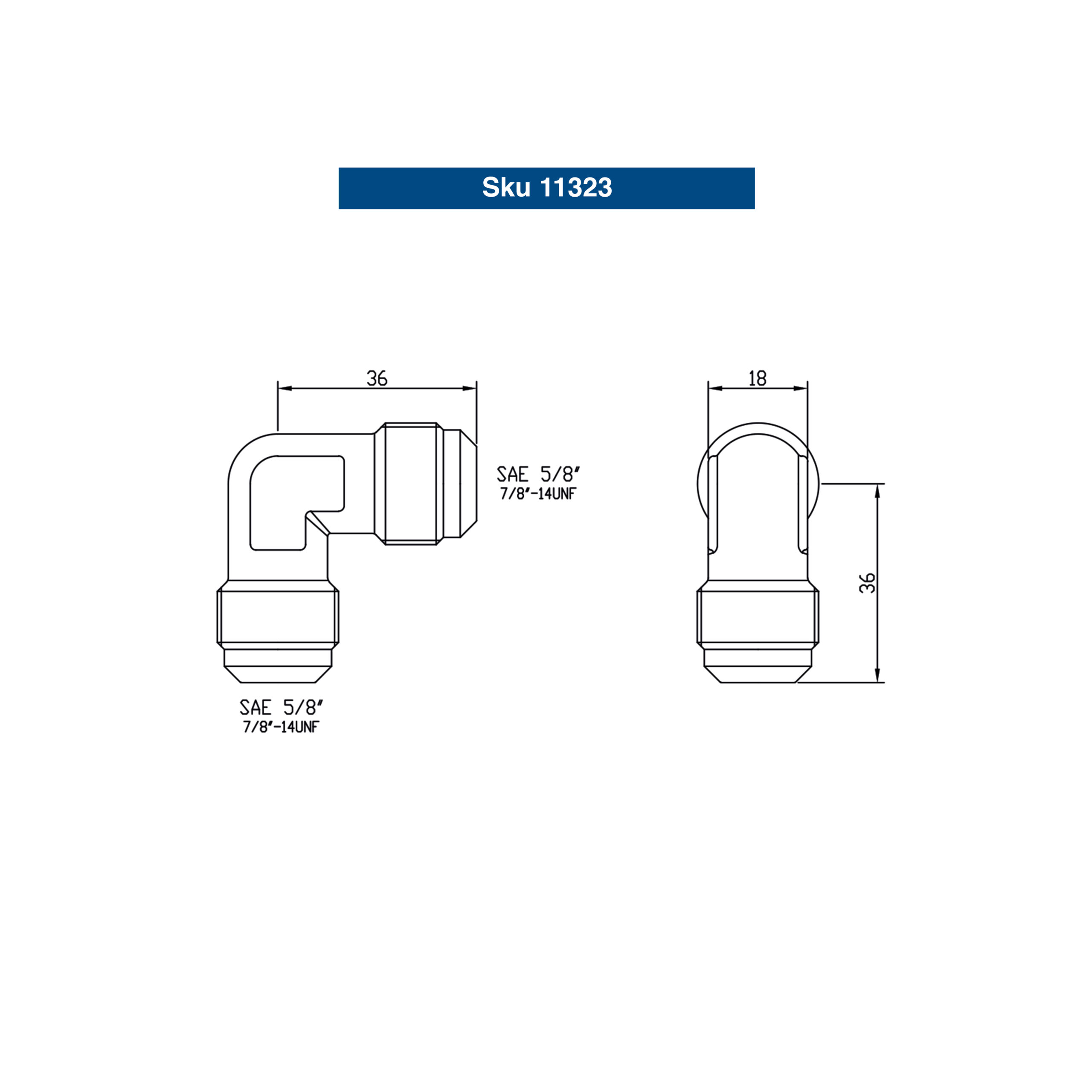

| 11323 | 7/8" - 14 UNF | 7/8" - 14 UNF | 5/8" | 5/8" |

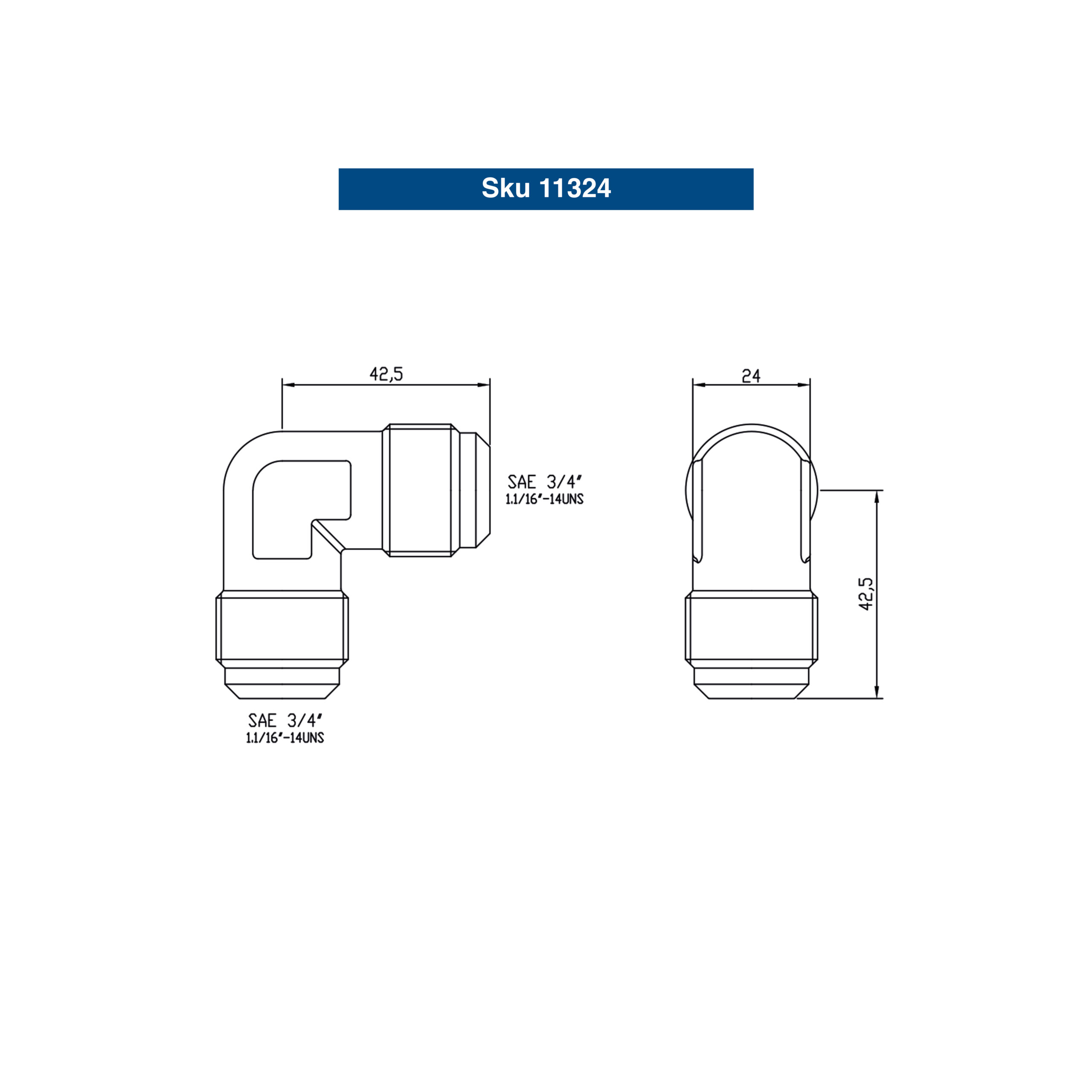

| 11324 | 1.1/16" - 14 UNS | 1.1/16" - 14 UNS | 3/4" | 3/4" |
