Boxed Immersion Thermostat
Liquid expansion
SKU R03092 INAIL APPROVED
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000R02902 |
REPLACEMENT COCKPIT FOR TC2 / LSC1 |
€23,05 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000R03092 |
BOXED IMMERSION THERMOSTAT WITH LIQUID EXPANSION - L. 100 mm |
€46,50 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

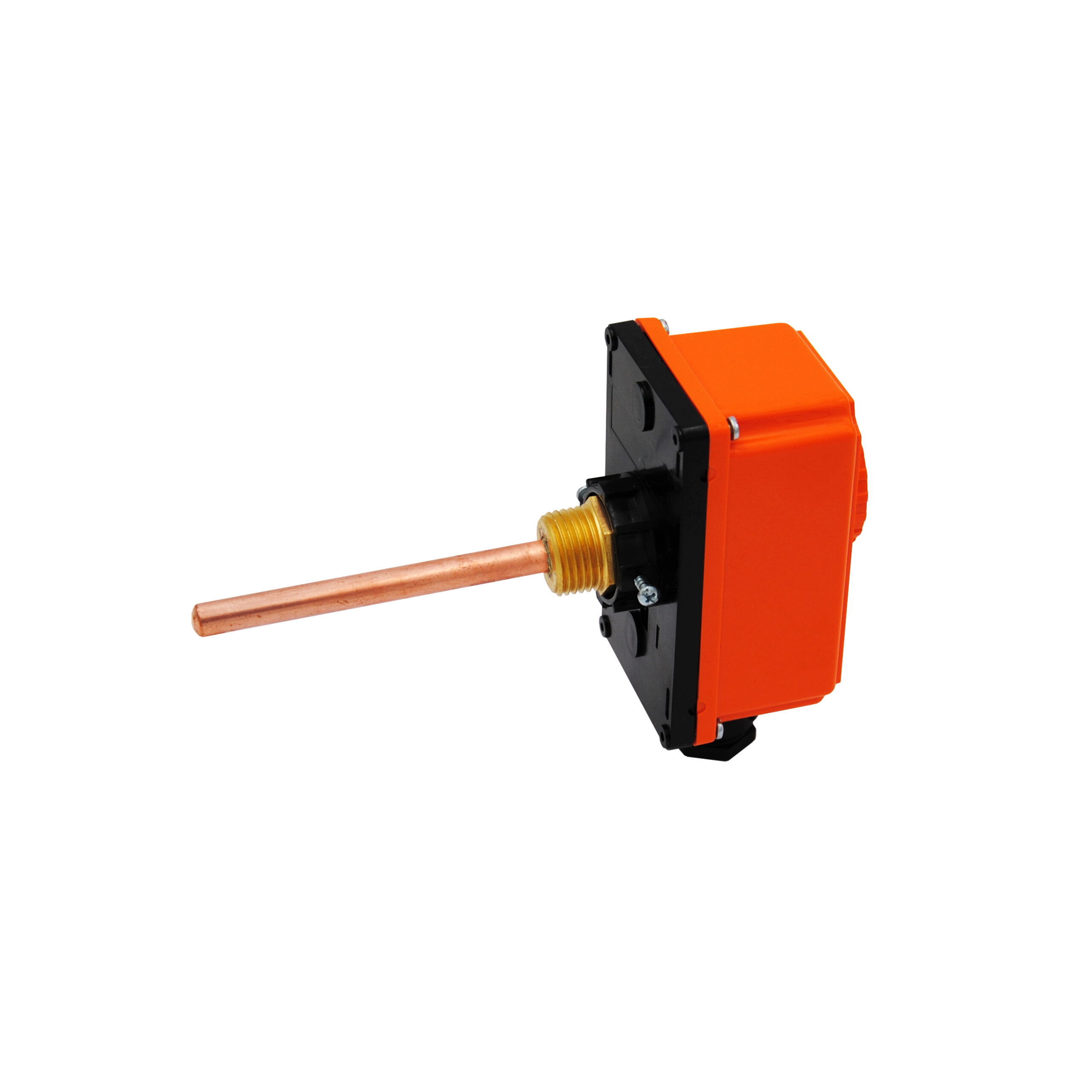

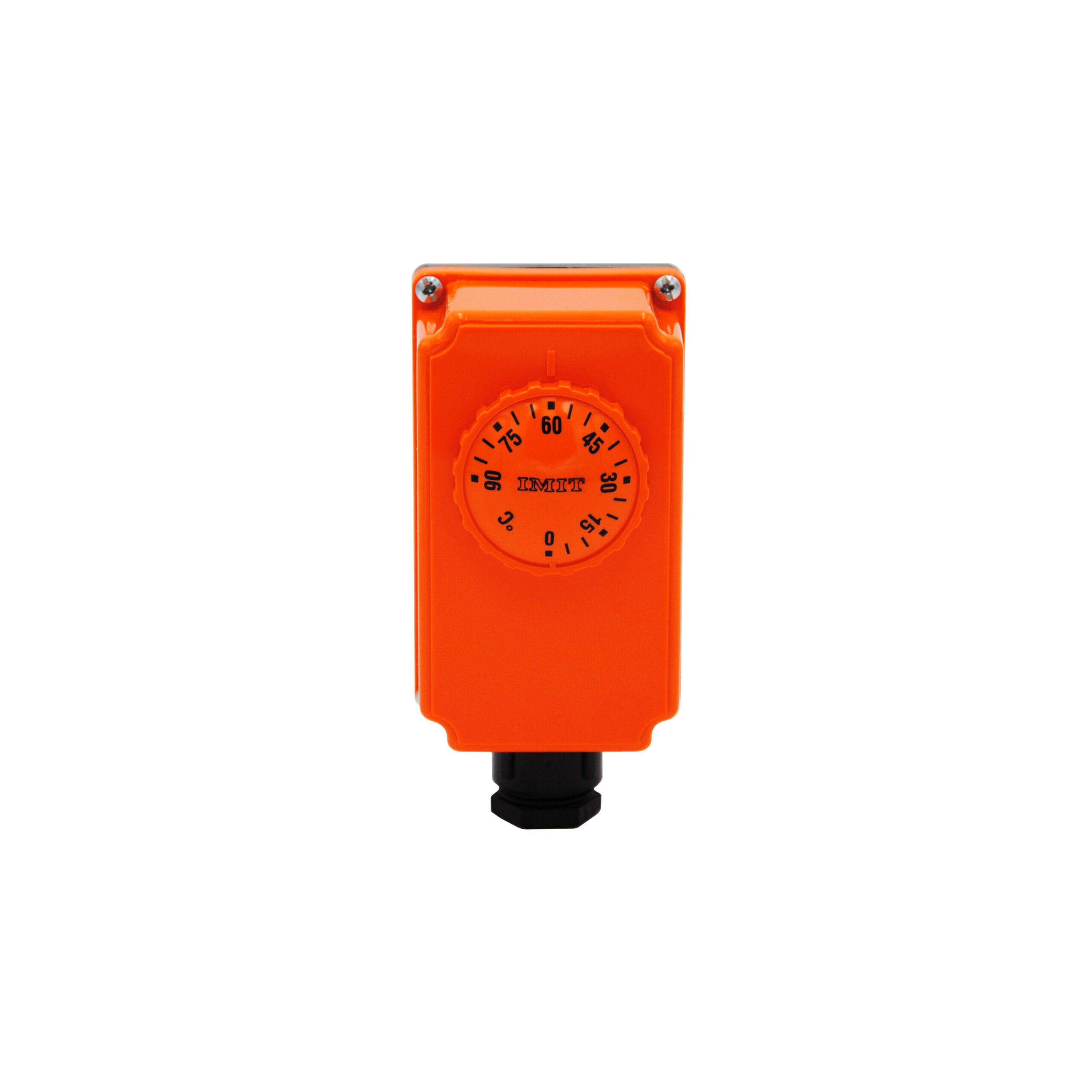

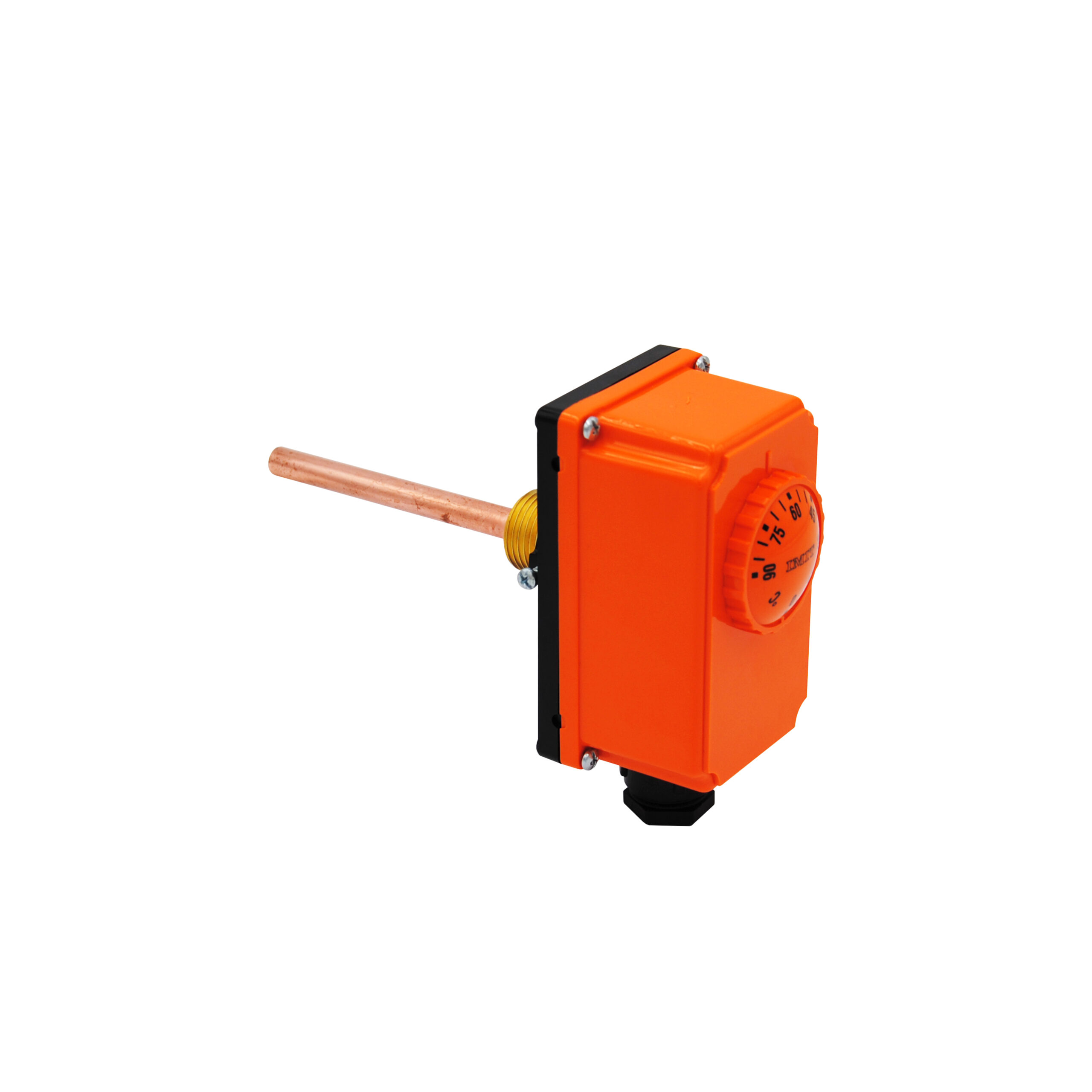

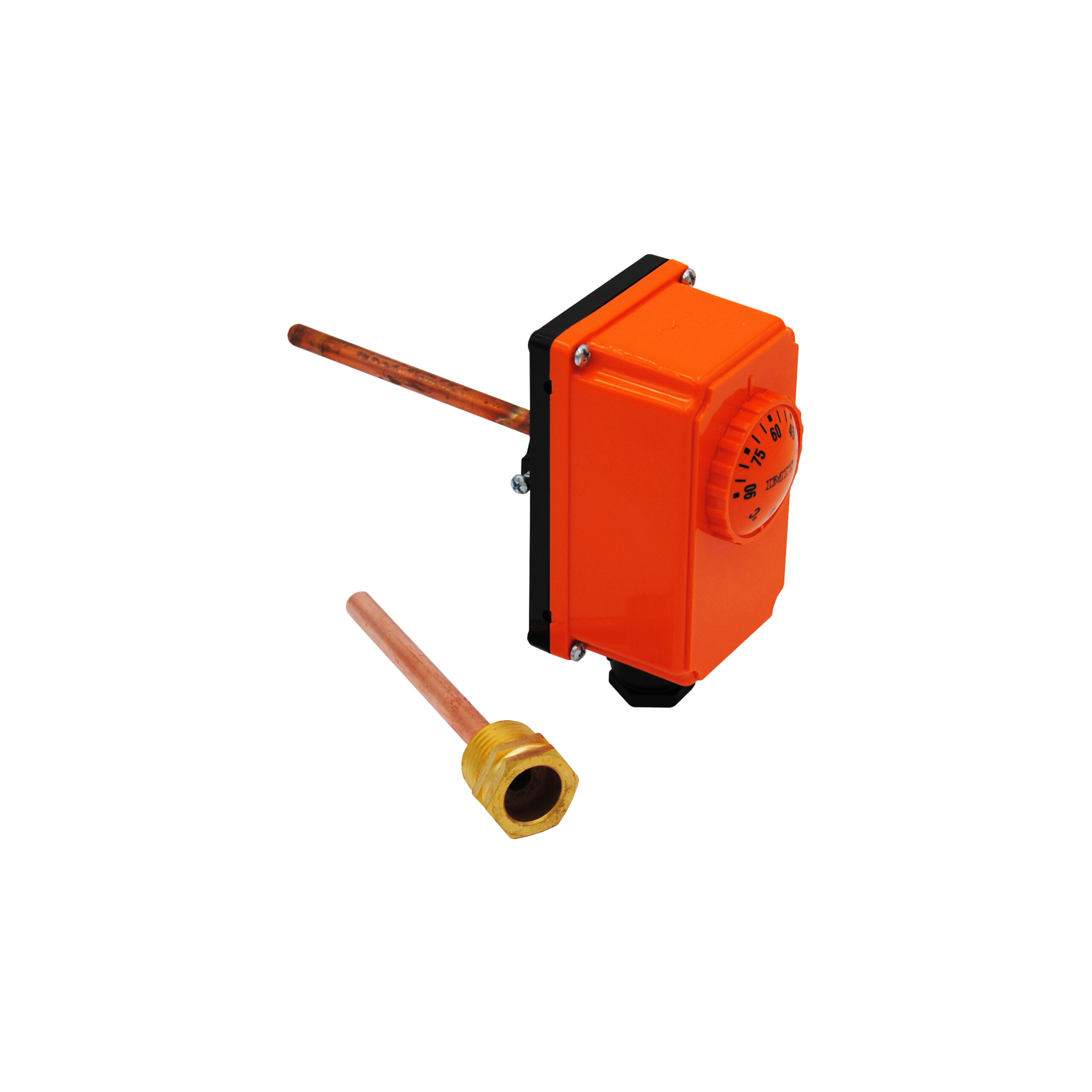

Boxed immersion thermostat with liquid expansion, unipolar, with changeover switches, complete with a watertight protection pocket.
Technical Features
| CONTACTS | interrupted due to temperature increase or exchange |
|---|---|
| ELECTRICAL CONTACT CAPACITY |
10 (2,5) A / 250 Vac |
| MAXIMUM HEAD TEMPERATURE | 80°C |
| MAXIMUM BULB TEMPERATURE | 125°C |
| REGULATION RANGE | 0°C ÷ 90°C |
| DEGREE OF PROTECTION | IP40 (not protected against the ingress of liquids, only protected against the ingress of solid objects larger than 1 mm) |
| THERMAL GRADIENT | 1°K/min |
| SHEATH LENGTH |
100 mm |
| SHEATH CONNECTION | G 1/2" |
