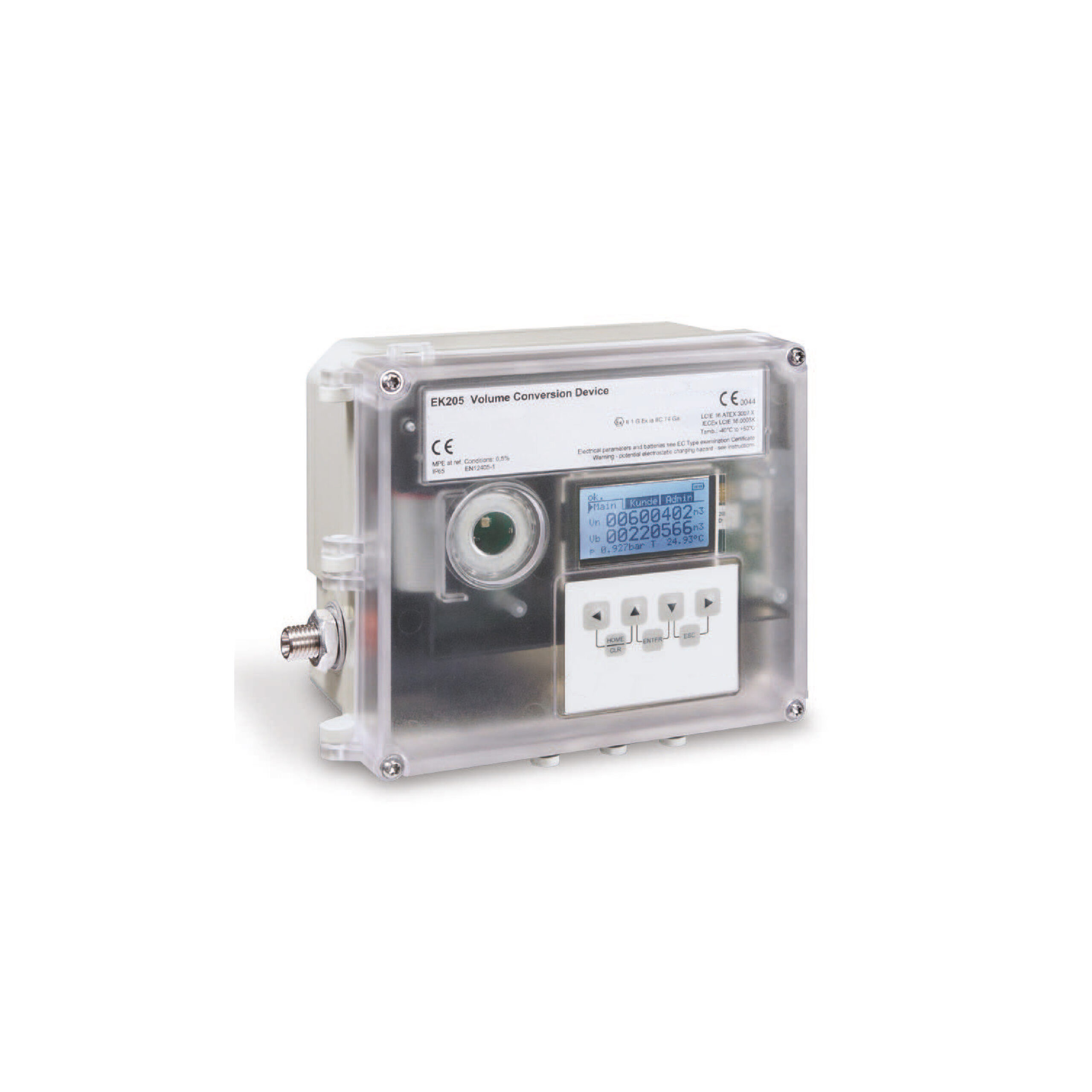

Battery Volume Conversion Device
Model EK205
FOR OTHER INFORMATION, ASK OUR TECHNICAL SALES OFFICE
COMPLIANT WITH EN 12405-1:2011-04
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000050558 |
VOLUME CONVERTER - Mod. EK205 |
on request |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
EK205, battery-operated volume conversion device designed for applications on standard gas meters, this device calculates the gas volume on the basis of consumption data supplied by flow-proportional pulses from the connected meter and the measurements of gas pressure and temperature.
Product features
- it can be installed on any type of gas meters
- equipped with control panel with 4 buttons and LCD display
- two freely programmable transistor outputs and two digital inputs
- powered by a 3,6V lithium battery
- monthly, daily and measurement archive
- pressure sensor: type CT30 capacitive ceramic, flexible with M12x1.5 thread
- temperature sensor: 4-wire resistor type PT-500 conforming to EN 60751, class A
- IEC 62056-21 compliant optical interface for local configuration and readout
- integrated RS232 / RS485 interface
- communication protocol IEC 62056-21, DLMS/COSEM, ASCII/RTU/TCP, SMS
- MID approval
- ATEX II approval
Applications
- Calculation of converted volume according to EN12405
- Calculation of compressibility according to different calculation methods
Technical Features
| CASE MATERIAL | plastic polycarbonate for installation on the meter, on the pipe or on the wall |
|---|---|
| DEGREE OF PROTECTION | IP65 (protected against jets of water pumped from any direction and completely hermetic against dust and fumes) in accordance with EN 60529 |
| POWER SUPPLY | 1 lithium battery 3.6 V - capacity 13 Ah |
| PANEL CONTROL | 4 buttons |
| DISPLAY | backlit LCD, monochrome - H 128 pixels / W 64 pixels |
| INPUTS | two digital inputs |
| OUTPUT SIGNALS | 2 transistor digital outputs |
| ARCHIVES |
|
| DATA INTERFACE | optical interface in accordance with IEC 62056-21 |
| ROOM TEMPERATURE RANGE | - 25°C ÷ + 55°C |
| HUMIDITY RANGE | 0 ÷ 90% |
| PRESSURE SENSOR | type CT30 |
| SENSOR PRESSURE RANGE | 0,8 ÷ 5 bar / 2 ÷ 10 bar / 4 ÷ 20 bar |
| TEMPERATURE SENSOR | type Pt-500, 4-wire resistance - Class A |
| DIMENSIONS | 140 x 160 x 88 mm (HxWxD) - without cable glands |
| WEIGHT | about 1.3 kg (including battery) |
