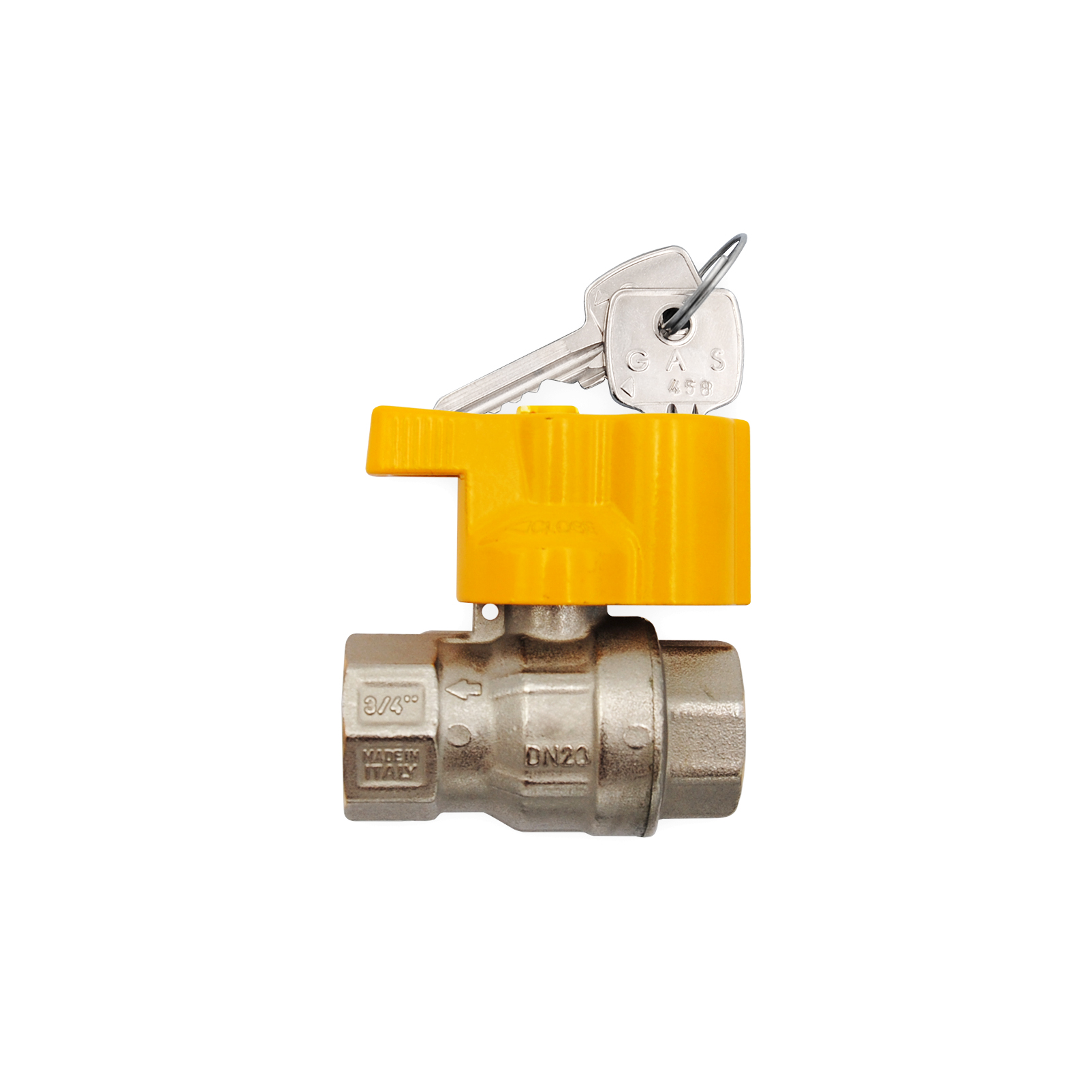

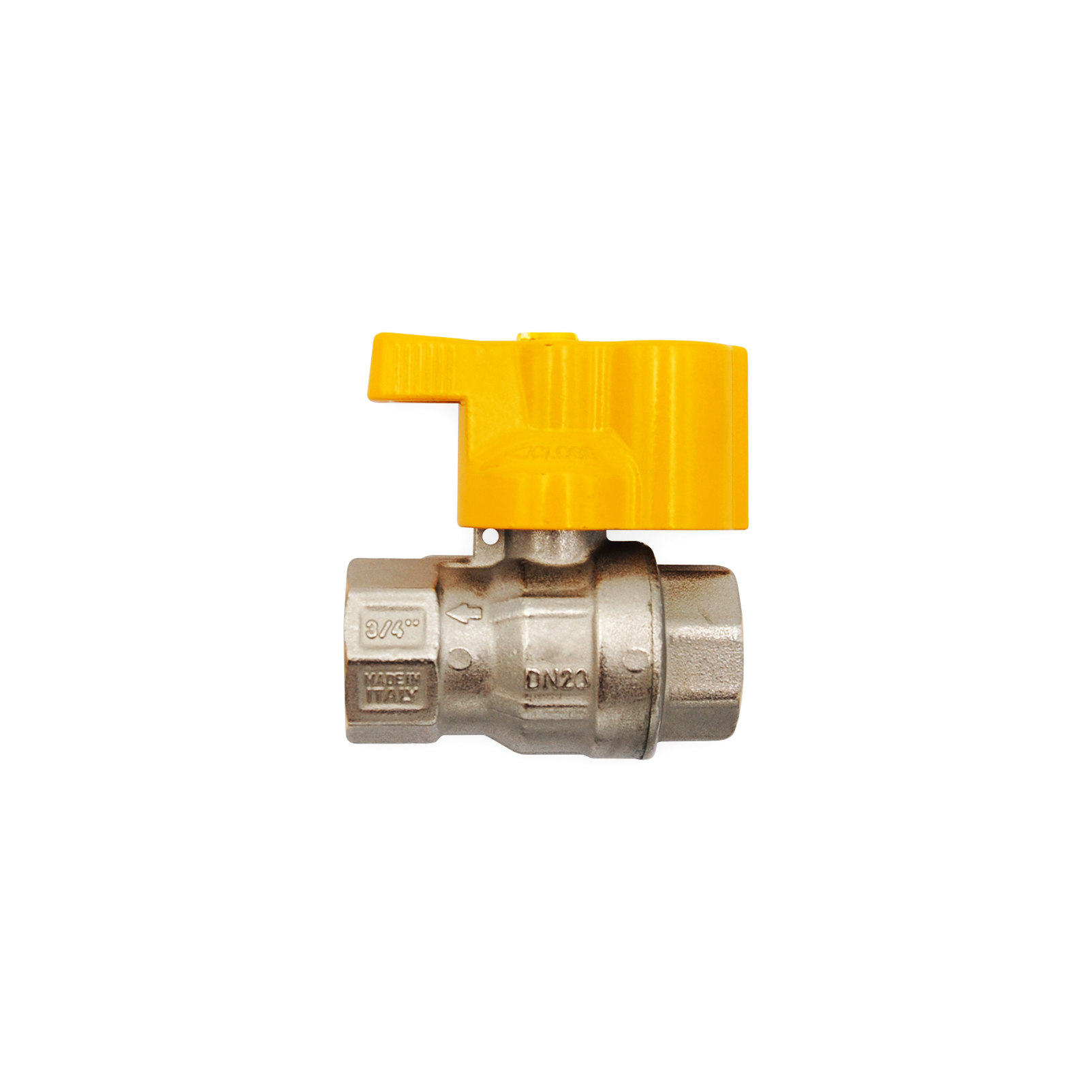

Ball Tap with Thread for Pressure Port with Lock
Equipped with T-handle closing
COMPLIANT WITH UNI 7129/08 RULE
sku | model | price | info | add to cart | |
---|---|---|---|---|---|
|
00000004244 |
GAS BALL TAP WITH LOCK - 3/4" FF |
€77,90 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
00000004245 |
GAS BALL TAP WITH LOCK - 1" FF |
€80,20 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
Ball tap for checking the internal system with sealable yellow asymmetric butterfly and full bore; equipped with a lockable pressure tap thread, Ø 1/8" put in the valve body.

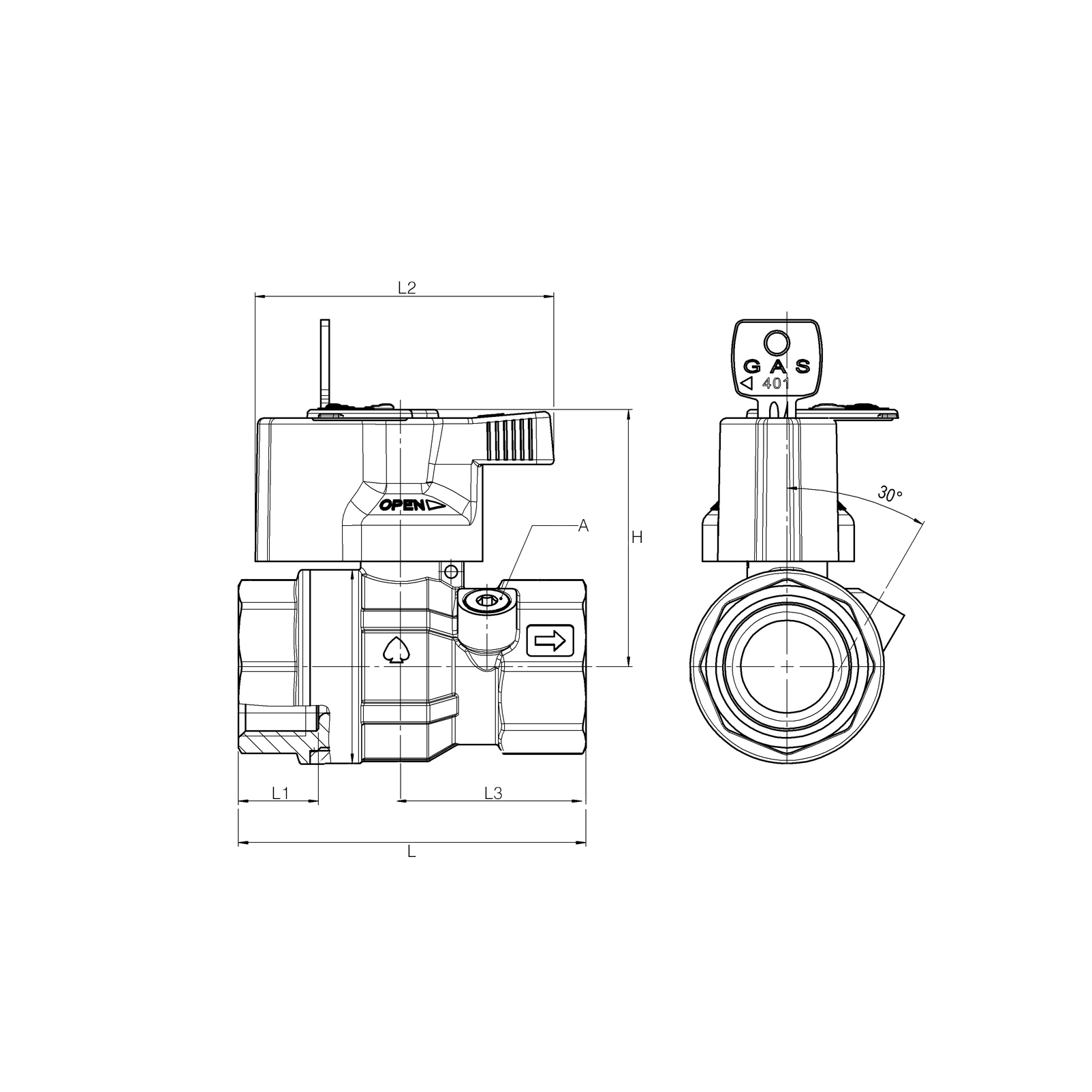

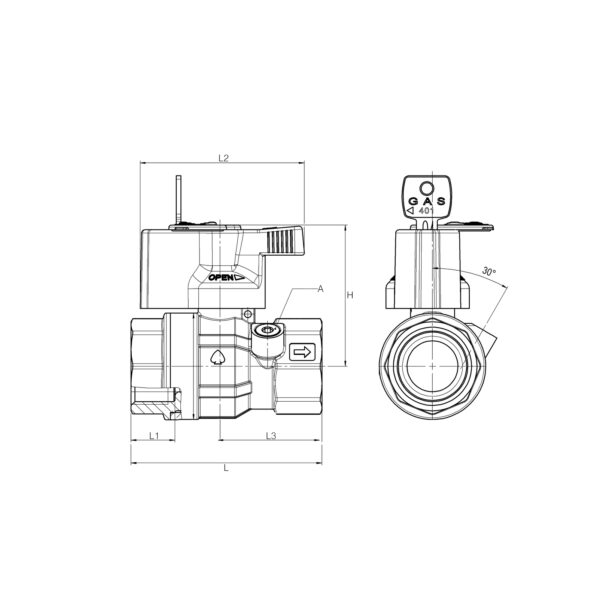

Technical Features
SKU 4244 | SKU 4245 | |
---|---|---|
L | 71 mm | 82,5 mm |
L1 | 16,3 mm | 19 mm |
L2 | 71 mm | 71 mm |
L3 | 38 mm | 44 mm |
H | 59 mm | 61 mm |
A | G1/8" | G1/8" |
CONNECTION | 3/4" FF with lock | 1" FF with lock |
