Anchor
With hex head screw
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000011885 |

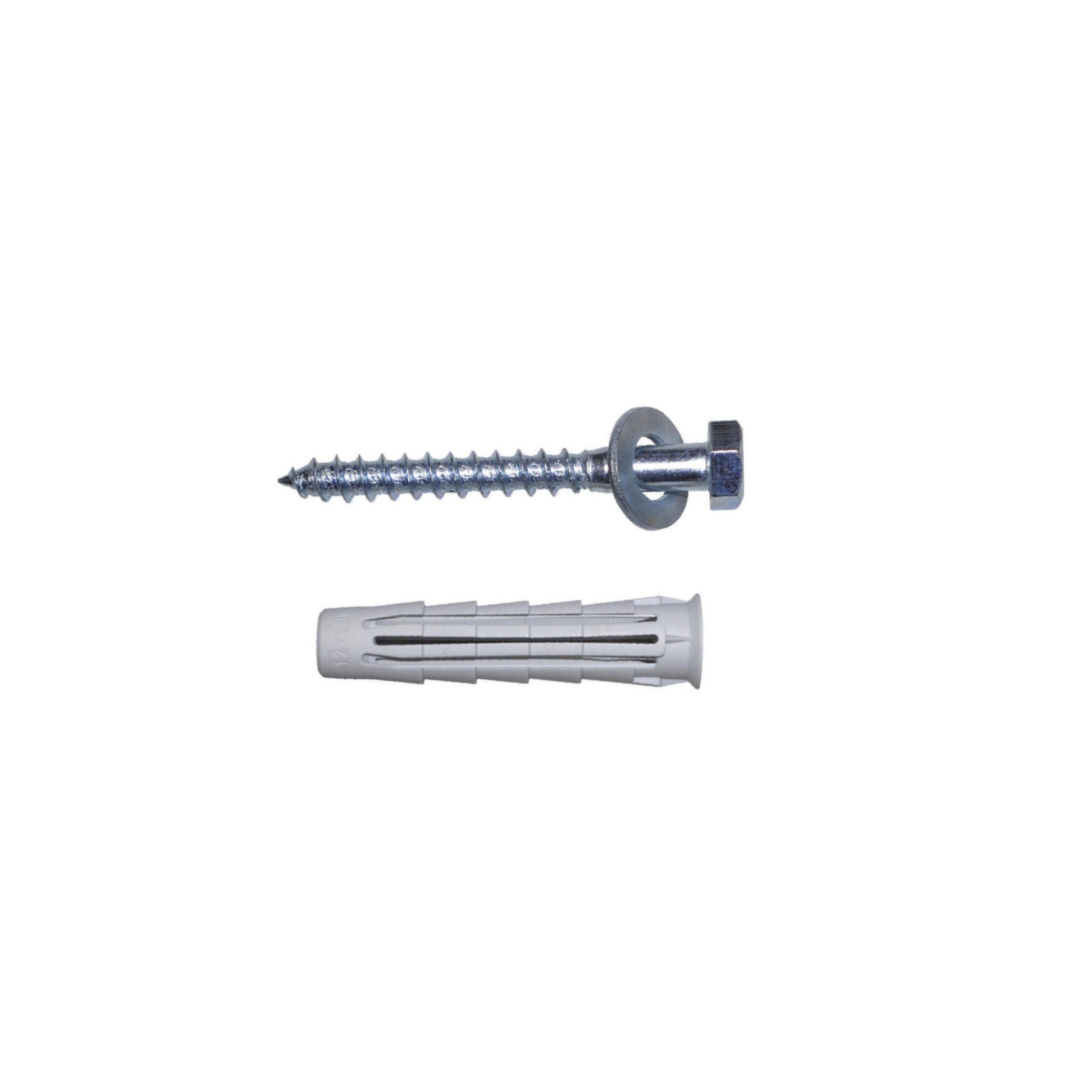

ANCHOR WITH HEX HEAD SCREW |
€1,90 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
Universal anchor for fastenings on all types of masonry, plasterboard and concrete.
Product features
- particularly suitable in perforated and hollow walls
- thanks to its special shaping, allows expansion in 6 different directions for consistently effective anchorages on all types of masonry
- equipped with a dynamic collar that allows both a flush-wall installation and a through-wall installation
- anti-rotation mechanisms for perfect functionality during tightening
Installation
For proper installation of the anchor, drill the hole perpendicular to the support with a drill bit of the appropriate diameter. The hole should be cleaned of drilling dust before applying the anchor; it is recommended not to use roto-percussion when drilling the hole on a wall with perforated brick so as not to break the internal bulkheads. Insert the anchor and carry out the desired installation.
Technical Features

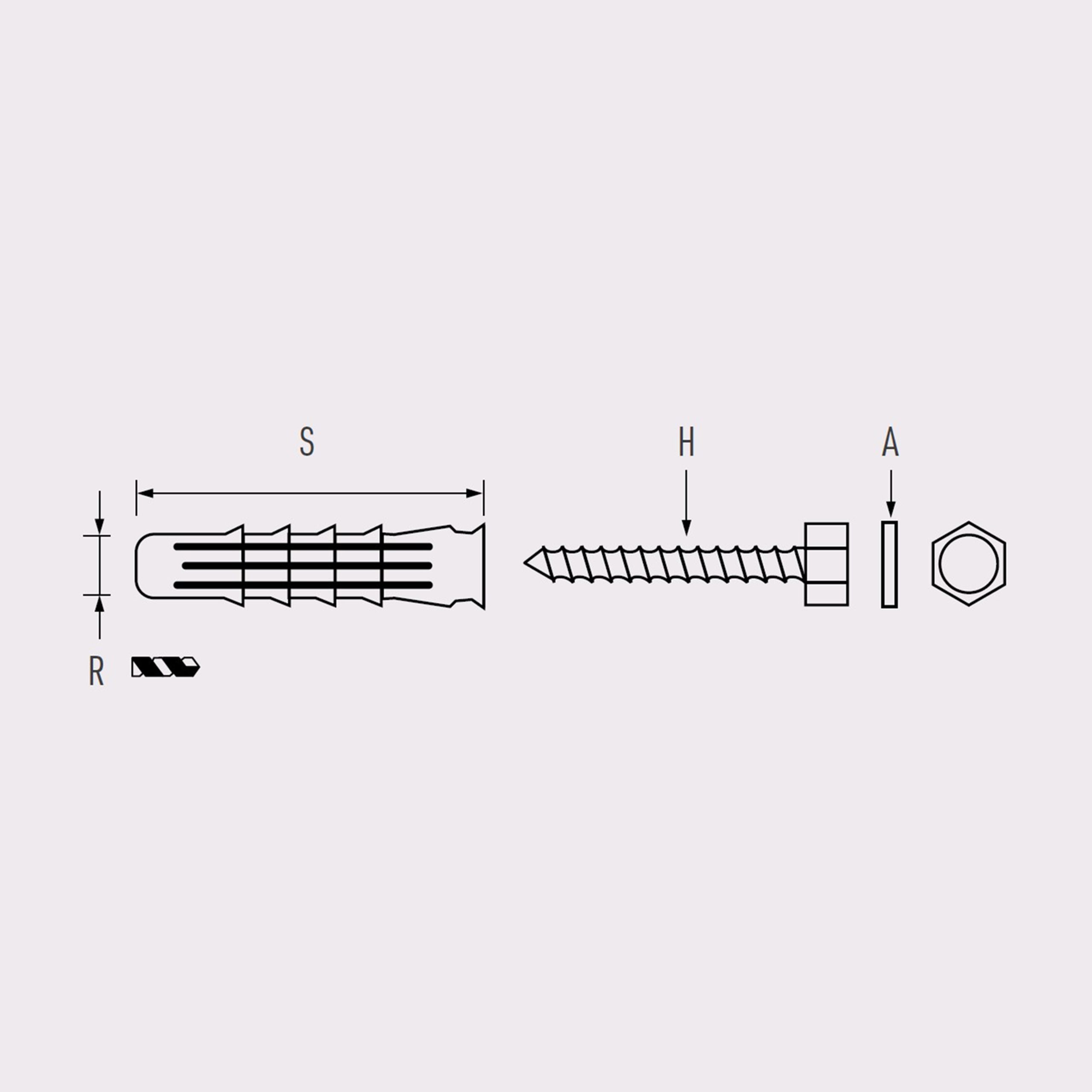

| ANCHOR MATERIAL | SCREW MATERIAL | MINIMUM DRILLING DEPTH | MAXIMUM FIXABLE THICKNESS | A | S | H | R |
|---|---|---|---|---|---|---|---|
| polyamide 6 | 7-8 µm electrogalvanized treated steel | 65 mm | 15 mm | 8,4x16x1,6 mm | 50 mm | 7x70 mm | 10 mm |
