Adjustable Thermostat

Capillary with liquid expansion probe

CE, ENEC03, EAC, UL APPROVED

sku	model	price	info	add to cart
00000R03000	ADJUSTABLE THERMOSTAT - L. 1500 mm (PVC coated) - INAIL CERTIFICATE	€20,20 Excl. Taxes	Physical data UM Base: NR Dimension: 7 × 6 × 9 cm Volume: 0.0004 m³ Weight: 0,12 kg Minimum Order Quantity: 1 Customs data Customs Code 90321080	Adjustable Thermostat quantity Buy Info Request
00000R03001	ADJUSTABLE THERMOSTAT - L. 1000 mm - to be combined with knob and ferrule SKU R03009 - INAIL CERTIFICATE	€19,70 Excl. Taxes	Physical data UM Base: NR Dimension: 14 × 5 × 5 cm Volume: 0.0003 m³ Weight: 0,10 kg Minimum Order Quantity: 1 Customs data Customs Code 90321080	Adjustable Thermostat quantity Buy Info Request
00000R03009	ADJUSTMENT KNOB AND SUPPORT RING	€2,25 Excl. Taxes	Physical data UM Base: NR Dimension: 4 × 1 × 4 cm Volume: 0 m³ Weight: 0,01 kg Minimum Order Quantity: 1 Customs data Customs Code 90329000	Adjustable Thermostat quantity Buy Info Request

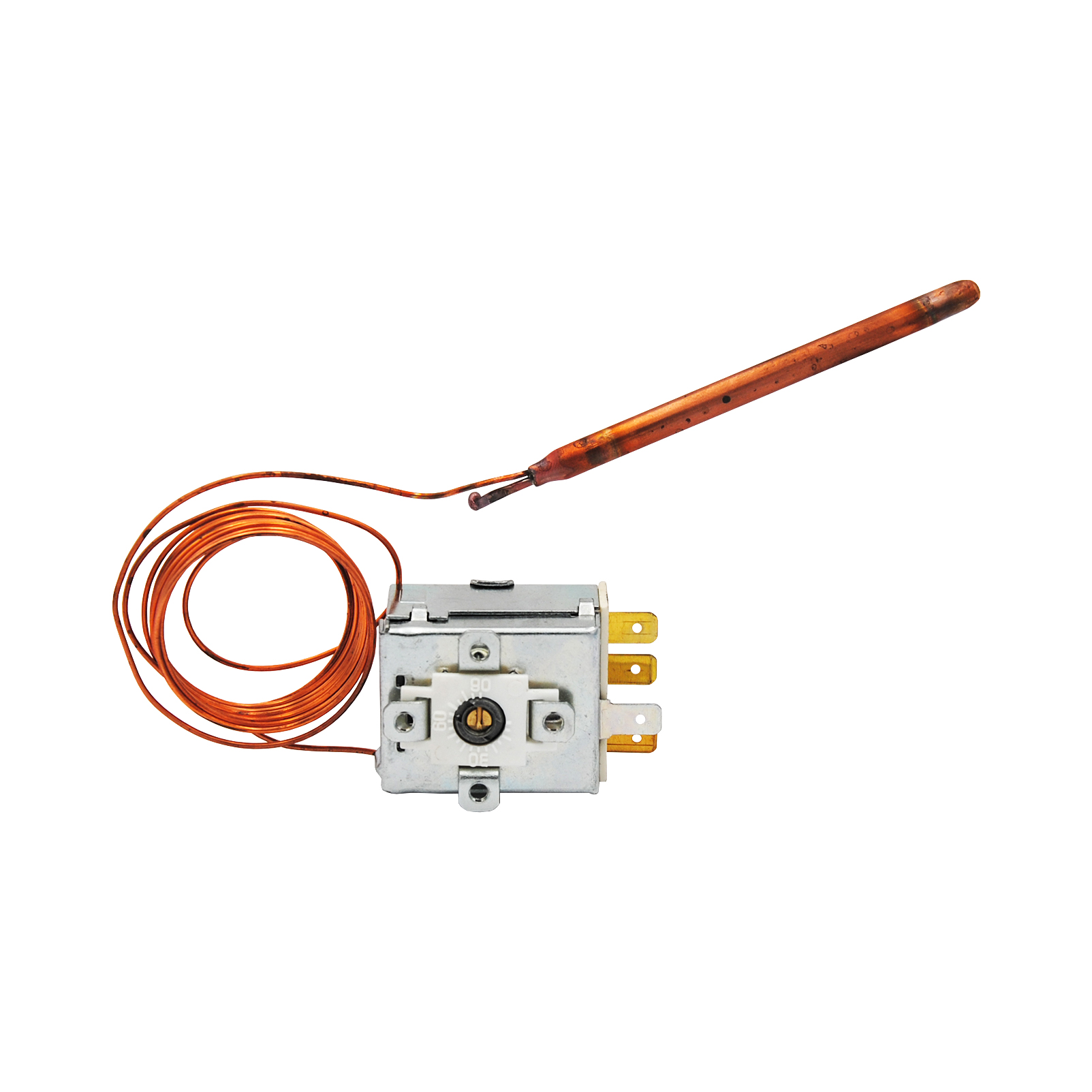

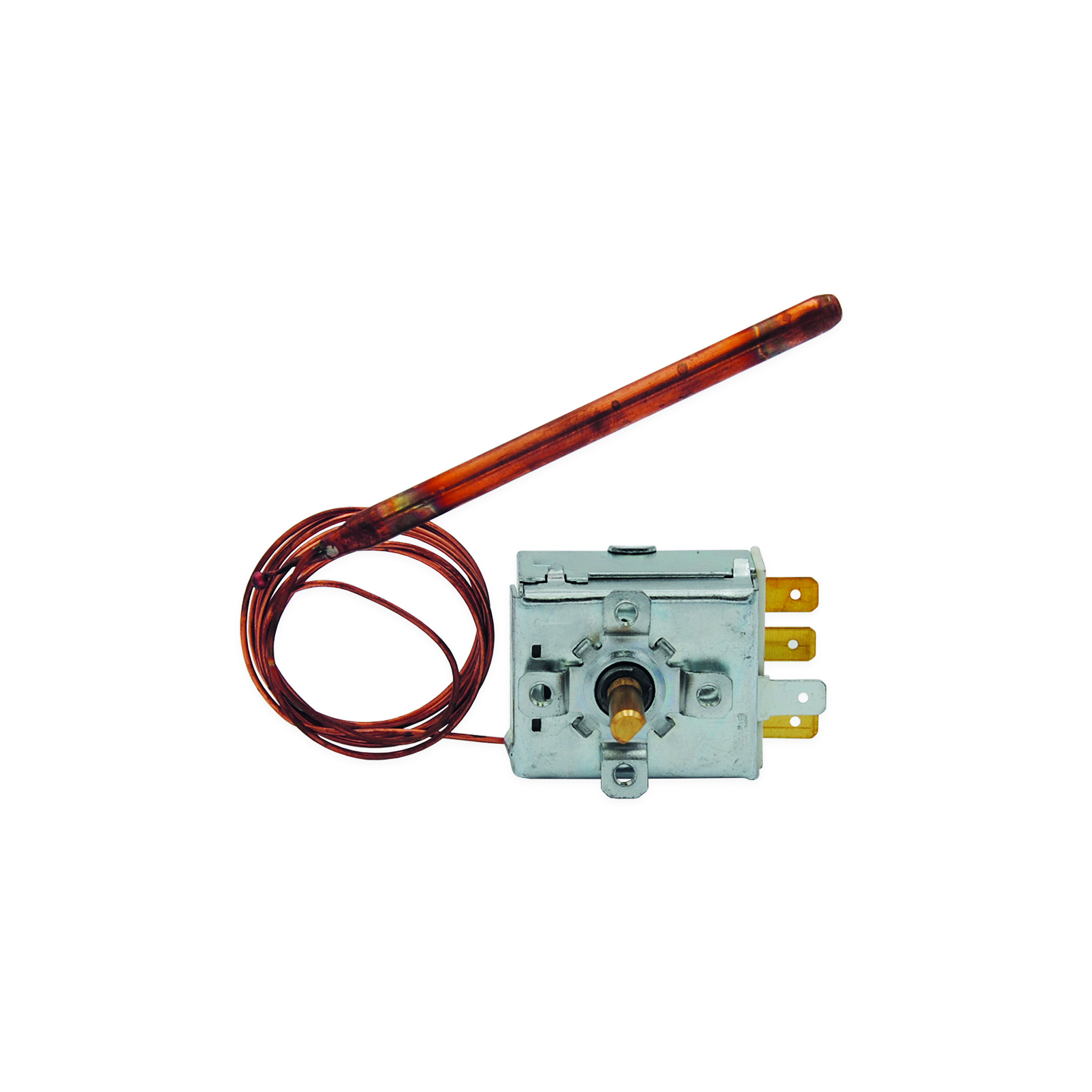

Capillary thermostat equipped with liquid expansion probe with deviation contacts, suitable for automatic temperature regulation.

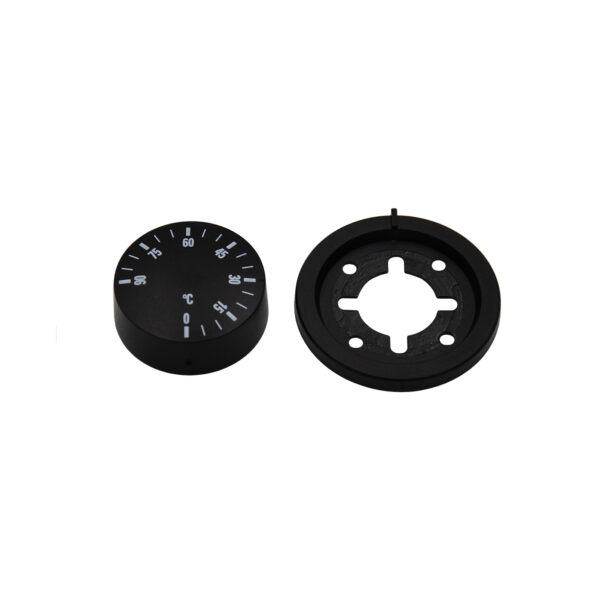

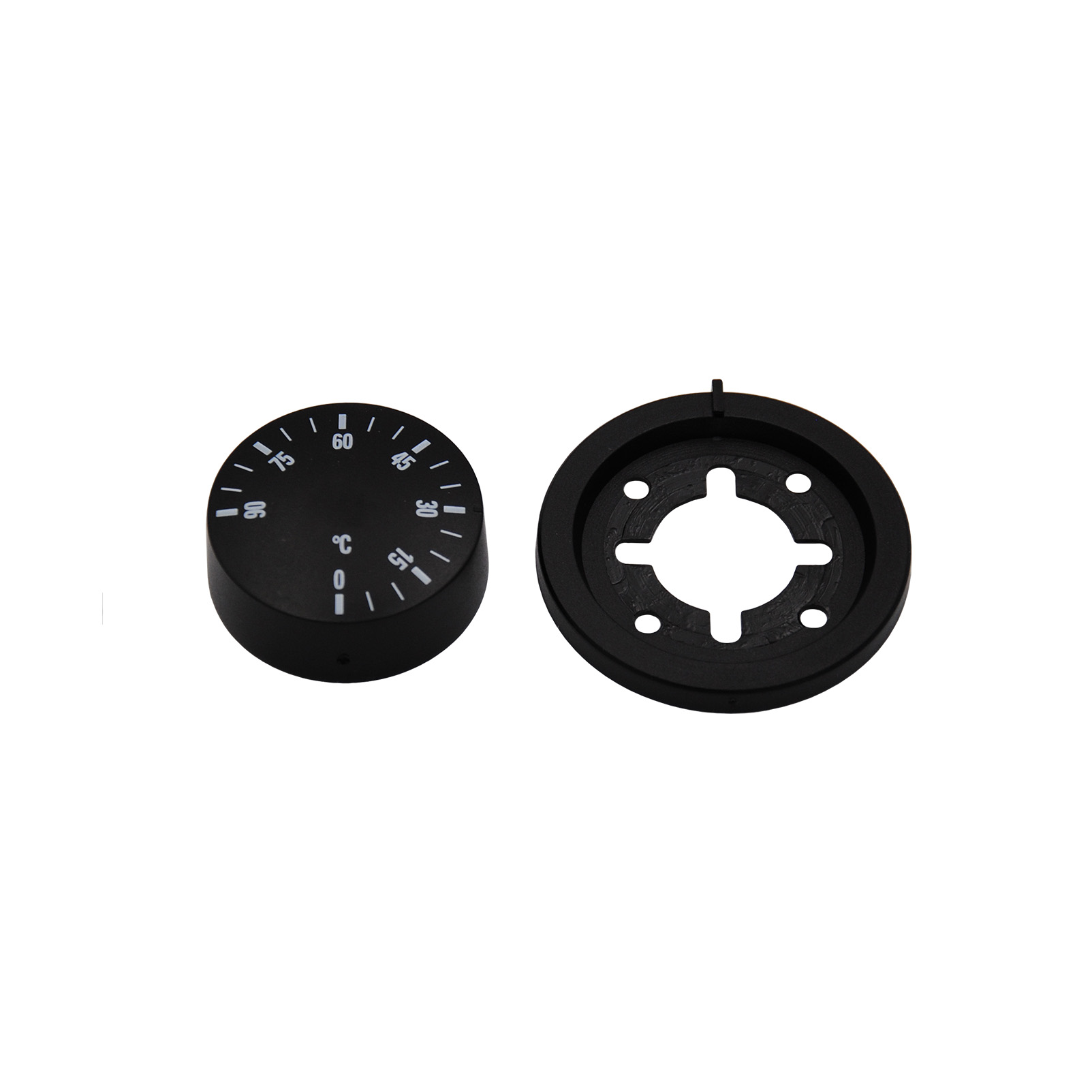

Pad-printed knob is also available, together with the support ferrule (SKU R03009).

*ELECTRICAL CONTACT CAPACITY*	NC 16(6) / A 250 Vac
*CONTACTS*	exchange
*MAXIMUM HEAD TEMPERATURE*	85°C
*MINIMUM RADIUS OF CURVATURE OF THE CAPILLARY*	5 mm

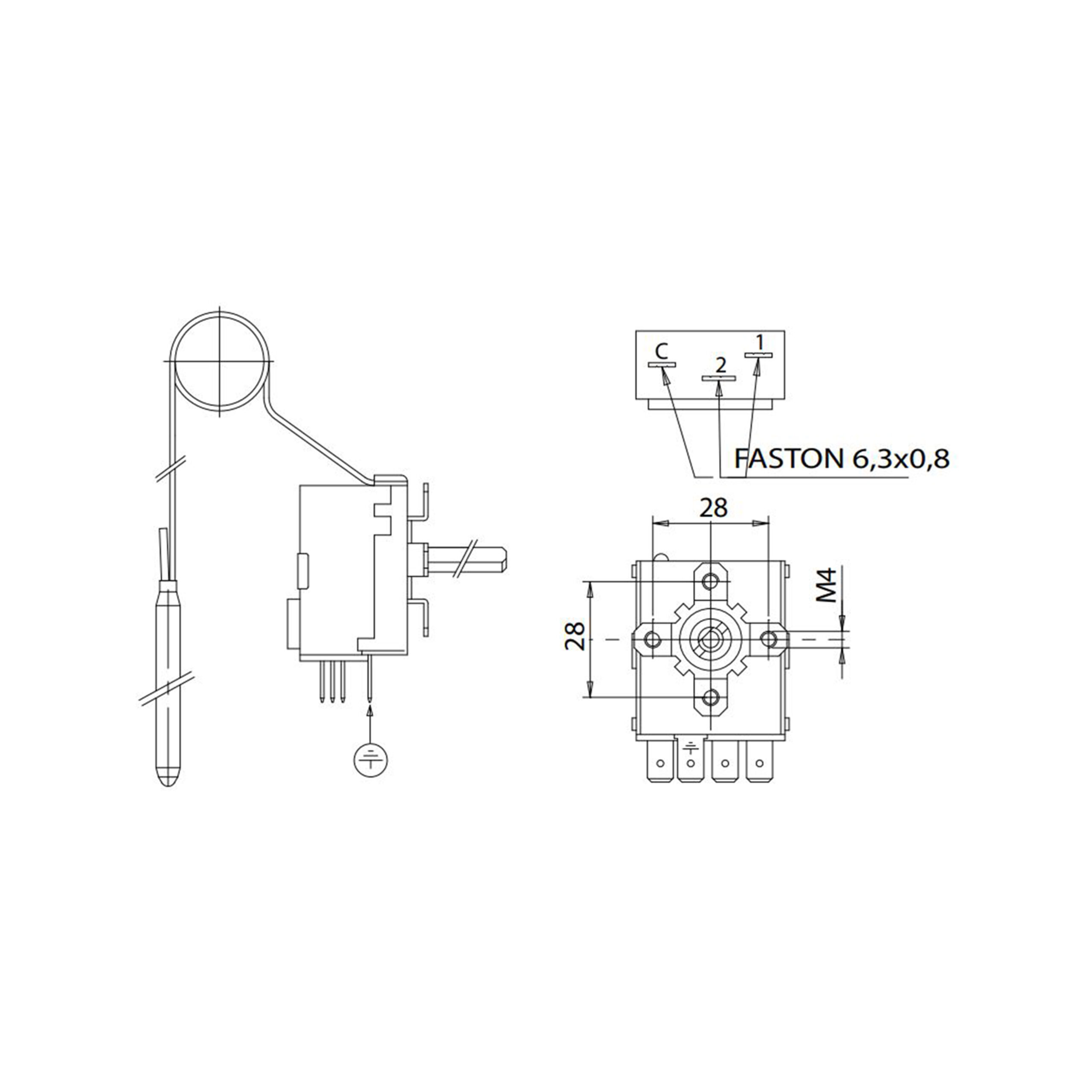

*CONNECTION*	through faston 6,3 x 0,8
*ADJUSTABLE TEMPERATURE*	0°C ÷ + 90°C
*CAPILLARY LENGTH*	1000 mm - *sku R03001* 1500 mm (PVC coated) - *sku R03000* 1500 mm - *sku R03002*
*BULB DIMENSION*	Ø 6,5 x 95 mm
