90° Elbow with Inspection
For rigid single wall system
UNI EN 14471 - UNI 11528 - UNI 7129 RULE
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000051338 |
90° ELBOW WITH INSPECTION - Ø 80 mm |
€61,20 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000051413 |
90° ELBOW WITH INSPECTION - Ø 60 mm |
€11,90 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000051414 |
90° ELBOW WITH INSPECTION - Ø 100 mm |
€18,45 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000051415 |
90° ELBOW WITH INSPECTION - Ø 125 mm |
€24,30 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000051416 |
90° ELBOW WITH INSPECTION - Ø 160 mm |
€34,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

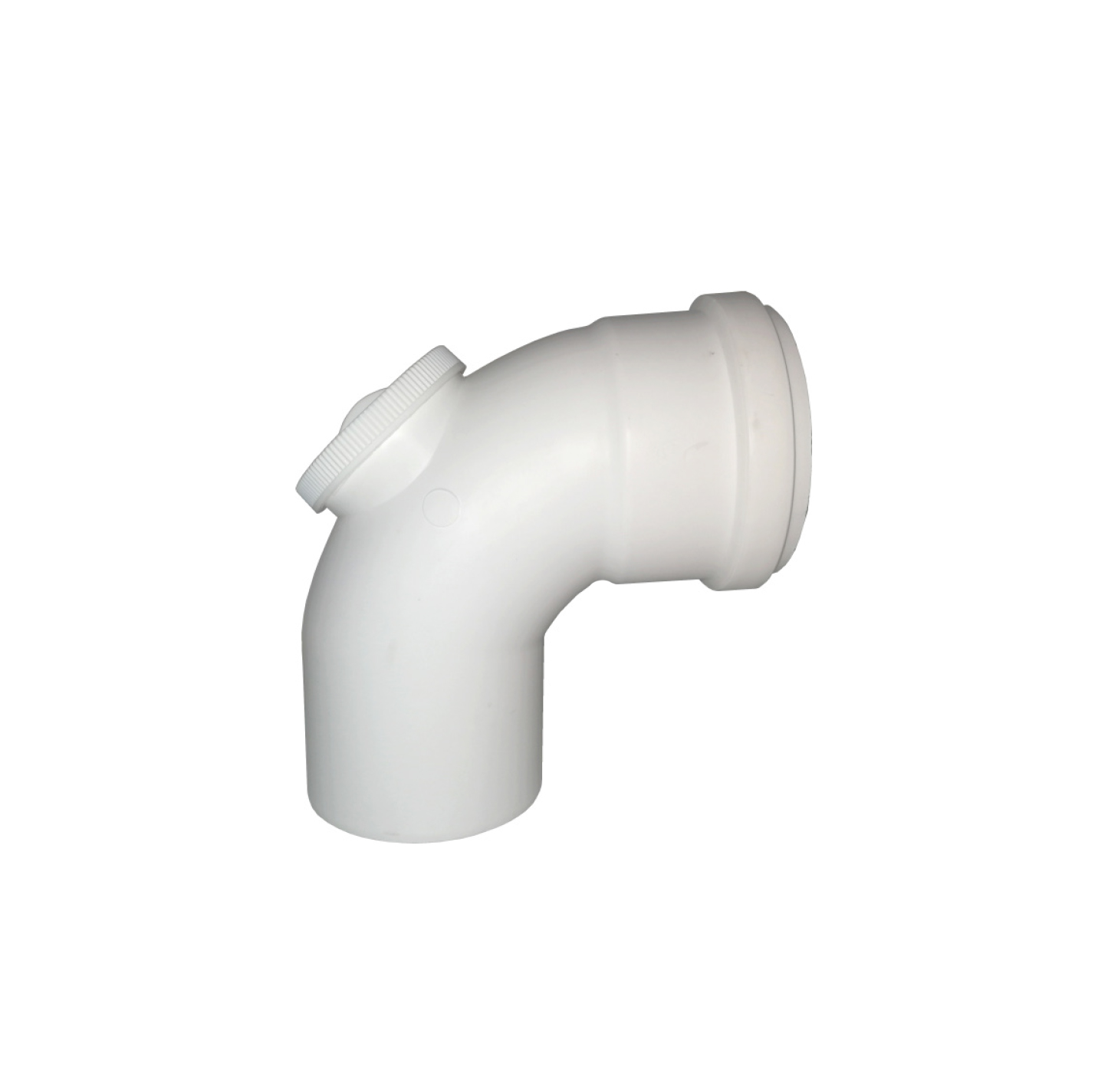

Elbow with inspection that allows the deviation of the ducts by 90°, sure enough it has a screw cap to allow the possible control and cleaning of the smoke duct, while still guaranteeing pressure tightness.
Product features
- made in diameters: Ø 60 mm - Ø 80 mm - Ø 100 mm - Ø 125 mm - Ø 160 mm
- finished in RAL 9010 color
Technical Features
| DESIGNATION | T120 H1 W 2 O00 LI E U |
|---|---|
| TYPE OF MATERIAL | self-extinguishing PPs |
| PRESSURE RESISTANCE | with EPDM gaskets conforming to the EN 14241 standard |
| APPLICATION RANGE | condensing boilers and cooking steam exhaust |
| CORROSION RESISTANCE | type 2 |
| SUITABLE FUELS | methane gas |
| FIRE REACTION | Class "E" (according to EN 13501-1) |
| OPERATING TEMPERATURE | continuous operation up to 120°C wet under pressure with EPDM gasket |

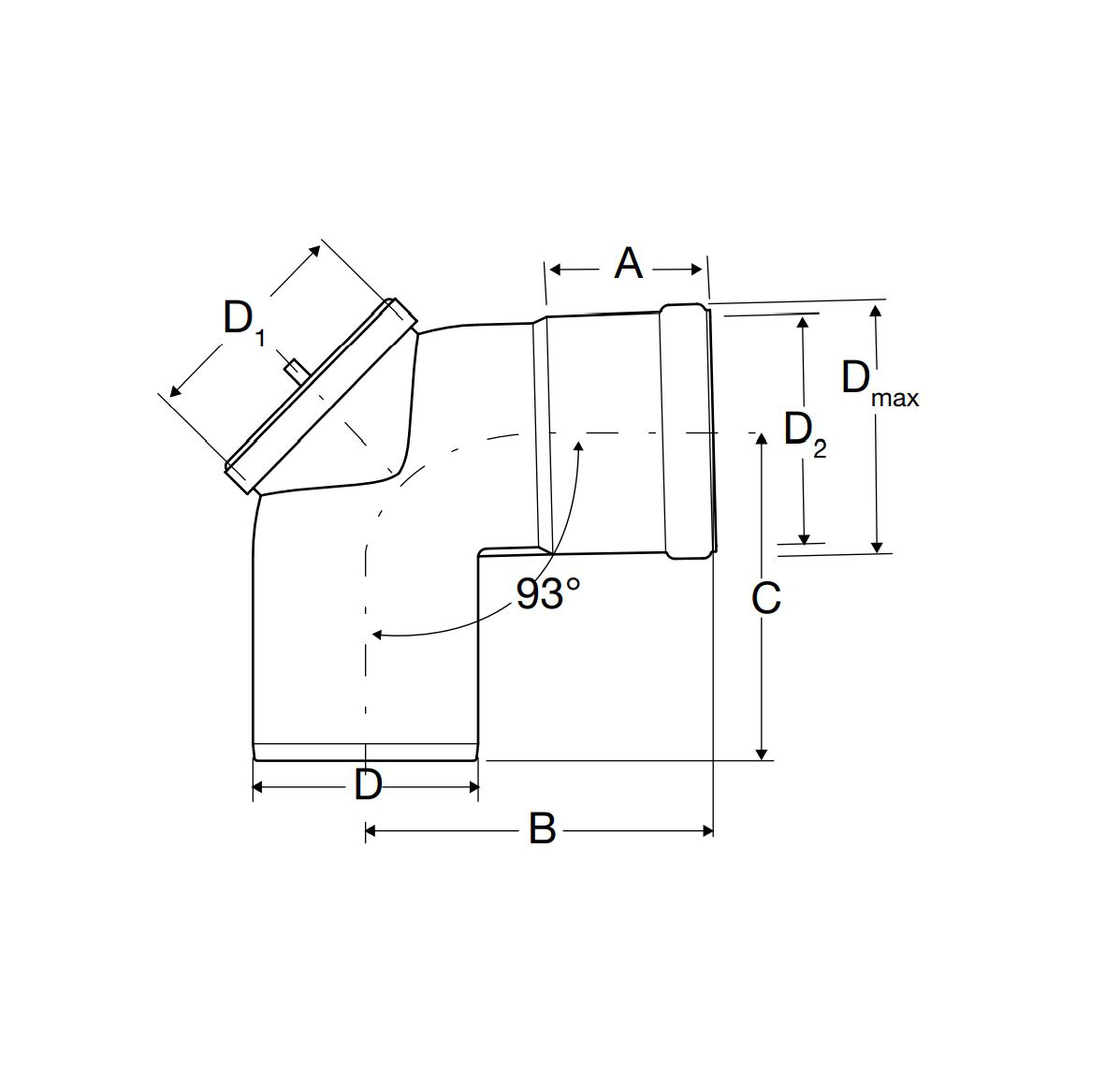

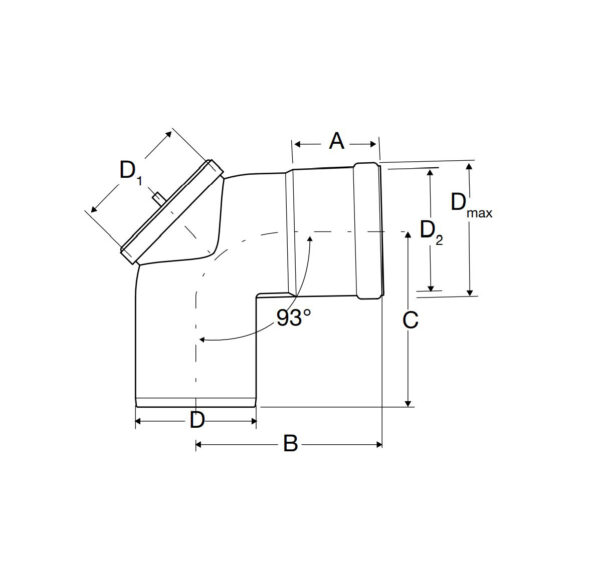

| SKU | D | D1 | D2 | Dmax | A | B | C |
|---|---|---|---|---|---|---|---|
| 51413 | Ø 60 mm | 72 | 61 | 68 | 50 | 90 | 92 |
| 51338 | Ø 80 mm | 72 | 81 | 90 | 53 | 103 | 106 |
| 51414 | Ø 100 mm | 72 | 101 | 112 | 56 | 118 | 120 |
| 51415 | Ø 125 mm | 122 | 126 | 139 | 64 | 146 | 129 |
| 51416 | Ø 160 mm | 122 | 161 | 171 | 72 | 168 | 156 |
