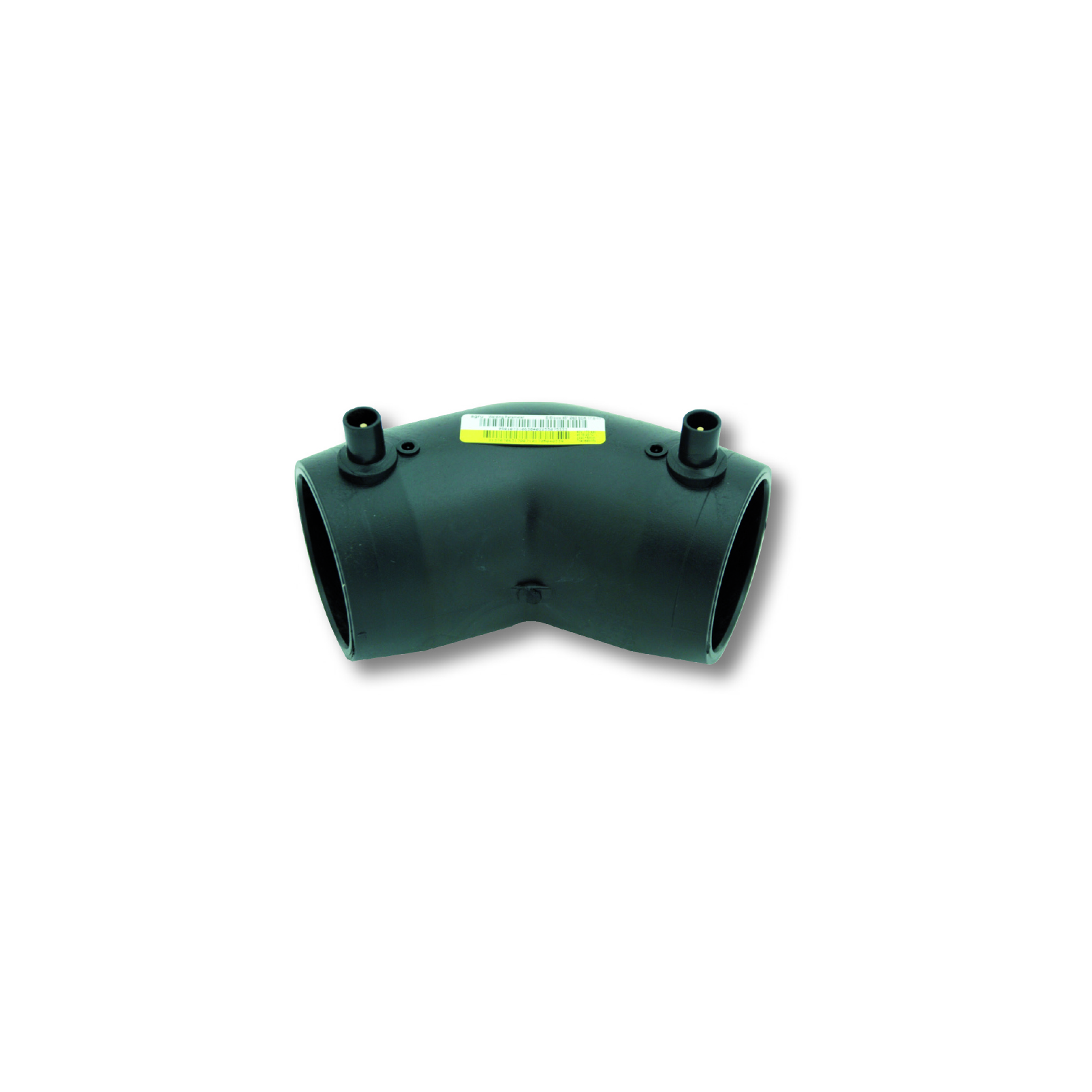

45° Electro-Weldable Elbow

For water and gas

OTHER DIAMETERS ON REQUEST

COMPLIANT WITH UNI EN 12201-3 AND UNI EN 1555-3 RULE

sku model price info add to cart

00000021283

45° ELECTRO-WELDABLE ELBOW - Ø 50 mm

€32,05 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
15 × 9 × 9 cm

Volume:
0.0012 m3

Weight:
0,20 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000021284

45° ELECTRO-WELDABLE ELBOW - Ø 63 mm

€32,90 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
16 × 7 × 7 cm

Volume:
0.0008 m3

Weight:
0,34 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000021285

45° ELECTRO-WELDABLE ELBOW - Ø 75 mm

€49,15 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
15 × 8 × 8 cm

Volume:
0.001 m3

Weight:
0,50 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000021286

45° ELECTRO-WELDABLE ELBOW - Ø 90 mm

€54,85 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
20 × 10 × 10 cm

Volume:
0.002 m3

Weight:
0,90 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000021287

45° ELECTRO-WELDABLE ELBOW - Ø 110 mm

€78,25 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
25 × 13 × 13 cm

Volume:
0.0042 m3

Weight:
1,45 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000021288

45° ELECTRO-WELDABLE ELBOW - Ø 125 mm

€109,95 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

Product informations

Injection molded fitting in virgin PE100, for gas and water applications.



Product features

  • modular system with resistance embedded in the body of the fitting
  • smooth internal surface in the welding area in order to guarantee greater safety when inserting the pipe into the fitting, with better heat emission of the resistance
  • 4 mm automatic pin
  • designed, built and tested according to the highest quality standards, combined with the most modern technologies
  • check that both pipes and the fitting to be joined are compatible, only materials compatible between them can be joined together (the safety fittings can be welded with pipes having SDR from 17.6 up to SDR 7.4)
  • the safety fittings are approved for use in the water and gas sector (in Italy by the Istituto Italiano dei Plastici)

Technical Features

MATERIAL Virgin PE100 (high density polyethylene with minimum guaranteed breaking load value of 80 Mpa for 50 years at 20°C)
MAX WORKING PRESSURE PN16 water / 10 bar gas (depending on the welded pipe and any local regulations on the pressure of the pipe)
THICKNESS SDR11
TEMPERATURE RANGE - 10°C ÷ + 40°C

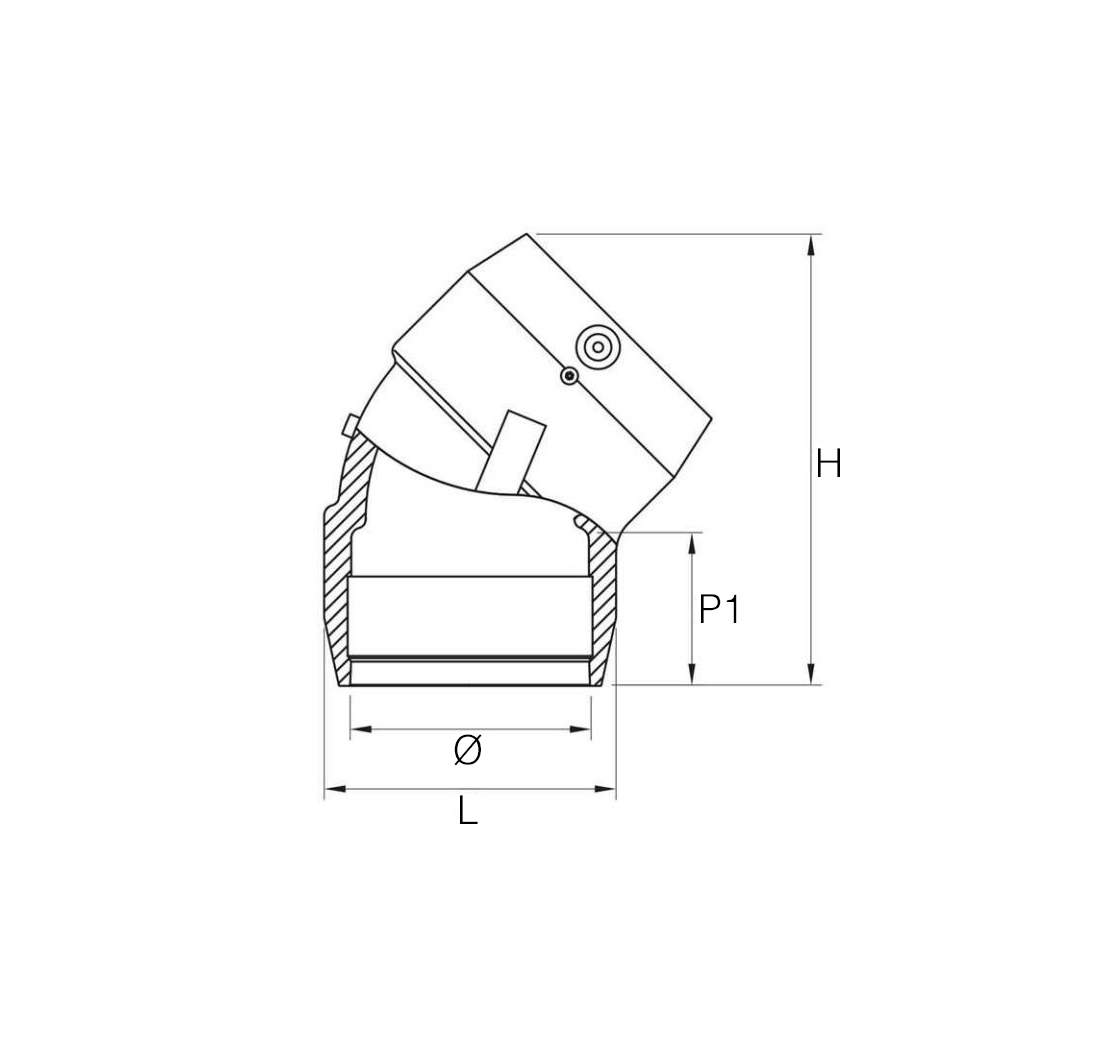

SKU

LENGTH (L)

 P1

HEIGHT (H)

 DIAMETER FUSION TIME COOLING TIME KG (single piece) PACKAGING
21283 64 mm 44,3 mm 124 mm Ø 50 mm 90 sec. 5 min. 0,139 1 pcs.
21284 78,5 mm 50 mm 137 mm Ø 63 mm 35 sec. 5 min. 0,234 1 pcs.
21285 94 mm 54 mm 165 mm Ø 75 mm 70 sec. 5 min. 0,351 1 pcs.
21286 117 mm 60 mm 177 mm Ø 90 mm 110 sec. 10 min. 0,55 1 pcs.
21287 137 mm 75 mm 213 mm Ø 110 mm 140 sec. 10 min. 0,93 1 pcs.
21288 154 mm 81 mm 240 mm Ø 125 mm 140 sec. 10 min. 1,276 1 pcs.
